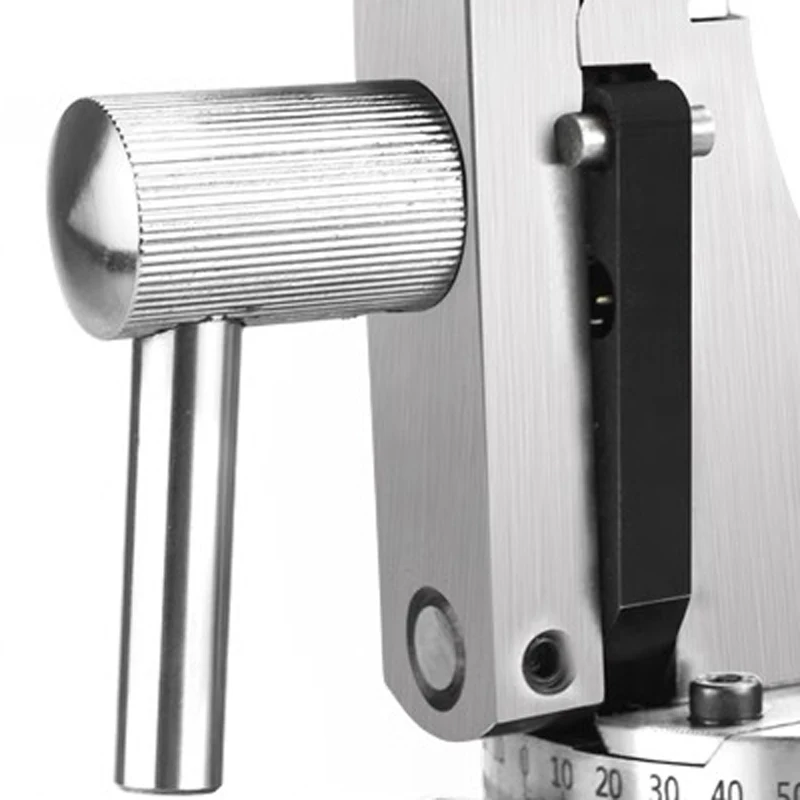

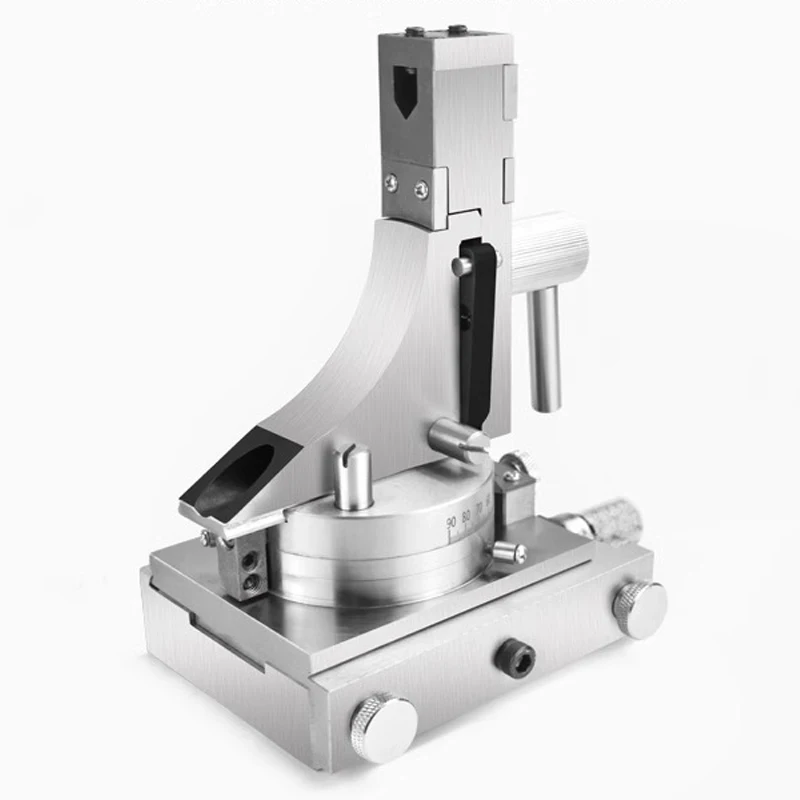

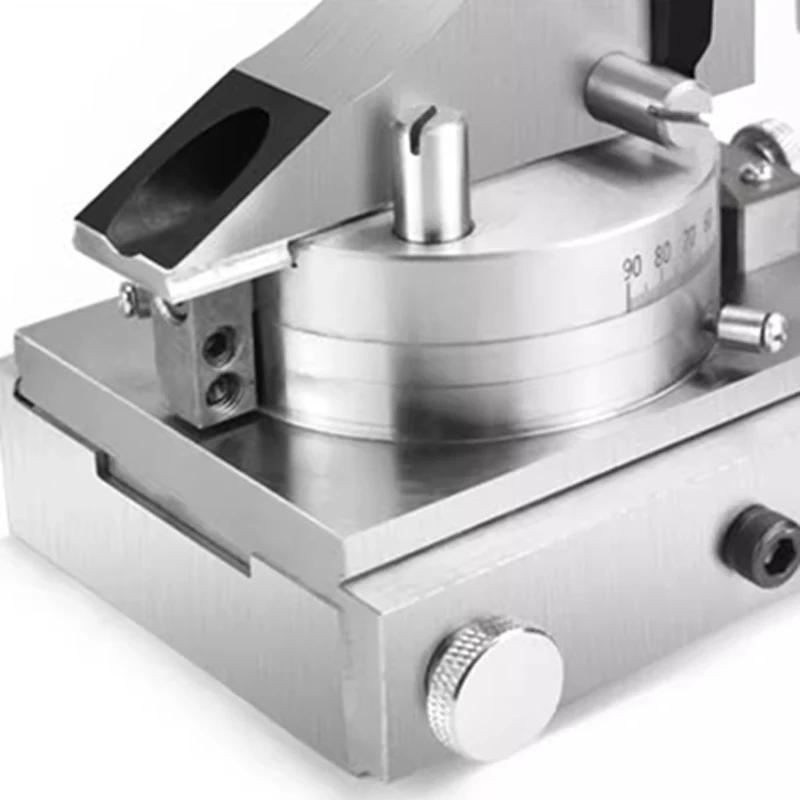

Name: Universal Grinding Wheel Dresser
Model: WD165
Center Height: 193MM
Diameter of Measuring Alignment Pin: Φ10MM
Maximum Swinging Distance of Diamond Knife: ±14MM
Maximum Diameter of Grinding Wheel: Φ205MM
Turntable Accuracy: 5°
Maximum Feed Amount: 25MM
Push Handle Scale: 0.01MM/Grid
Maximum Convex Arc Dressing: 50R
Concave Arc Dressing Range: 0-100R
Dimensions: 156*105*178MM
Weight: 5KG
Features: WD165 Universal Grinding Wheel Dresser is suitable for dressing various truncated grinding wheels composed of straight lines and arcs on surface grinders and universal tool grinders
Calculation Formula:
Reset to Zero: H=L=ZeroR
Dressing Convex Arc: H=L+R
Dressing Concave Arc: H=L-R
H-Distance between the outer female ridges of the two alignment pins
R-Radius of the arc to be dressed
L-Distance from the tip of the diamond knife to the reference plate
Scope of application: The universal grinding wheel dresser is suitable for surface grinders and universal tool grinders to dress various truncated grinding wheels composed of straight lines and arcs.
