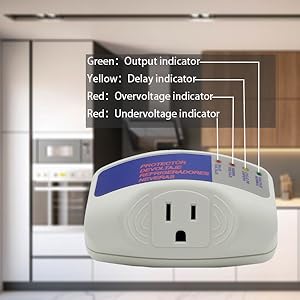

4 LED Indicator Lights

Green：Output indicator

Yellow：Delay indicator

Red：Overvoltage indicator

Red：Undervoltage indicator

Product parameters

  • voltage/frequency：120VAC/50-60HZ
  • Capacity：              12A ,1440W
  • Start-up /Delay Time：3M
  • Hysteresis For Cut-off：3V to 5V AC
  • Shell material：PC flame retardant

Appliance surge protector

Four Protection Modes

Under protection

Over protection

Delay protection

Surge protection

Delay Protection

Delay starting for three minutes to prevent instantaneous high voltage from damaging electrical appliances.

Lightweight and Compact Design

Size：100*65*57mm

Can be easily used with various sockets in the home.

High Quality Materials

The shell material is ABS, V0 flame retardant grade. The hardware is 0.7mm thick beryllium bronze. Using high-quality relays.

Features：


  • Automatic Induction Protection: Protect your electrical devices by interrupting the current flow from voltage spikes, instant surge, voltage fluctuation, brownout, and that voltage which are too high or too low

  • Delay Function: If the device encounters (electric power) voltage fluctuations, it will protect the appliance by providing the output until the voltage stabilizes. The “DELAY” indicator would be turned on to inform its user. The appliance would be delayed for 3 mins to confirm that the voltage is stable so that it could be re-established
​
  • Working Principle: As there is an interruption in the current flow, the Voltage surge protector gives an interval of 3 minutes to allow the voltage to stabilize. Additionally, the Voltage surge protector provides protection against voltage spikes that can damage electrical equipment.

  • Applicable Equipment: The voltage (surge) protector suit for Air Conditioners, Freezers, Ice Makers, Washing Machines, or any Large Appliances.
  • LED INDICATOR: Light indicators for Normal(Output), High(Overvoltage), Low(Undervoltage), and Delay
​​
  • 3-Years Warranty.

Specifications

  • Working voltage: 120V AC
  • Operating frequency: 50 Hz-60 Hz
  • Undervoltage cut-off: 90V AC
  • Overvoltage cut-off: 140V AC
  • Cut-off hysteresis: 3V to 5V AC
  • Delay time: 3min
  • Output capacity: 12A ,1440W

What's in the package

  • 1 x Surge Protector

Quick installation in 2 steps：
Plug the device you want to protect into the surge protector.
Plug surge protector into the electrical outlet and wait 3 minutes until lights changes to green color (green color indicates that normal voltage has been reached).
