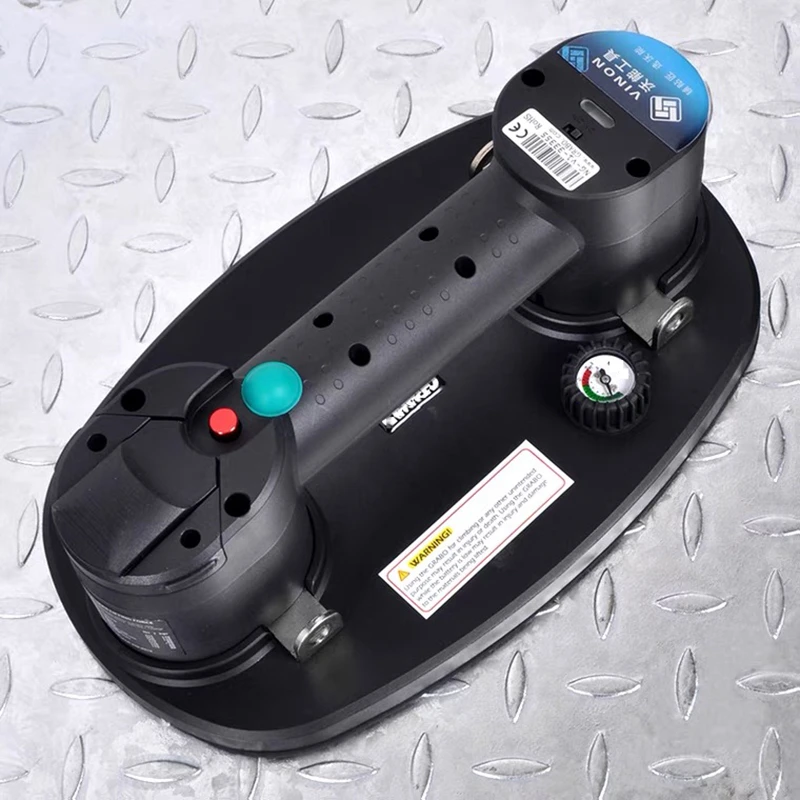

170KG Electric and Two Sealing Rings Vacuum Suction Cup Tile Lifter Heavy Duty Wood Glass Tiles Carry Lifter

Specifications

Model Number : vacuum glass suction lifter
Max lifting load : 375 lbs (170 kg)
Battery Voltage: 14.8V Li-ion
Battery Cell Specification: 2.6 Ah
Rated Power: 16W
Dimensions: 297 x 181 x 115mm (11.7 x 7.1 x 4.5 inches)
Net weight (with battery): 1.5kg (3.3lbs)
Working temperature: -5°C – 60°C (23°F – 140°F)
Working time (full charge): 1.5 hours

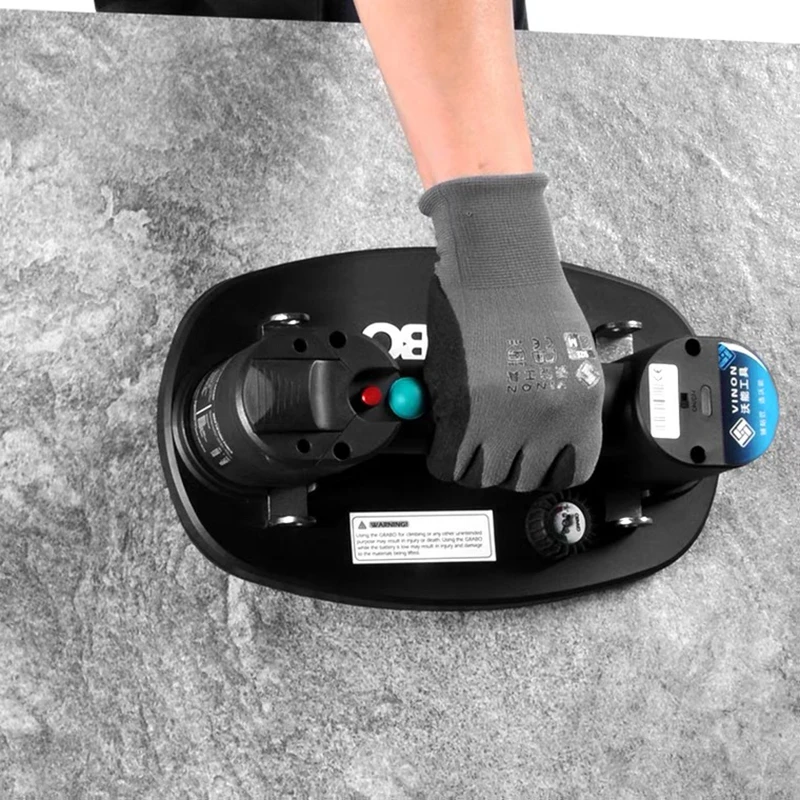

Designed to lift smooth or rough marble,granite and ceramic slabs.

-Powered by rechargable battery.
-Portable suction cups for out door application.
-Easy for suck and release
-Supplied with protective carrying case
-For flat,uneven,smooth or rough surface

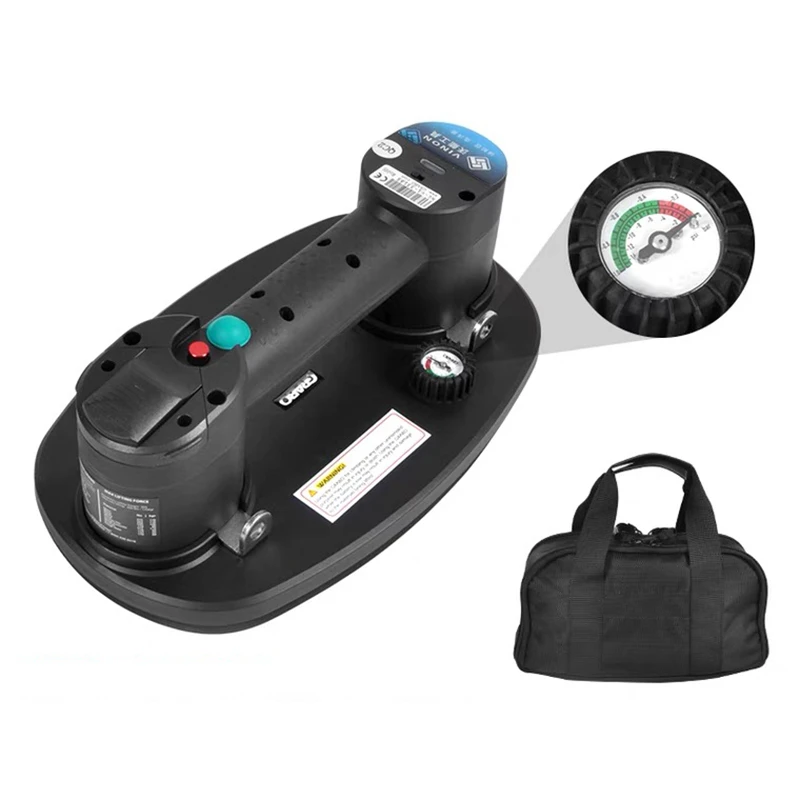

kit contains: classic electric suction cup

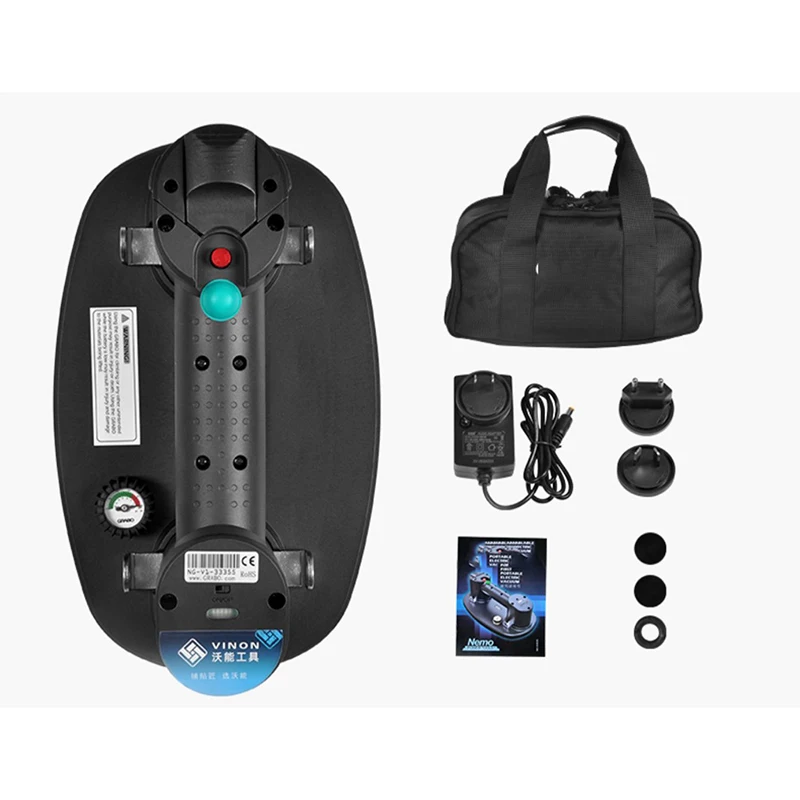

Equipped Tools include: mechanical pressure gauge (with rubber protective layer), multi-plug charger, spare seal Sealing ring (total of two sealing rings), Instructions for use and canvas tote woven bag.

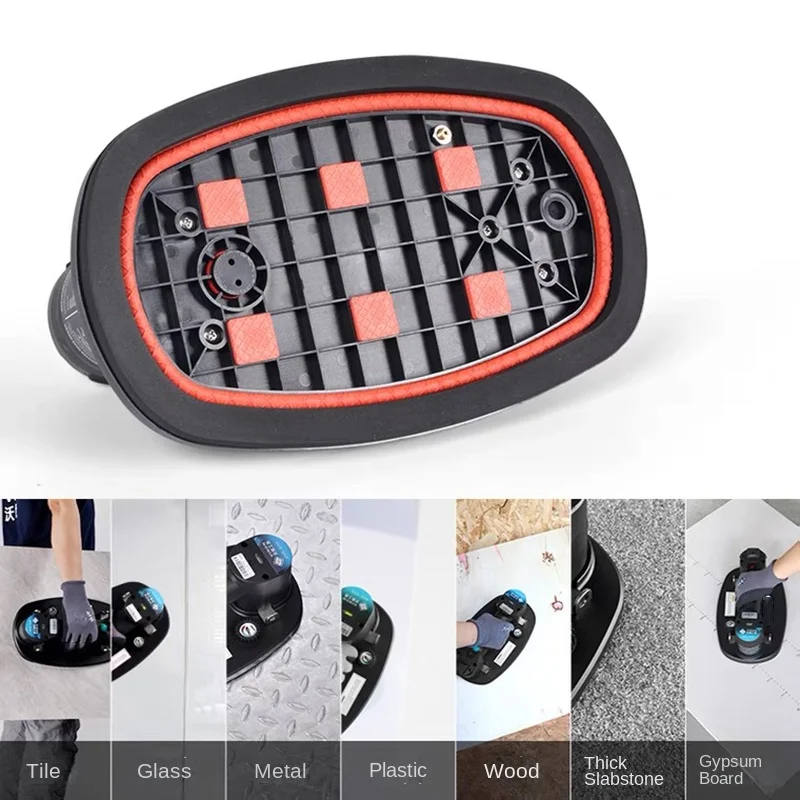

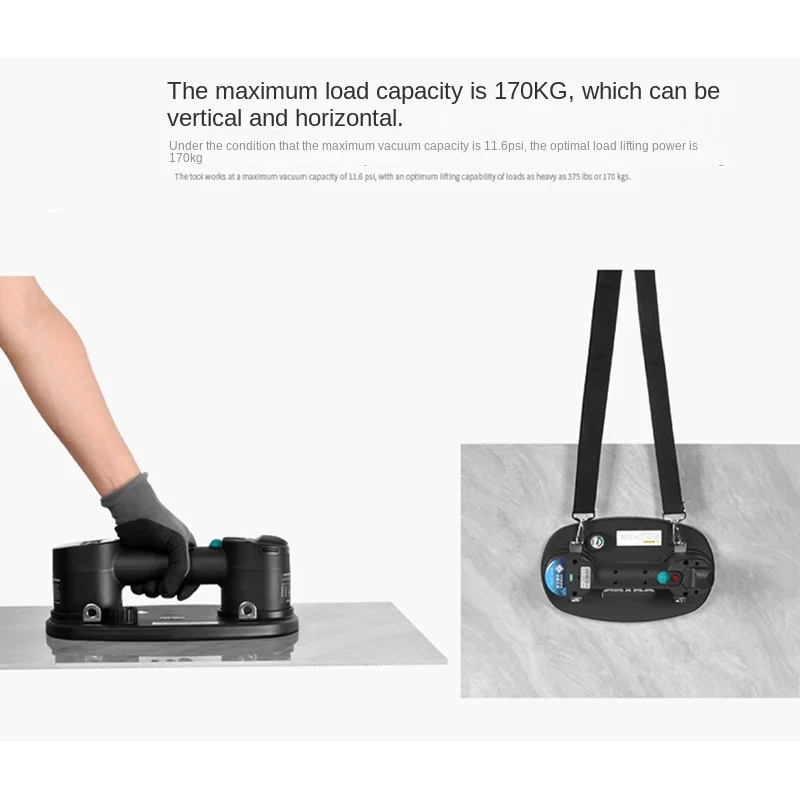

Maximum load weight
material
ceramic tile:
170kg in vertical direction
170kg in horizontal direction
Glass:
170kg in vertical direction
170kg in horizontal direction
Metal:
110kg in vertical direction
110kg in horizontal direction
plastic:
100kg in vertical direction
100kg in horizontal direction
block:
100kg in vertical direction
Horizontal direction 65kg
Rough slate:
80kg in vertical direction
80kg in horizontal direction
Concrete:
80kg in vertical direction
80kg in horizontal direction
Drywall:
Vertical direction 75kg
Horizontal direction 65kg
