Product Description

1

Features:

1.This piggyback oil drain plug to repair your slipped oil pan thread, no need to replace whole pan, easy installation.

2.This oil drain plug is made of stainless steel material and CNC processing, the surface is painted, which is wear-resistant, durable and scratch-resistant, providing enough hardness for a long service life.

Specification:

  • Color: Silver Tone
  • Material: Stainless Steel
  • Craft: CNC Processing
  • Oil drain plug Size: M14.1x1.5x15mm or M12.1x1.25x15mm or M12.1x1.5x15mm

3

4

6

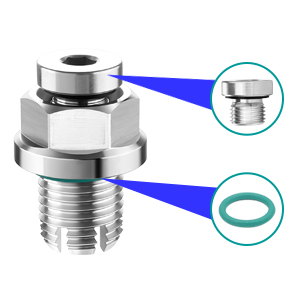

Good Sealing

High quality O-ring fluoroelastomer gasket with high temperature and corrosion resistance, strong sealing to prevent oil leakage

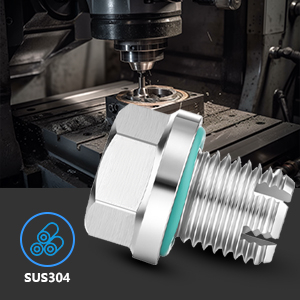

CNC Machining Design

Made of stainless steel 304 with CNC cutting technology, have enough hardness and precision to re-thread the oil pan.

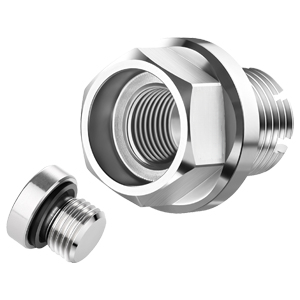

Small and Large Screw Design

By removing the small screw, the waste oil in the oil pan can be drained out directly.

7

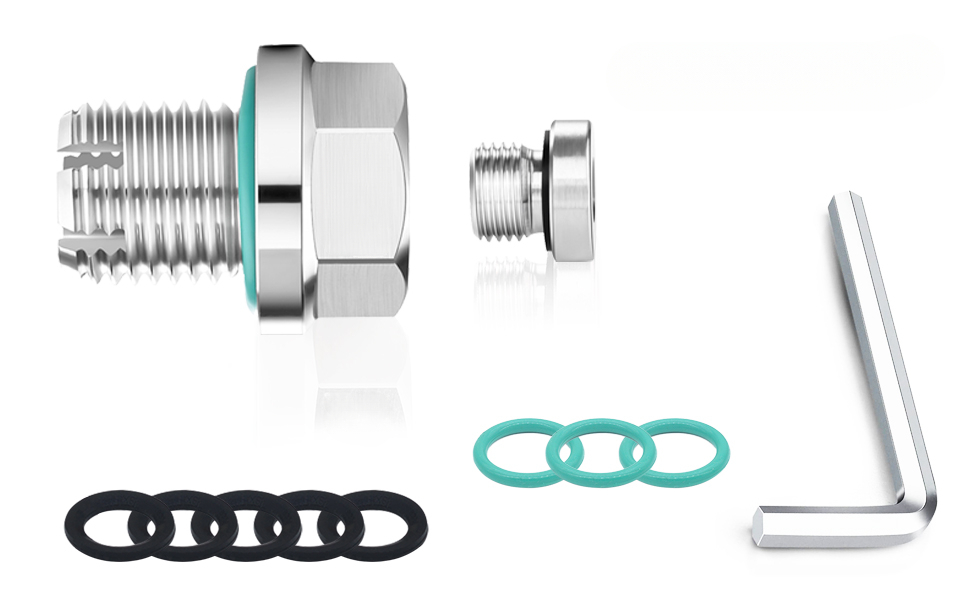

Installation Method:

1. Clean the oil pan before installation to ensure that the area and threads are free of excess oil and impurities.

2. Thread the piggyback plug into the hole, forward a few turns, then back a few turns.

3. After the plug bottoms out, remove it, then clean up the iron chips around the punch hole

4. Using a T-socket wrench, torque the plug to approximately 14ft-lbf.

5. After installing the piggyback plug, screw in the small piggyback oil drain plug, and the installation is complete (Note: When removing the small oil drain plug, please ensure that the large piggyback plug is in a fixed state)
