What's in the box
-

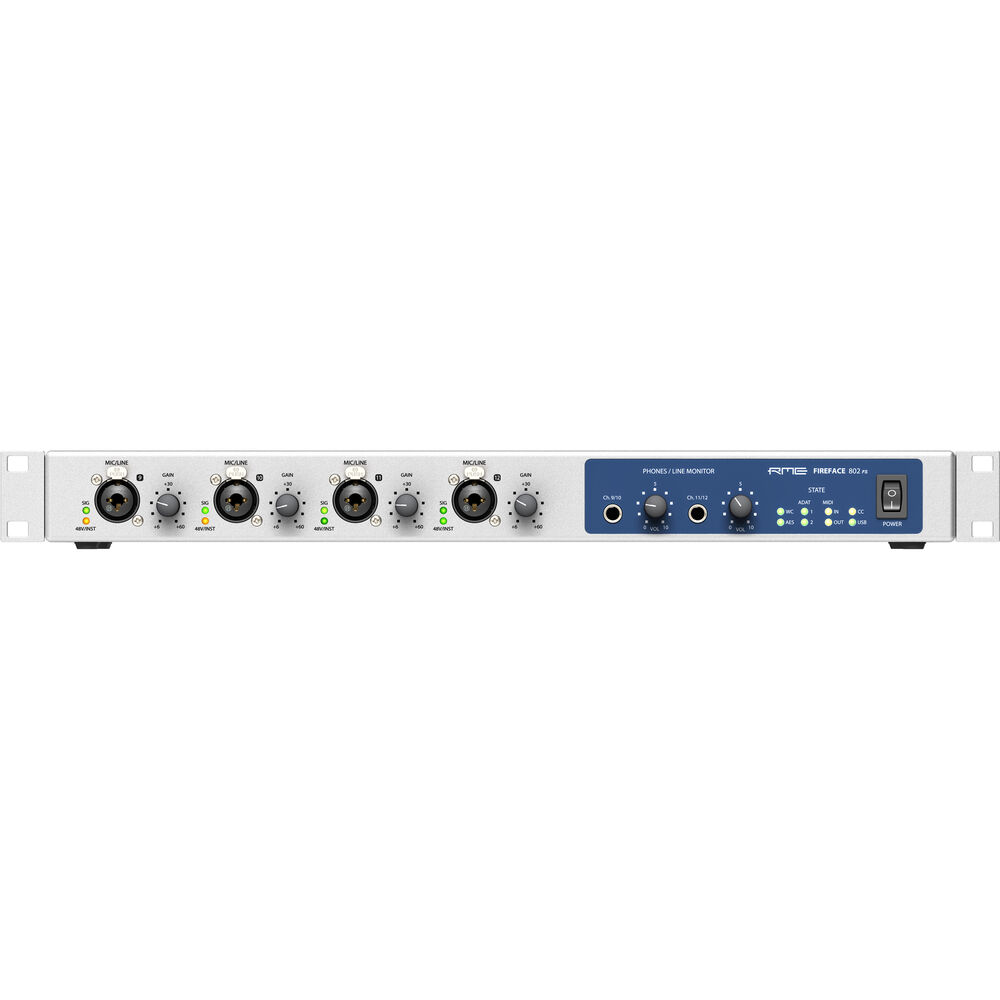

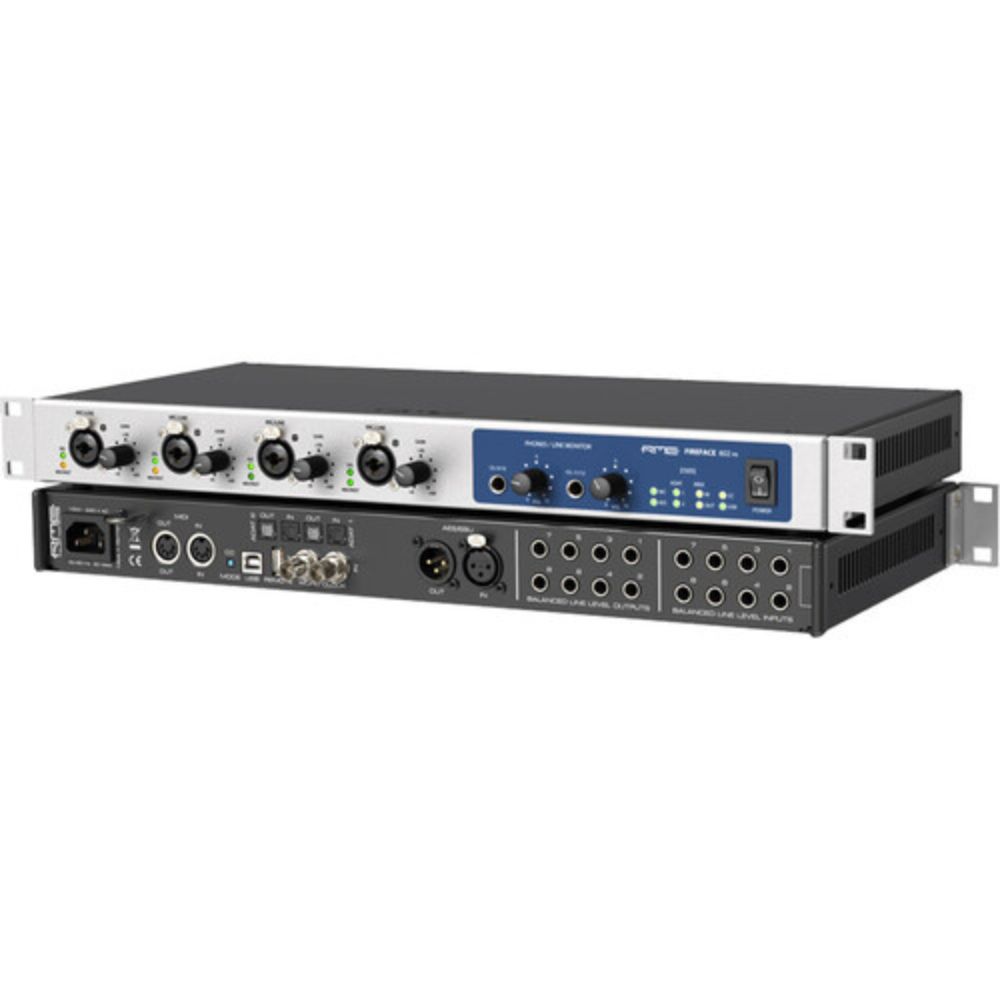

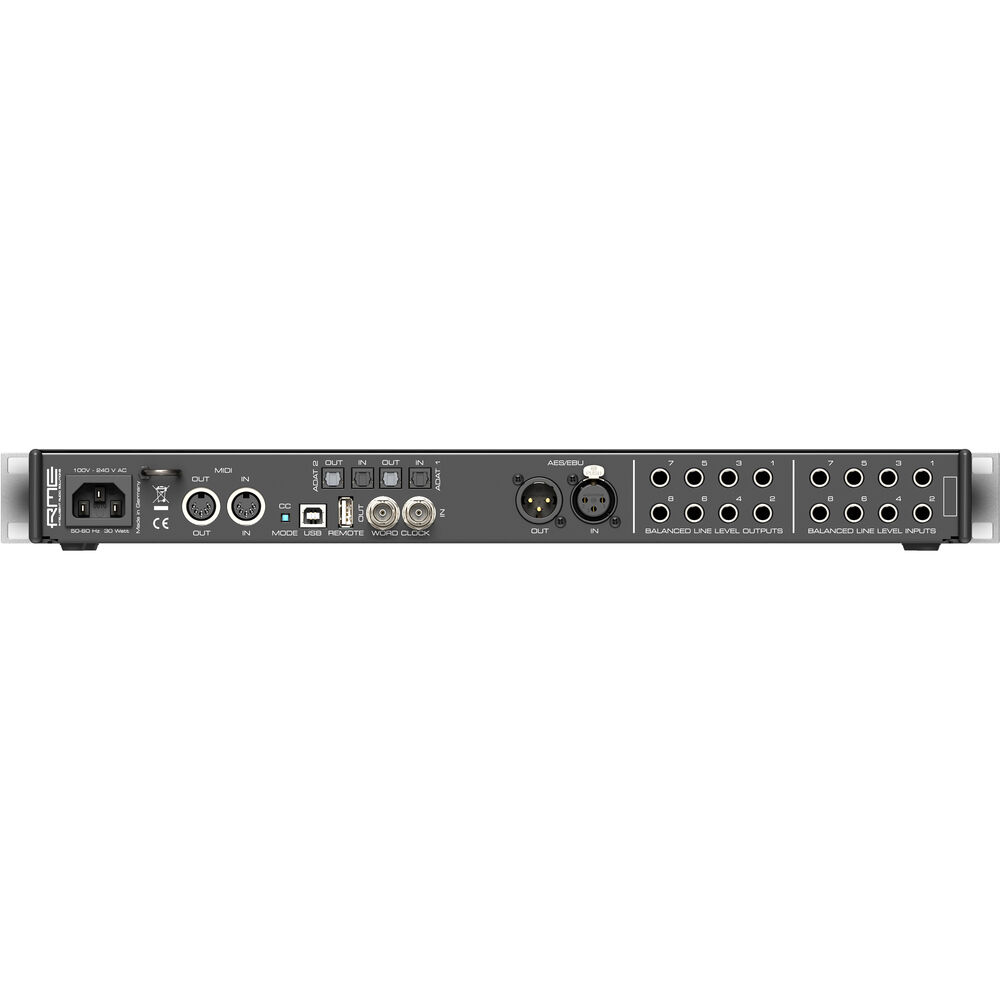

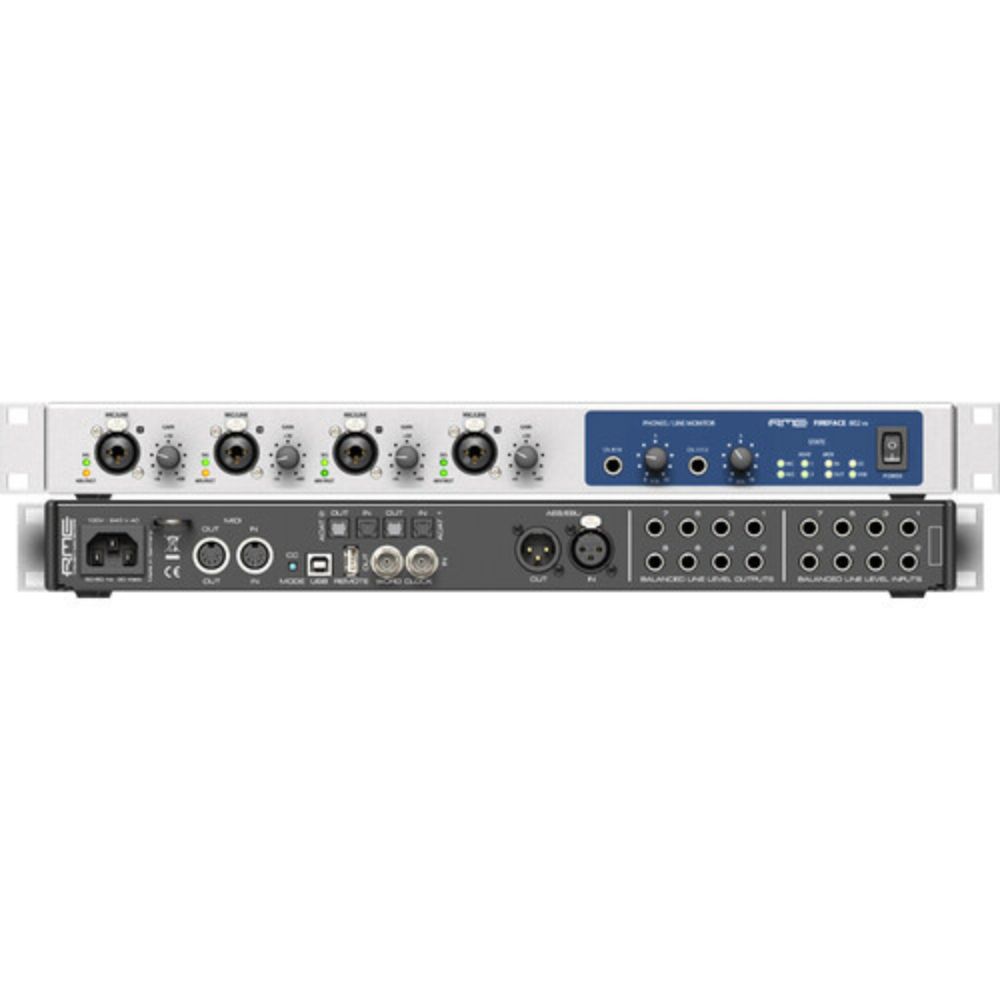

RME RME Fireface 802 FS 60-Channel USB-B Audio/MIDI Interface
- 1x RMFF802FS Audio Interface
- 1x USB Cable (6')
- 1x Toslink Optical Cable (6.6')
- 4x Rubber Feet (Self Adhesive)
- 1x Power Cord
- 1x SOMDR7506 Calibration Software with Mic

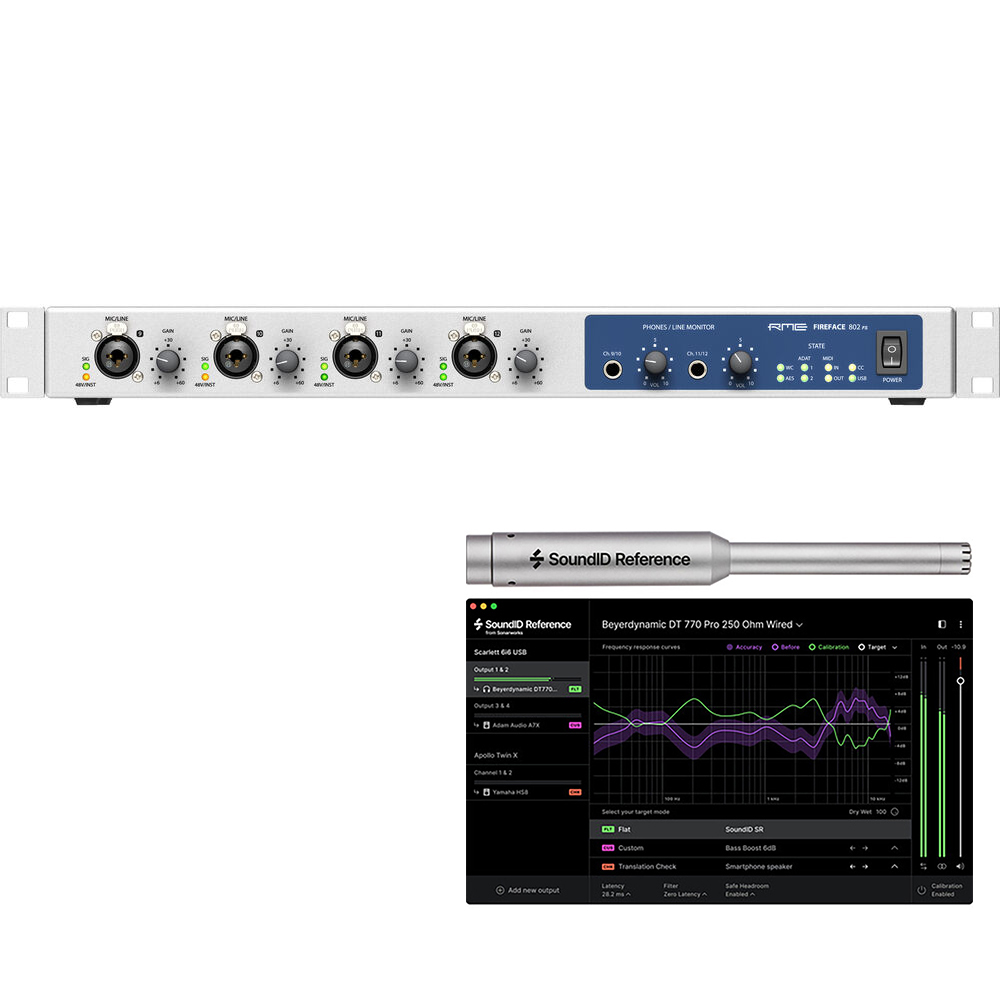

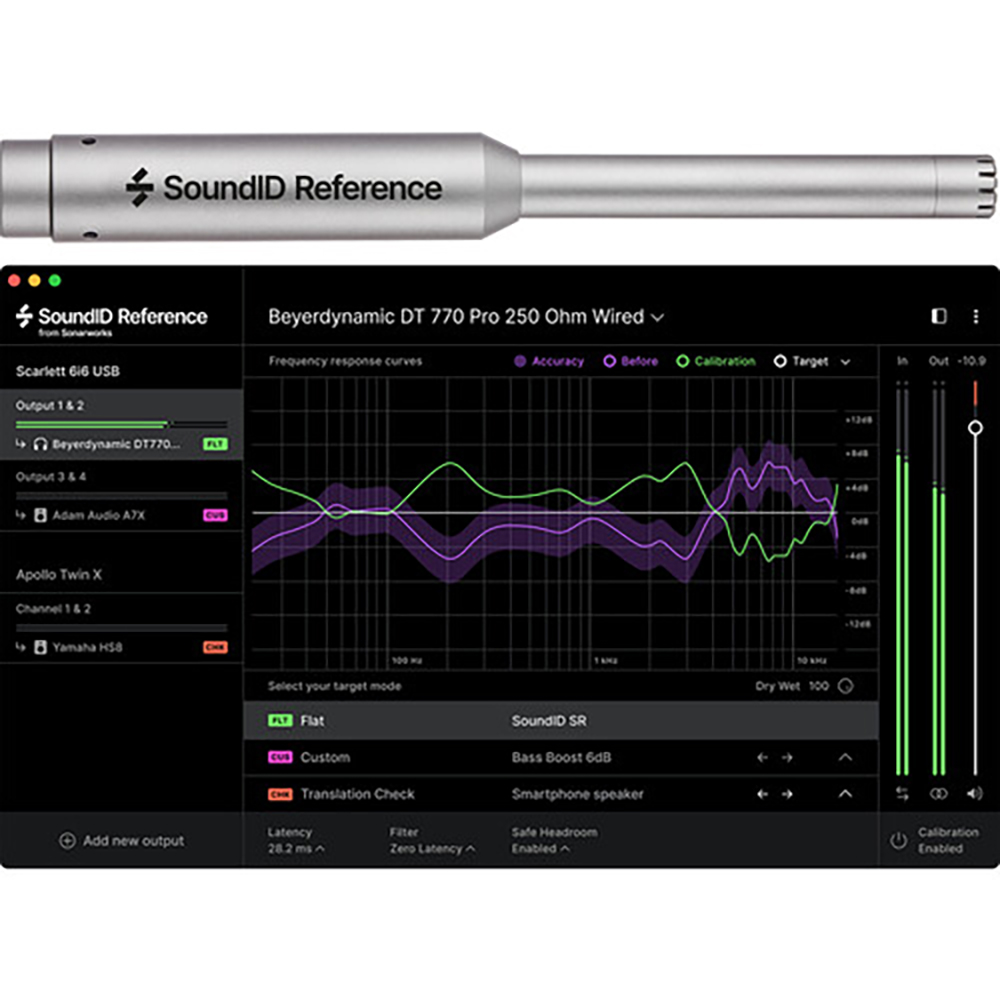

SONARWORKS SoundID Reference Speaker and Headphone Calibration Software with Measurement Microphone
-
RME RME Fireface 802 FS 60-Channel USB-B Audio/MIDI Interface
- 1x RMFF802FS Audio Interface
- 1x USB Cable (6')
- 1x Toslink Optical Cable (6.6')
- 4x Rubber Feet (Self Adhesive)
- 1x Power Cord
- 1x SOMDR7506 Calibration Software with Mic
SONARWORKS SoundID Reference Speaker and Headphone Calibration Software with Measurement Microphone
| Brand | RME |
| Model | RME FIREFACE 802 FS |
| MPN | RMFF802FS |
| Suitable For | Recording & Live Sound, Stage/Live Sound, Studio/Recording |
| Type | USB Audio Interface |
| Form Factor | Rackmount |
| Display | None |
| Channels of I/O | 30 Inputs / 30 Outputs |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 192 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | 4 x Knob |
| Expansion Slots | None |
| Gain/Trim Range | Line Inputs: 0 to +12 dB Mic Inputs: 54 dB |
| Analog Audio I/O | 4 x Combo XLR-1/4 TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 8 x 1/4 TRS Balanced L |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | 2 x TOSLINK Optical ADAT / S/PDIF Input (S/MUX Support, S/MUX4 Support) 2 x TOSLINK Optical ADAT / S |
| Host Connection / USB | 1 x USB-B (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | 1 x USB-A (Remote) |
| Sync I/O | 1 x BNC Word Clock Input 1 x BNC Word Clock Output |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless | None |
| Frequency Response | 1/4 Line Inputs: 8.9 Hz to 20.4 kHz -0.1 dB (at 44.1 kHz) 4.3 Hz to 45.2 kHz -0.5 dB (at 96 kHz) 3 |
| Maximum Input Level | 1/4 Line Inputs: +19 dBu XLR Mic Inputs: +10 dBu (Gain +6 dB) -44 dBu (Gain +60 dB) 1/4 Line Input |
| Maximum Output Level | 1/4 Line Outputs: -10 dBv 1/4 Headphone Outputs: +17 dBu at 0 dBFS |
| Headphone Output Power | 1/4: 200 mW per Channel into 32 Ohms (Max, Unbalanced) |
| Impedance | 1/4 Line Inputs: 10 Kilohms (Unbalanced) 10.6 Kilohm (Unbalanced) XLR Mic Inputs: 3.4 Kilohms 1/4 |
| SNR | 1/4 Line Inputs: 118 dBA 116 dB (AES17) XLR Mic Inputs: 116 dBA 113 dB RMS (Unweighted) 1/4 Hi-Z I |
| THD | 1/4 Line Inputs: -120 dB / < 0.0001% (at -1 dBFS) |
| THD+N | 1/4 Line Inputs: < -110 dB / < 0.00032% (at -1 dBFS) 1/4 Line Outputs: < -110 dB / < 0.00032% |
| Channel Separation | 1/4 Line Outputs: > 110 dB |
| Sample Rates | 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 192 kHz |
| Bit Depths | 24-Bit |
| Sync Sources | ADAT, AES3, Internal, Word Clock |
| Clocking | Word Clock: Input Termination: 75 Ohms (Switchable) Output Voltage: 5 V p-p Jitter Suppression: > 50 |
| Memory Card Slot | None |
| OS Compatibility | macOS 10.12 or Later Windows 7 or Later iPadOS 9 or Later *As of June, 2023: Check with manufacturer |
| Included Software | None |
| Processor Requirement | Intel Core i5 Apple M1 |
| Mobile App Compatible | Yes: iOS Only App Name: TotalMix FX Functionality: Adjust Settings, Remote Control *As of June, 2023 |
| Mobile Device Compatibility | iPad |
| Internet Connection | Required for Software/Driver Download |
| Power Requirements | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 22 W (Typical) 15 W (Idle) |
| Rackmount Size | 1 RU |
| Operating Humidity | 75% (Non-Condensing) |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Dimensions | 19 x 9.5 x 1.73 / 48.3 x 24.1 x 4.39 cm (with Rack Ears) 17.2 x 9.3 x 1.73 / 43.7 x 23.6 x 4.39 cm |
| Weight | 6.2 lb / 2.8 kg |
