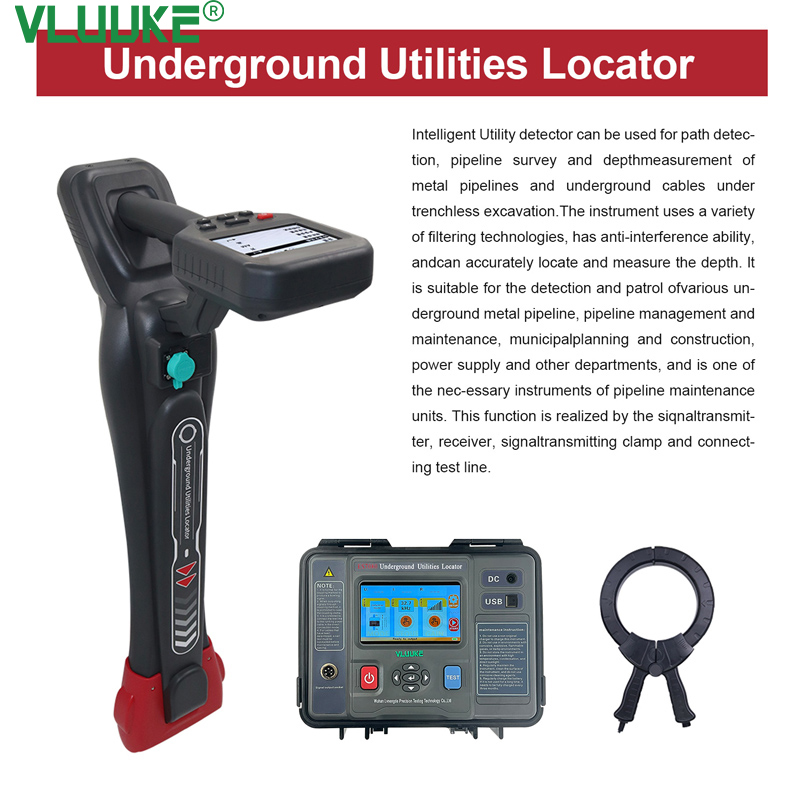

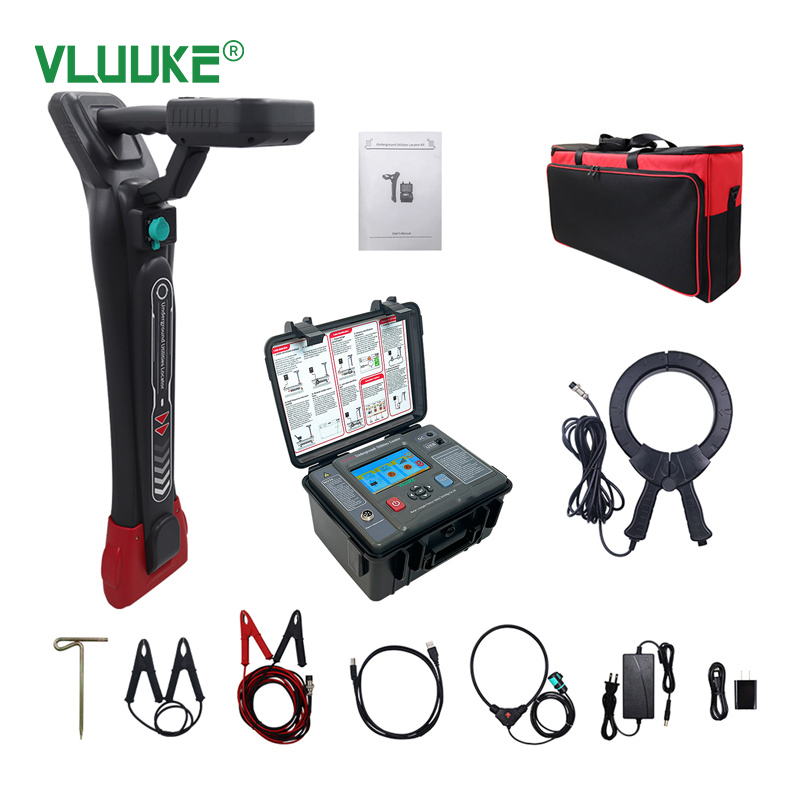

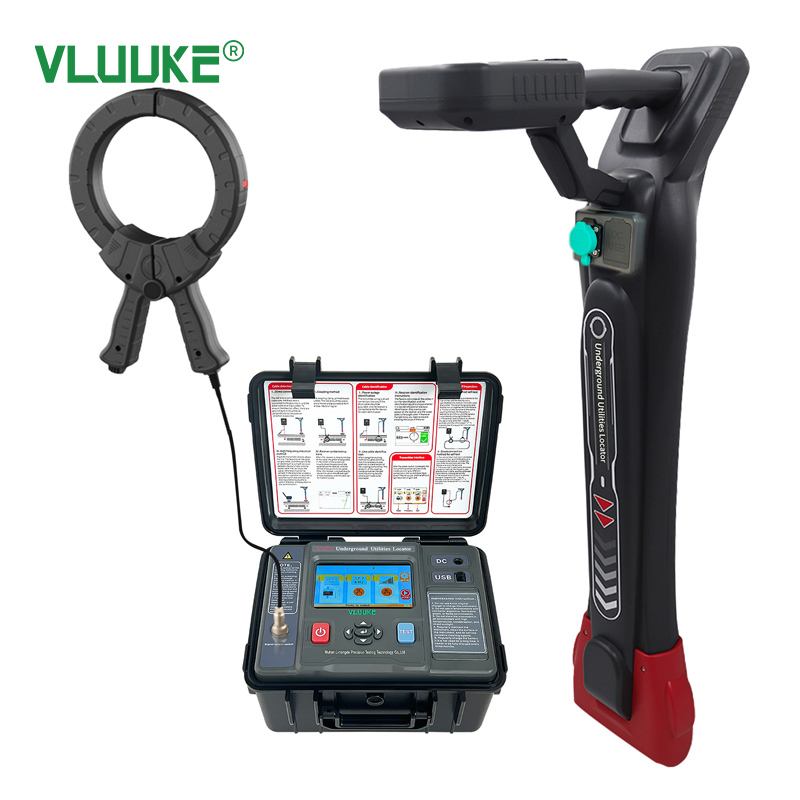

Intelligent Pipeline Detector Underground Utility Cable Locator Path Instrument

Receiver specifications
Function	Pipeline detection (cable position tracking, direction display, depth measurement, current measurement), cable identification, A word frame fault search (optional function)
Power	8.4V large capacity rechargeable lithium battery
Input mode	Built-in receiver coil, flexible caliper, A-character frame (optional function)
Receive frequency	Active detection frequency:250Hz、577Hz、640Hz、1.28kHz、2.56kHz、3.20kHz、4.09kHz、8.19kHz、10.2kHz、33kHz、66kHz、82kHz、197kHz Power frequency passive detection frequency:50Hz、60Hz RF passive detection frequency band: the central frequency is divided into33kHz、66kHz、82kHz、197kHz
Pipeline detection mode	Wide peak method, narrow peak method, sound valley method

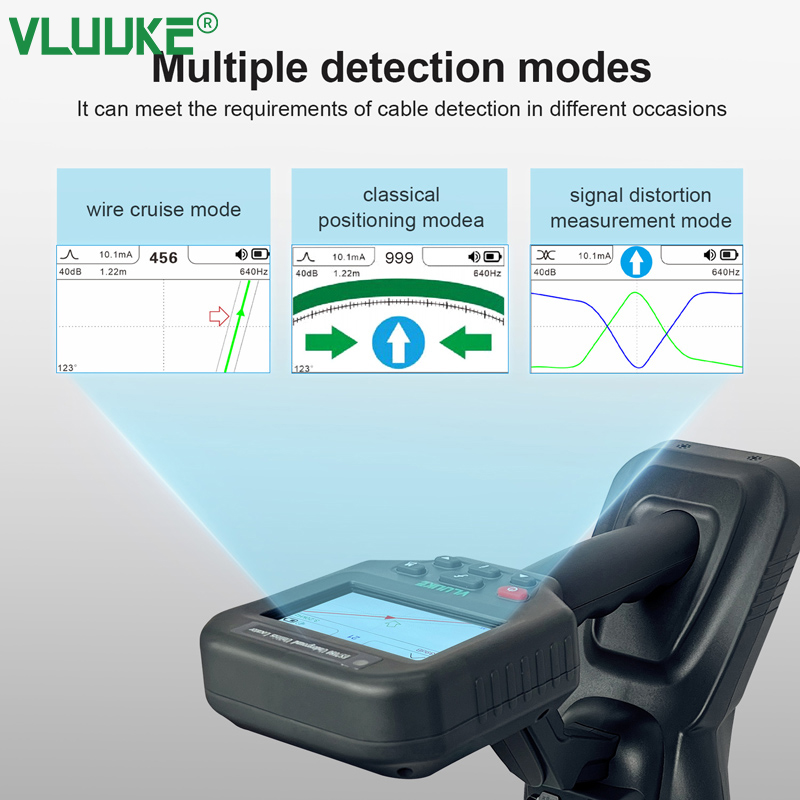

Pipeline detection display	Classic positioning mode, wire cruise mode, peak and trough mode

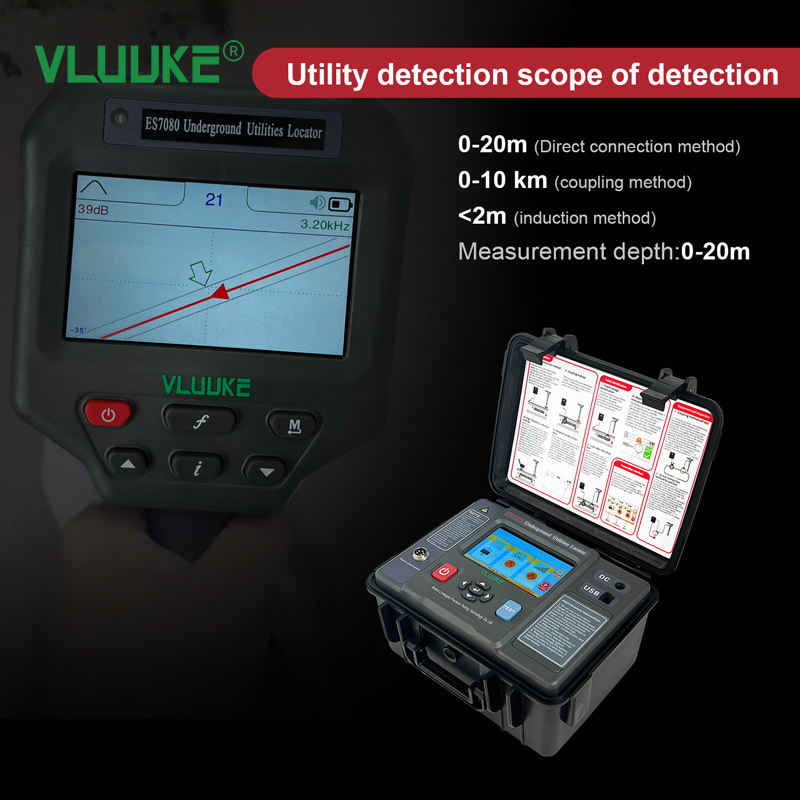

Pipeline detection Range of detection	Direct connection method: generally can reach the cable length of 0~20 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth Coupling method: generally can reach the length of the cable 0~10 kilometers, mainly determined by the grounding resistance, cable resistance and cable buried depth Induction method: suitable for cables with buried depth less than 2m
Depth and current	Display the cable depth and current value in real time
Pipeline measurement depth	0-20m
Deep precision	Plane position precision accuracy: the central axis position of the target cable or line： ±5%（Buried deep in0-3m）-10%（Buried deep in3m-20m）
Positive and wrong prompt	Excluding the interference of adjacent cables, in the measurement of adjacent cables, the measurement of the adjacent cables can be distinguished according to the different signal strength and the measured current phase of the adjacent cables. In the process of tracking the cables, the phase dial and pointer can be observed to distinguish the measured cables and the adjacent cables
Sound instructions	FM tone with signal intensity
capacity of resisting disturbance	Very narrow receiving frequency band and unique digital processing method can fully suppress the power frequency and harmonic interference of adjacent operating cables and pipelines
interference distance	When using the coupling method and the induction method, the transmitter will produce interference in close distance. The distance of interference is related to the transmission power and frequency. The greater the power, the higher the frequency, the stronger the interference. The minimum distance of the receiver without disturbed by the transmitter often needs to be determined by test: Pipeline detection: 5m away, 20m away as no interference Cable identification: the coupling method beyond 2~5m can be confirmed as no interference
Cable identification	Identification mode: flexible caliper intelligent identification; Number of calibrate cables: 1~20; Calibration value: the current percentage of the received signal and the transmitted signal between 75% and 135% of the calibration value is one of the conditions for successful identification; Directionality: the transmitter clamp, receiver clamp must be in the same direction as the loading signal, which is one of the conditions for successful identification
Cable identification Range of detection	Direct connection method: can identify the signal with a circuit resistance of 0 Ω ~ 8 kΩ (generally, the length of the cable can reach 0~20 km, mainly determined by the grounding resistance and cable resistance) Coupling method: can identify the signal with circuit resistance of 0 Ω ~ 1 kΩ; (generally the cable length is 0~6 km, mainly determined by the grounding resistance and cable resistance)
Display	4.3 LCD color screen LCD (highlight screen), visible in the sun
Touch screen	Yes

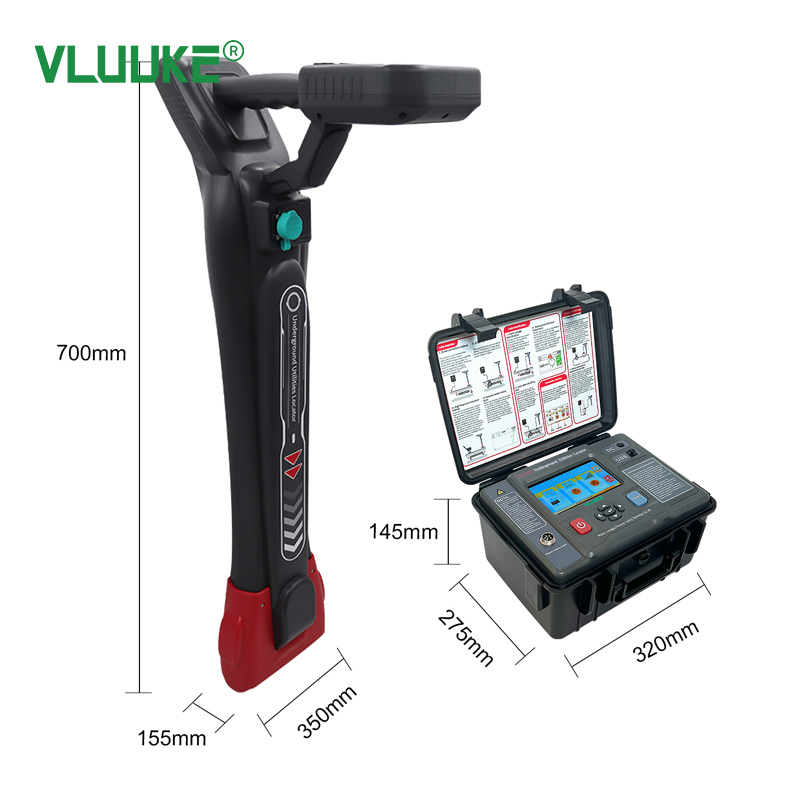

Size	350mm(length)×155mm(width)×700mm(high)
Weight	2kg
Connection interface	Type-C USB interface, air socket
Coil inner diameter	φ200mm(A larger caliber can be customized as needed)
Working temperature and humidity	-10℃～40℃；Below 80%Rh
Store temperature and humidity	-10℃~50℃；≤95％RH, No condensation
withstand voltage	AC2000V/rms(Before the front and rear ends of the enclosure)
Suitable for safety regulations	IEC61010-1 CAT Ⅲ 600V，IEC61010-031，IEC61326，Pollution grade 2

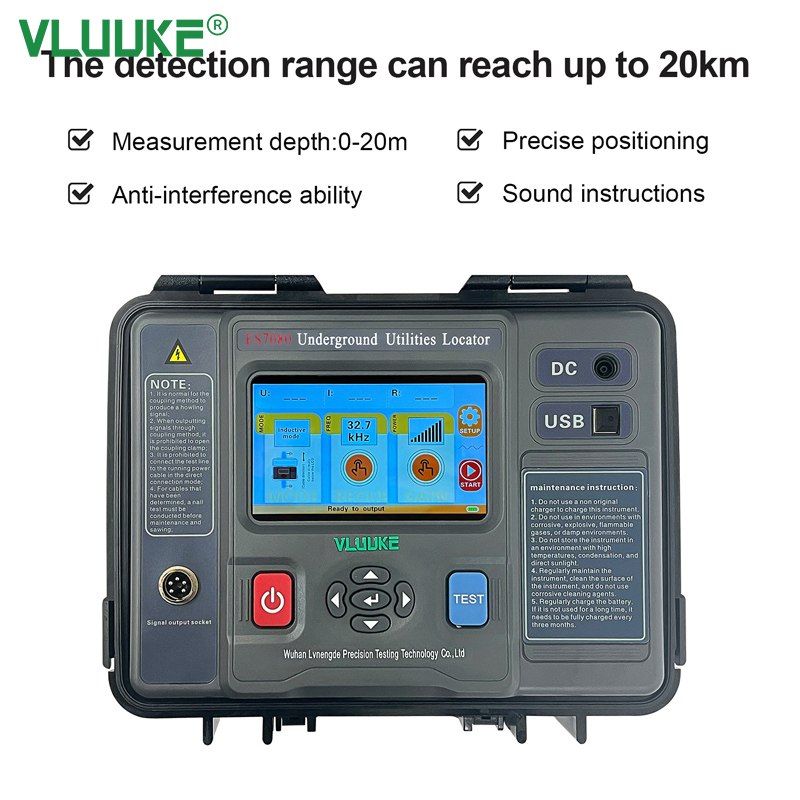

Transmitter specifications
Function	Multiple frequency signal transmission modes
Power	10.8VLarge-capacity rechargeable lithium battery
Output method	Direct connection method, caliper coupling method, induction method
Output mode	Automatic identification, according to different accessories
output frequency	250Hz、577Hz，640Hz，1.28kHz，2.56kHz，3.20kHz，4.09kHz，8.19kHz，10.2kHz，33kHz，66kHz，82kHz，197kHz
Output power	15 Wmax, 6-gear adjustable
impedance	Automatic real-time impedance matching and protection function
Direct output voltage	150Vpp max
Circuit protection	With overload and short-circuit protection
Display	5-inch LCD color screen
Touch screen	Yes
Instrument size	320mm(Length)×275mm(Width)×145mm(High)
Weight	The transmitter is about 3.85kg; the transmitter clamp is about 1.18kg
Transmitter clamp inner diameter	φ125mm
cable length of transmitter clamp	3m
Test cable	Red test cable 3m, black test cable 3m
Connection interface	USB interface, DC interface, aviation socket
Resistance to pressure	The transmitter adopts an integrated special tool box type design, and the box body can withstand the pressure of about 200kg
Withstand voltage	AC 3700V/rms(Before the top surface and bottom surface of the instrument box)
Electromagnetic characteristics	IEC61326(EMC)
Suitable for safety regulations	IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、class of pollution 2)
