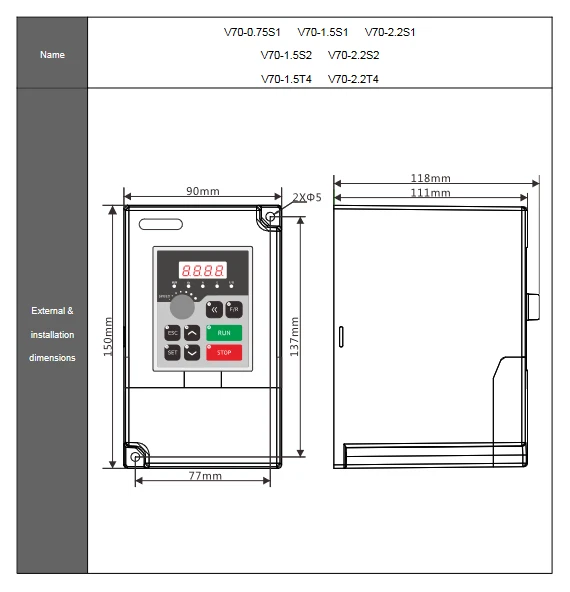

110V 0.75KW-2.2KW VFD Variable Frequency Drive Controller for CNC Spindle Motor
Available Model:
V70-0.75S1 Power:0.75KW/1HP 7A 110V
V70-1.5S1 Power:1.5KW/2HP 14A 110V
V70-2.2S1 Power:2.2KW/3HP 20A 110V
VFD Variable Frequency Drive 0.75KW 1HP 7A 110V Frequency Inverter V70-0.75S1
Specifications:
Manufacturer Part Number: V70-0.75S1
Input Voltage: 110 V (Single-phase)
Input Frequency: 50/60 Hz
Power: 0.75 KW
Capacity of driver: 2 KVA
Output current: 7 A
Applicable motor: 0.75 KW
Control mode: V/F, Vector control
Communication control: RS-485
Operating temperature: -10 - 40 ℃
Humidity: 0 - 95%(without condensation)
Vibration: Less than 0.5G
Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
FUSE protection: When the fuse blows, the motor stops
Over-voltage protection: DC voltage > 200V
Low-voltage protection: DC voltage < 100V
Frequency Control:
Frequency Range: 0.1 - 1000 Hz
Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
Output Resolution: 0.1 Hz
Keyboard Setting Mode: Set as ← ▲ ▼ directly
Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively;
VFD Variable Frequency Drive 1.5KW 2HP 14A 110V Frequency Inverter for Spindle Motor Speed Control
Specifications:
Manufacturer Part Number: V70-1.5S1
Input Voltage: 110 V (Single-phase)
Input Frequency: 50/60 Hz
Power: 1.5 KW
Capacity of driver: 2.8 KVA
Output current: 14 A
Applicable motor: 1.5 KW
Control mode: V/F, Vector control
Communication control: RS-485
Operating temperature: -10 - 40 ℃
Humidity: 0 - 95%(without condensation)
Vibration: Less than 0.5G
Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
FUSE protection: When the fuse blows, the motor stops
Over-voltage protection: DC voltage > 200V
Low-voltage protection: DC voltage < 100V;
Frequency Control:
Frequency Range: 0.1 - 1000 Hz
Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
Output Resolution: 0.1 Hz
Keyboard Setting Mode: Set as ← ▲ ▼ directly
Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively;
Variable Frequency Drive 2.2KW 3HP 20A 110V VFD Frequency Inverter V70-2.2S1
Specifications:
Manufacturer Part Number: V70-2.2S1
Input Voltage: 110 V (Single-phase)
Input Frequency: 50/60 Hz
Power: 2.2 KW
Capacity of driver: 4.4 KVA
Output current: 20 A
Applicable motor: 2.2 KW
Control mode: V/F, Vector control
Communication control: RS-485
Operating temperature: -10 - 40 ℃
Humidity: 0 - 95%(without condensation)
Vibration: Less than 0.5G
Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
FUSE protection: When the fuse blows, the motor stops
Over-voltage protection: DC voltage > 200V
Low-voltage protection: DC voltage < 100V;
Frequency Control:
Frequency Range: 0.1 - 1000 Hz
Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
Output Resolution: 0.1 Hz
Keyboard Setting Mode: Set as ← ▲ ▼ directly
Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively;
