Feature Products

Features:
1. The use of high-quality PCB materials, quality assurance, greatly improving the service life of the product

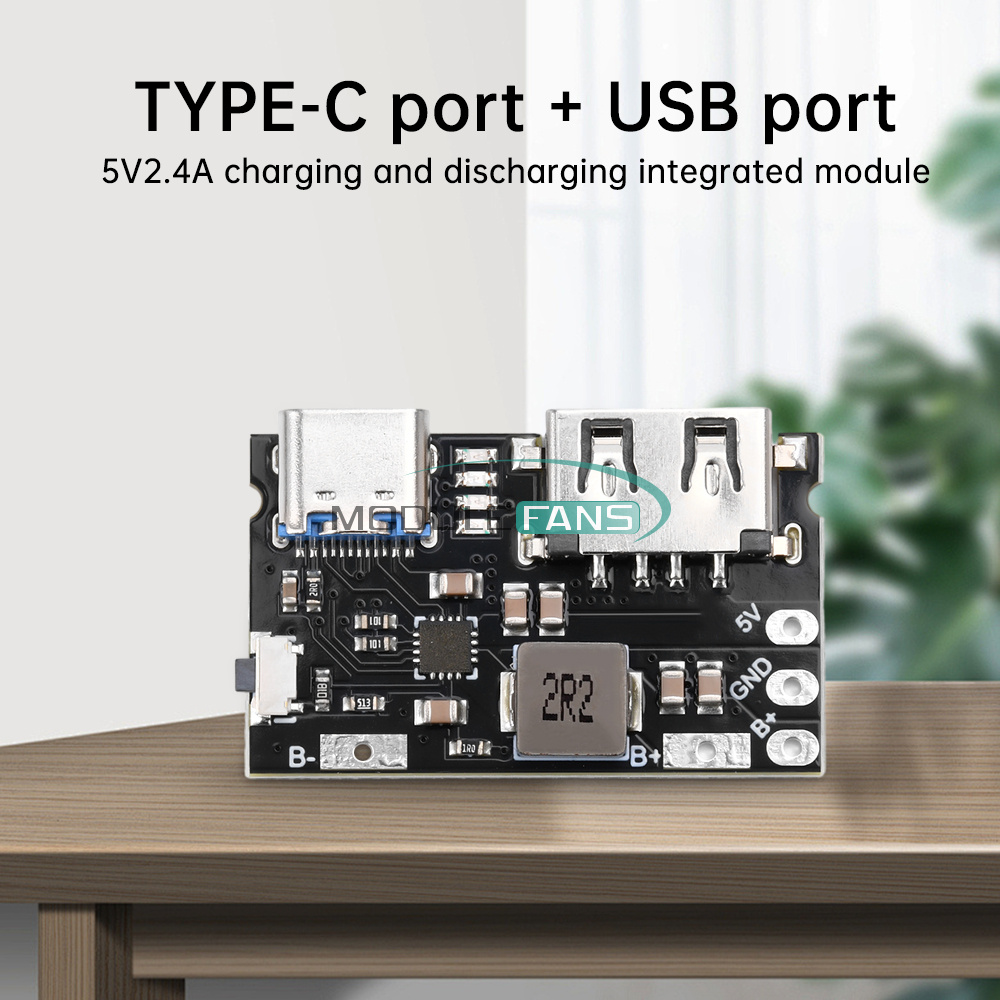

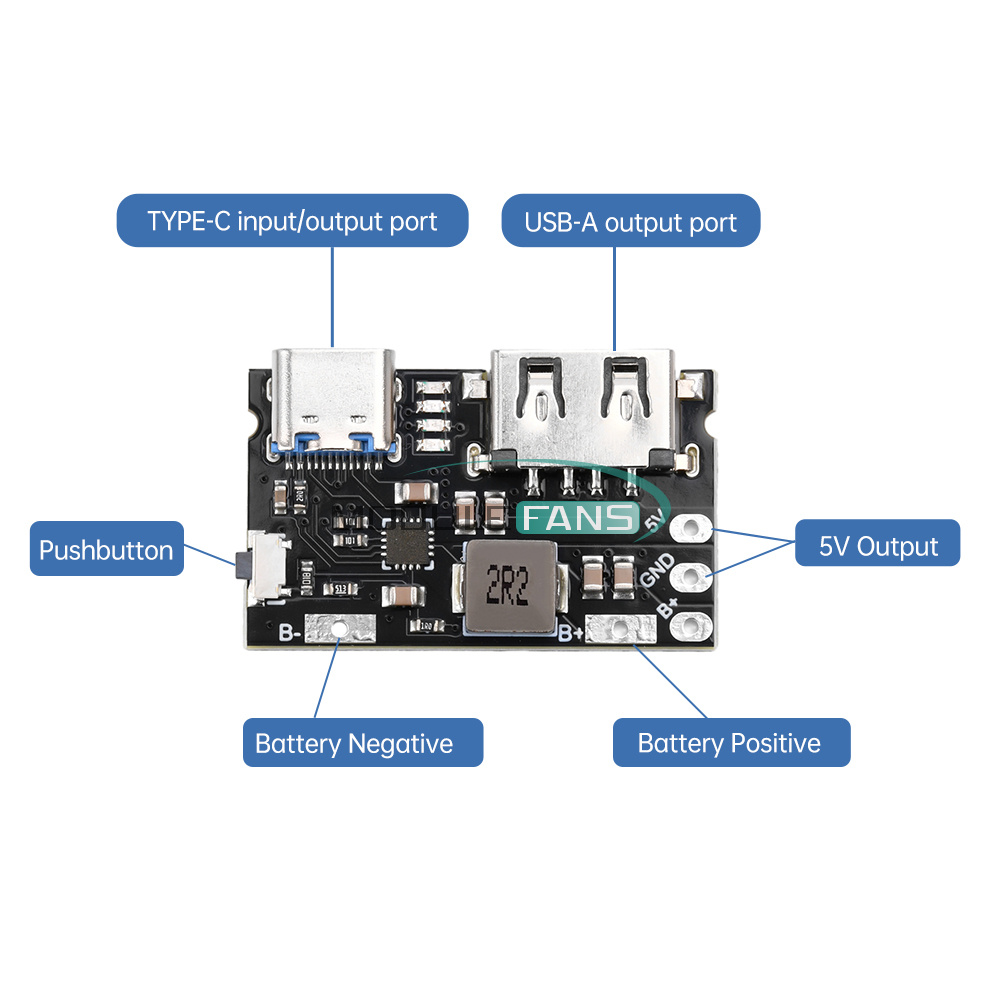

2. The product supports charging and discharging at the same time (TYPE-C input, USB-A output), when accessing or disconnecting the input power supply, the output 5V will be briefly closed.
3. The product in the design, materials, PCB technology up and down enough effort, so that the module can be in a very small volume to do a very considerable parameters and features

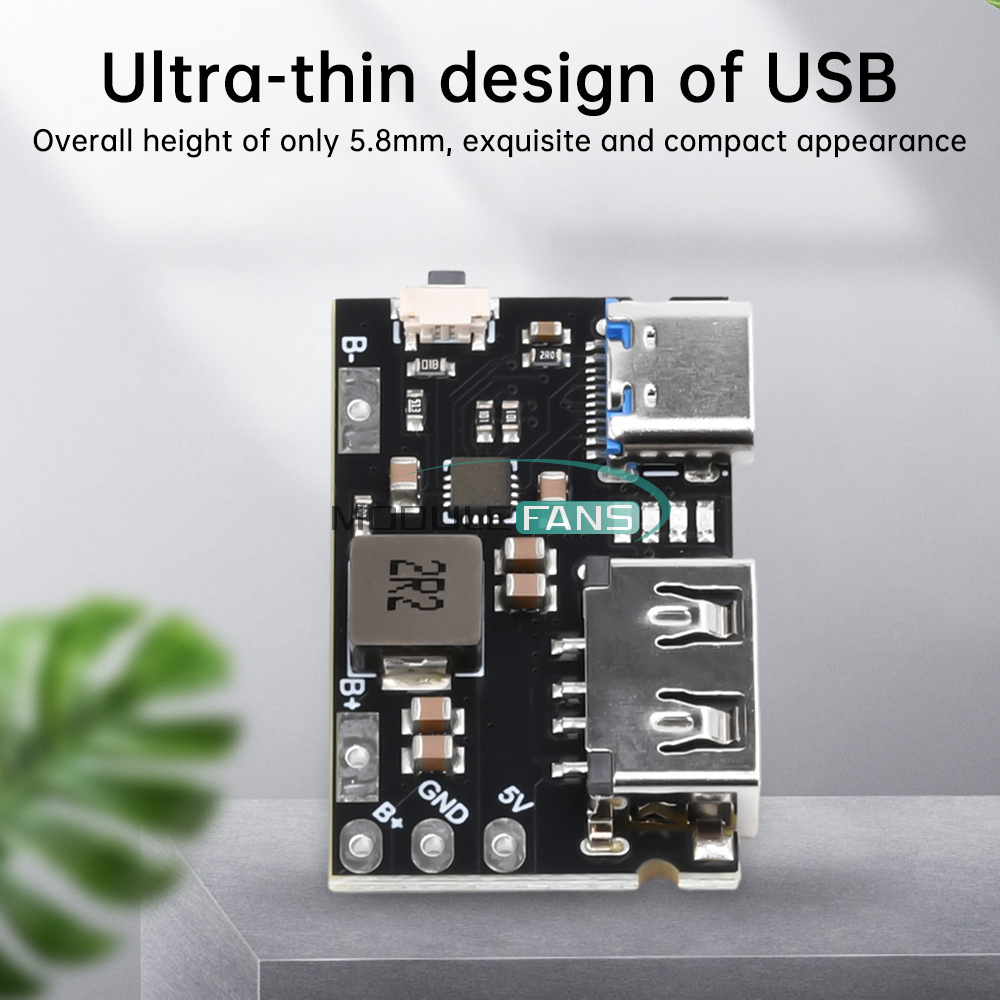

4. Adopt the ultra-thin design of sinking board USB, the overall height is only 5.8mm, the appearance is exquisite and compact.
5. The product has a wide range of applications, suitable for a variety of industrial DIY occasions.

Parameter:
Input voltage range: 5~5.5V
Charging cut-off voltage: 4.2V ± 1%
Charging current: 2.4A±5% (input)
Discharge cut-off voltage: 2.95V
Boost output voltage: 5V~5.15V
Boost output current: 2.4A
Boost conversion efficiency: >90% (battery voltage 3.6V, load 0.5~2.4A)
Battery-side quiescent current: <200uA

Usage Profile:
The first time to access the lithium battery, need to have charging action to activate the chip
Short press the button to display the battery level (LED light up time about half a minute)
When the battery voltage is lower than 3V, the battery will be pre-charged with 300mA current.
When the battery voltage is higher than 3V, it will enter into constant current charging, limiting the input current to 2.4A.
When the battery voltage is higher than 4.2V, it enters constant voltage charging
5V constant output, 5V output port can support small current loads

Package include:
Charge and Discharge Module*1
