1.5KW/2.2KW 110V/ 220V Stainless Steel Air Cooled Spindle Motor VFD CNC 24KRPM

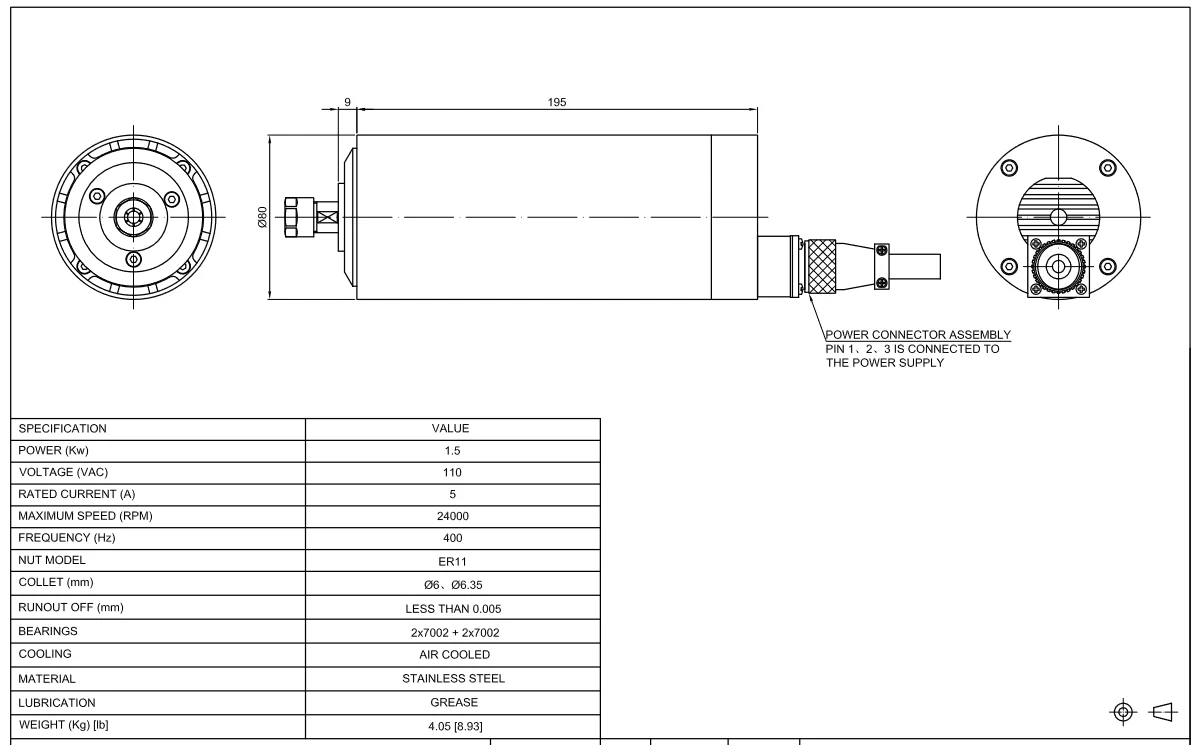

1.5KW 110V 5A CNC Air Cooled Spindle Motor 24000RPM GDZ80F-1.5A4

Specification
Manufacturer Part Number: GDZ80F-1.5A4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80 mm, Length:195 mm)
Power: 1.5 KW
Voltage: 110 VAC
Current: 5 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002, 2x7002
Weight: 4.05 kg;

Picture 8 of 14

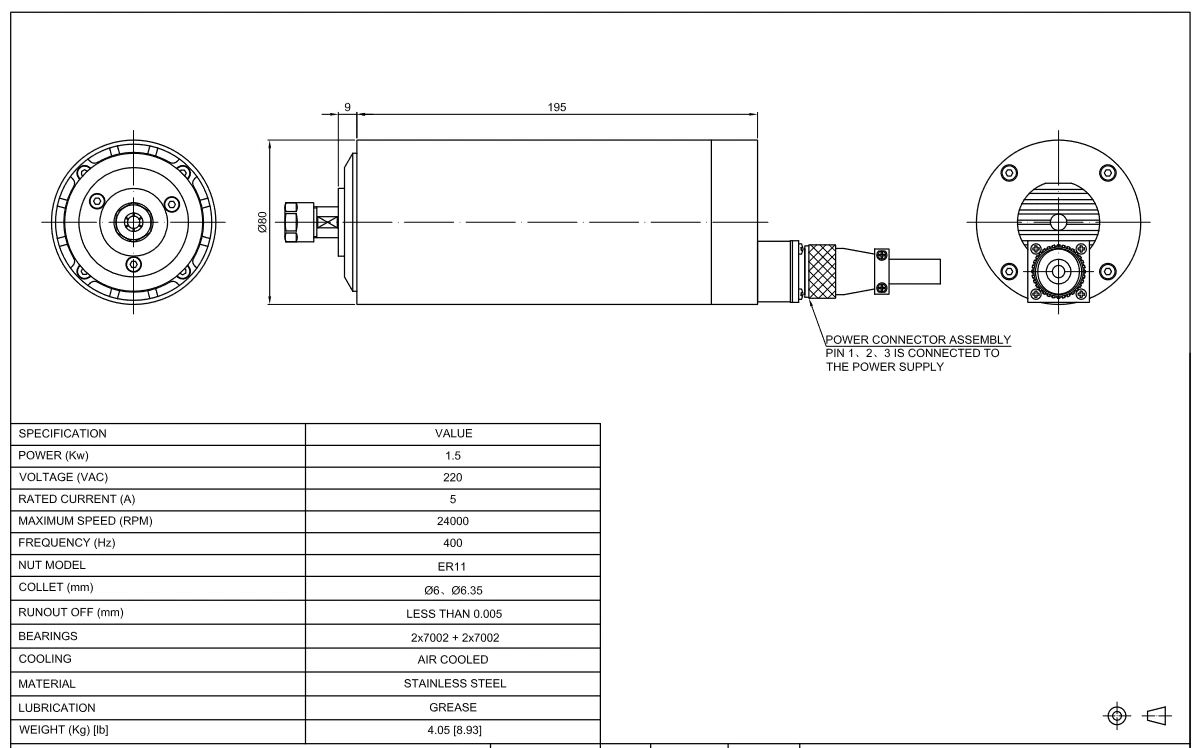

1.5KW 220V 5A Air Cooled CNC Spindle Motor 24000RPM GDZ80F-1.5B4

Specification
Manufacturer Part Number: GDZ80F-1.5B4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80 mm, Length:195 mm)
Power: 1.5 KW
Voltage: 220 VAC
Current: 5 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002, 2x7002
Weight: 4.05 kg;

Picture 10 of 14

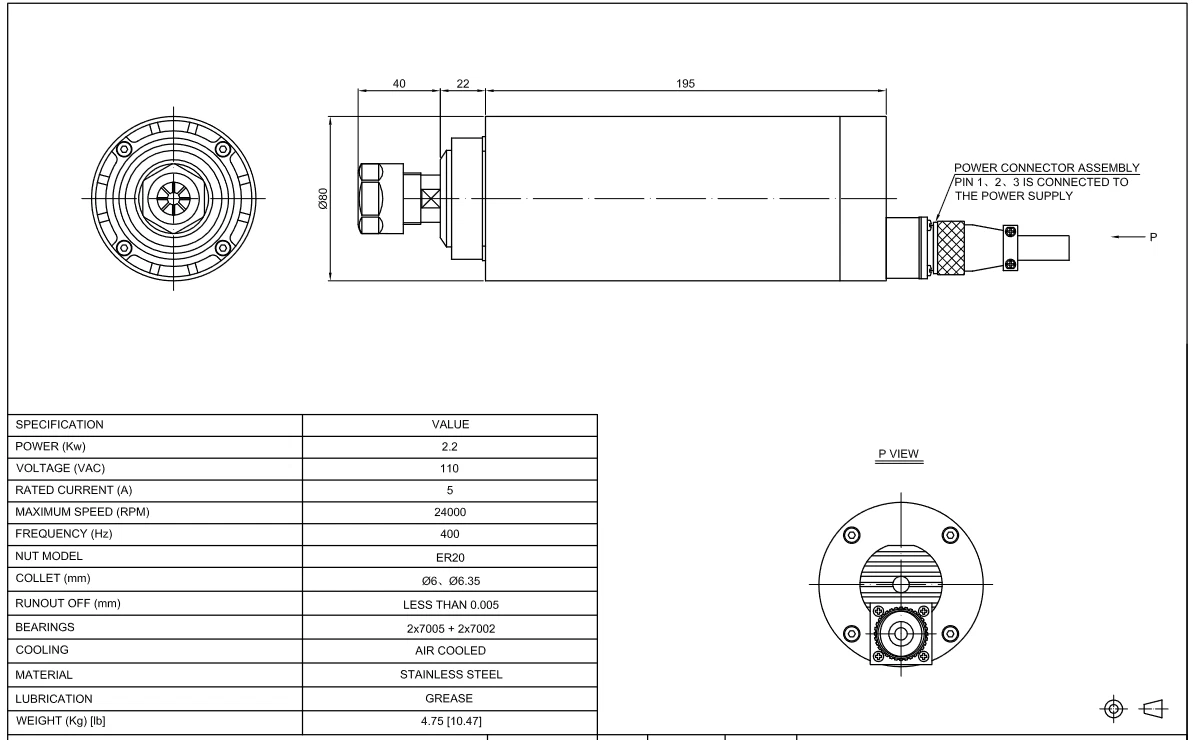

2.2KW 110V 5A Air Cooled Spindle Motor 24000RPM GDZ80F-2.2A4

Specification
Manufacturer Part Number: GDZ80F-2.2A4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80 mm, Length:195 mm)
Power: 2.2 KW
Voltage: 110 VAC
Current: 5 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER20 Collet(6 mm)
Bearings: 2x7005, 2x7002
Weight: 4.75 kg;


Picture 12 of 14

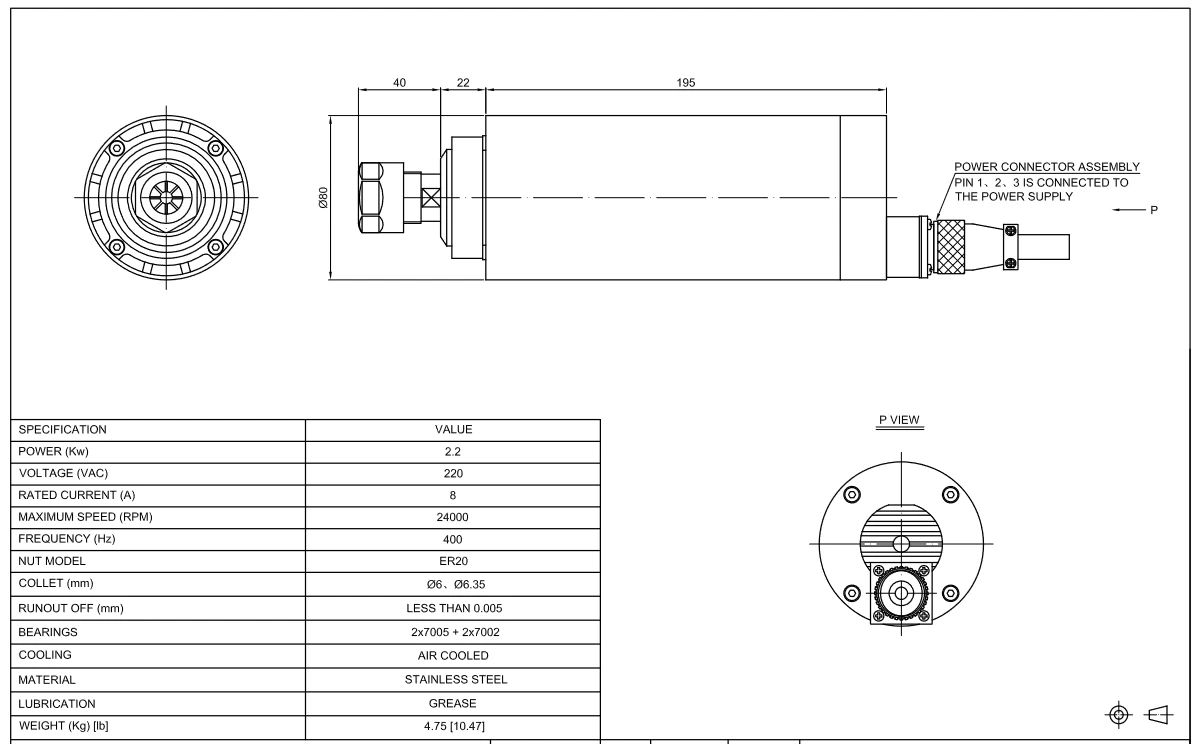

2.2KW 220V 8A Air Cooled Spindle Motor 24000RPM GDZ80F-2.2B4

Specification:
Manufacturer Part Number: GDZ80F-2.2B4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80 mm, Length:195 mm)
Power: 2.2 KW
Voltage: 220 VAC
Current: 8 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER20 Collet(6 mm)
Bearings: 2x7005, 2x7002
Weight: 4.75 kg;

Picture 14 of 14
