🔧 NEW Manual Hydraulic Hose Crimping Tool – 31.5 MPa / 5600 kN – 0.01 mm Repeatability – 8 Dies 10-30 mm – No Electricity Needed – Field / Farm / Shop / DIY – 1/4"-1" R2AT Hose – 45# Steel Jaws – 60 MPa Glycerine Gauge – Portable & Silent
✅ Produce FACTORY-GRADE hose assemblies anywhere, anytime – NO power, NO air compressor required!
Perfect for on-site service, farm equipment, mobile repair, DIY workshops and small shops that need pro-level crimps without the bulk or price of an electric machine.
⭐ TOP FEATURES
| Feature |
Benefit |
| 0.01 mm Micro-positioning |
Every crimp is identical – no local over-pressure, no blown fittings. |
| 31.5 MPa (5 600 kN) crimp force |
Easily crimps 2-wire braided R2 hose up to 1" I.D. |

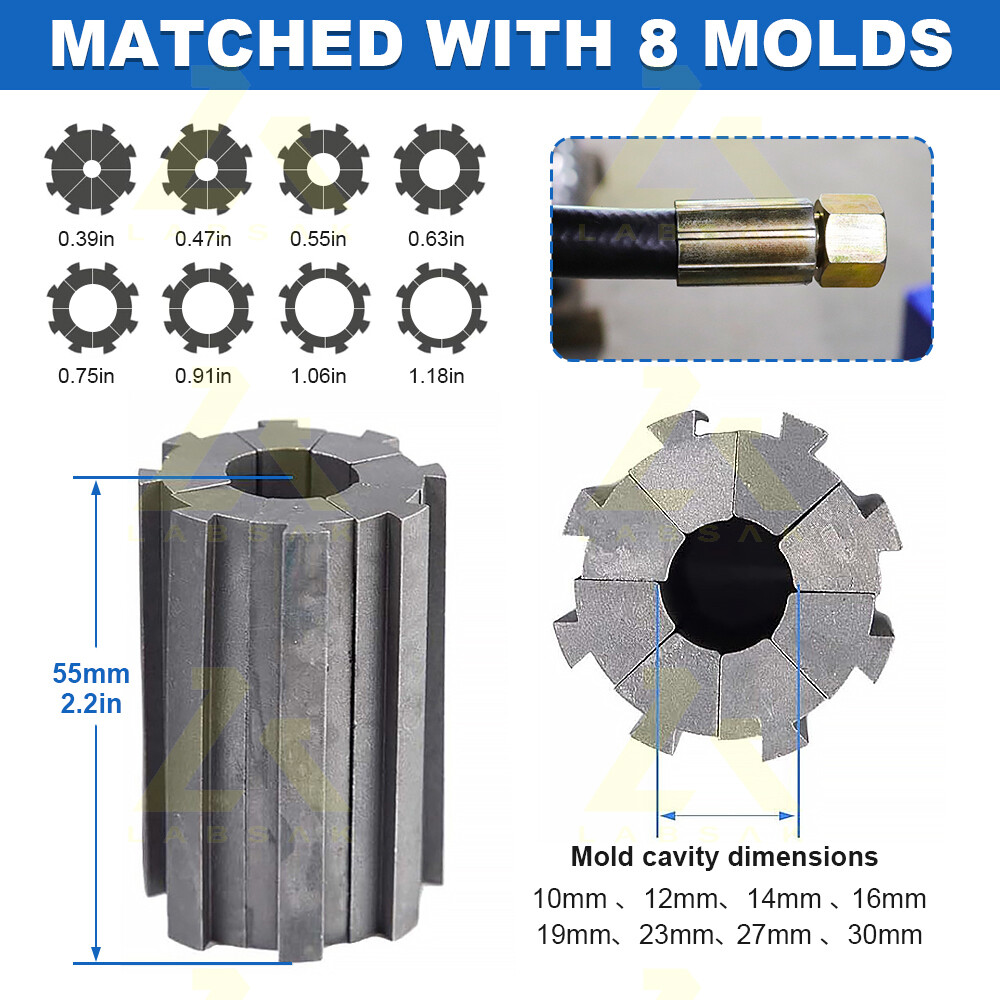

| 8 precision dies |
Laser-marked 10-12-14-16-19-23-27-30 mm – swap in seconds. |
| 100 % manual hydraulic pump |
Silent, cordless, remote-area ready – just pump & crimp. |

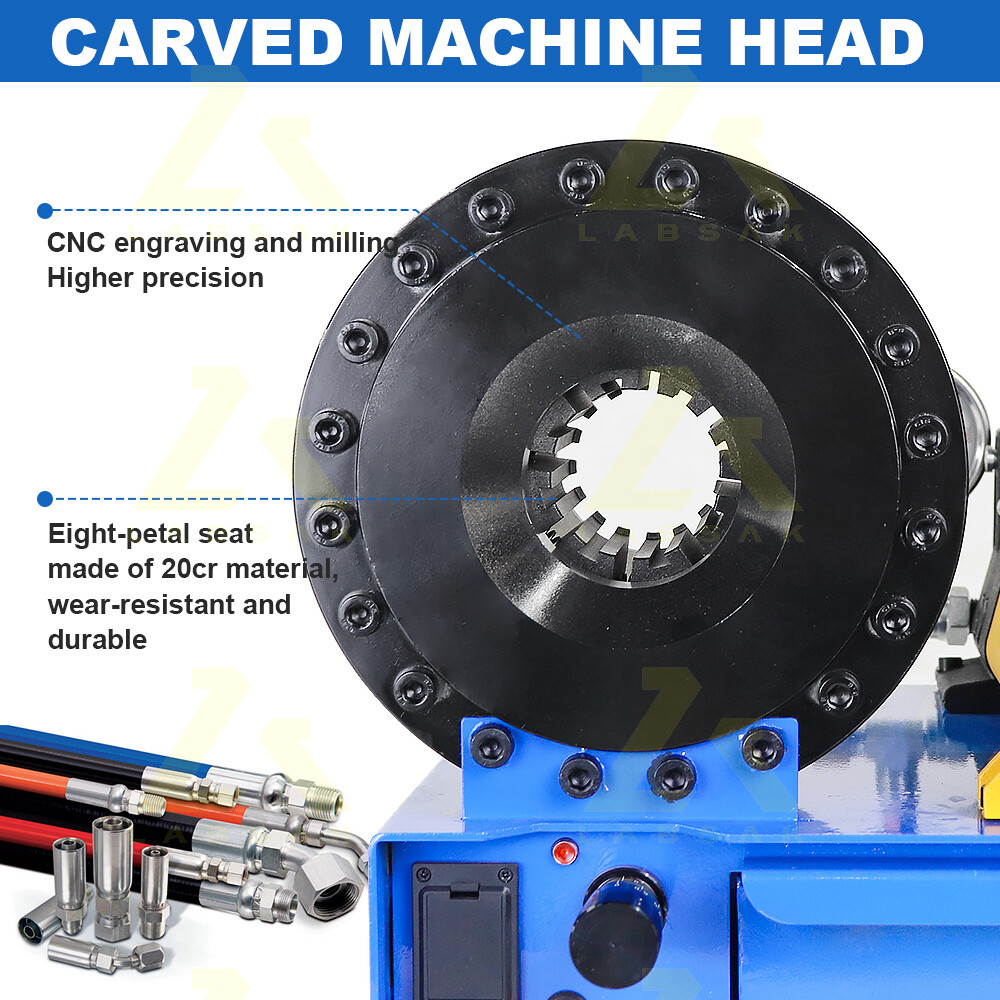

| 45# steel head + CNC-quenched 8-claw cage |
Lifetime wear & impact resistance. |
| Extra-long handles with anti-slip grips |
30 % less effort – hidden 8-slot die rack keeps bench tidy. |
| 60 MPa glycerine-filled gauge |
Repeat exact pressure settings every time. |
| Crimp range 6-28 mm |
Covers 1/4"-1" hose, R1AT/R2AT, water/gas pipe, A/C hose, power-steering, cable lugs, etc. |
📏 SPECIFICATIONS
| Parameter |
Value |
| Type |
Hydraulic hose crimper – hand operated |
| Max. crimp force |
31.5 MPa ≈ 5 600 kN |
| Crimp range |
6 – 28 mm (0.24" – 1.1") |
| Max. opening (no dies) |
48 mm (1.89") |

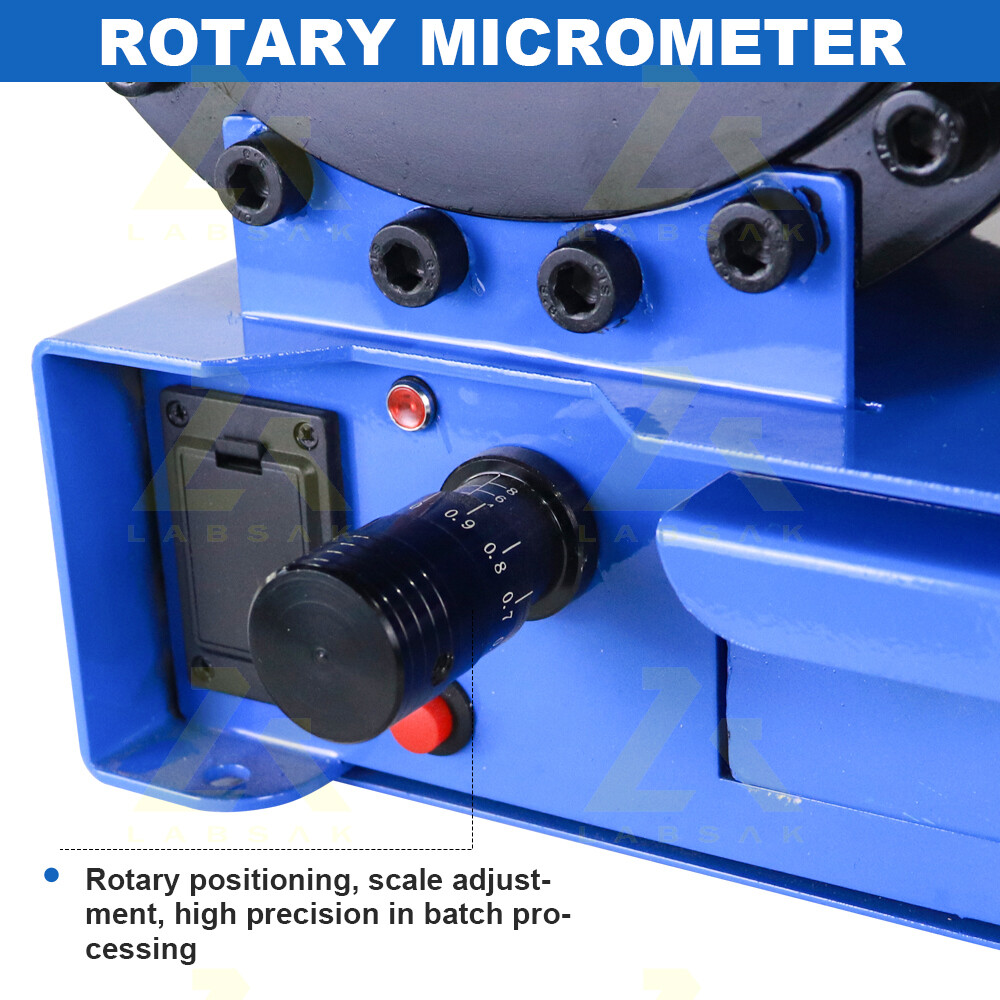

| Position accuracy |
0.01 mm (vernier micrometer) |

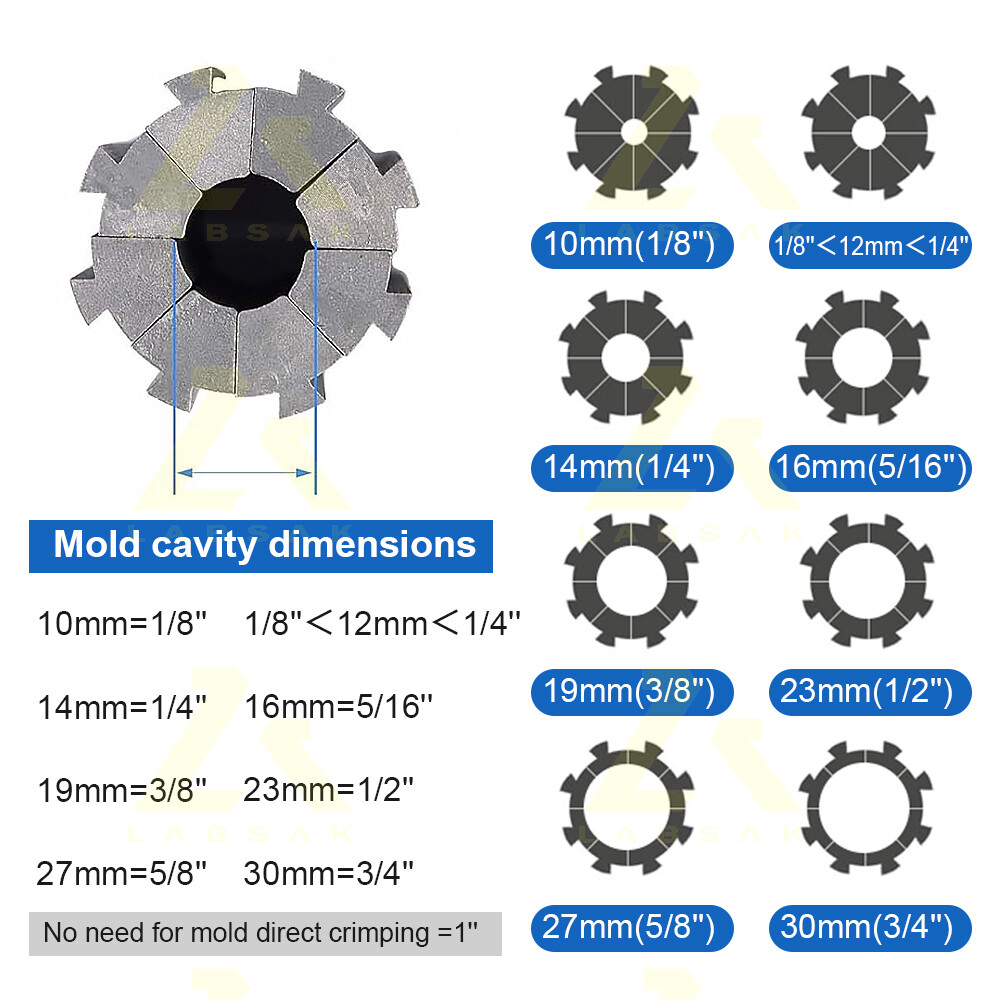

| Dies included |
8 sets – 10/12/14/16/19/23/27/30 mm |
| Power supply |
NONE – 100 % manual |
| Applications |
1/4"-1" R1AT/R2AT, steel-wire hydraulic hose, water/gas pipe, A/C hose, power-steering lines, cable end sleeves, etc. |
| Weight (net) |
≈ 12 kg / 26 lb – easy to carry |
🚀 WHY BUY FROM US?
-
Brand-new tool – factory inspected & oil-filled, ready to use.
-
Ships SAME or NEXT business day – tracking provided.
-
30-day hassle-free returns – buy with confidence.
-
Spare seals & dies in stock – future support available.
📦 PACKAGE LIST
1 × Manual hydraulic crimping head

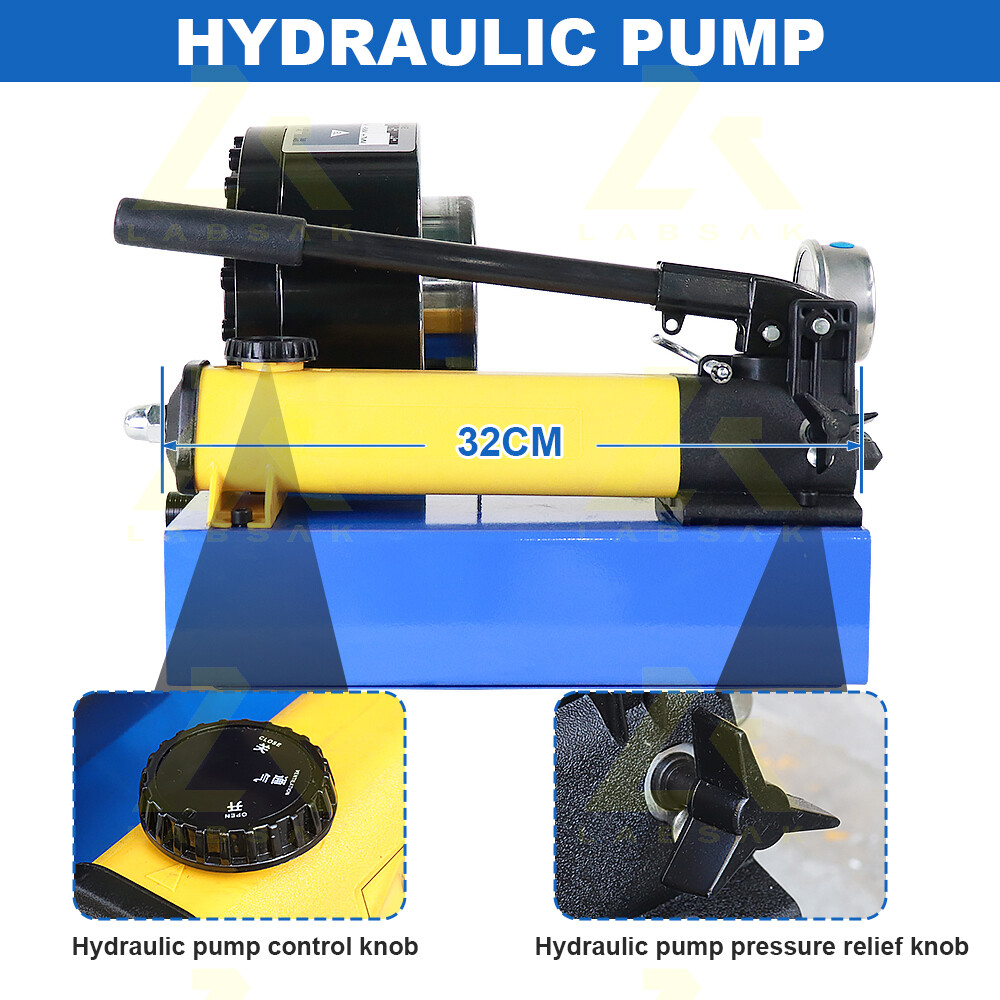

1 × Hand pump with release valve
8 × Precision hardened dies (10-30 mm)
1 × 60 MPa glycerine gauge (installed)
1 × Hidden die rack / handle clip
1 × English user manual
⚠️ IMPORTANT NOTE: The shipping company prohibits machines containing hydraulic oil. We have fully drained the tank before dispatch. Please add #46 hydraulic oil (not included) before first use—fill until the oil level reaches the top of the sight glass. Operation takes 2 minutes.
|
