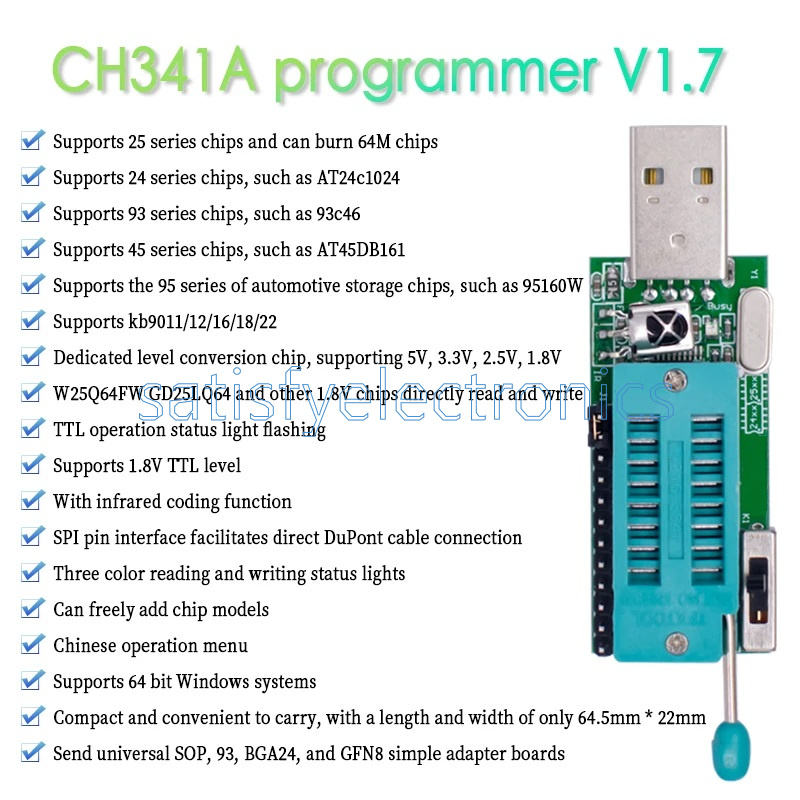

CH341A programmer V1.7 version

*Integrated dedicated level conversion chip, directly read and write 5v, 3.3v, 2.5v, 1.8v chips

*Integrated infrared code measurement module

*Support programming 24, 25/26, 93, 45, 95 types of chips, our also supports kb9010 kb9012 kb9016 kb9018 kb9022 ec data read and write

*The software is open source, you can add the chip type by yourself, or the source code of the software, not to be stuck by others

*TTL can support to 1.8v level, suitable for special occasions

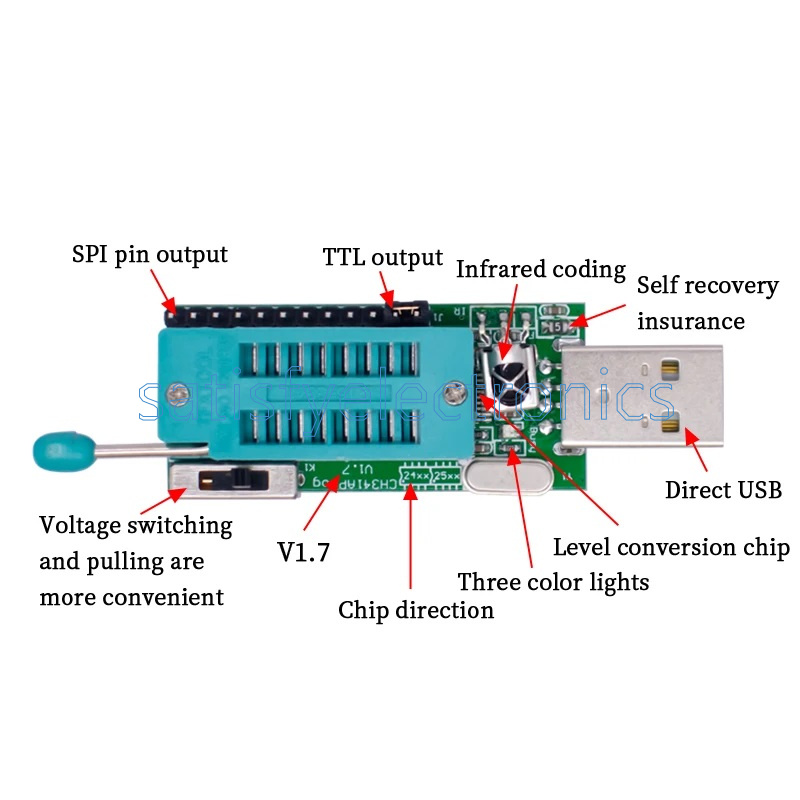

*Read and write status lights, TTL status lights

*Support TTL self-check

*Support to open ASUS cap files directly

*In the locking seat part, 24xx add a strong pull-down resistor, 25xx add a pull-up resistor

User manual download address: https://pan.baidu.com/s/14HjrQIK5fSUdn1UQ-Qo-JA

Now supports 64M spi, such as MX25L51245GZ

It is more convenient to switch the voltage with a toggle switch, just toggle it.

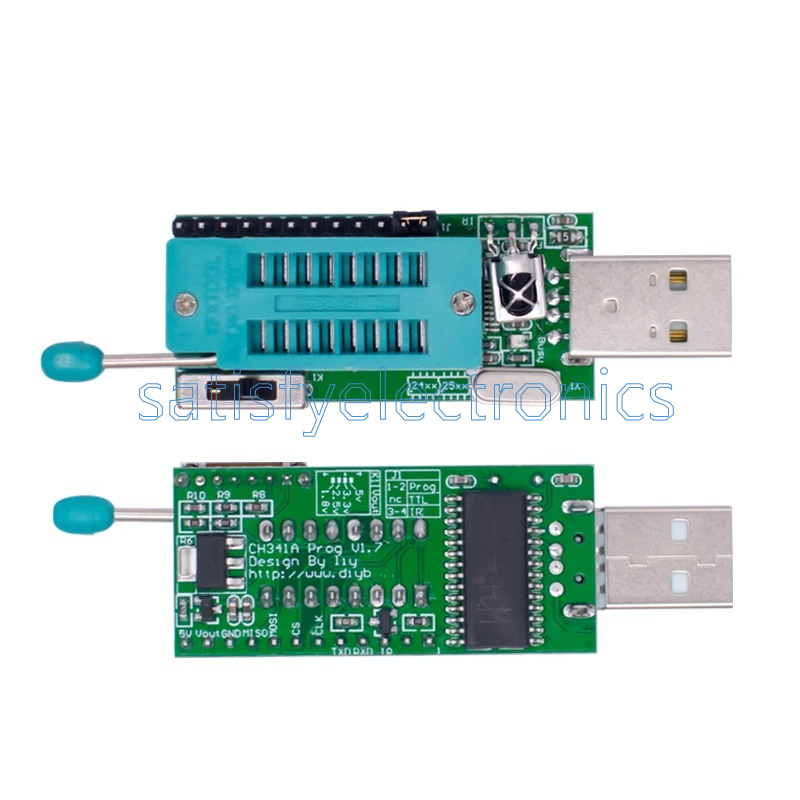

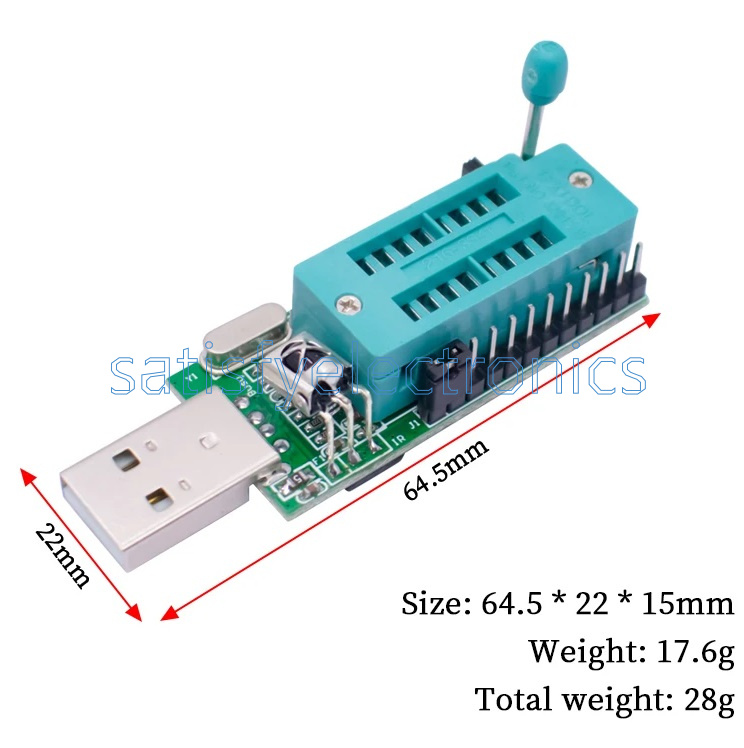

Small board body, full of parts, using high-current adjustable voltage regulator chip, can output 5v, 3.3v, 2.5v, 1.8v and other voltages, just flip the switch to get it.

It is realized by a dedicated level conversion chip, which is stable and reliable. All functions of 24 and 25 are converted to ensure stable reading and writing without errors.

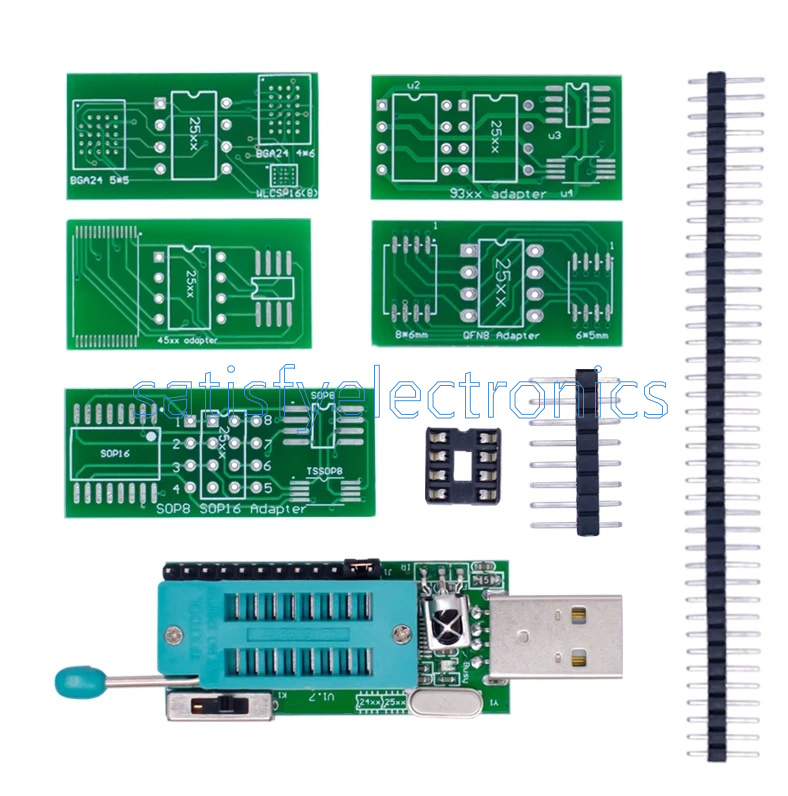

Directly equipped with a full set of adapter boards: universal sop adapter board, 93, 45, bga24, wson8, etc.

Mainly use our own optimized AsProgrammer software, which is more in line with everyone's usage habits, supports up to 64M chips, and can also add chip support by yourself.

The amount of support is over 1,000, and the software directly prompts the chip placement position, voltage switch and adapter board used, which is more convenient.

Integrated infrared code measurement function. Follow the instructions to easily read the remote control code.

Run the code measurement software, set the serial port number of 341, and click to open the serial port. As long as the remote control is in the range of the receiving head, it can automatically recognize it, and display and voice prompts at the same time.

1PCS
