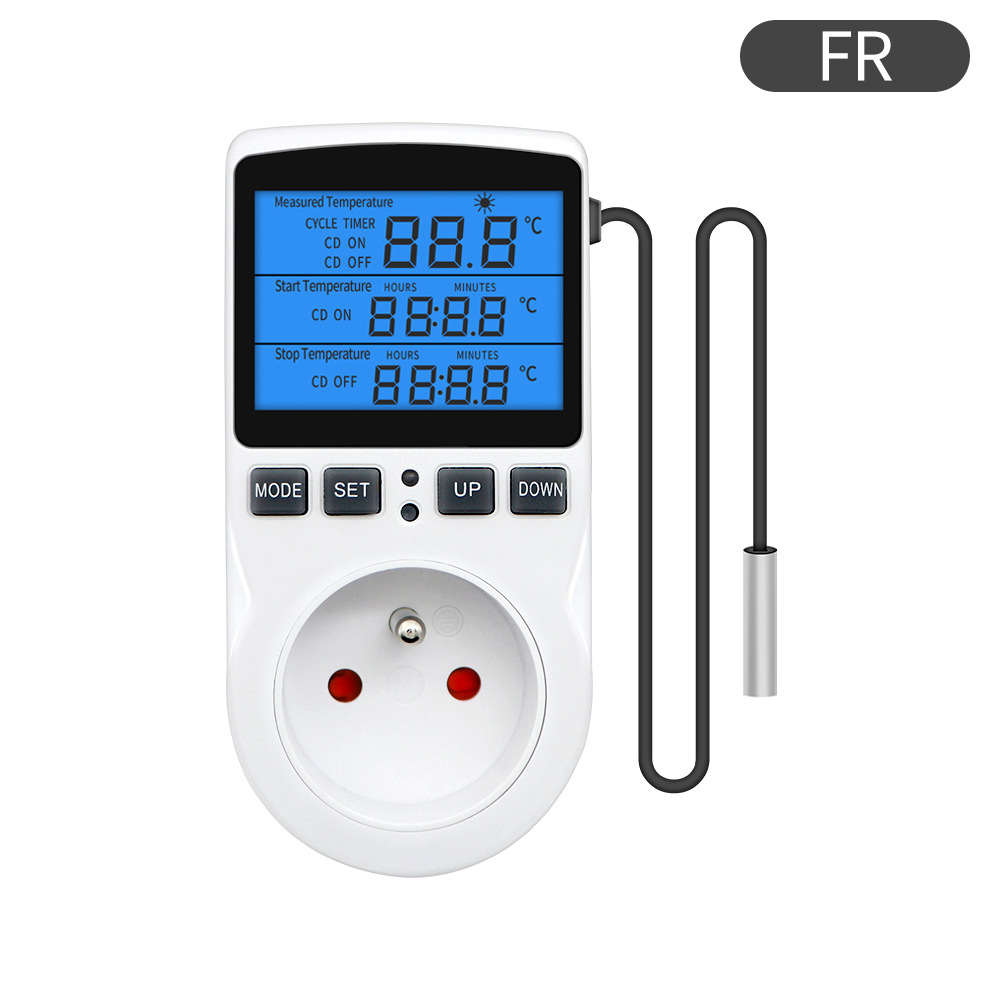

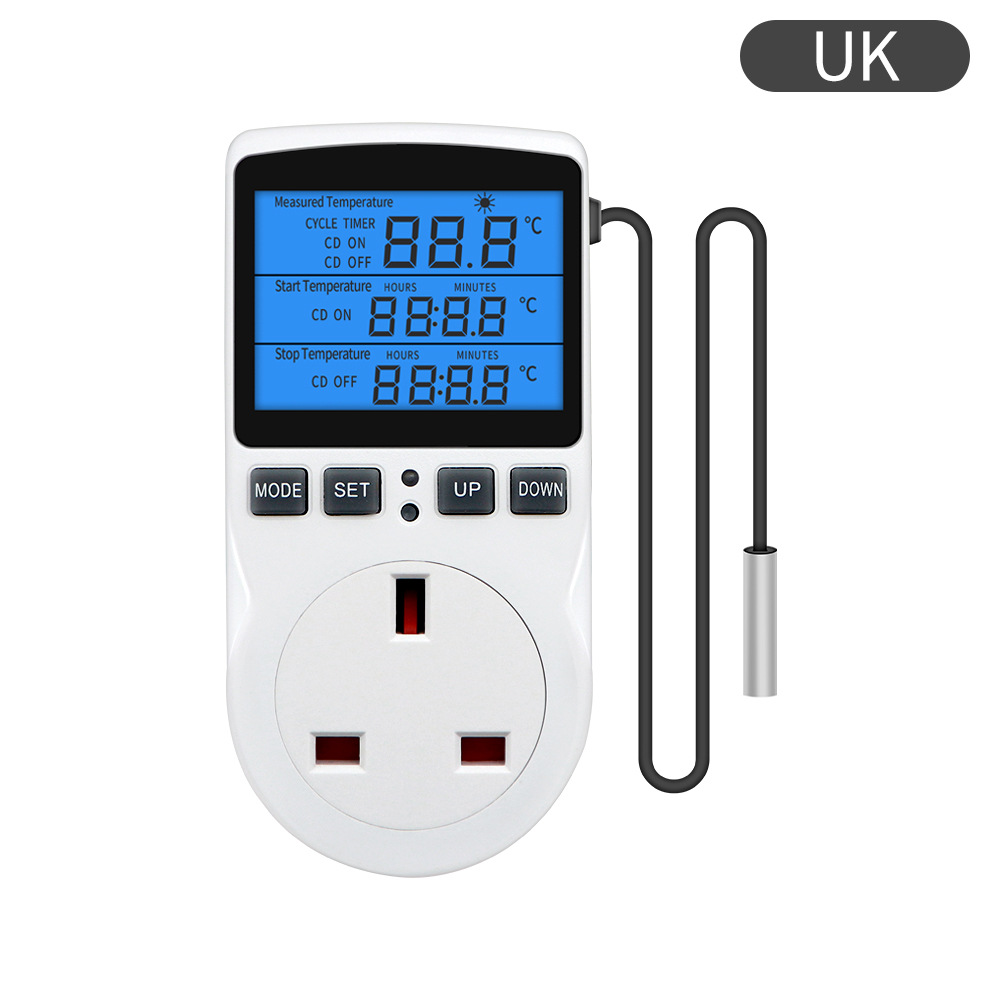

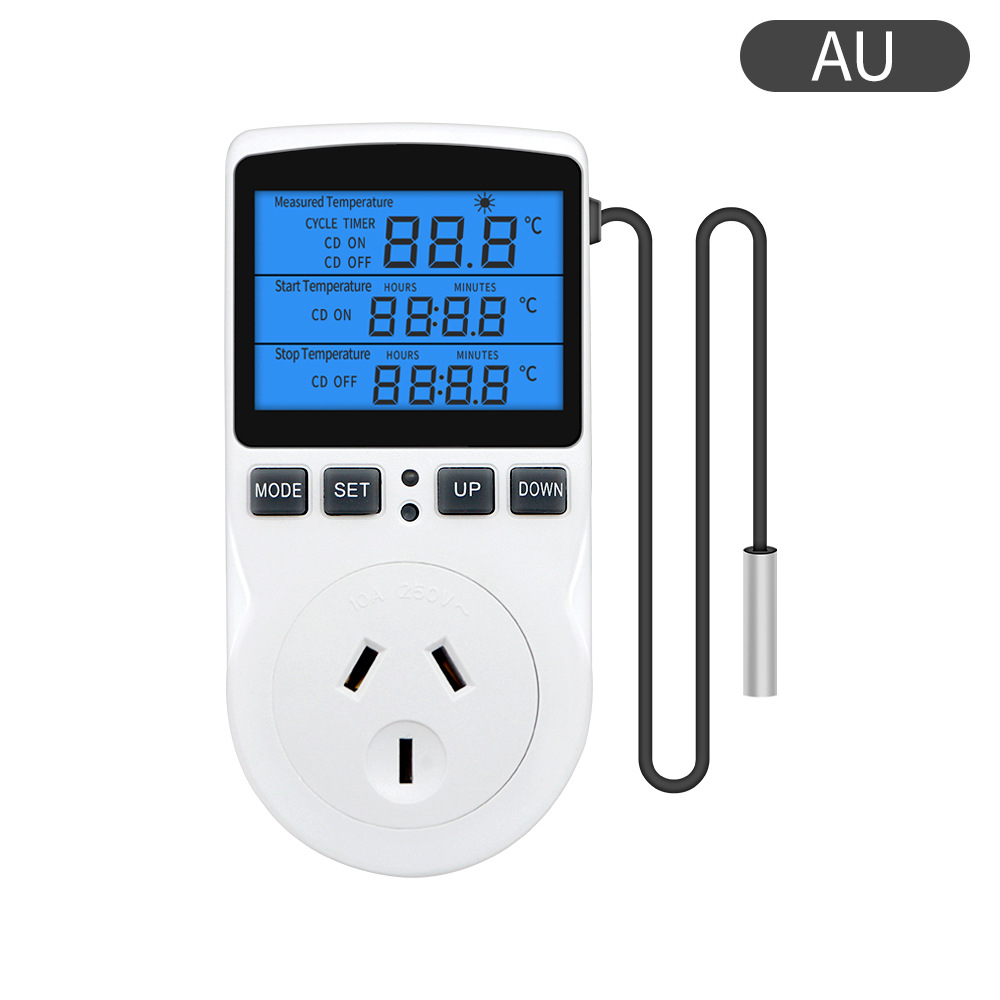

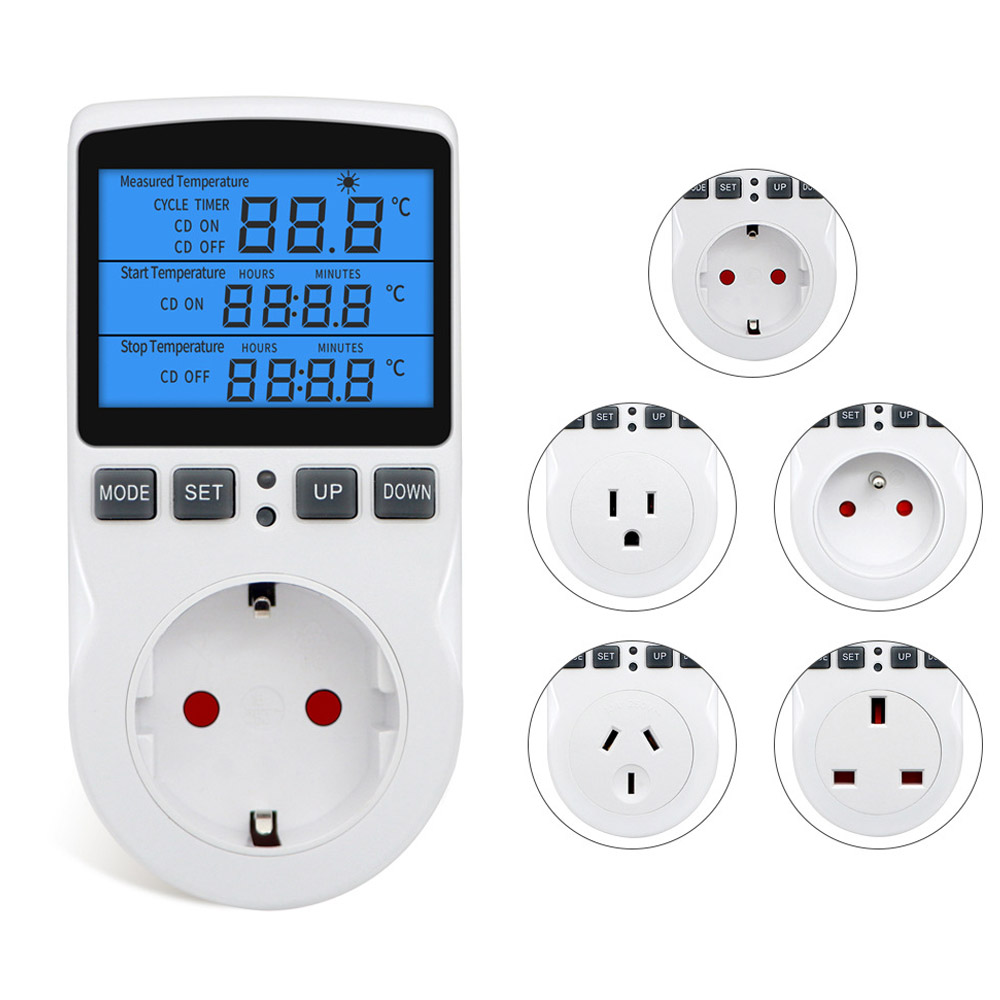

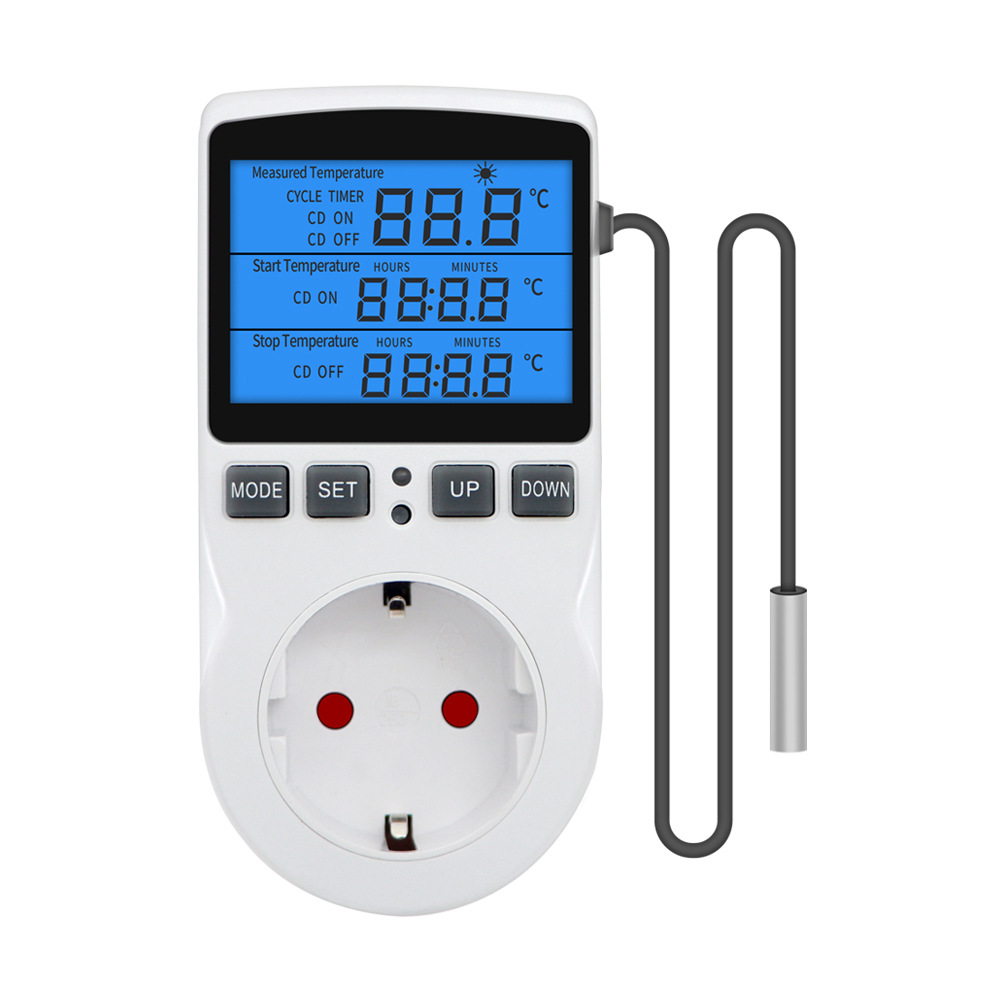

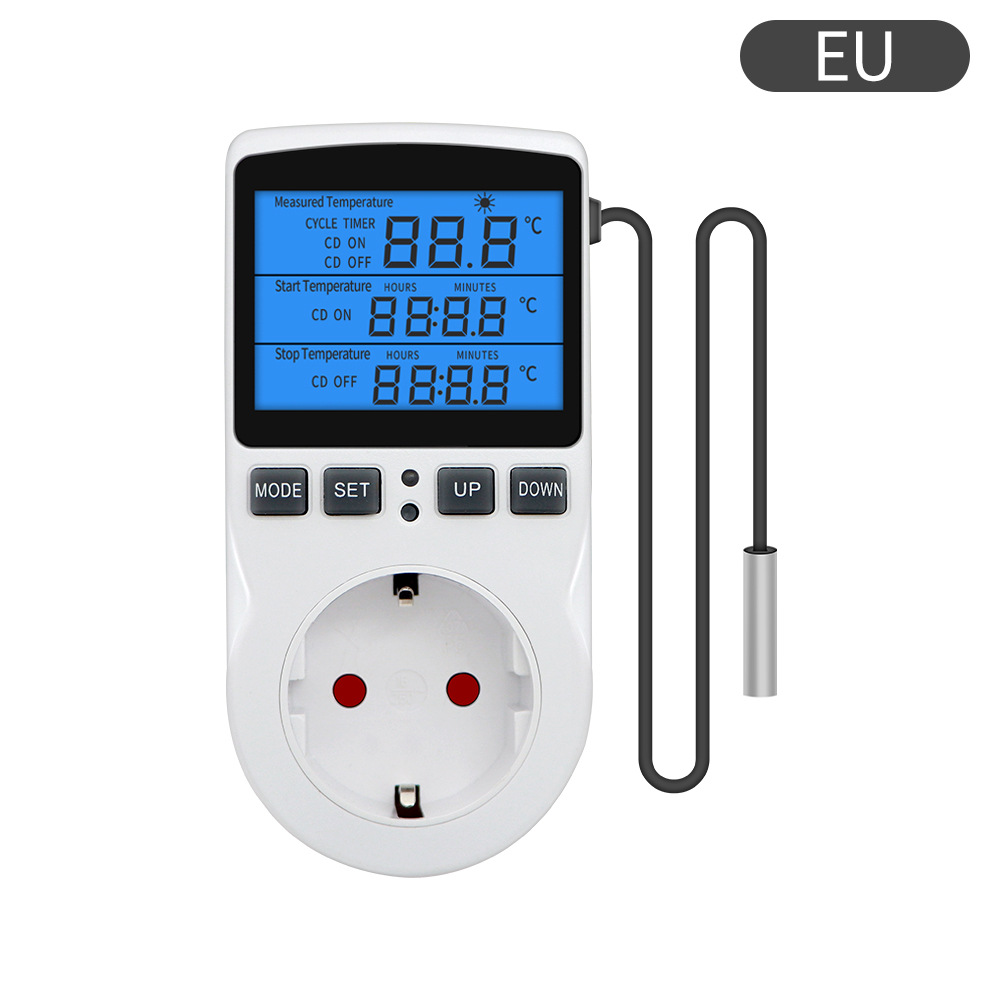

US/EU/UK/AU/FR 3680W Thermostat Temperature Controller LCD Backlit Digital Thermostat Heating Cooling Control Mode Plug in Timer

Features:

4 Temperature control mode: F01 cycle timer mode; F02 countdown ON mode, F03 countdown OFF mode, F04 countdown ON and countdown OFF mode. Temperature calibration support. Reset function. The data storage function can save all parameters after power-off.

With heater timing setting: The temperature control socket has cycle timing and countdown functions. You can select Cycle timer mode to control the unit running during the cycle, or countdown mode to turn the unit on or off.

The value ranges from 0 to 99 hours and 59 minutes. Please note that the thermostat plug function and timing function cannot be used at the same time.

Precision digital temperature control: Temperature controller outlet :-40℃~120℃, plug-in temperature controller function, accuracy ±1%. Set the start and stop temperatures so that the heater or cooler runs as programmed.

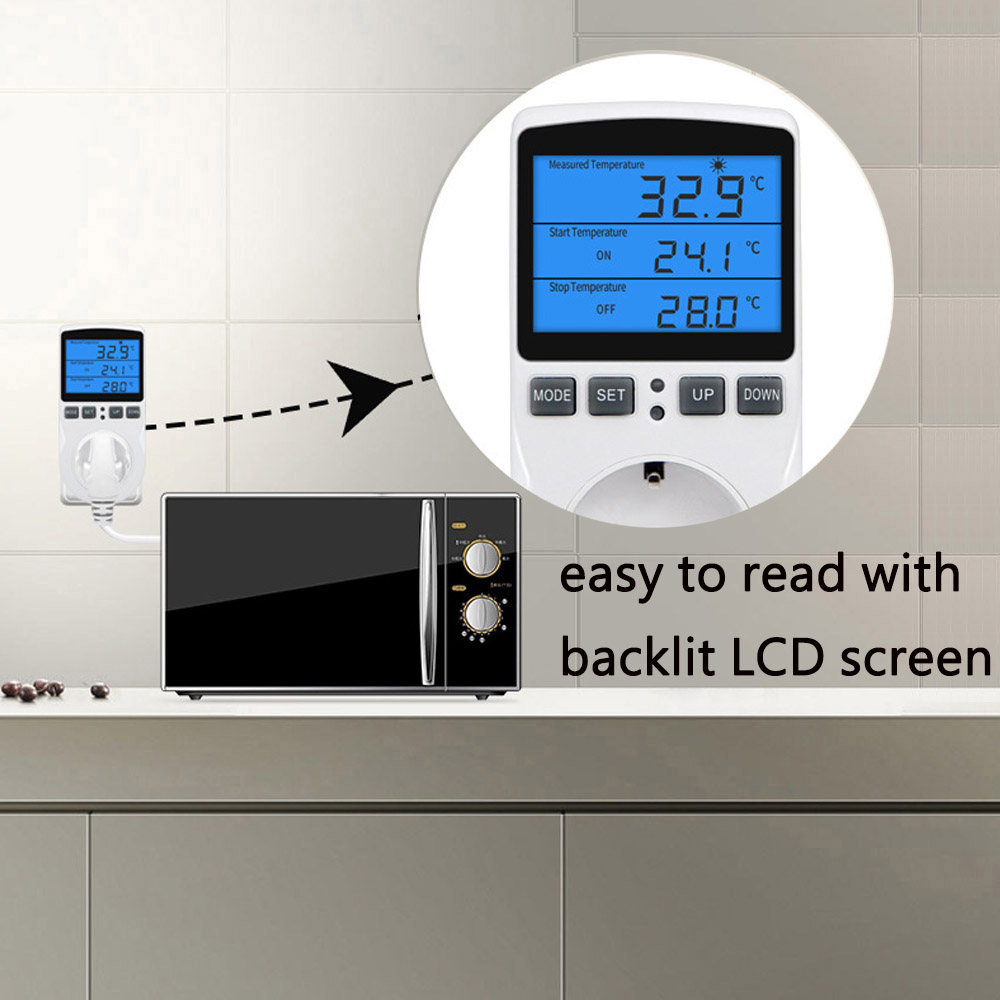

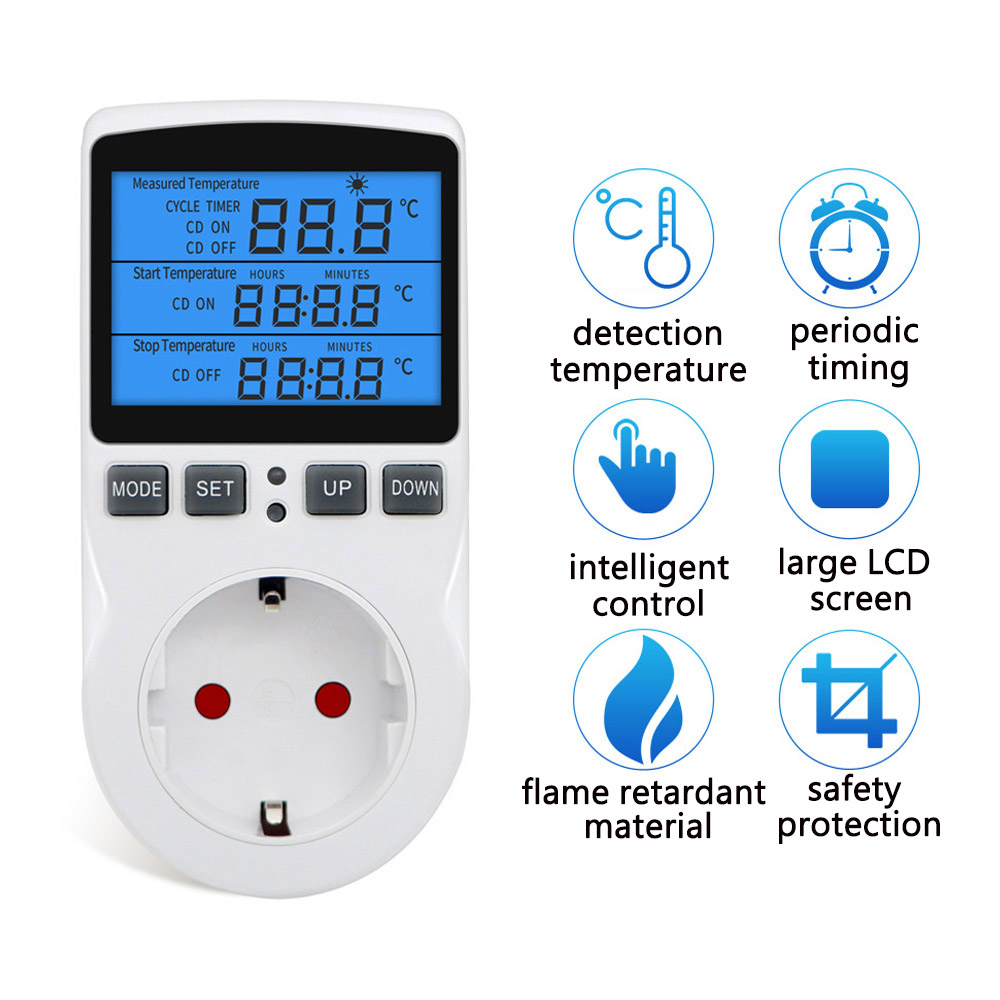

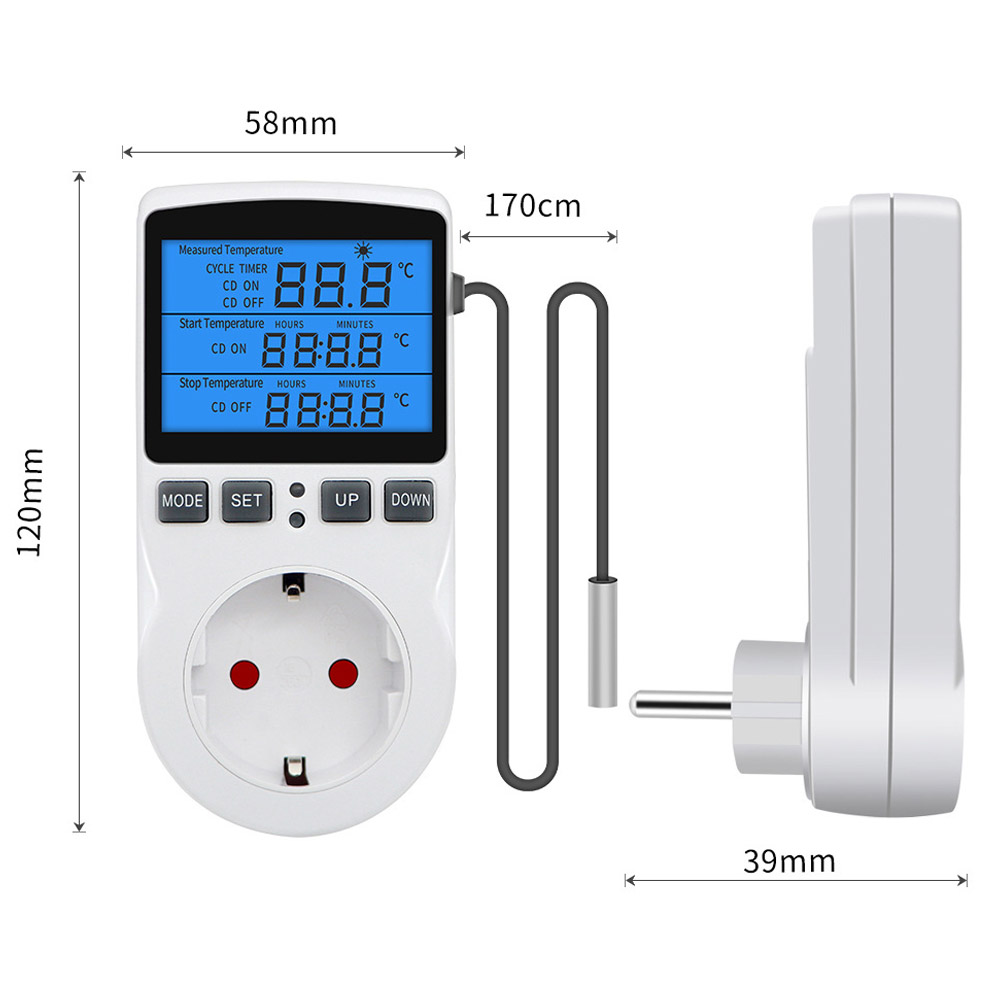

Backlight LCD display: High definition LCD display with backlight, very easy to operate in the dark, 1.7M cable can meet the needs of most plug-in thermostats.

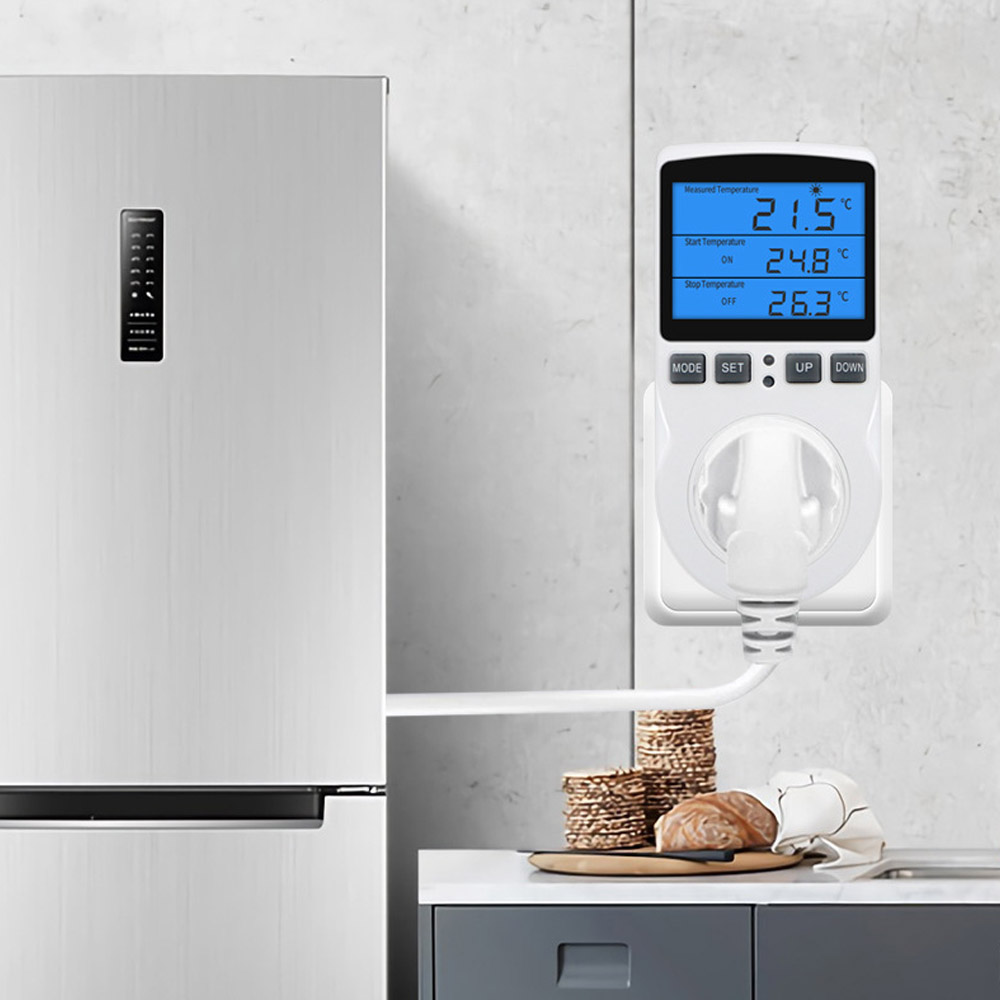

Wide range of applications: This thermostat socket with probe is widely used in glass rooms, greenhouses, incubators, glass feeding boxes, refrigerators, fermentation, heating pads and other temperature control systems.

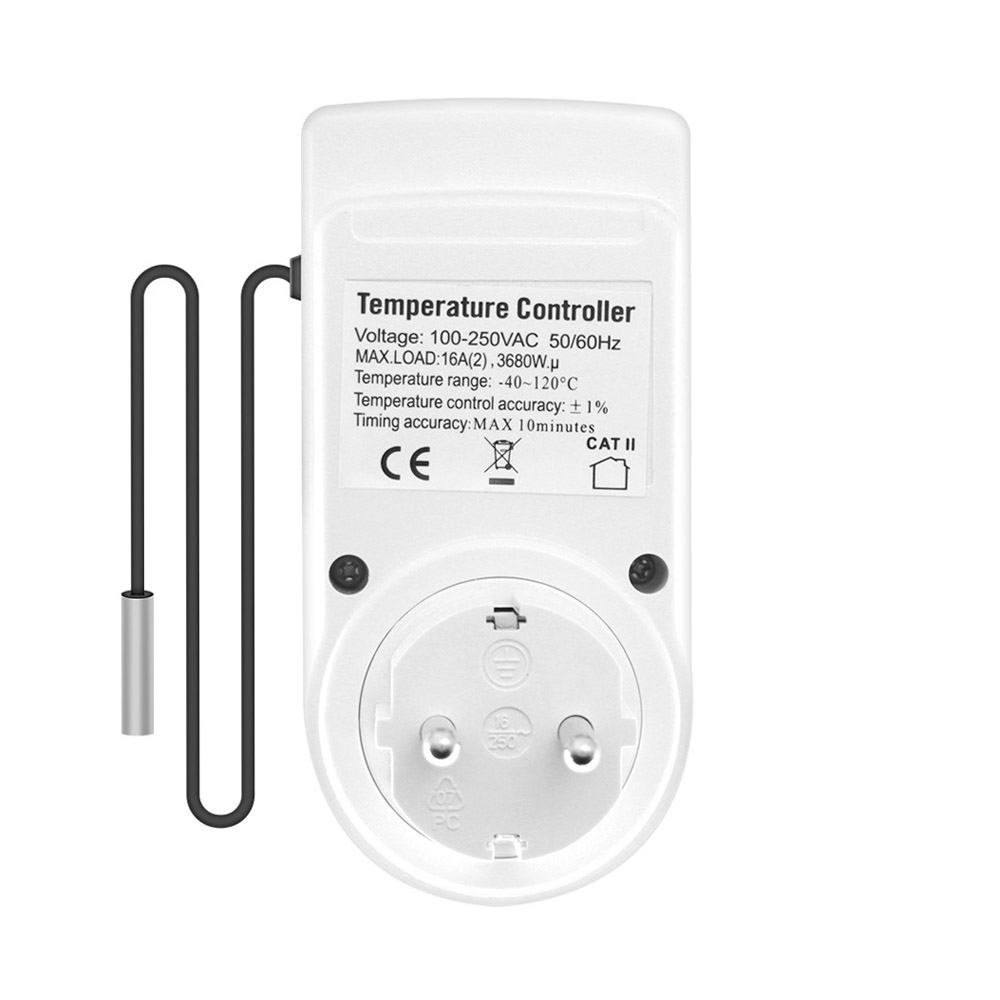

Specifications:

Voltage: 100-250VAC 50/60Hz

MAX Load: 16A(2), 3680W

Temperature range: -40~120°C

Temperature control accuracy: ±1%

Mode selection:

Press MODE, LCD display: temperature control mode; Timing mode F01-F04:

F01 Cycle timing mode, start time (ON)/ stop time (OFF) cycle timing;

F02 Countdown ON mode, now TI.S OFF, delay (start time) ON;

F03 countdown off mode, now TI.S ON, delay (stop time) off, countdown complete, close output and exit operation;

F04 Countdown ON countdown OFF mode, now TI.S OFF, delayed (start time) ON, off after the start delay (stop time), stop time to complete the countdown, close the output and exit the operation.

Temperature correction function:

Press and hold the power mode button to calibrate the temperature in real time 2 seconds later. The real-time temperature calibration range is -9.9~9.9°C.

Long press the SET key for 5 seconds to automatically exit without saving the changes.

Press and hold the MODE button to exit and save the tip correction.

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1mm-1cm differences due to manual measurement.

Package Included:

1x Thermostat
