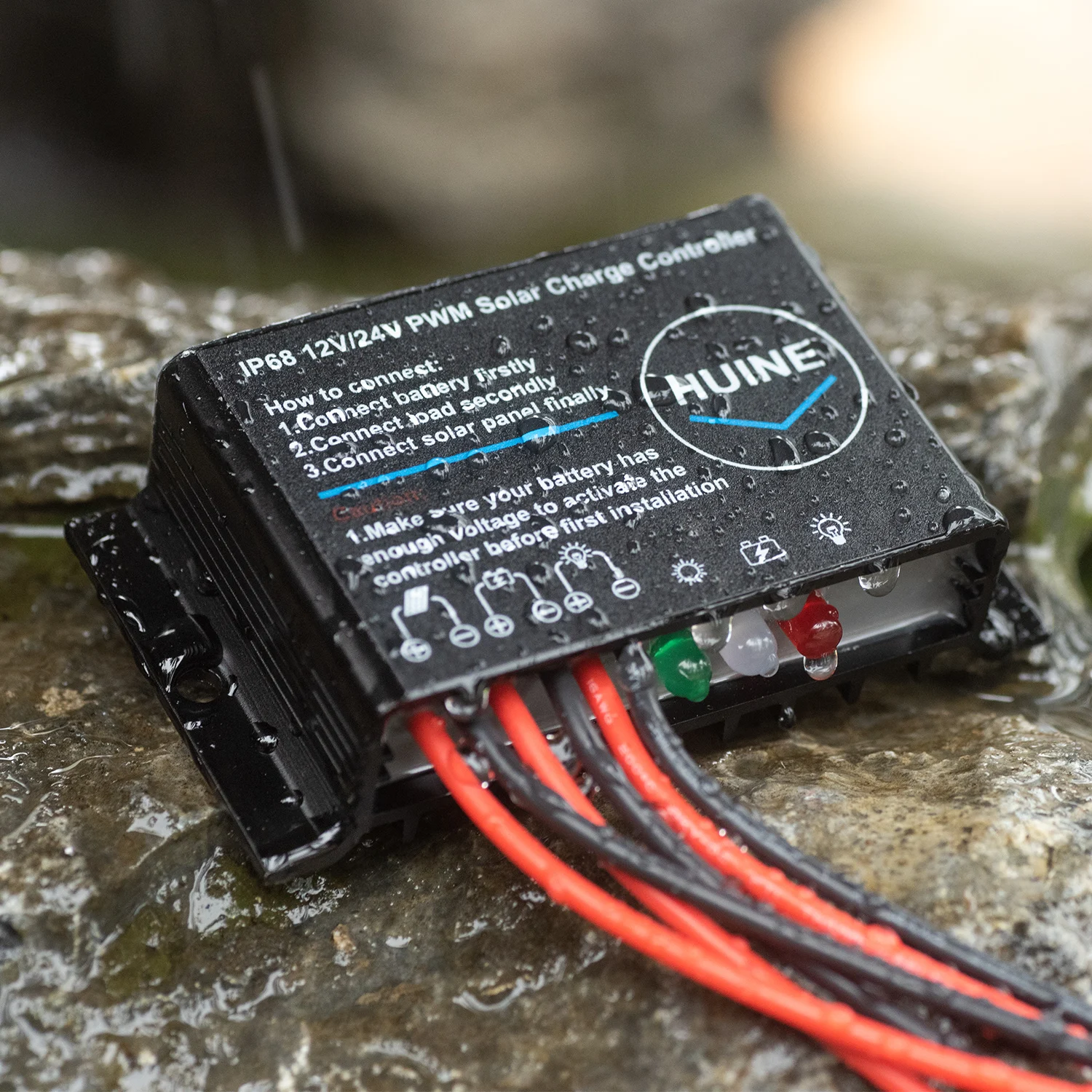

10A Solar Panel Regulator Charge Controller Waterproof 12V 24V for Lead Acid Battery
What kind of Battery You can Use it to charge
You can use the solar charge controller for all kinds of lead acid batteries(including sealed, flooded, AGM and GEL)
Where you can apply the solar charge controller for?
You can use this solar controller for widely application, like solar monitoring system, solar lighting system, solar fencing system, or solar system for boat and Caravan, and other DIY small solar systems.
Specification

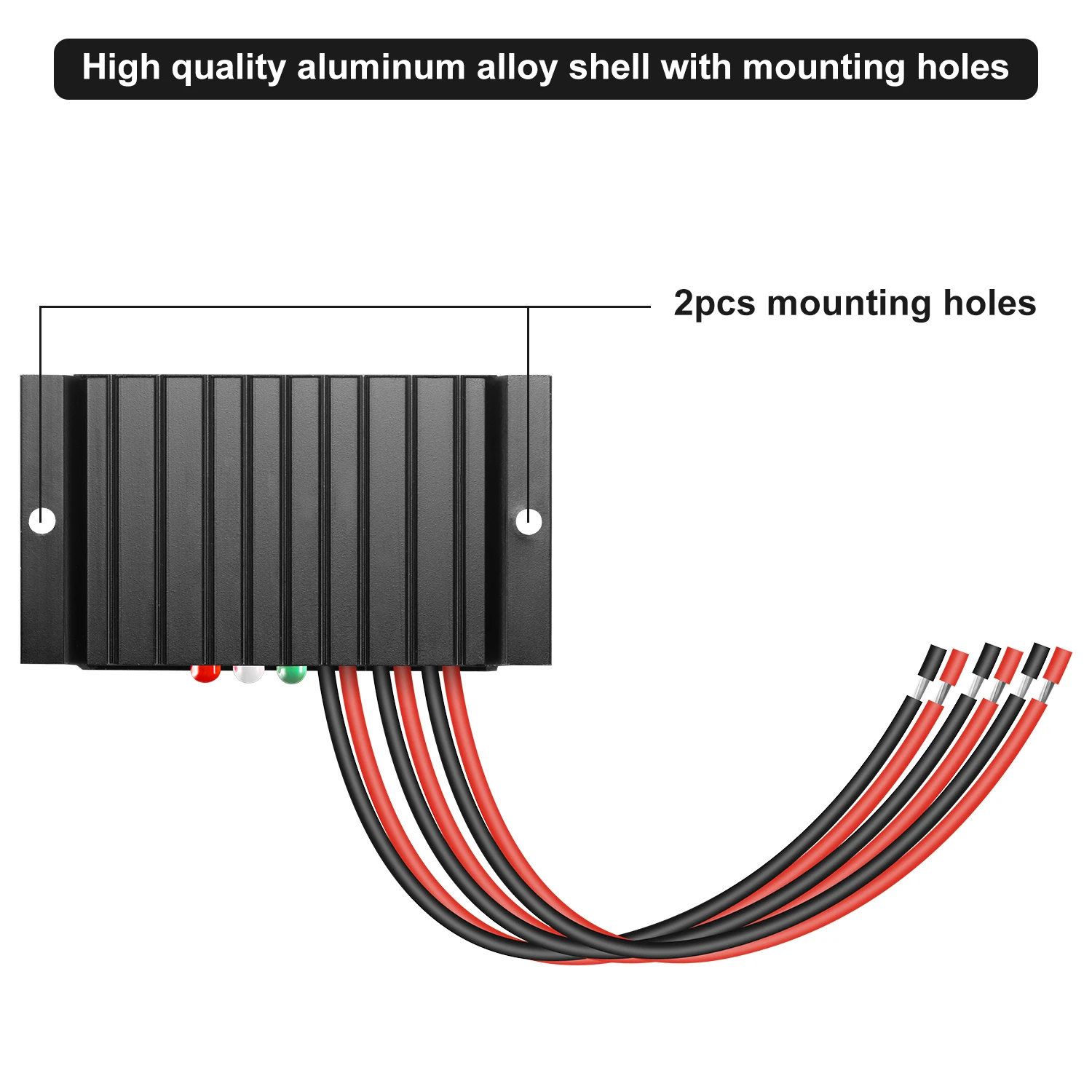

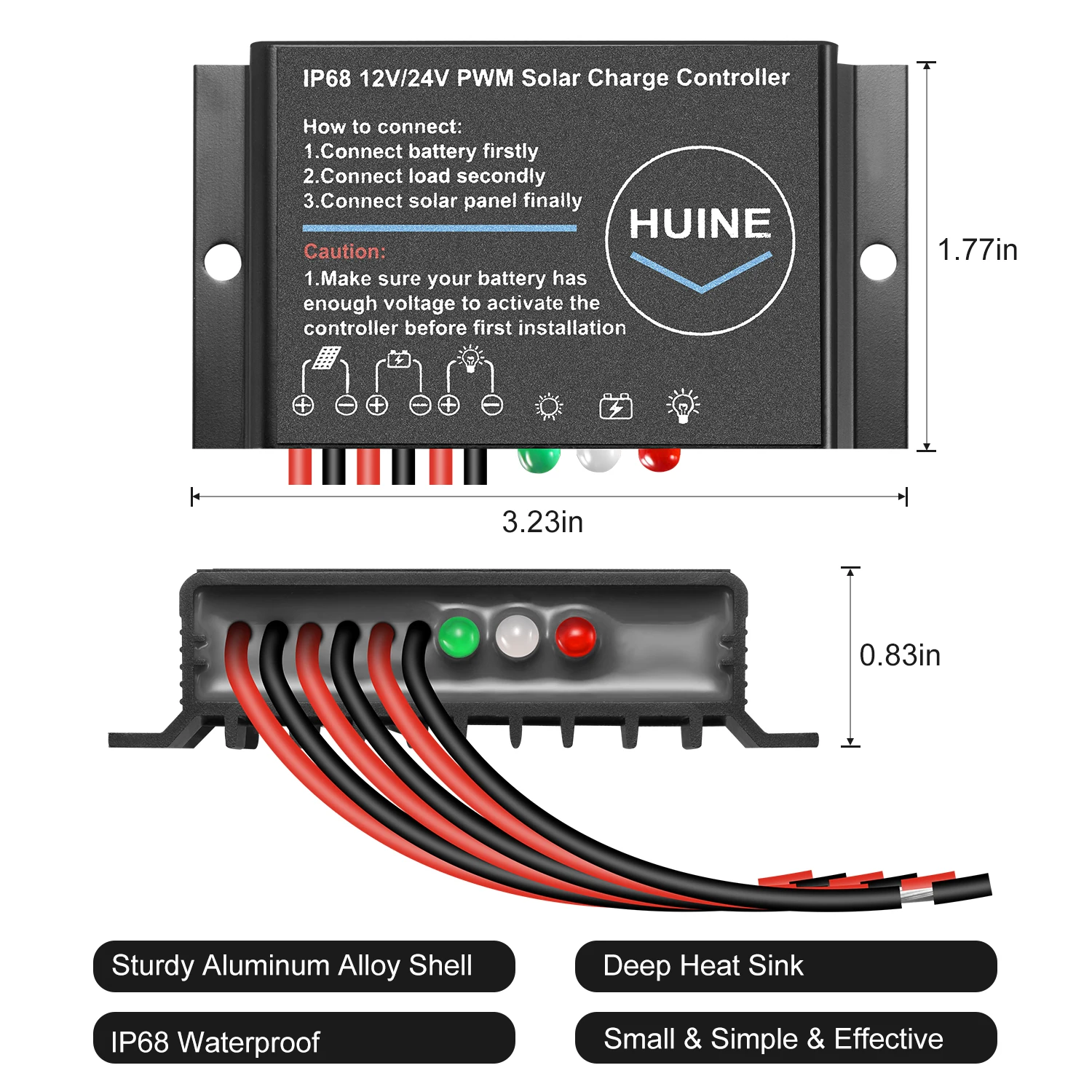

◆ Color: Black ◆ Load Discharge Mode: 24 Hours Continuously ◆ Rated Charging Current: 10A ◆ Rated Discharging Current: 10A ◆ Max Solar Input Voltage: ＜50V ◆ System Voltage: 12V/24V Auto Adapt ◆ Self consume: ＜10mA ◆ Operating Temperature: -20 ~+60℃ ◆ Equalize Charging Voltage: 14.2V/28.4V ◆ Bulk Constant Charging Voltage: 14.2V/28.4V ◆ Float Charging: 13.8V/27.6V ◆ Discharge Stop Voltage: 10.7V/21.4V ◆ Discharge Reconnect Voltage: 12V/24V ◆ Housing: Aluminum alloy ◆ Maximum Wire Size: 16AWG ◆ Size/Weight: 82x45x21mm/120g
Safety Instructions:
A) Make sure your battery has enough voltage for the waterproof solar charge controller to recognize the battery type before first installation
only sufficient battery voltage
can charge or activate the controller. That means it won't charge or activate when hooked to a dead or no-voltage battery.
B) The battery cable should be as short as possible to minimize loss.
C) The regulator is only suitable for lead acid batteries: OPEN,AGM, GEL It is not suited for nickel metal hydride, lithium ions or other batteries.
D) The charge regulator is only suitable for regulating solar panels. Never connect another charging source to the charge regulator.

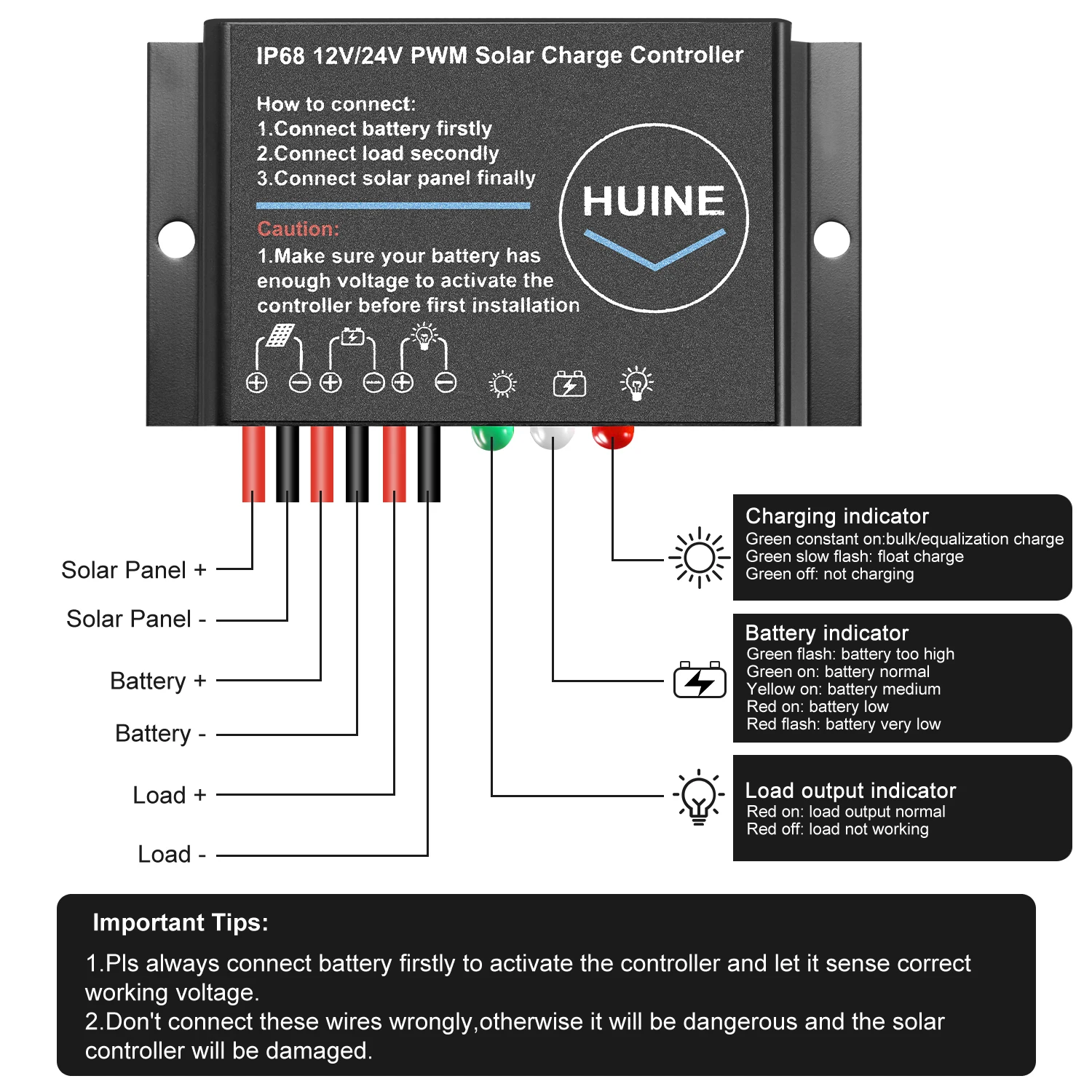

How to connect solar system with the controller:
Step 1:Connect the battery to the solar charge controller firstly- plus and minus.(it will auto adapts to the battery voltage) Step 2: Connect the load to the controller secondly.(if no load, then skip to step 3) Step 3: Connect the solar panel to the controller finally - plus and minus. Note: The reverse order applies when deinstalling.
Product Detail
Package Include：
● 1 X Waterproof Solar Charge Controller ● 1 X User Manual
