Product Description

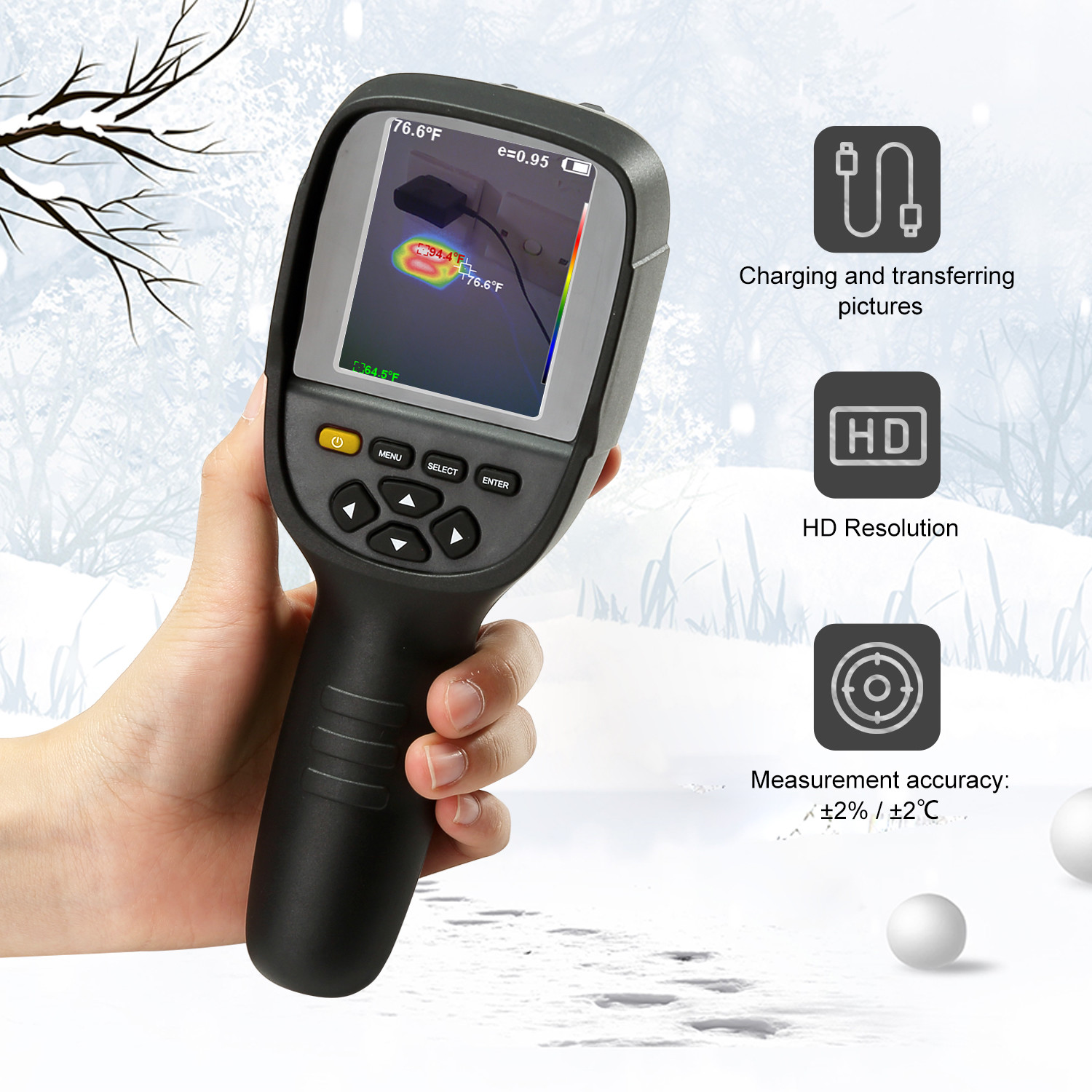

New Higher Resolution 320 x 240 IR Infrared Thermal Imaging Camera. Model LND-19 with Improved 300,000 Pixels, Sharp 3.2" Color Display Screen, Battery Included. Lightweight Comfortable Grip

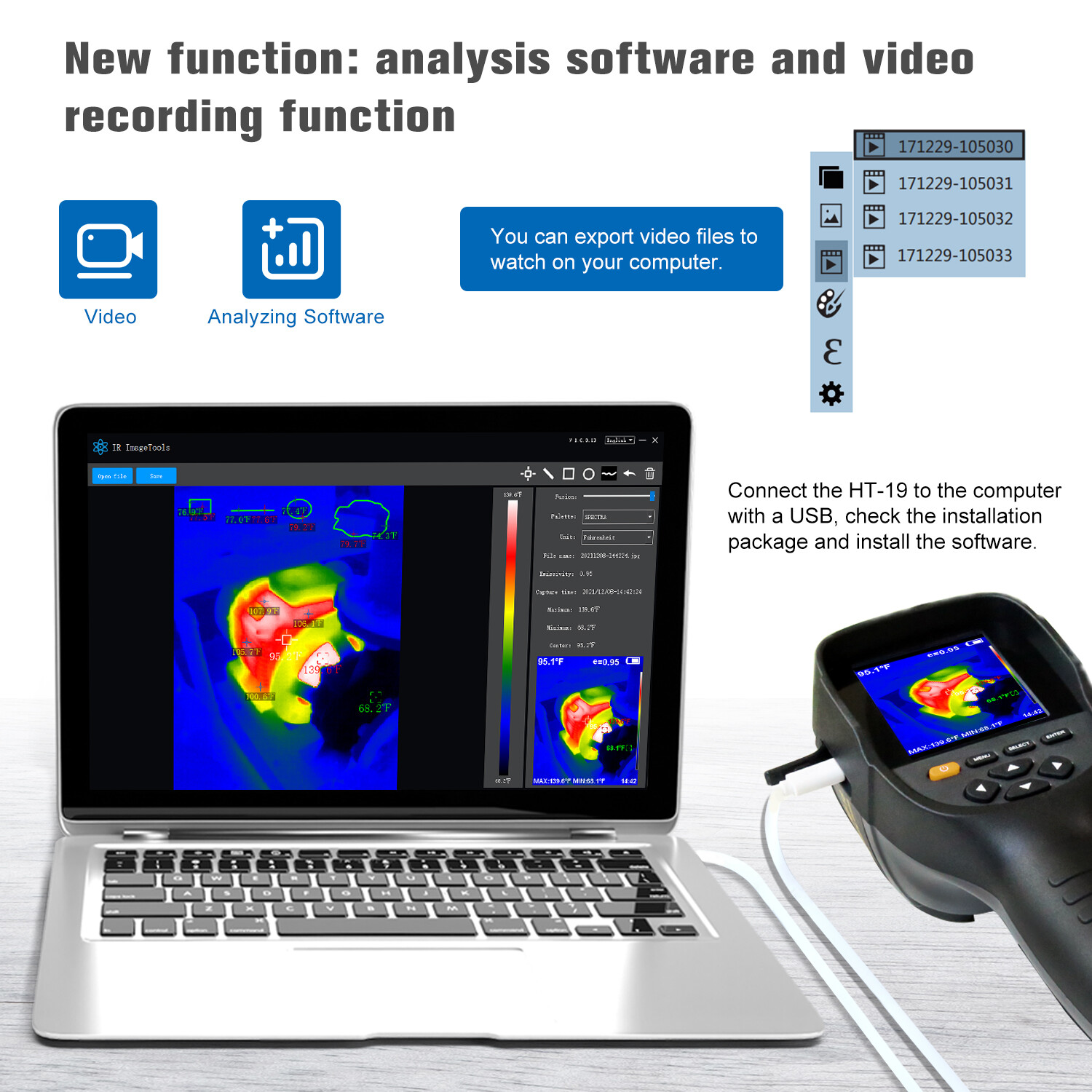

The new LND-19 thermal imager in 2022, with video function and analysis software.
PRODUCT DETAILS:
Thermal lmaging Camera is widely used in the Medicine, archaeology,transport,agriculture and so on.
HIGH RESOLUTION IMAGERY - Our 3.2" full color display screen shows thermal detection and visible light imagery in 320 x 240 resolution, allowing the user to see the full range of infrared imagery.
CHOOSE FROM 5 PALETTES - Choose the ideal color scale for your job - Rainbow,Iron Red, Cold Color, Black and White, or White and Black
4 GB SD CARD INCLUDED - No need to worry about buying an extra SD card or losing your recordings - we include 4 GB of storage so you can look back at the recordings on a laptop, TV, or other device.
IDEAL FOR PROFESSIONALS - This imaging camera is ideal for work in home inspection , fire-fighting, archaeology, traffic, farming, and electronic manufacturing fields,as well as any job that requires accurate temperature readings (accurate within 2.5°F).
LIGHTWEIGHT AND COMFORTABLE GRIP - This camera is only 0.83 pound, perfect for easy storage and taking anywhere - and, it comes with one travel pouch. Shaped in a"gun" style with an ergonomic handle, for comfort and ease at any angle. WARRANTY: We offer hassle-free after-sale services: 30-Day money back guarantee, 24 month warranty, Lifetime technical supports. We won't let our customer waste their money.
SPECIFICATION:
Display screen：3.2 ″ full angle TFT display screen
Infrared image resolution ：320*240
visible image resolution ：300,000 pixel
Field angle/shortest focus length ：26°x34°/2m
Thermal sensitivity ：0.07℃
Temperature measurement range ：-20℃ to 300℃ (-4°F to 572°F)
Measurement accuracy ：±2% / ±2℃
Emissivity：Adjustable from 0.01 to 1.0
Frame rate of thermal images ：9Hz
Wavelength coverage ：8-14um
Focus mode ：Fixed
Color palette：Rainbow, iron oxide red, cold color, black & white, white & black
View option ：The integration of thermal image with 25% step length and visible image.
Storage medium ：Built-in 3G (above 2 million image stored)
File format ：JPG
USB：Micro USB 2.0
Automatic power-off time：Selectable: 5 minutes/20 minutes/ not power off automatically
Product size(length × width × height) ：90mm×105mm×223mm
Product weight：389g
Work temperature ：0℃to 45℃
Storage temperature ：-20℃ to 60℃
Relative humidity：< 85%RH
PACKAGE LIST:
1 * Thermal Imaging Camera
1 * User Manual
1 * Drop Resistance Rope
1 * USB Line
1 * Protection bag
QUANTITY: 1 set
COLOR: As The Picture (Picture is the real object you get)
