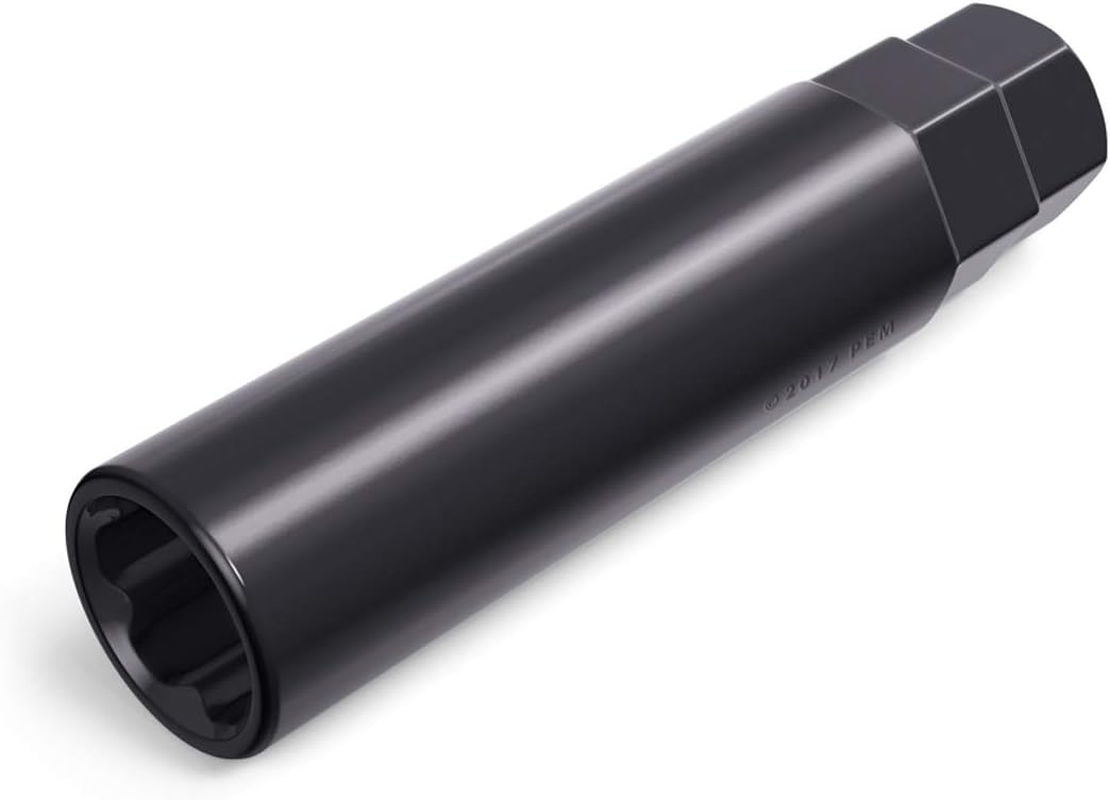

Stancemagic 6 Point Spline Drive Tuner Replacement Socket Key Tool for Aftermark
Description
| Item model number | 8542043727 |
| Exterior | Steel |
| Color | Black |
| Material | Alloy Steel |
| Drive System | External Hex, Spline |
| Item Weight | 4.6 ounces |
| Item Length | 3.5 Inches |
| Item Dimensions LxWxH | 2 x 5 x 2 inches |
| Lift Type | Mechanical |
| Model | NUTS |
| Number of Pieces | 1 |
| Finish Type | Black Phosphate, Black oxide finish, Chrome, Painted, Steel |
| Size | Small 6-Spline |
- 1pc Small 6 Spline Lug Nut Key, Black Socket Key Replacement. Works with most DPAccessories, Gorilla, Accuwheel, & more 6-point Spline Type Tuner Locking Lug Nuts with smaller diameter (M12, M12x1.5, 12x1.25, 1/2", 1/2"x20 Thread Pitch).
- NOT compatible with larger spline lug nuts (M14 or 9/16") such as ones for Truck/SUV. Also NOT compatible with spike lugnuts.
- Inner Diameter: 17.6mm (0.69"). Outer Diameter: 20.5mm (0.81" outer thickness). Total Length: 90mm (3.5"). Depth: 62mm (2.4"). This key works with the following socket wrench sizes: 19mm, 3/4", 21mm, 13/16".
- [Quality] Special coating provides exceptional appearance and corrosion resistance. Manufactured from cold forged steel that can withstand much more force than the torque needed to secure the nuts on your vehicle.
- [Verify Nut Diameter] There are different diameter/size spline nuts on the market. Ensure that the diameter of your 6 Spline lug nut is smaller than 17.6mm. See Diagram/Image for additional information.
- [Verify Spline Count] This spline tool only works for lug nuts with 6 splines/points. These will not work on 5-spline or 7-spline lug nuts. These will not work on nuts with hex head. These will not work on spike lug nuts.
Product Description
StanceMagic Wheel Accessories
With over 10 years of experience with automotive parts and accessories, we've amassed a great deal of product knowledge and customer sentiment. Using this, we are able to provide high quality products that are compatible nearly any project on which you are working.
Socket Key Specifications:
- Splines: 6-Point
- Inner Diameter: 17.6mm
- Outer Diameter: 20.5mm
- Color: Black
- Material: Cold Forged Steel
- Process: Heat treatment
6 Point Spline Drive Tuner Socket Key Tool for Six-Spline Wheel Lock Lug Nuts
Perfect Replacement for Missing or Lost Spline Socket Key
Did you install aftermarket spline lugs and can't seem to find your socket to get your wheels off again? Did the original key that your lugs come with break for whatever reason? Maybe, you bought a used car that has 6-spline lugs installed and now you need to service the vehicle. If any of these apply to you, this socket key will have you covered! This socket can be used in conjunction with both 19mm (3/4") and 21mm (13/16") hex sockets which makes it a versatile addition to your tool kit.
- Only compatible with 17mm 6-spline tuner style lug nuts
- NOT for 6-sided Hex Lug Nuts.
- Typically for smaller spline lug nuts (12x1.5, 12x1.25, 1/2"x20).
- Verify Lug Nut Diameter before purchasing.
- Compatible with 19mm (3/4") Hex Sockets
- Compatible with 21mm (13/16") Hex Sockets
Inner Diameter | Outer Diameter | Fits 19mm Socket | Fits 21mm Socket |
Only Works with Smaller Diameter 6-Spline Lug Nuts
Verify Lug Nut & Wheel Lug Hole Diameter
IMPORTANT INFORMATION - Please Read To Prevent Incompatibility
Compatibility / Fitment
- This socket is only compatible with smaller 6-spline lug nuts.
- Typically compatible with: M10x1.25, 3/8"x24, M12x1.5, M12x1.25, 1/2"x20, & 7/16"x20 Thread Sizes
- Measure the diameter of your lug nut splines and compare to 'Socket Inner Diameter' measurement in the diagram above.
- NOT COMPATIBLE with SUV/Truck thread sizes: M14x1.5, M14x2, 9/16"x18.
- NOT COMPATIBLE with Spike Lug Nuts.
Installation
- Before using the socket, make sure the socket splines match that of your lug nuts. If there is too much play (ie too much "wiggle" room), the socket may crack or round off your lug nuts. NOTE: The socket will break if used on mismatching lug nuts.
- During use (loosening or tightening your lug nuts), ensure you are holding/leveraging your wrench properly. Failure to do this puts too much extra pressure on the socket and can lead to breaking/cracking. NOTE: The socket will break if not used properly.
| # of Splines | 6 | 6 | 6 | 6 |
|---|---|---|---|---|
| Length | 90mm (3.5") | 90mm (3.5") | 90mm (3.5") | 90mm (3.5") |
| Socket Outer Diameter | 20.5mm (0.81") | 20.5mm (0.81") | 20.5mm (0.81") | 23.5mm (0.93") |
| Color | Black | Black | Chrome | Chrome |
| Quantity | 1 Pack | 2 Pack | 1 Pack | 1 Pack |
| # of Splines | 7 | 7 | 7 |
|---|---|---|---|
| Length | 90mm (3.5") | 90mm (3.5") | 90mm (3.5") |
| Socket Outer Diameter | 23.5mm (0.93") | 23.5mm (0.93") | 23.5mm (0.93") |
| Color | Black | Black | Chrome |
| Quantity | 1 Pack | 2 Pack | 1 Pack |
