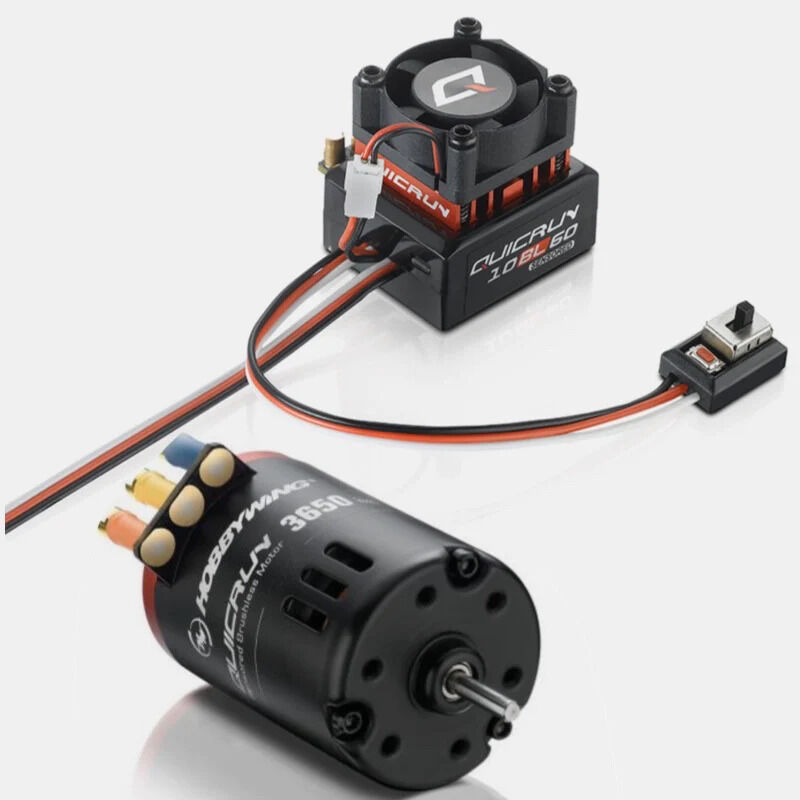

Combo-Qr10Bl60-Sd+Qr3650Sd-8.5T-G2
HOBBYWING
Product Details
Combo-qr10bl60-sd+qr3650sd-8. 5t-g2
Esc details
- high performance but low price- users can own this reliable race-ready esc at an affordable cost.
- compact size, suitable for various car chassis.
- auto identification system can recognize sensored or sensorless brushless motors automatically.
- smooth operation and plentiful adjustment options. suitable for most kinds of competitions.
- 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential.
- proportional brake with 4 steps of maximum brake force adjustment, 8 steps of drag brake force adjustment and 4 steps of initial brake force adjustment.
- 9 steps of acceleration (punch) adjustment, fromsoft tovery aggressive to fit various of cars, tires and tracks.
- multiple protections: low voltage cut-off protection for lipo or nimh battery / over-heating protection / throttle signal loss protection / motor lock-up protection.
- one-button sets the esc. easily reset all parameters to factory default settings.
- compatible with optional device ---- the portable digital led program card, especially convenient for outdoor use.
| model / sku | quicrun-10bl60 sensored / 30108000 |
| cont. /peak current/ resistance | 60a/380a/0. 0008© |
| motor type supported | sensored / sensorless brushless motor |
| car applicable | 1:10 on-road/off-road/buggy/monster |
| motor limit | for 2s lipo or 4-6 cell nimh: 8. 5t(1/10 on-road), 13. 5t(1/10 off-road) *note 1 for 3s lipo or 8-9 cell nimh: 13. 5t(1/10 on-road), 17. 5t(1/10 off-road) *note 1 |
| battery | 4-9 cell nimh, 2-3s lipo |
| bec output | 6v/2a (linear mode) |
| size/ weight | 33mm(l)*28mm(w)*31. 5mm(h, with cooling fan) 59g (with wires, without cooling fan) |
| external program port | Available |
Specifications
| SKU | HW38030201 |
| Brand | HOBBYWING |
| Shipping Cubic | 0.000000000m3 |
