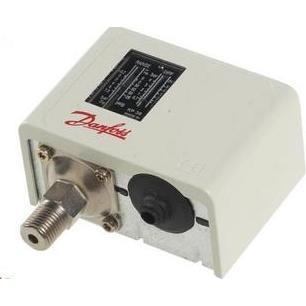

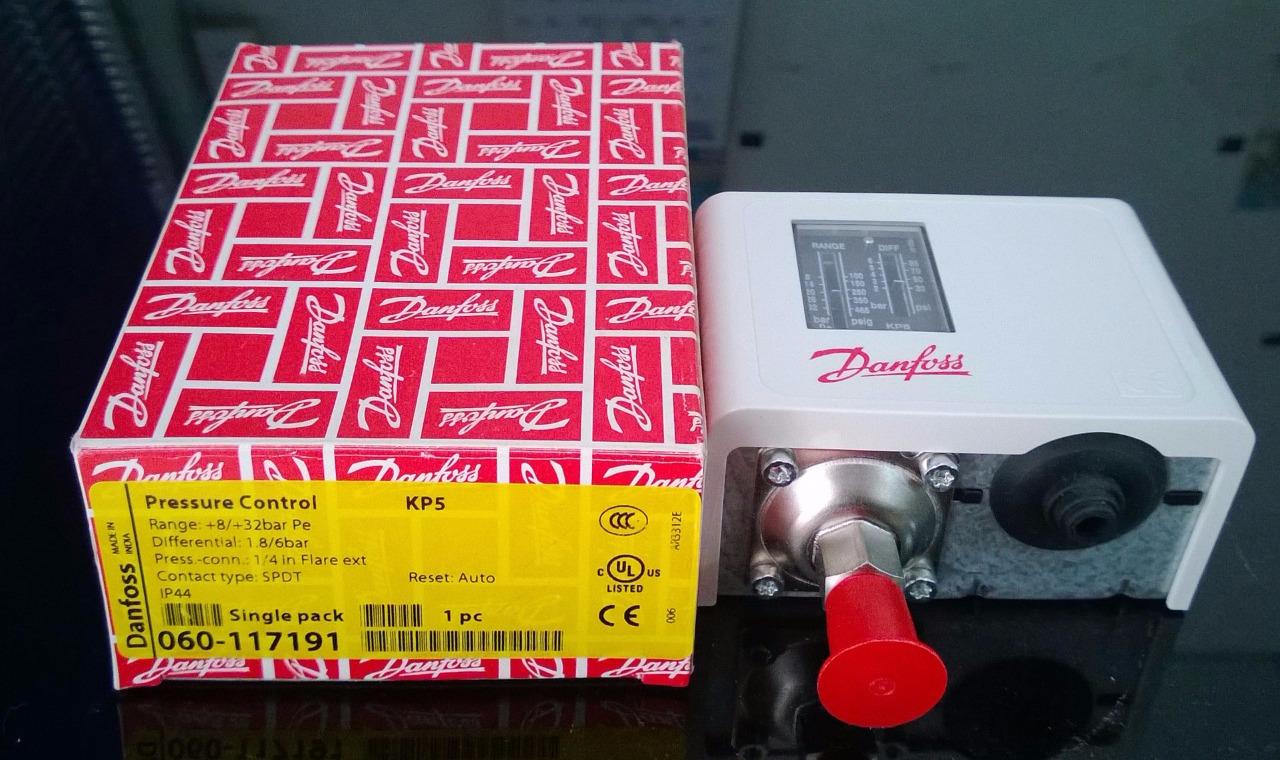

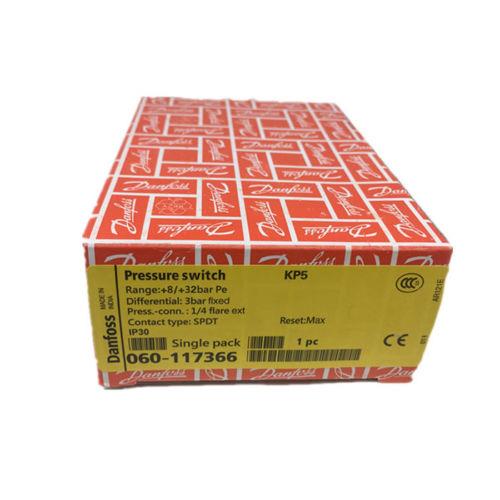

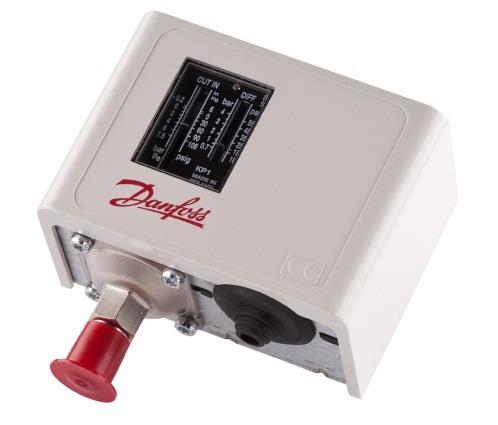

Brand: Danfoss Colour: Orange/Grey Material Type: Galvanized Ductile Iron Model Number: KP5 Pressure: High Pressure Warranty: 1 Year Evaporator Fans: - Cable Length (mtr): .-
Product Description
KP pressure controls are for use in refrigeration and air conditioning systems to give protection against excessively low suction pressure or excessively high discharge pressure. The controls are also used for starting ans stopping refrigeration compressors and fans on air- cooled condensers. KP pressure controls are available in IP 30 and IP 44 enclosures.
Product Features
- Ambient temperature:–40 - +65°C (+80°C for max. 2 hours). DIN-approved units:–40 - +65°C (+80°C for max. 2 hours). Max. working pressure = 17 bar Max. test pressure = 20 bar Contact load, AC: AC1: 16 A, 400 V AC3: 16 A, 400 V AC15: 10 A, 400 V Max. starting current (L.R.): 112 A, 400 V Contact load, DC: DC13: 12 W, 220 V control current
