Feature:
100% brand new and high quality.
Delay shut down automatically.
Small, lightweight, easy to install and operate, plug and play.
Automatic ventilation exhaust fan and other electrical automatic control and other functions.
Auto switch on/off in the dark when you enter into the induction range, and it may have 15s time delay.
Suitable for auto lighting corridors, corridor, bathrooms, basements, warehouses, garages,closet, advertisement light box, and
other places.
Temperature compensation: temperature compensation chip, reducing the impact sensing distance by the temperature.
Specification:
Material: PVC
Color: white

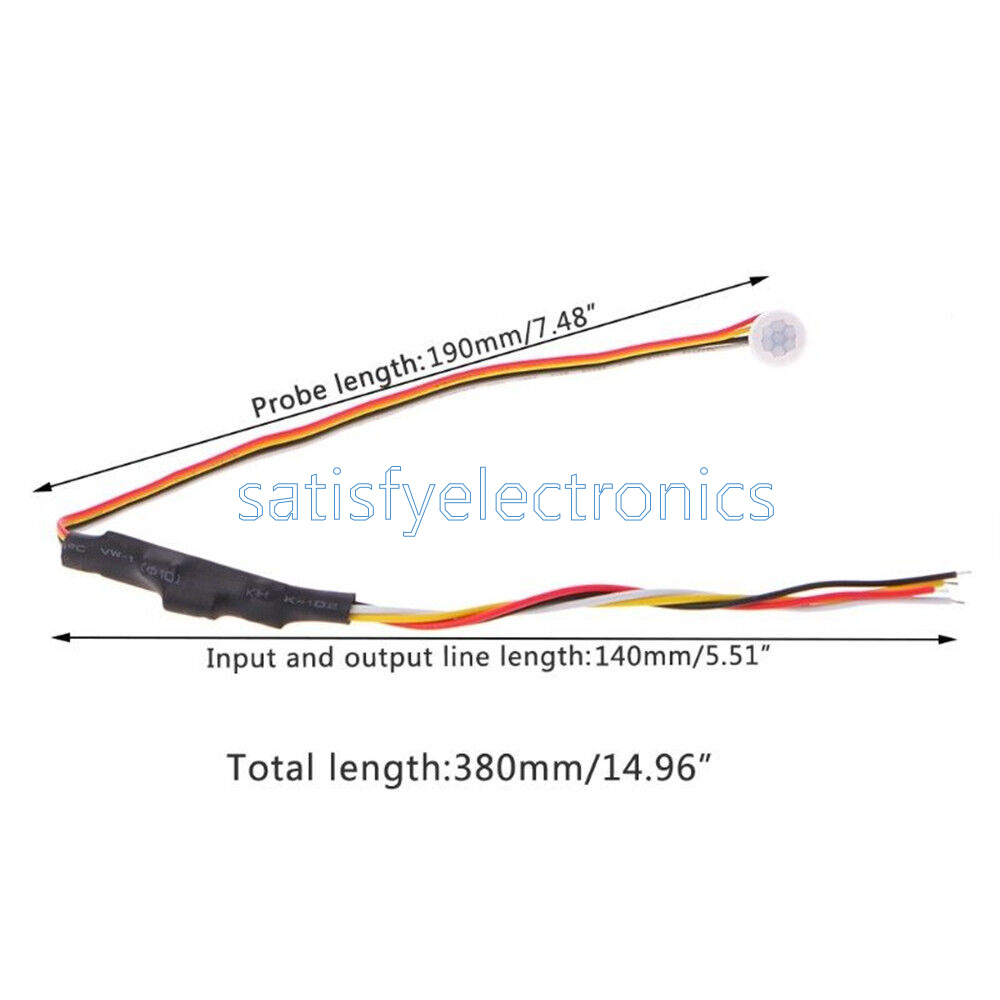

Overall length: 380mm
Probe cable length: 190mm
Input/Output cable length: 140mm
Circuit board size: 40*9mm(L*W)
Working voltage: 5V-24V
Load power: 12W
Output current: 1A
Working temp: -20 ℃ -+50 ℃
Static current: ＜ 50μA
Time delay: 15s
Light control: 3Lux~6Lux

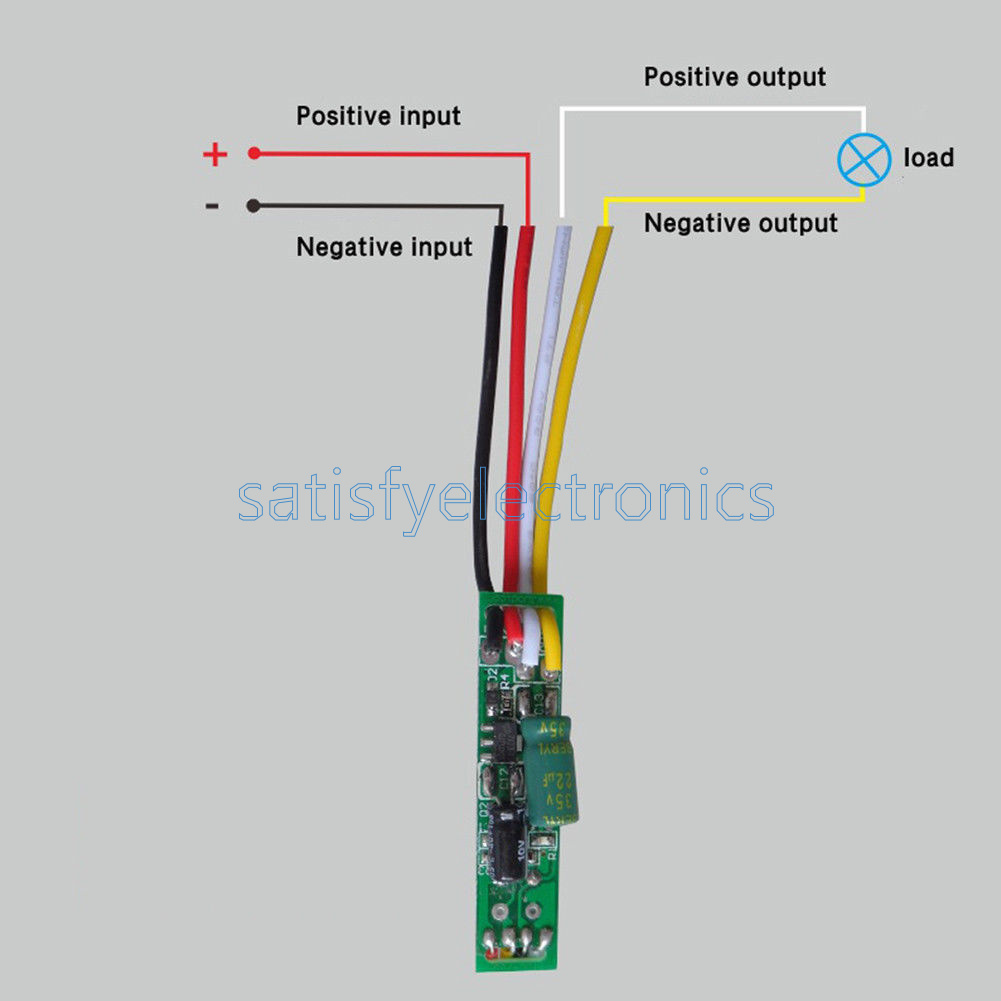

Output mode: sensor output
Induction angle: 140 ° cone shape
Induction distance: 3-5M
(Note: Please allow about 1mm error due to manual measurement, and slight color difference caused by light and screen.)
Package include:
1pc x Sensor switch
