Description:

POWER-Z KM001C This test table integrates a total of six USB ports, to meet the needs of most of the players test. Another feature of it is to support ripple testing. Its function is similar to a micro-oscilloscope, you can test less than 50Hz ripple, the daily use of enough.

Specifications:

Product Series: POWER-KM001C Product Type: KM001C Product Name: Portable USB PD Tester Operating voltage: 24V Working current: 4-15mA standby 3mA@5V Support Agreement: USB PD/QC2.0/QC3.0/QC4+ PPS/FCP/AFC/APPLE2.4/BC1.2/DCP Support language:English and Chinese Working temperature: 0-40℃ Off line data: 2560 X 5 group comes with 512KBIT special memory. Power supply type: HID port: 5V, other ports: 3.7-24V PD sniffer communication: support Pro version to support PD2.0 protocol capture Typical interface contact resistance: TYPE-C to TYPE-C 28mohm TYPE-A to TYPE-A 30mohm Line resistance assessment: support The highest withstand voltage of any port except HID: 24V

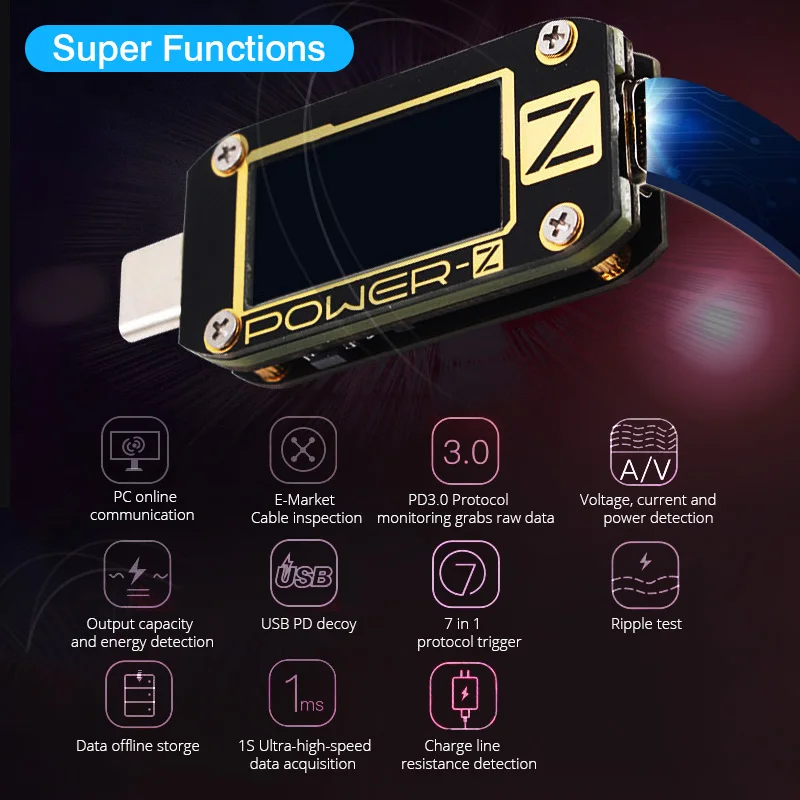

Function:

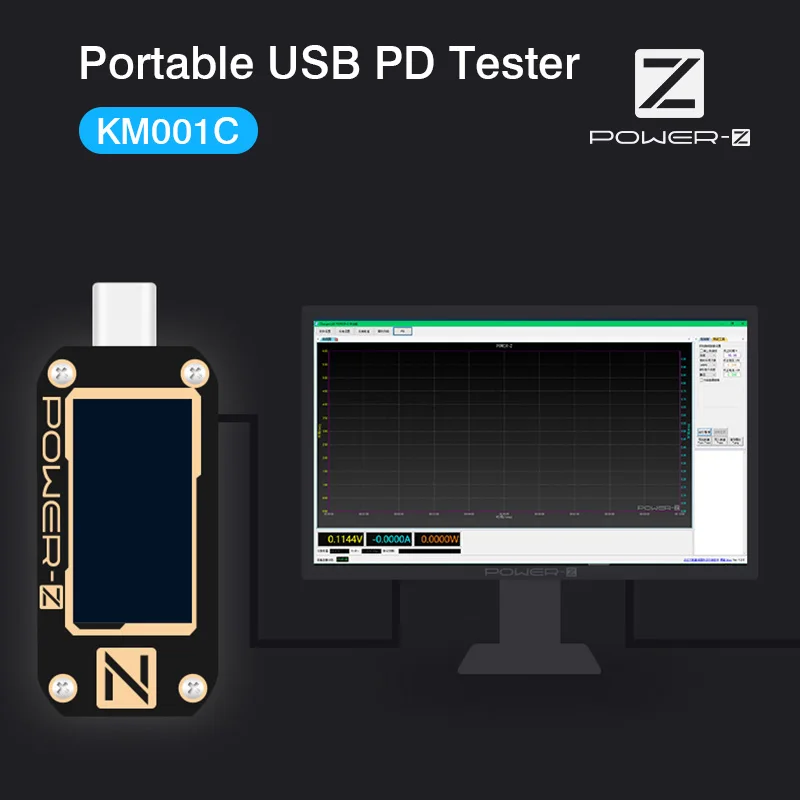

1.Charging voltage and current detection Charging dual Type-C measuring devices 2.E-Markter Cable detaction Can detect cable manufacturer, current range, transmission performance 3.One-button automatic detection charger All supported protocols 4 USB PD3.0 Deception Check if the current power supply equipment supports USB PD/QC2.0/QC3.0/QC4+ PPS/FCP/AFC/APPLE2.4/BC1.2/DCP 5.Voltage and current curve Dynamically monitor the current and voltage during charging and draw a curve
