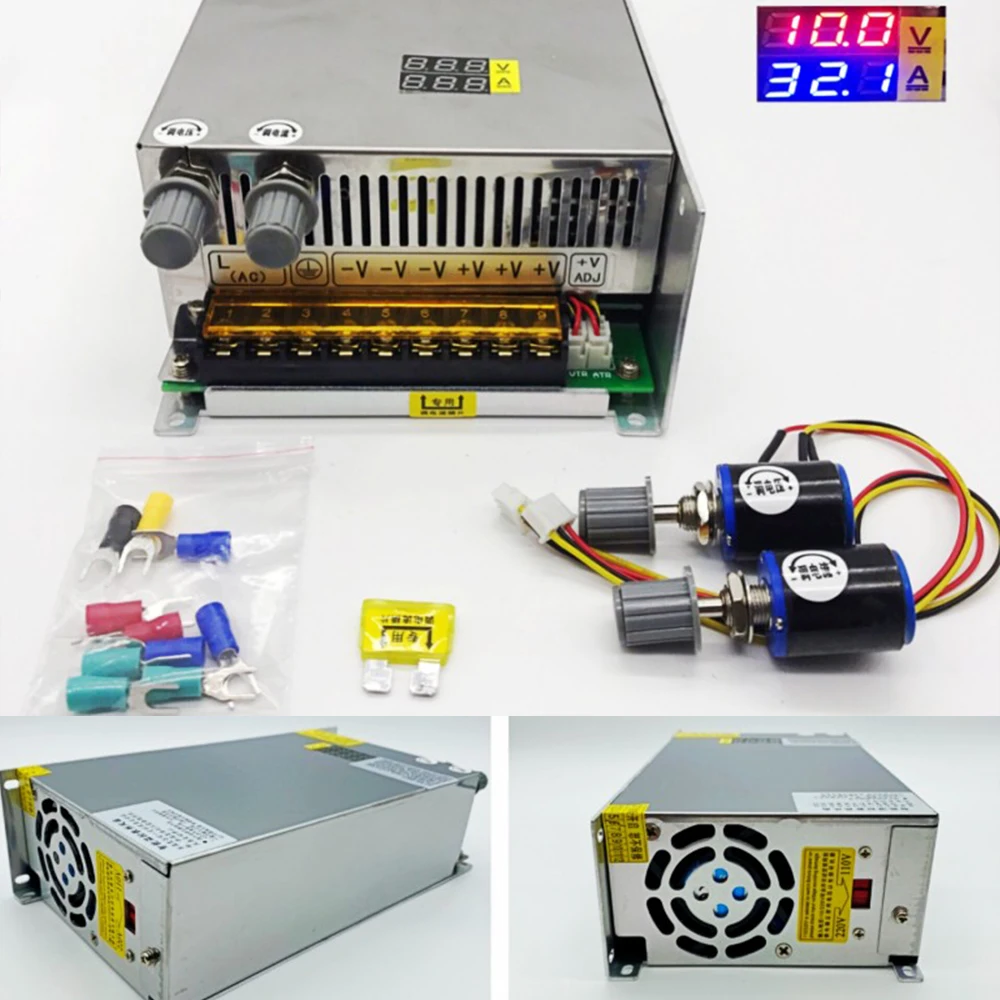

Input AC 110/220V output DC0-220V 0-70A 1000W Constant Current Voltage Adjustable DC voltage stabilization switching power supply with digital display
Suitable for Our 100W/200W/300W/500W COB LED, and our SMD3030 LED Panel Light, or other batteries charging, DC equipment, DC motor stepless speed regulation, LED electrodeless dimming, chemical electrolytic plating speed control, scientific research testing, student experiments, and so on, wide range of uses.
Performance Description:
Input voltage: 110/220VAC
Output voltage and current: Fully adjustable, 0-5V, PLC signal control.

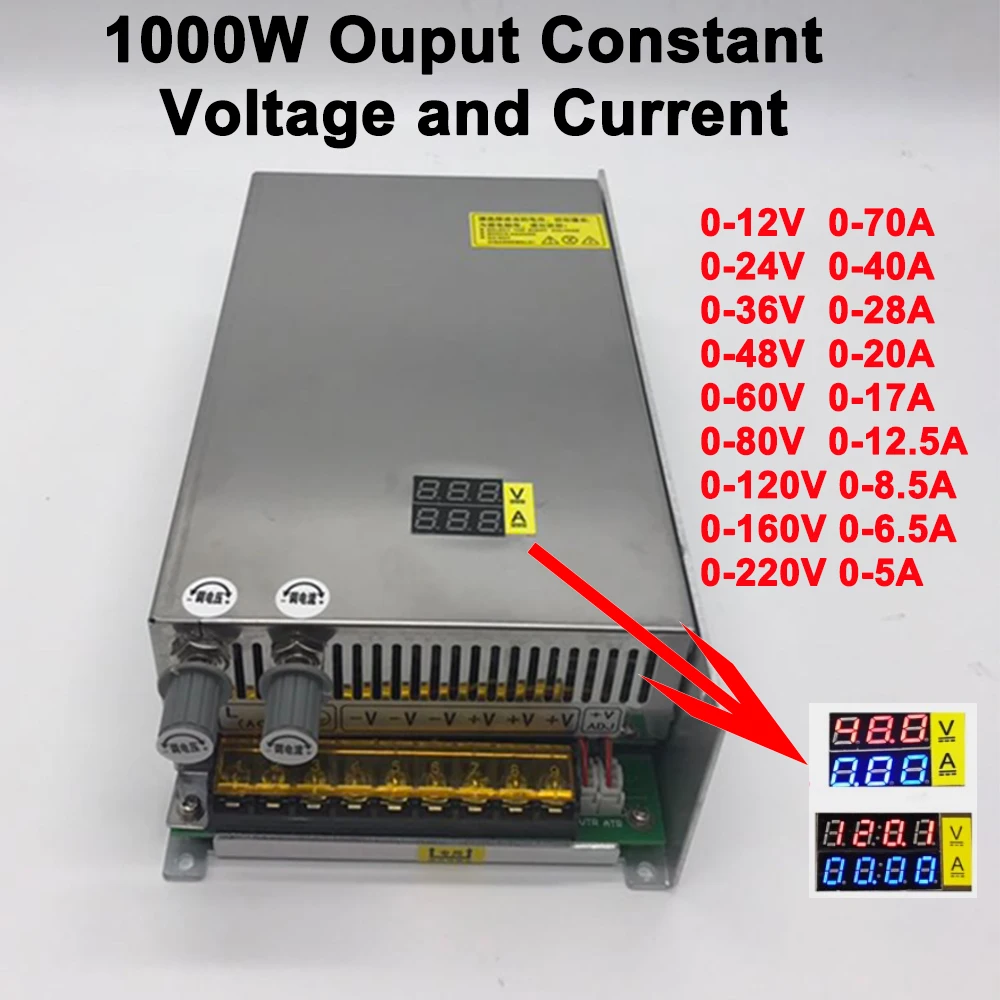

DC0-12V, Max 15V, 0-70A
DC0-24V, Max 29V, 0-40A
DC0-36V, Max 38V, 0-28A
DC0-48V, Max 50V, 0-20A
DC0-60V, Max 62V, 0-17A
DC0-80V, Max 82V, 0-12.5A
DC0-120V, Max 122V, 0-8.5A
DC0-160V, Max 165V, 0-6.5A
DC0-220V, Max 222V, 0-5A
Output Rated power: 1000W
It has short circuit current limiting protection and automatic recovery function
Product size: 240×155×65mm/9.44"*5.90"*2.56"
Suitable for driving our 100W/200W/300W/500W COB LED and SMD3030 LED Panel Light.
Notice:
The switch power supply we send generally defaults to 220V shift. Please pay attention to the switching power supply working power switch position, if you need 110V, please switch to the correct gear, the
switch position is at the back of this power supply.
How to set to limit output Current, total 4 steps as below pictures:

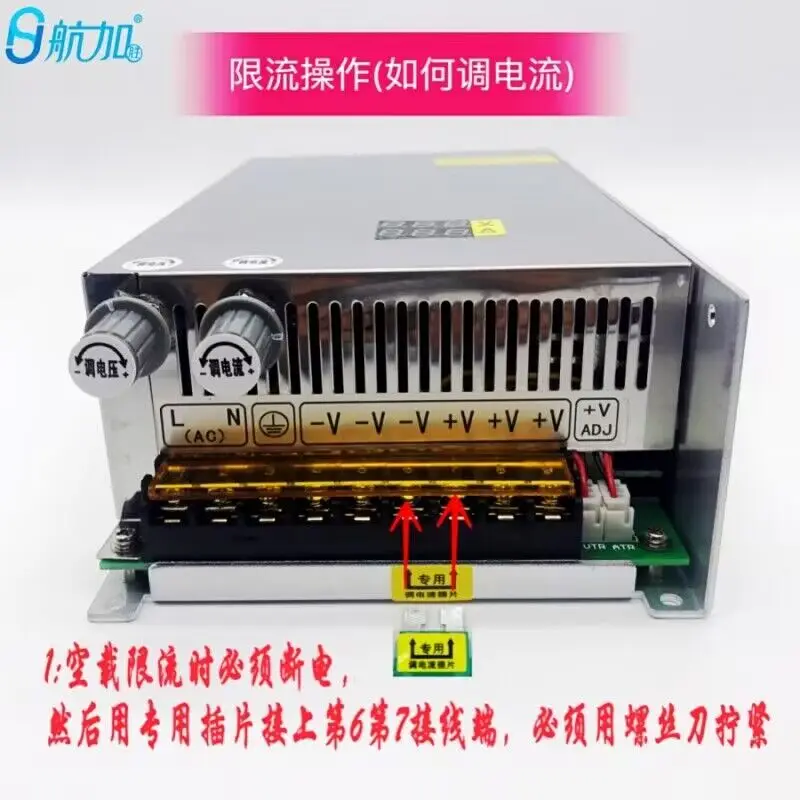

Step 1: No-load current limiting must be powered off

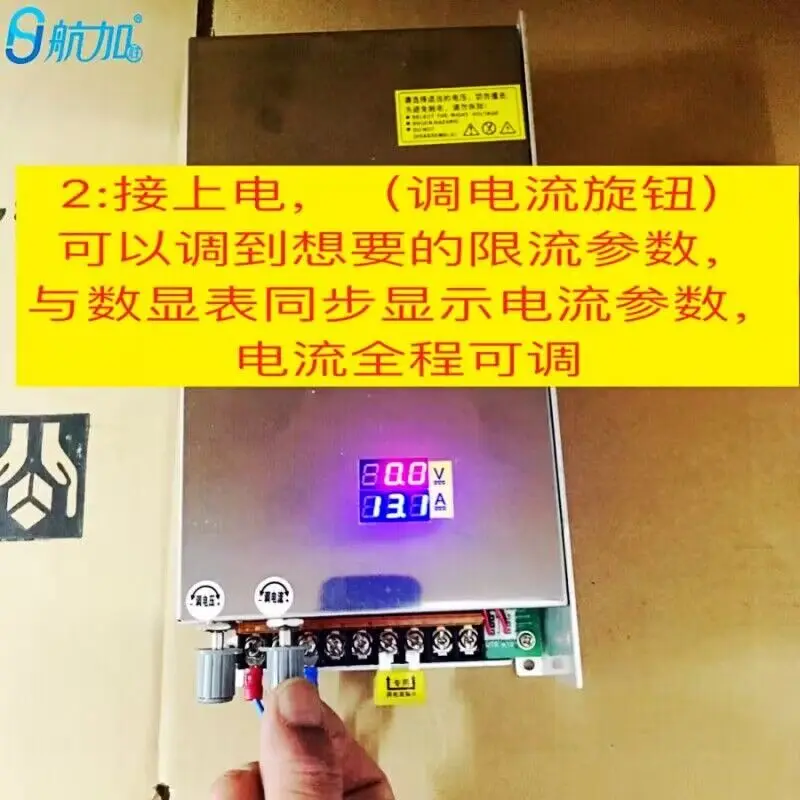

Step 2： Power on, adjust the current rotary knob to the number you want shown in the LED display.

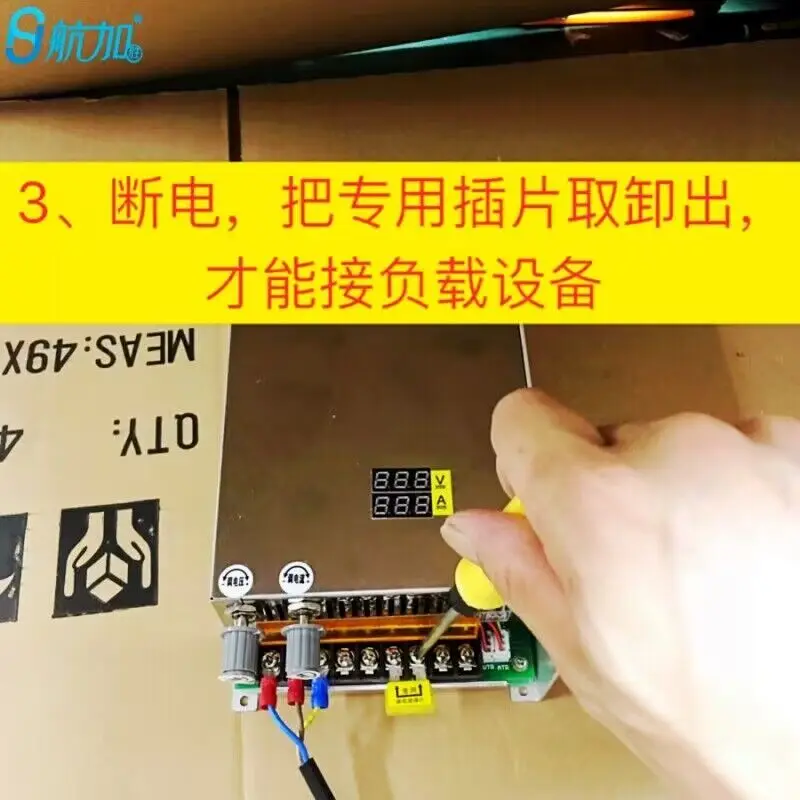

Step 3：power off, take out the contact jaw, and then load device you want to use.

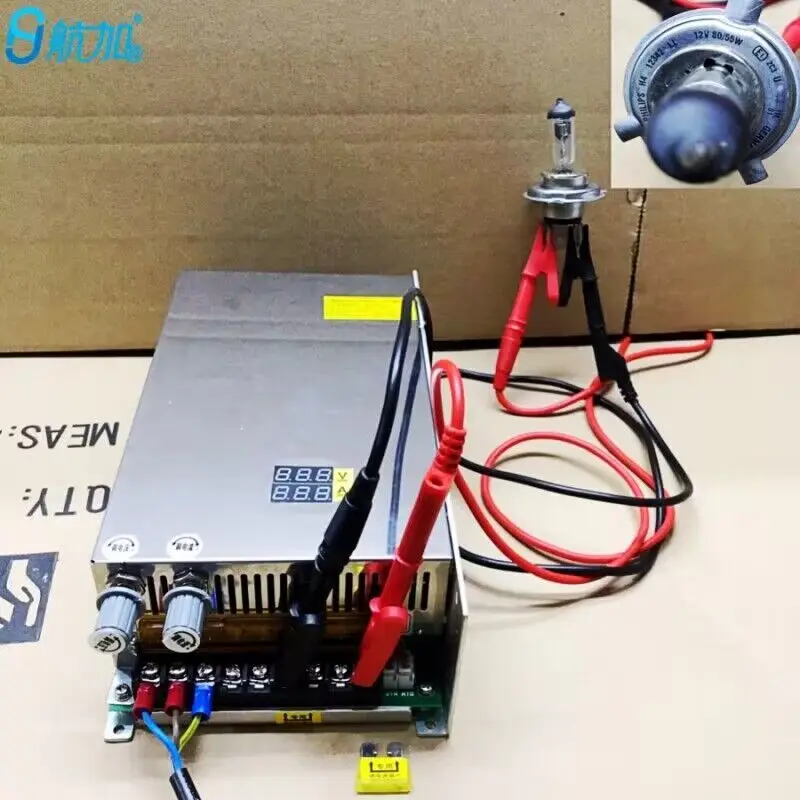

Step 4：load device
