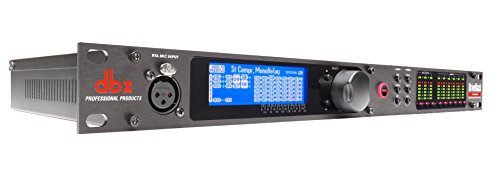

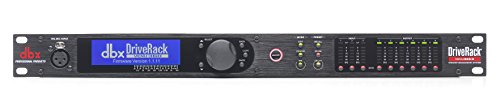

| Type | Loudspeaker Management System |
| Inputs | Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input • Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input • Type: Electronically balanced, RF filtered • Impedance: > 30 kOhms, balanced line to line • Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD • CMRR: > 50 dB at 1 kHz • RTA Mic Preamp Phantom Power: +48 VDC |
| Analog Outputs | Number of Outputs: 6 x line outputs • Connectors: Male XLR • Type: Electronically balanced, RF filtered • Impedance: 120 Ohms, balanced line to line • Max Output Level: +22 dBu, balanced, ≤1% THD • Alignment Delay: Up to 1000 ms per output channel |
| A/D Conversion | A/D Converter: 24-bit with dbx Type IV conversion system • A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW • Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted |
| D/A Conversion | D/A Converter: 24-bit • D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW |
| System Performance | Internal Processing Wordlength: 32-bit floating point • Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion) • Dynamic Range: 114 dB A-weighted, 110 dB unweighted • THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain • Frequency Response: 20 Hz - 20 kHz, +0 /- 0.5 dB • Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured • Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output) • Operating Temperature: 32 to 104° F / 0 to 40° C |
| Compatibility | N/A |
| Power Supply | Operating Voltage: 100-240 VAC, 50/60 Hz • Power Consumption: 30 W |
| Dimensions (H x W x D) | 1.75 x 19.00 x 8.00" / 4.45 x 48.26 x 20.32 cm |
| Weight | 5.48 lb / 2.49 kg |
