Description:
1. Using high-quality materials, the quality is guaranteed
2. Multiple specifications pulse optional: 100P/R, 200P/R, 360P/R,600P/R,400P/R, 1000P/R, 1024P/R
3. Purpose: used to measure the rotational speed, angle, acceleration and length of objects
4. Scope of application: suitable for intelligent control of various displacement change measurement, automatic fixed-length automatic guillotine machine, steel bar fixed-length cutting controller, civil height measuring body scale, robot for college student competition, etc.
5. Through the rotating grating disc and the optocoupler, a counting pulse signal that can identify the direction is generated
Product parameters:

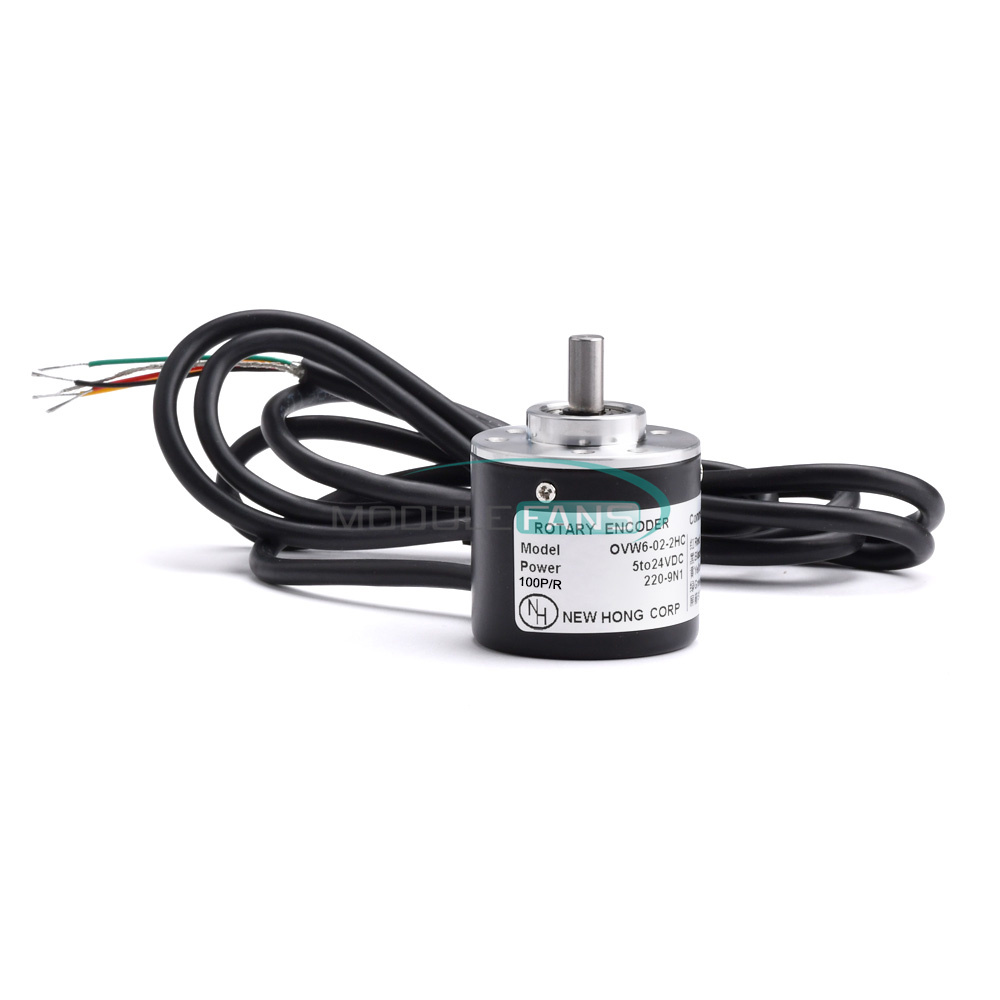

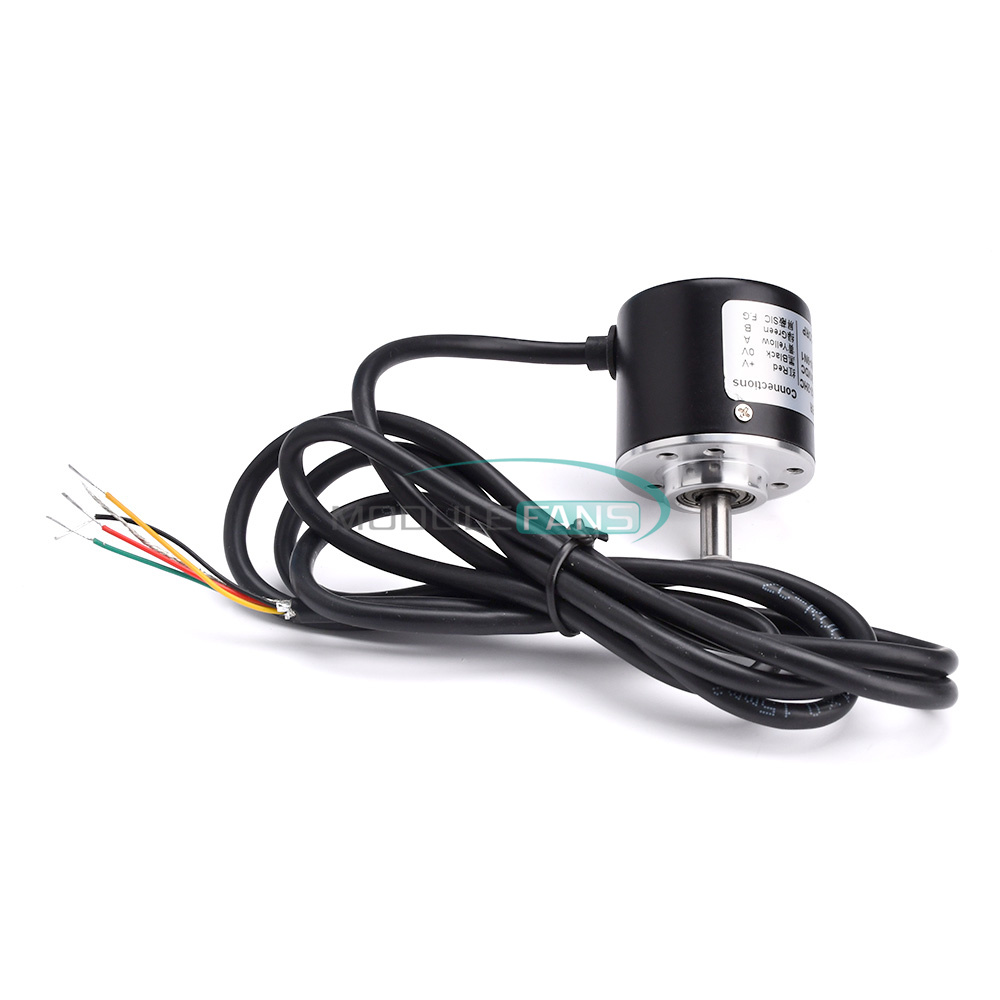

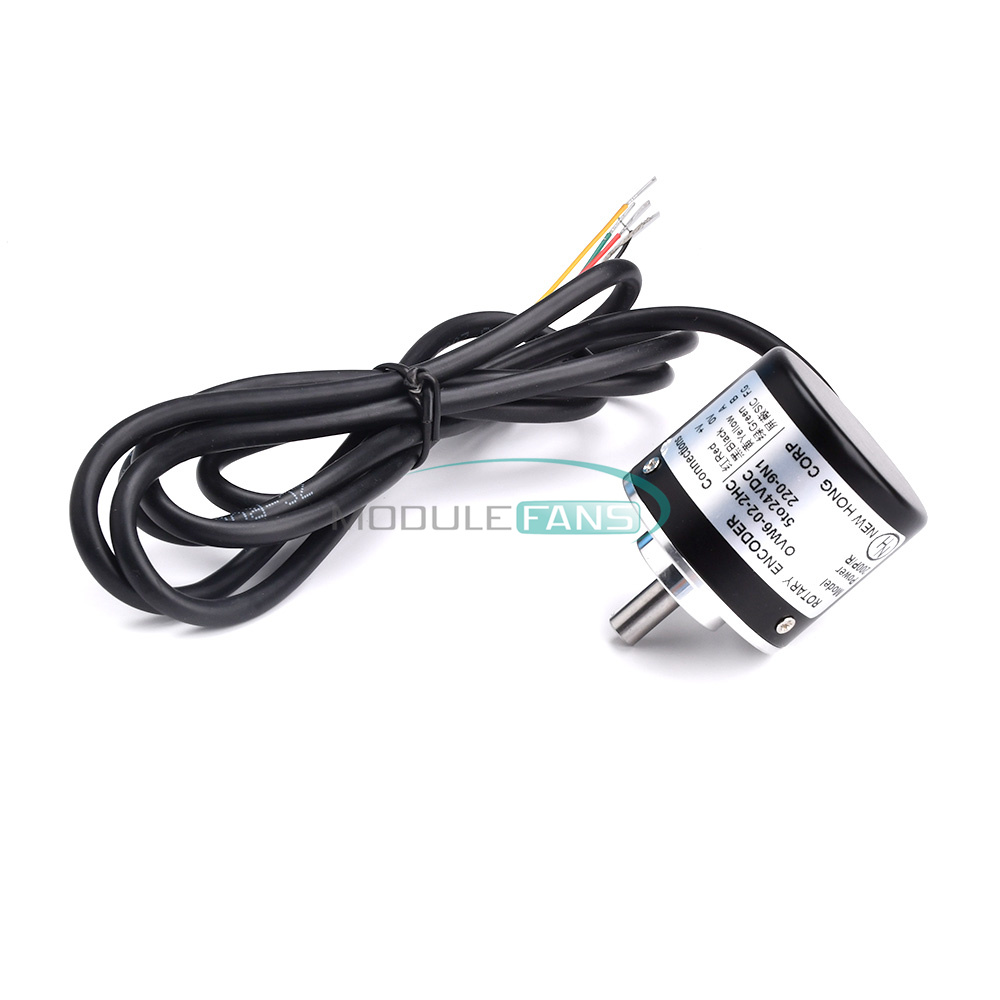

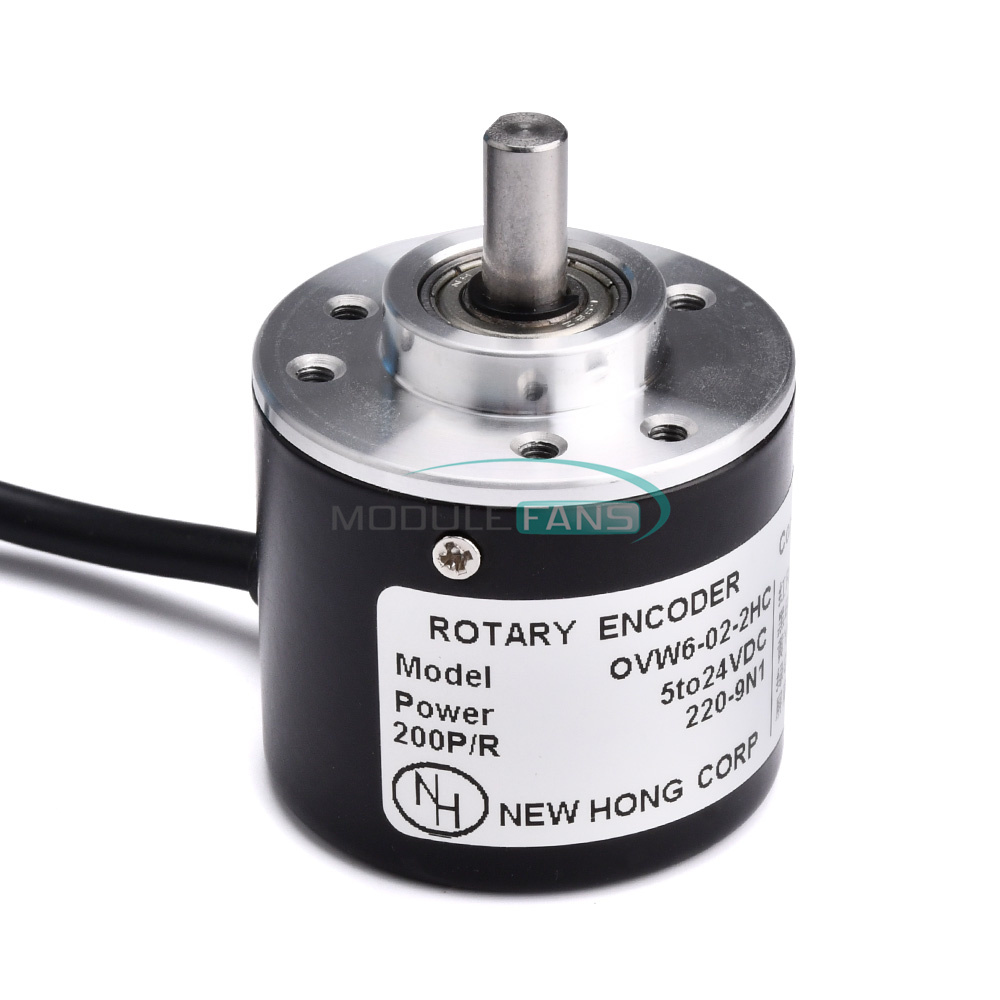

Incremental rotary encoder, AB two-phase, through the rotating grating disc and optocoupler to generate a direction-identifiable counting pulse signal

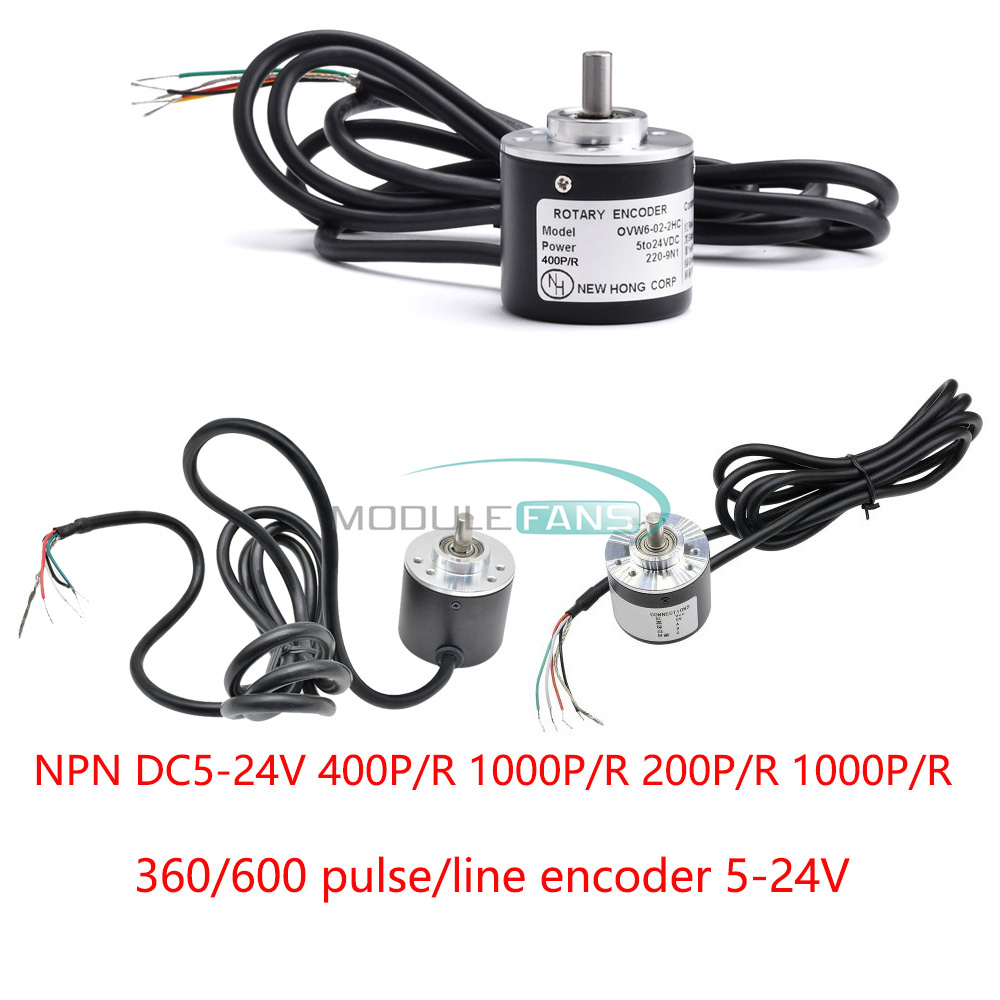

Multi-pulse optional: 100P/R, 200P/R, 360P/R,600P/R,400P/R, 1000P/R, 1024P/RDC5-24V
The maximum mechanical speed of wide voltage power supply is 5000 rpm
Uses: used to measure the rotation speed, angle, acceleration and length measurement of objects
Scope of application: intelligent control for various displacement change measurement, automatic fixed-length automatic guillotine machine, steel bar fixed-length cutting controller, civil height measuring body scale, robot for college students competition, etc.
Precautions:
1: The encoder and the shaft should not be rigidly connected, use elastic connectors. The photoelectric encoder is a high-precision sensor, and it is strictly forbidden to knock during installation
2: Please do not put the encoder output line and the power line together or output in the same slot, and do not place it near the switchboard.

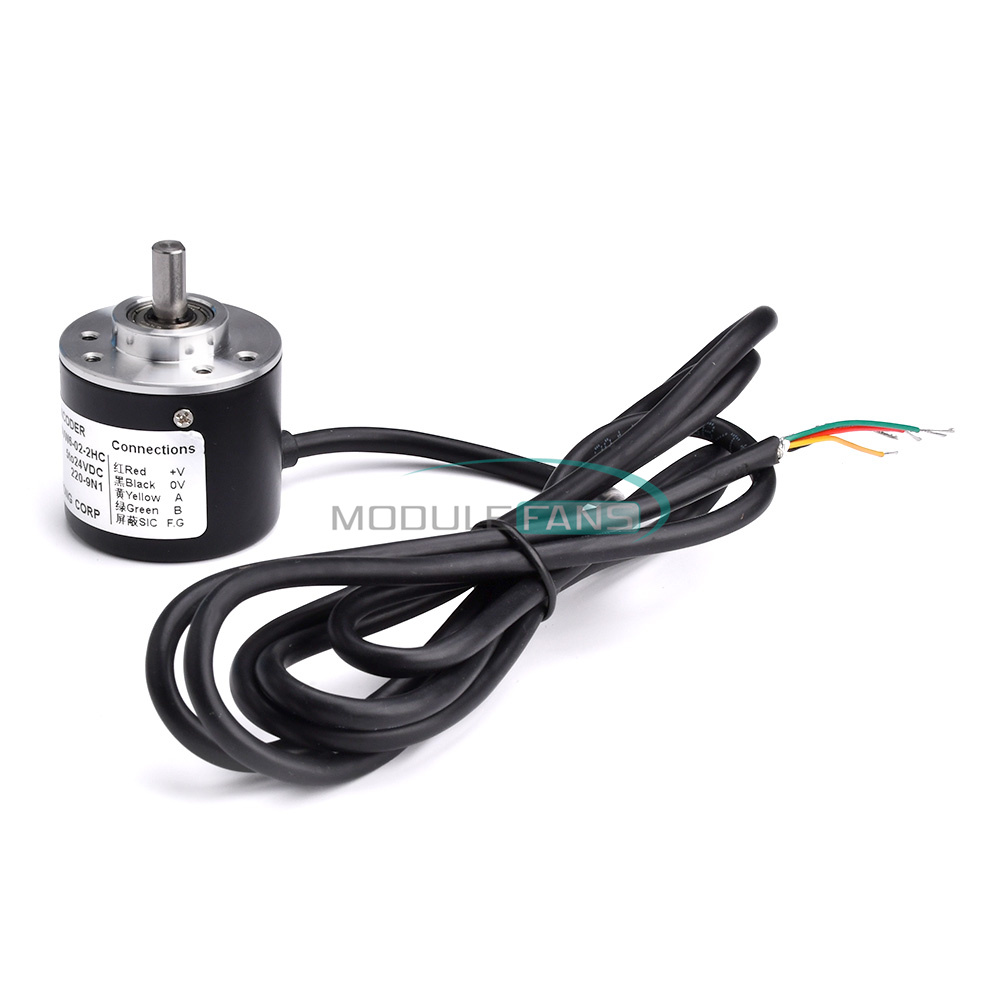

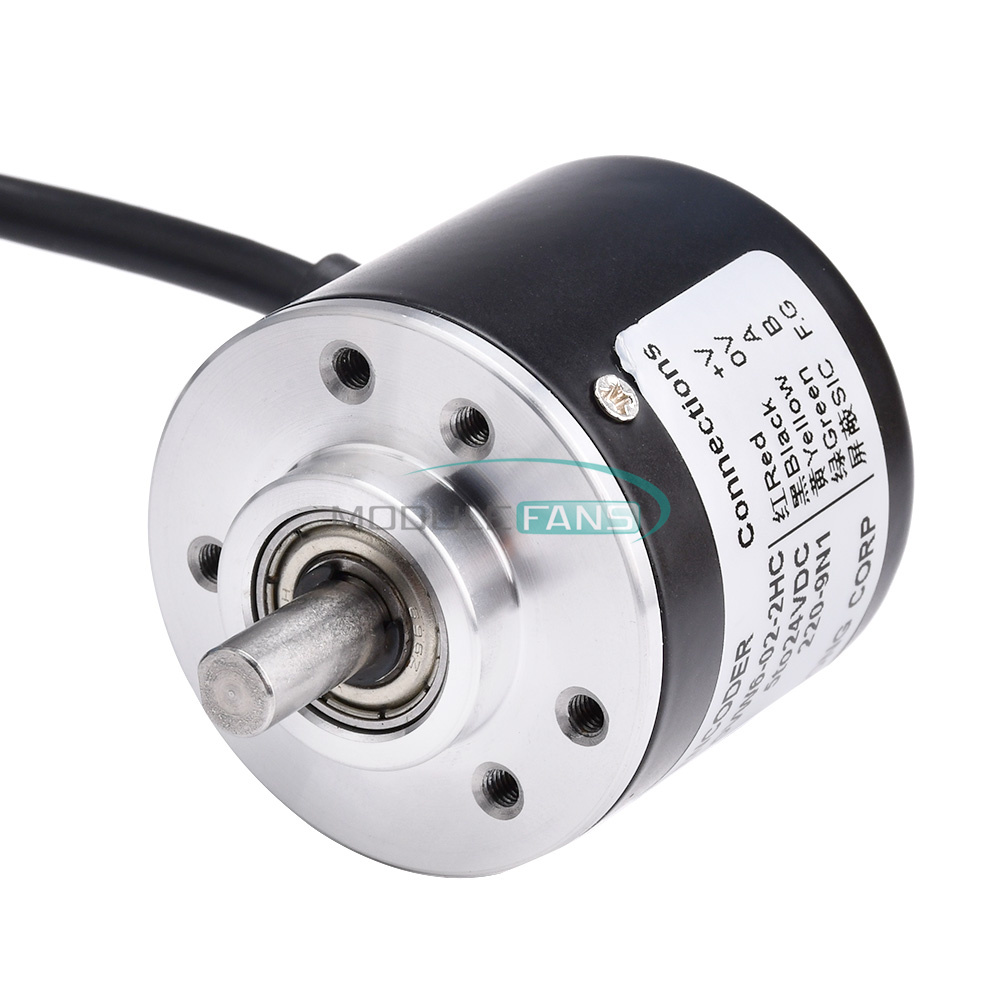

3: Wrong wiring will save damage to the internal circuit. When wiring, please connect according to the encoder label, and turn it on after checking.
Package Include:
Body X1
