You are one lucky person if you own the AHD Camera system. It has a DVR recording feature that allows you to record everything outside and around your vehicle. What's good about this feature is that, it supports up to a 128-GB SD card. Meaning, you don't have to worry about not being able to capture and record everything--all the important details of a road incident that is so important to you. Since there is an external memory for extended capacity, you can be sure that all of your recordings are automatically saved for playbacks later on. You can record one camera at a time and you can still view both cameras on the monitor by pressing CH button. Video recording does not support audio.

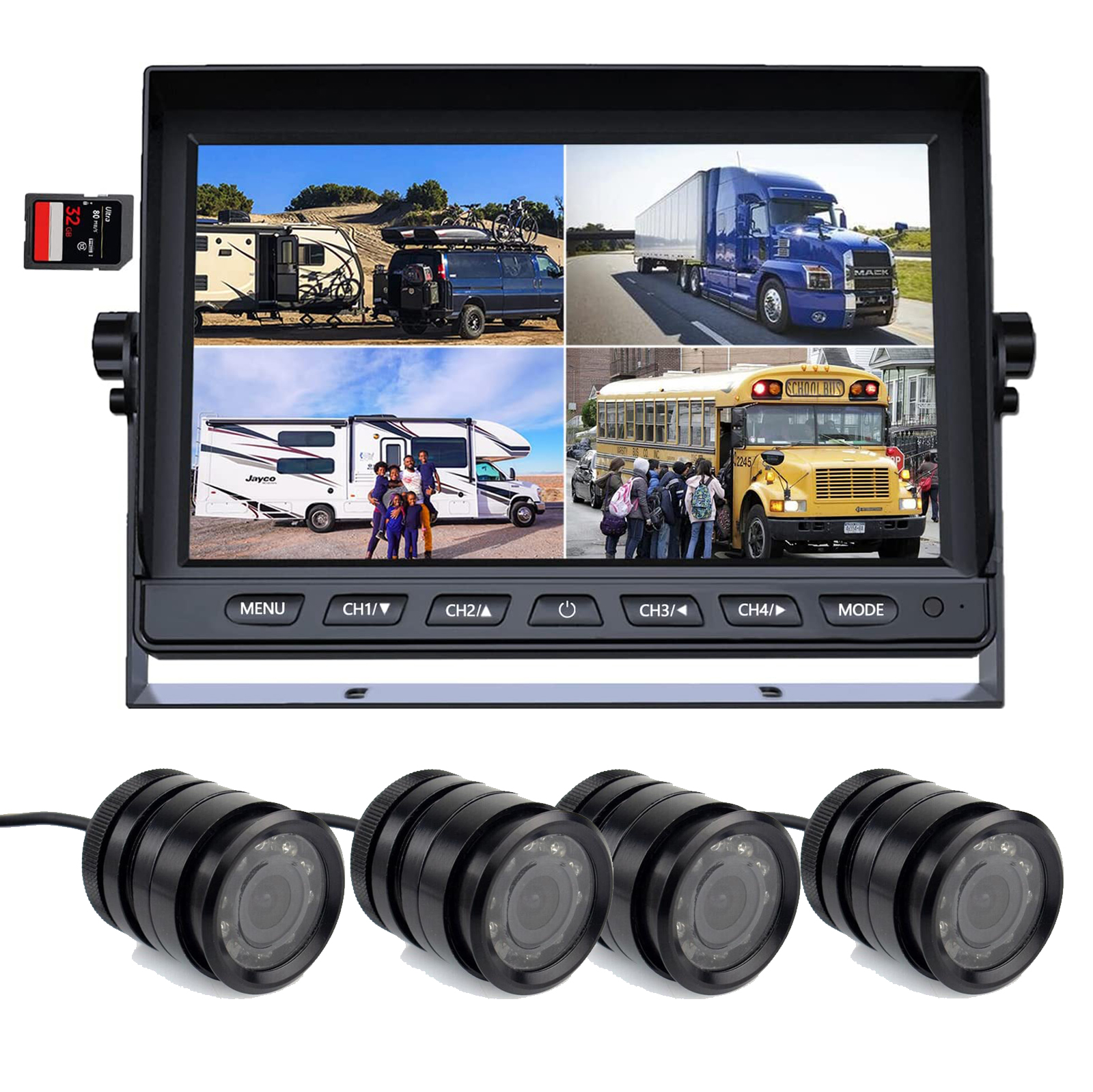

| 9 Inch AHD 1080P Quad Screen Monitor | ||||||||||
| SPECS | Model No.:EV-9010MHQ | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Resolution | 1024*R.G.B.*600 | |||||||||
| Backlight | LED, Luminance: 300cd/m² | |||||||||
| Contrast | 500:1 | |||||||||
| Recording Speed | 1080P: 25f/s/D1:25f/s | |||||||||
| Viewing Angle | UP-60°,DOWN-70°, LEFT-60°, RIGHT-70° | |||||||||
| Working Temperature | -20~+60 ºC | |||||||||
| Working Humidity | 85%RH | |||||||||
| Storage Temperature | -30~+85 ºC | |||||||||
| Power Supply | DC 9-30V | |||||||||
| Boot Time | 20S | |||||||||
| Current | 750mA | |||||||||
| OSD Control | Image Setting, Mirror Setting, System Setting | |||||||||
| Power Consumption | <9W | |||||||||
| Signal input | 4 channel 10800P/CCD/CVBS video input | |||||||||
| Image Display | Multiple image display switchable | |||||||||
| Trigger Control | 4 channel reversing trigger control, with parking guide line function | |||||||||
| System | PAL/NTSC | |||||||||
| Shockproof Level | 4G | |||||||||
| Video | 4 channel Video in | |||||||||
| Speaker Output Consumption | 32Ω2W | |||||||||
