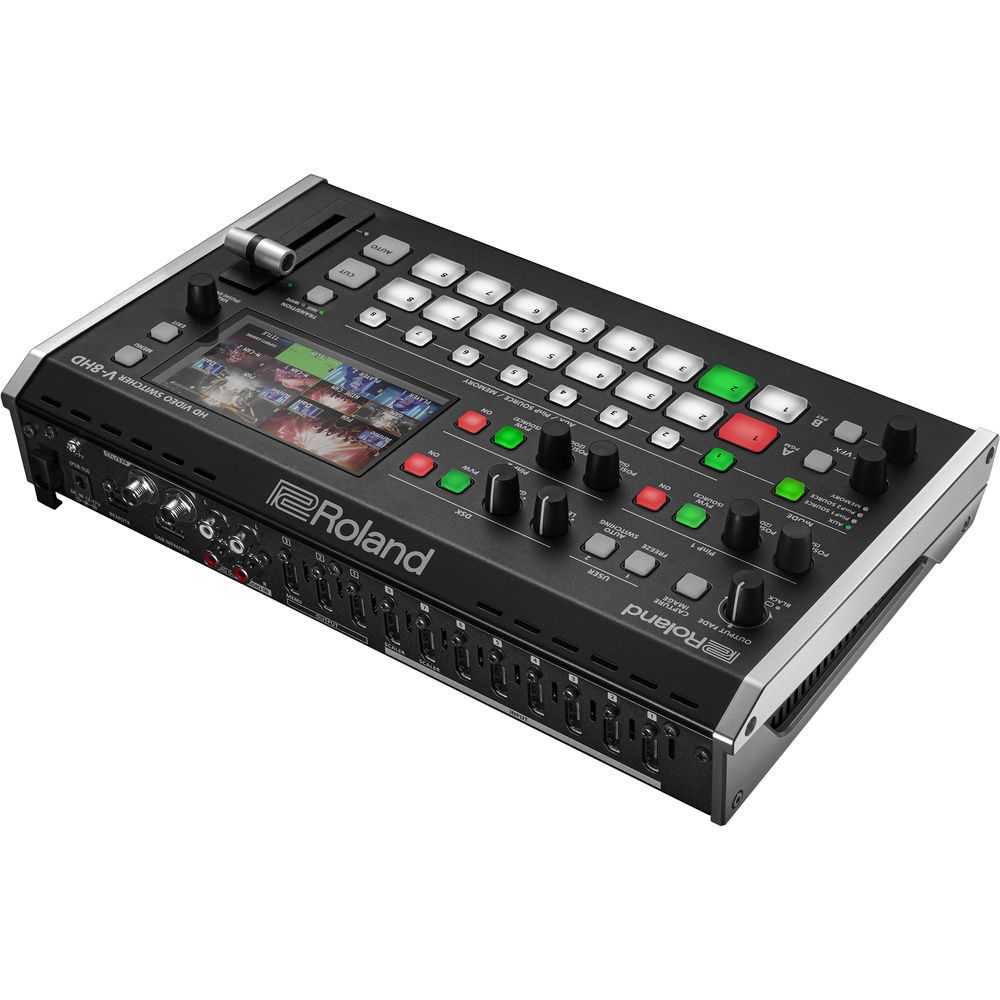

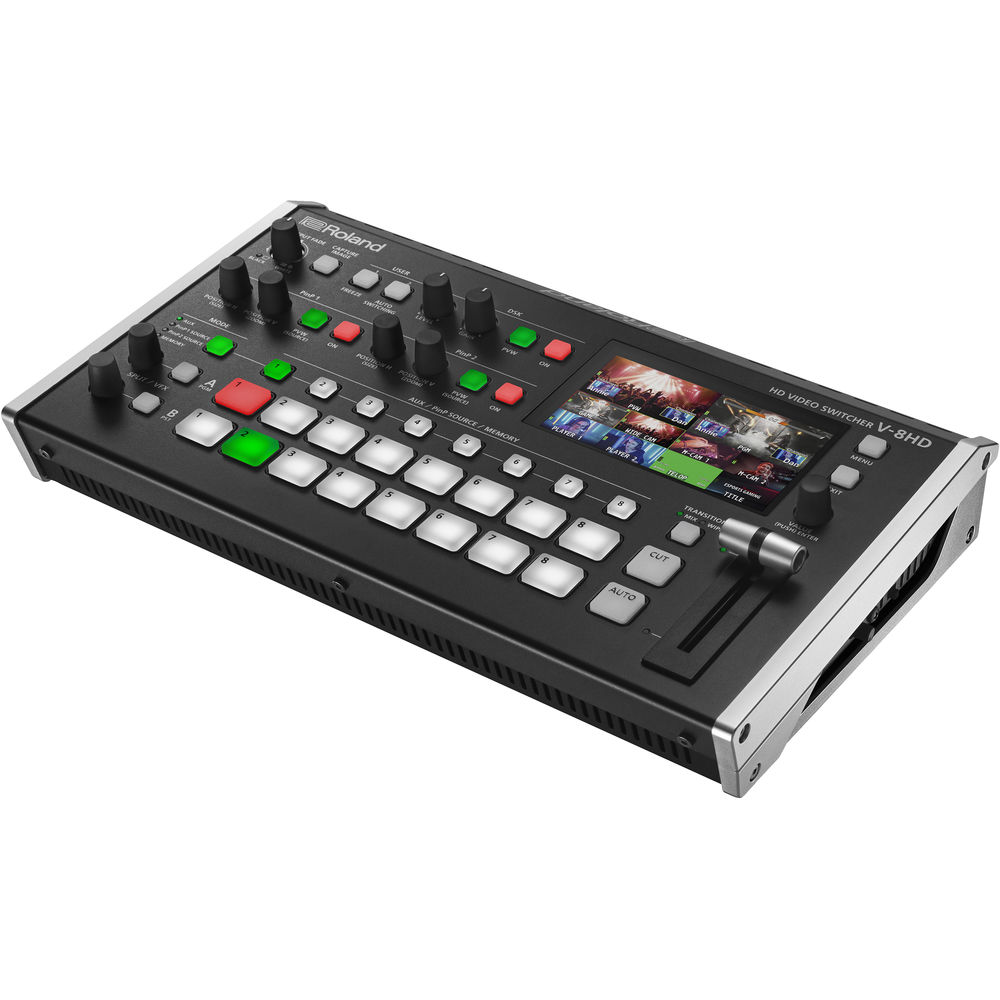

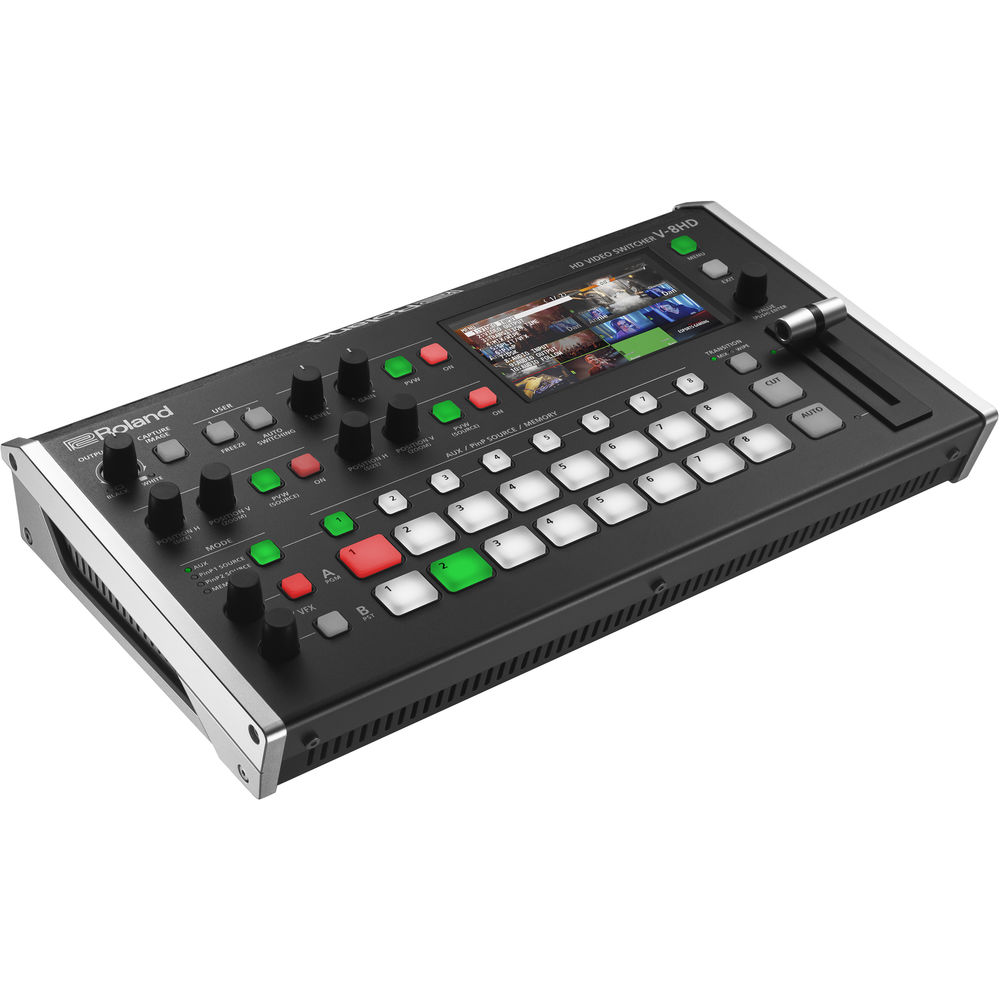

Live events requiring video production require a flexible video switcher like the V-8HD Multi-Format HDMI Video Switcher from Roland. This multi-format video switcher can input up to eight HDMI video sources, switch them, add effects, and output them consistently to screens or projectors. Whether you're switching video for a live presentation or live streaming, the V-8HD has the features necessary for high-quality, live video switching. The HDMI inputs can accept up to 1080p60 resolution feeds from numerous sources such as media players, computers, professional video cameras, and more. Two of the HDMI inputs utilize internal scaling hardware, which separately scale and/or convert videos of varied resolutions into the selected output resolution, ensuring output consistency between sources. The V-8HD supports numerous effects such as cut, mix, wipe, chroma and luma key, flip, fade, and more. You can also store up to eight .bmp and .png files in internal memory to add images to your effects.

The V-8HD features an 18-channel audio mixer, and up to 24-bit, 48 kHz PCM audio with an effects library that provides gain, de-esser, noise reduction, and more. It also features left-right analog RCA inputs and outputs, as well as a 1/4" TRS headphone output. It also features a 4.3" TFT color LCD which previews each input and program output all on a single screen. On the top of the unit, there are multiple rows of input and output buttons, position, source, and levels buttons, and a fade T-bar, giving you full control of your production within the small, portable frame. You can also remotely control and monitor Atomos recorders to start/stop using a trigger button, so you don't miss a vital record. While the feature set of the V-8HD is expansive, it is also intuitive and simple to operate after the initial setup. Music venues, houses of worship, streaming media production companies, and convention centers that rely on volunteers or less-experienced technicians can take advantage of the rich feature set and ease of use, with minimal impact on existing infrastructure. You can even pair the switcher with a BOSS single or double footswitch and program over 100 commands, adding to the versatility of the V-8HD.

• V-8HD seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces.
• V-8HD's eight HDMI inputs and three outputs, you're able to offer clients a vast amount of creative freedom, without increasing the budget.
• With the V-8HD's five composition layers, you'll always keep audiences engaged with visually appealing content.
• Thanks to its compact footprint, the V-8HD fits effortlessly into any live production environment, even when you have to deal with minimal setup space.
• With the V-8HD, storing and recalling unique looks requires only a few button presses.
• V-8HD has assignment buttons for sending any of your connected input devices to a dedicated aux output without affecting the main feed

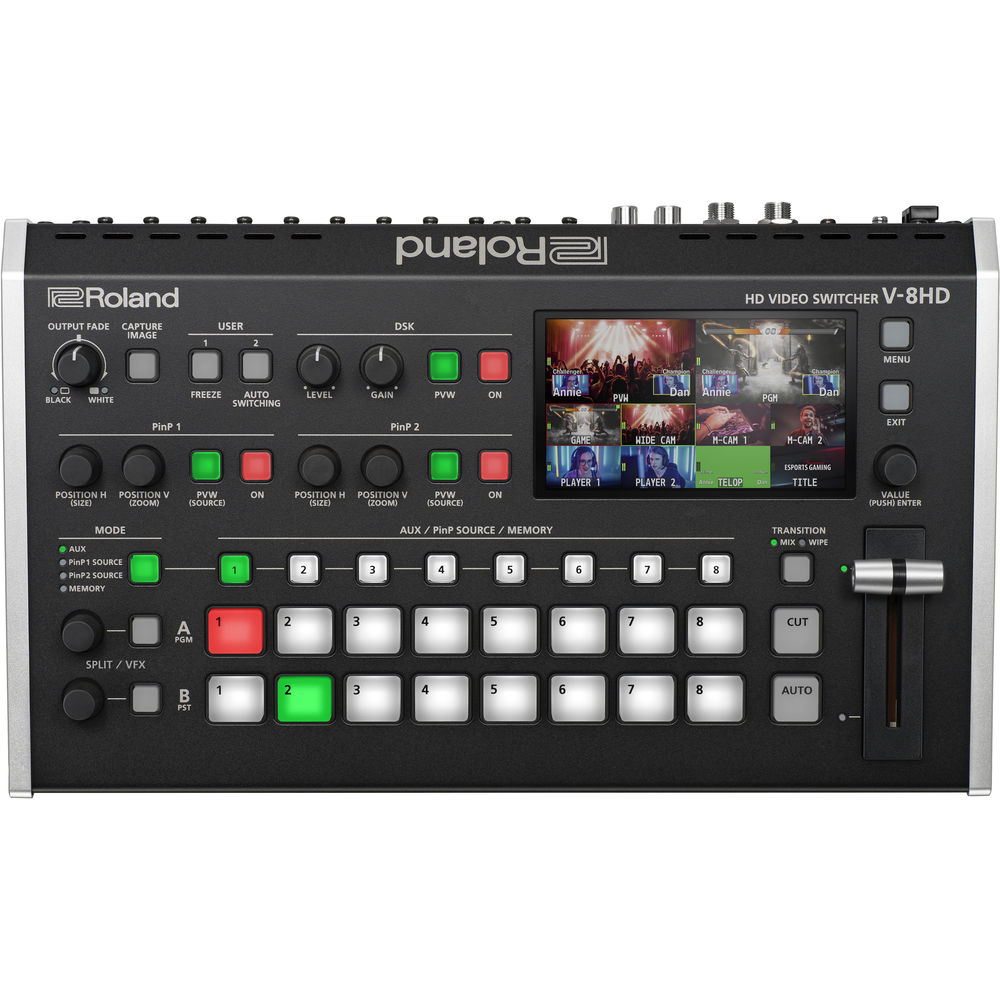

• 4.3" multiviewer display means less gear to buy and haul to the gig. From a single screen, you can monitor all eight video inputs, PGM, and PVW plus menu overlay.
• Studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library
• Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories
• Via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording
• Dedicated V-8HD remote control app turns an iPad into an efficient touch interface for the V-8HD.
• Stomp on a BOSS single or double footswitch to execute over 100 different switcher commands.

Box Contains

Roland V-8HD HDMI Video Switcher

• Rack Ears
• Power Supply
• 1-Year Warranty

Box Contains

Roland V-8HD HDMI Video Switcher

• Rack Ears
• Power Supply
• 1-Year Warranty

Available M/E Layers	5 M/E
Effect Types	8 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Downstream Keys	2 x Chroma, Luma
Generators	1 x Pattern
Audio Mixing	18-Channel Mixing
Switching Type	Pushbutton
Processing Resolution	1080p at 29.97/50/59.94
Color Processing	8-Bit 4:2:2 YCbCr
Audio Processing	48 kHz / 24-Bit
Number of Video Input Sources	8
Video Input Connectors	8 x HDMI Female
Input Video Format	HDMI (8-Bit 4:2:2 YCC) 1080p: 23.98/24/29.97/30/50/59.94/60 fps 1080i: 50/59.94 fps 720p: 50/59.94 fps 576p: 50 fps PAL: 50 fps 480p: 59.94 fps NTSC: 59.94 fps WUXGA (1920 x 1200): 60 fps
Audio Input Connectors	1 x 2RCA Stereo Analog Female
Input Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Input	HDMI: 2-Channel (per Input)
Video Output Channels	3
Video Output Connectors	2 x HDMI Female (Loop Output) 1 x HDMI Female (Preview)
Output Video Format	HDMI (8-Bit 4:2:2 YCC) 1080p: 50/59.94 fps 1080i: 50/59.94 fps
Audio Output Connectors	1 x 1/4" TRS Stereo Analog Female
Output Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Output	HDMI: 2-Channel (per Output)
Multiview Output	1-Way Multiview viaHDMI
Monitor Output	1 x HDMI
Other I/O	1 x USB Type-A Firmware Input 1 x USB Type-B Control Input
HDCP Support	Yes
Display Size	4.3"
Screen Resolution	480 x 272
Power Connector	1 x Barrel (12 to 17 VDC) Input
Power Consumption	Device: 3.3 A(39.6 W)
Operating Temperature	32 to 104°F / 0 to 40°C
