CJMCU-1334 DAC Module UDA1334A I2S DAC Audio Stereo Decoder Module Board
Features:
- 1).It uses 3.3V-5V logic levels and can handle many different formats by setting two pins to high or low.
- 2).The DAC will process the data immediately and provide you with a clear analog stereo line level output.
- 3).It uses the I2S interface without MCLK,and the built-in PLL will generate the correct clock from the input signal.
- 4).You can use classic I2S (default) or 16-bit,20-bit,or 24-bit left-justified data for input.
- 5).You only need to connect the data input,select word (left/right clock) and bit clock lines.
Specifications:
- 1).Name:CJMCU-1334 Decoder
- 2).Supply Voltage:DC 3.3V-5V
- 3).Connection Interface:I2S
- 4).Work Temperature:-25℃~85℃
- 5).Work Humidity:5%~95%RH
- 6).Size:36*26*10mm
- Package Contains:
- 1pc x CJMCU-1334 DAC Module UDA1334A I2S DAC Audio Stereo Decoder

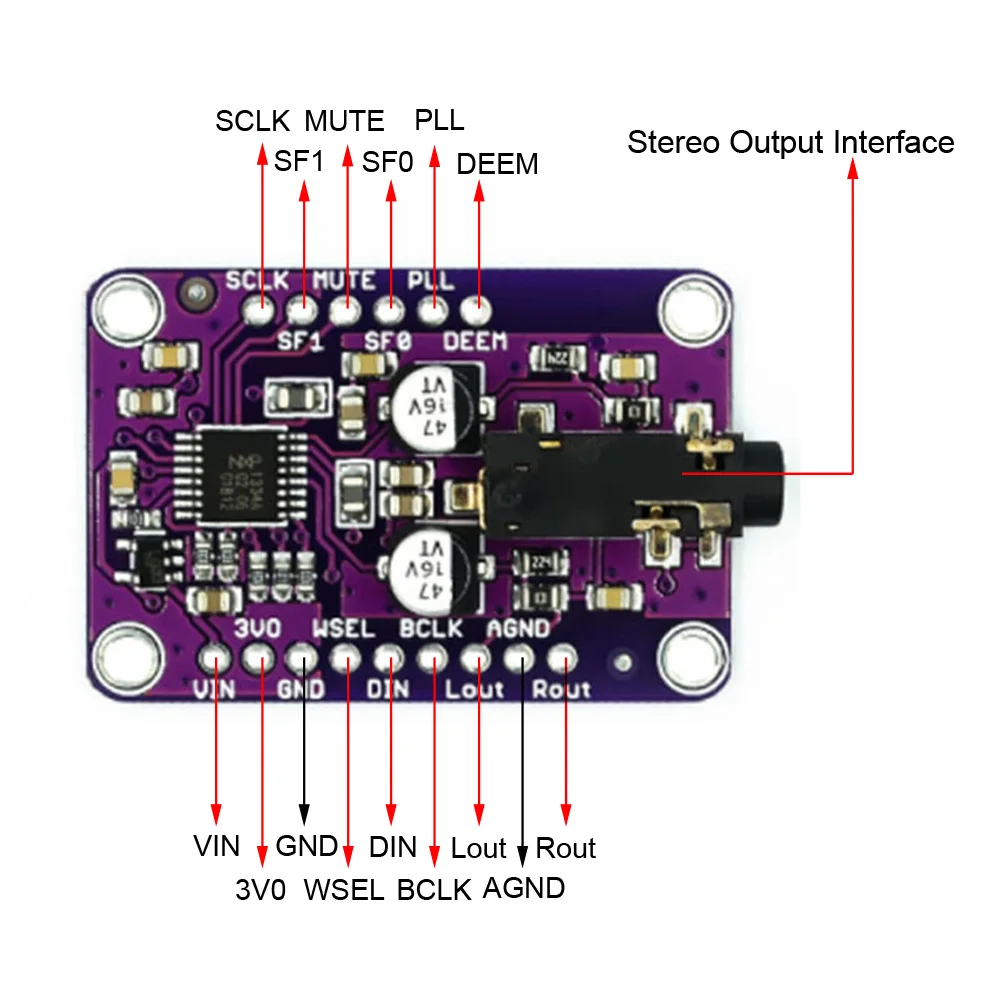

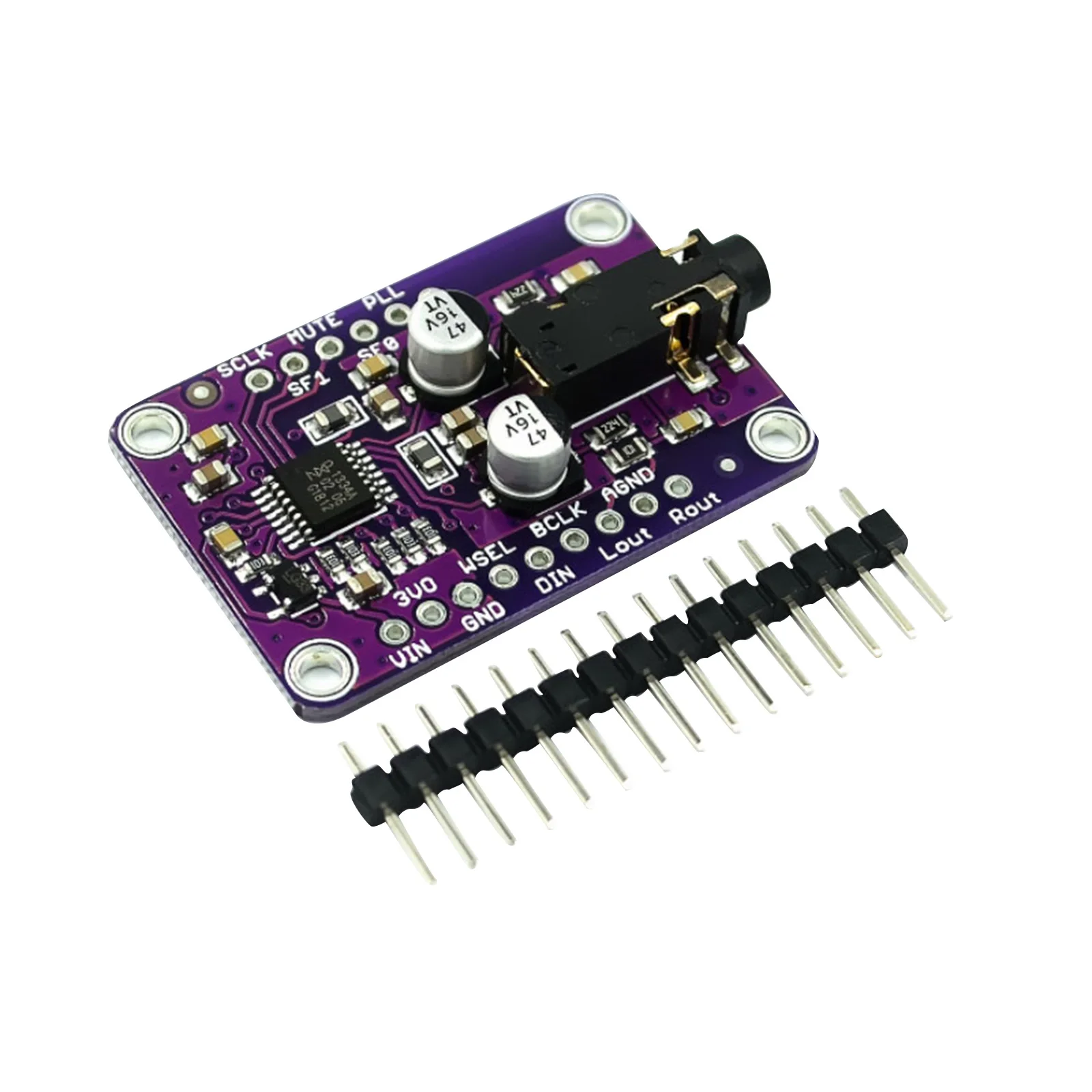

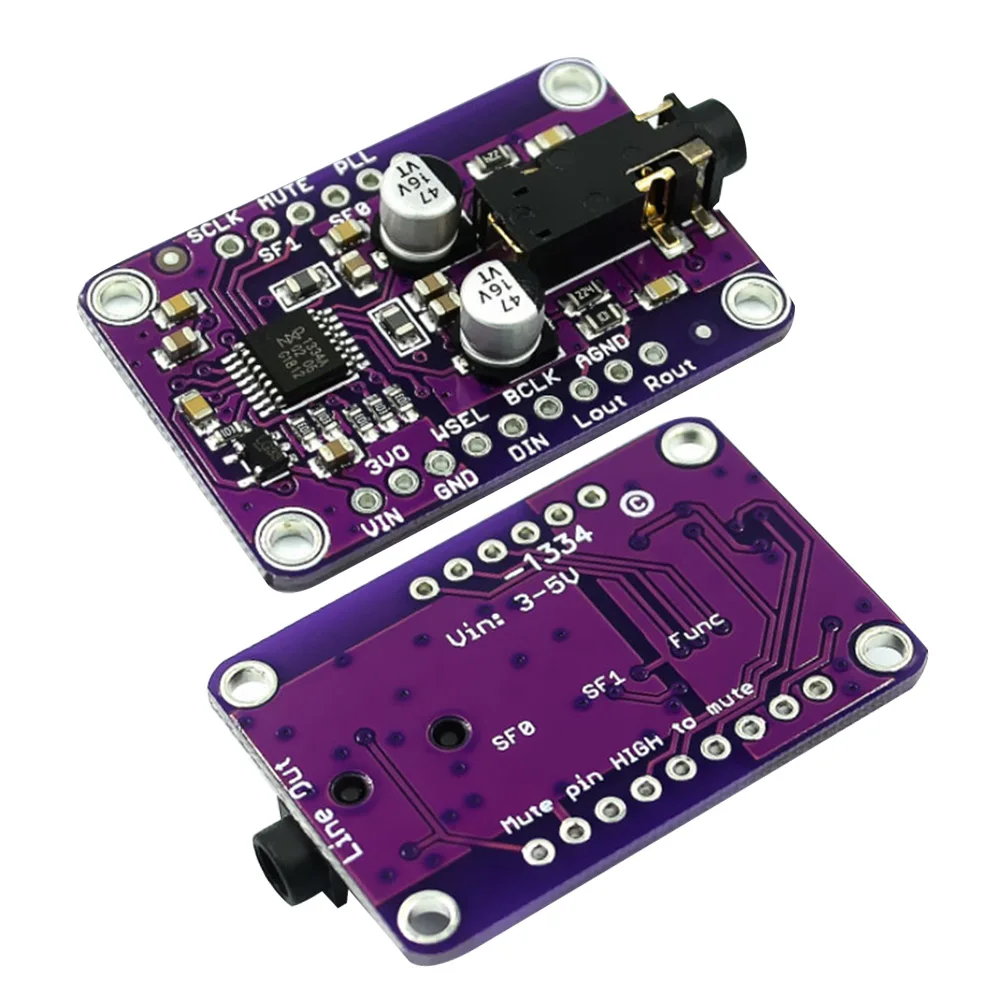

- Pictures:
