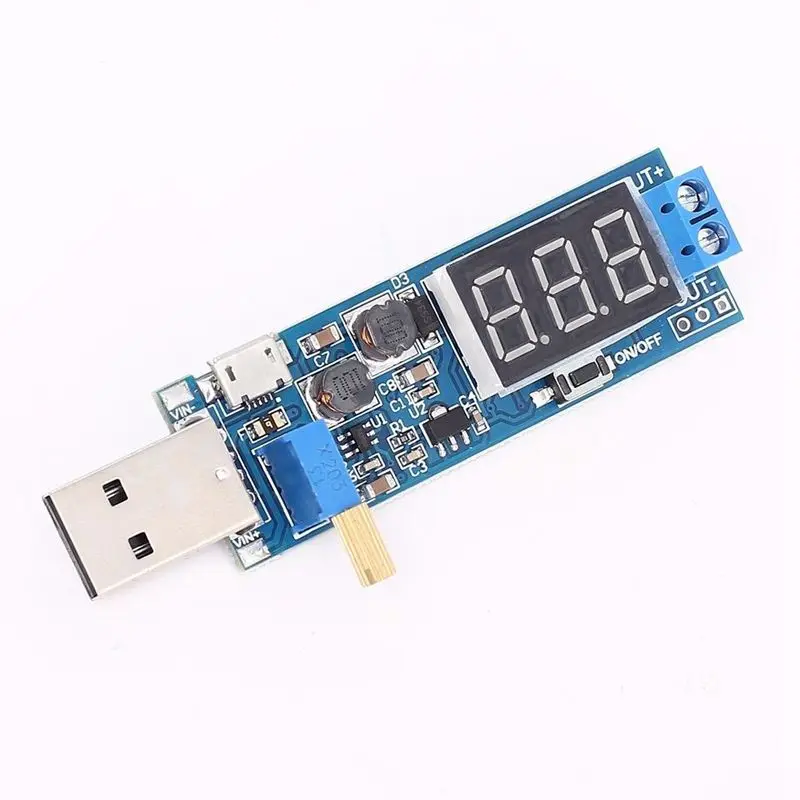

DC-DC 5V to 3.5V / 12V USB Step UP / Down Power Supply Module Adjustable Boost Buck Converter Out DC 1.2V-24V
- Descriptions:
Description:Note:
1. Connecting LDO-type voltage stabilizing components to the output terminal will cause interference and increase ripples, which may burn out the chip.
2. This product is not a high-power power supply, please use it within the range.

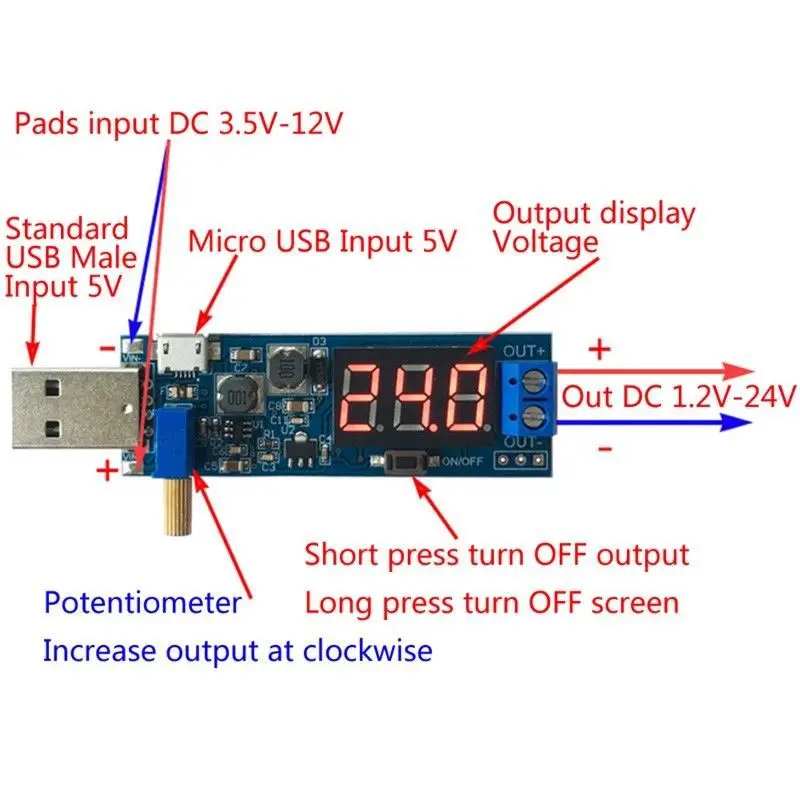

- 1. It is very convenient to use, plug in USB or micro USB to output an adjustable voltage of 1.2V-24V
- 2. One key to turn off the output
- 3. The digital tube can be turned off
- 4.Adopt multi-turn precision adjustable potentiometer to adjust
- 5. The state before the power failure is stored
Specifications:
- Input voltage: 3.5V-12V
- Output voltage: 1.2V-24V
- Output voltage 1.2V-2V, use within 2W
- Output voltage 2V-20V, use within 3W
- Output voltage 20V-24V, use within 2.5W
1. Connecting LDO-type voltage stabilizing components to the output terminal will cause interference and increase ripples, which may burn out the chip.
2. This product is not a high-power power supply, please use it within the range.
- Package Contains:
