AD9226 SSOP28 Version High-Speed ADC Module 65M Sampling Data Acquisition For FPGA Development Board

Advantages:

- High-speed signal acquisition, analog-to-digital conversion module
- Power supply voltage: DC-5V
- Module communication protocol: 13-bit parallel SPI
- Module provides routine: For Verilog FPGA source code
- Routine platform: For QuartusII EP4CE15F17C8

Attention:

- Module's interfaces are clear and the performance is stable. Please use the schematic diagram provided by our shop for functional verification under the corresponding experimental conditions.
- The basic parameters of this module are provided below, and the module information PDF file and the source code of routine are provided. Project files are not provided. Buyers can consult customer service if they have operational problems.
- Before using the module, read the details of this module, understand the power supply and usage restrictions to avoid damage to the module due to improper operation.
- All the modules have been tested before delivery.
- Provide module schematic diagram in PDF, FPGA test reference program, module instruction and chip manual.

Module Parameters:

* Module model: AD9226_01
* Module type: analog to digital conversion module
* Sampling rate: 65M SPS (Max.)
* ADC resolution bits: 12 bits
* Input voltage range: 10VPP (±5V) (signal impedance: 50Ω)
* Power supply: 5V DC (Min: 4.75V. Typ: 5V. Max: 5.25V)
* Provide example: For Verilog FPGA source code
* Example platform: For QuartusII EP4CE15F17C8
* Communication protocol: 13-bit parallel SPI
* Communication signal level: 3.3V
* Input impedance: 50 ohm
* Number of input channels: 1 channel
* Input interface: SMA tuner/XH2.54 hole
* Reference voltage: internal 2V
* -3dB analog bandwidth: 320MHz
* Output mode: parallel data
* Module features: high-speed ADC acquisition
* Module application: high-speed signal acquisition
* Module weight: 16g

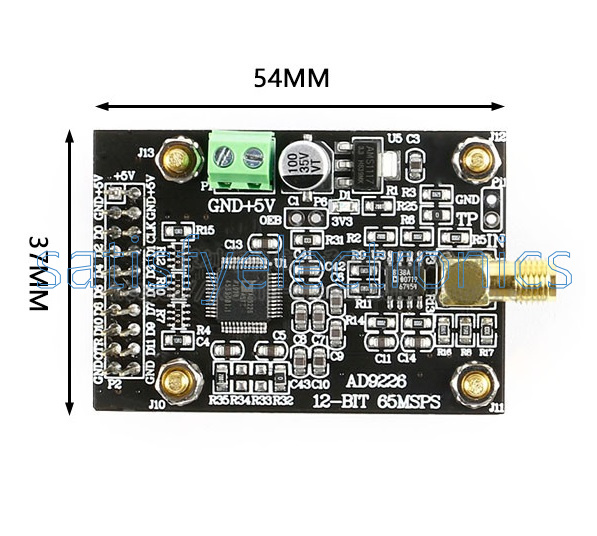

* PCB Size: 54*37*23mm (LxWxH)
* Module interface type: 13-bit data SPI parallel

Module Description:

The high-speed AD of this module uses 12-bit high-speed A/D converter AD9226. AD9226 uses a multi-stage differential pipeline architecture, with a maximum sampling rate of 65MSPS. The chip is powered by a single power supply, with a sample holder and reference voltage source on-chip, which simplifies the design of peripheral circuits. Meet industrial-grade applications, and ensure no missing codes in the entire operating temperature range.

Package Included : 1pcs
