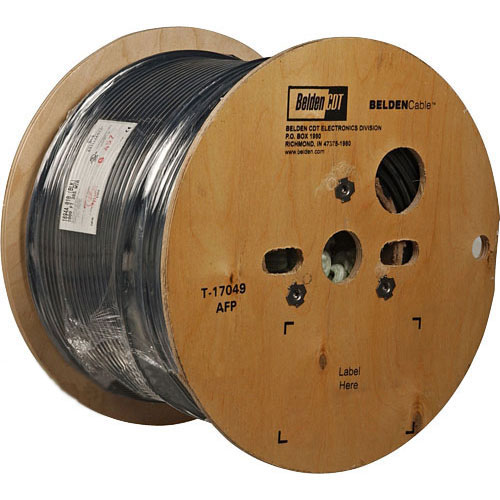

Styled in black and measuring 500' in length, the 1694A RG6 from Belden is a roll of low-loss serial digital coaxial cable. An 18 AWG spool of RG-6/U type cable, the 1694A RG6 utilizes a bare copper conductor with gas-injected foam HDPE insulation, a Duofoil tinned-copper braid shield, and a PVC jacket.
Limited 10-Year Warranty
| Type | Coaxial Cable |
| Conductor | Coax #: 1 AWG: 18 Stranding: Solid Material: BC (Bare Copper) Diameter: 0.04" / 0.10 cm |
| Insulation | Material: Gas-Injected FHDPE (Foam High-Density Polyethylene) Diameter: 0.18" / 0.46 cm |
| Outer Shield | Layer 1: Outer Shield Trade Name: Duofoil Type: Tape Material: Aluminum Foil, Polyester Tape Coverage: 100% Layer 2: Type: Braid Material: TC (Tinned Copper) Coverage: 95% |
| Outer Jacket Material | PVC (Polyvinyl Chloride) |
| Max. Recommended Pulling Tension | 69 lb / 31.3 kg |
| Min. Bend Radius | Minor Axis: 2.75" / 7 cm |
| Compliance | NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMG EU Directive 2011/65/EU (RoHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date: 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire and Cable): Yes MII Order #39 (China RoHS): Yes RG Type: 6/U UL Flame Test: UL1666 Vertical Shaft CSA Flame Test: FT4 |
| Suitability | Indoor |
| Plenum/Non-Plenum | Non-Plenum |
| Impedance | 75 Ohms |
| Inductance | (µH/1' [0.3 m]): 0.106 |
| Capacitance | (pF/1' [0.3 m]): 16.2 |
| Velocity of Propagation | 0.82 |
| Delay | (ns/1' [0.3 m]): 1.240 |
| Conductor DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 6.4 |
| Outer Shield DC Resistance | DCR @ 68°F / 20°C (Ohm/1000' [304.8 m]): 2.8 |
| Attenuation | Frequency in MHz, Attenuation dB 100' / 30.5 m 1.000, 0.240 3.580, 0.440 5.000, 0.520 6.000, 0.570 7.000, 0.610 10.000, 0.710 12.000, 0.780 25.000, 1.080 67.500, 1.650 71.500, 1.690 88.500, 1.860 100.000, 1.950 135.000, 2.240 143.000, 2.300 180.000, 2.570 270.000, 3.170 360.000, 3.690 540.000, 4.600 720.000, 5.380 750.000, 5.500 1000.000, 6.420 1500.000, 7.990 2000.000, 9.370 2250.000, 10.010 3000.000, 11.780 4500.000, 14.920 |
| Minimum Return Loss | at Start Frequency of 5 MHz: Stop Frequency: 1600 MHz Min. RL: 23 dB at Start Frequency of 1600 MHz: Stop Frequency: 4500 MHz Min. RL: 21 dB |
| Operating Voltage | UL: 300 V, RMS |
| Operating Temperature | -22 to 167°F / -30 to 75°C |
| UL Temperature Rating | 167°F / 75°C |
| Length | 500' / 152 m |
| Weight | 24 lb / 10.9 kg |
