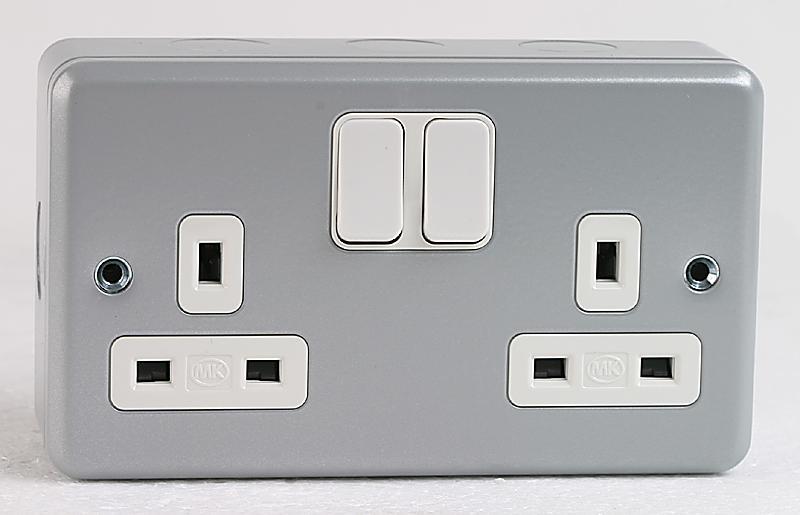

MK - 2 Gang DP Metalclad Switched Socket

The MK 2 Gang DP Metalclad Switched Socket is a superior surface-mounting socket outlet designed for demanding environments. Its robust metal construction ensures impact resistance, making it suitable for factories, workshops, plant rooms, warehouses, schools, hospitals, garages, and sheds. The in-line terminals allow cables to be cut to the same length, and terminal screws are backed out and held captive for convenience. Front plates and back boxes are supplied together but not pre-assembled to speed up installation.

Built with heavy-gauge steel featuring epoxy/polyester and metallic powder paint coatings, this socket offers durability and a sleek finish. The socket inserts are constructed from polycarbonate/ABS thermoplastic with a strong 2-piece design for added resilience.

Key features include double-pole earthing for 'clean earth' installations (except PL01195), 47mm deep boxes with 20mm rear, side, and top/bottom knockouts, and double-pole switching on switched sockets (neutral breaks first, makes last).

Rigorously tested and engineered to meet the highest standards, this socket complies with BS 5733, BS 1363, and Regulation 607 of BS 7671 IEE wiring regulations.

Specifications

• Material: Heavy-gauge steel, epoxy/polyester, metallic powder paint
• Socket Inserts: Polycarbonate/ABS thermoplastic
• Switch Mechanism: Double-pole (neutral breaks first, makes last)
• Earthing: Double-pole for clean earth installations (except PL01195)
• Box Depth: 47mm
• Knockouts: 20mm rear, side, top/bottom

Ideal for commercial and industrial use, this MK socket guarantees toughness and reliability in even the most challenging environments.
