Motion Constrained MCSC Flange / Hub Mount Shaft Collar Couplings

Model Bore Mounting Holes Construction Mounting Bolt Hole Circle McMaster Equivalent

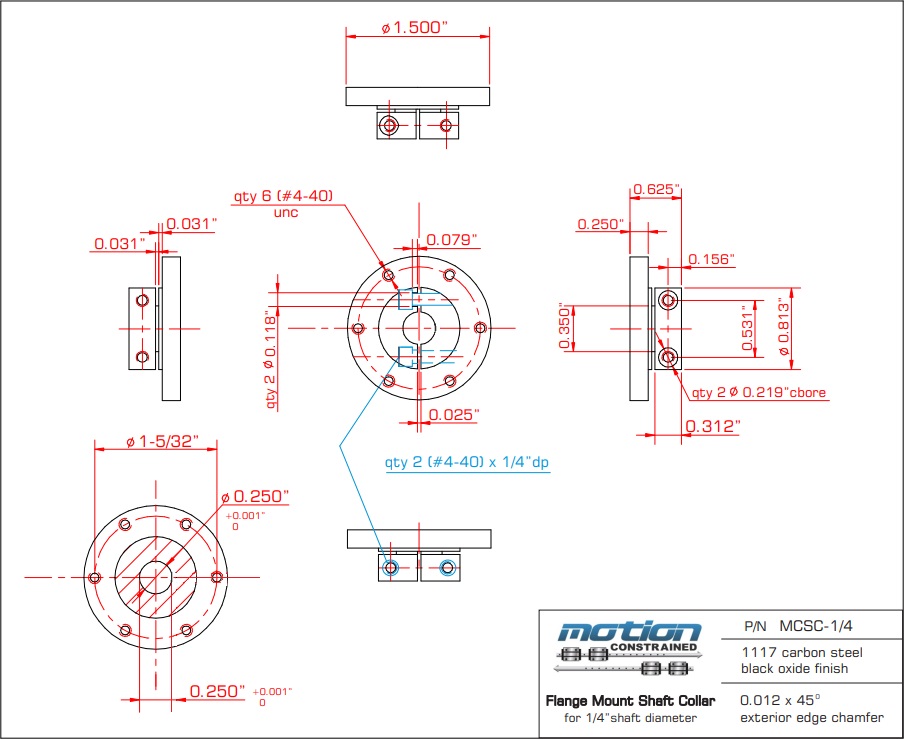

MCSC-1/4 1/4" 4-40 Tapped Threads Black Oxide C1117 Steel 1-5/32" 9684T27

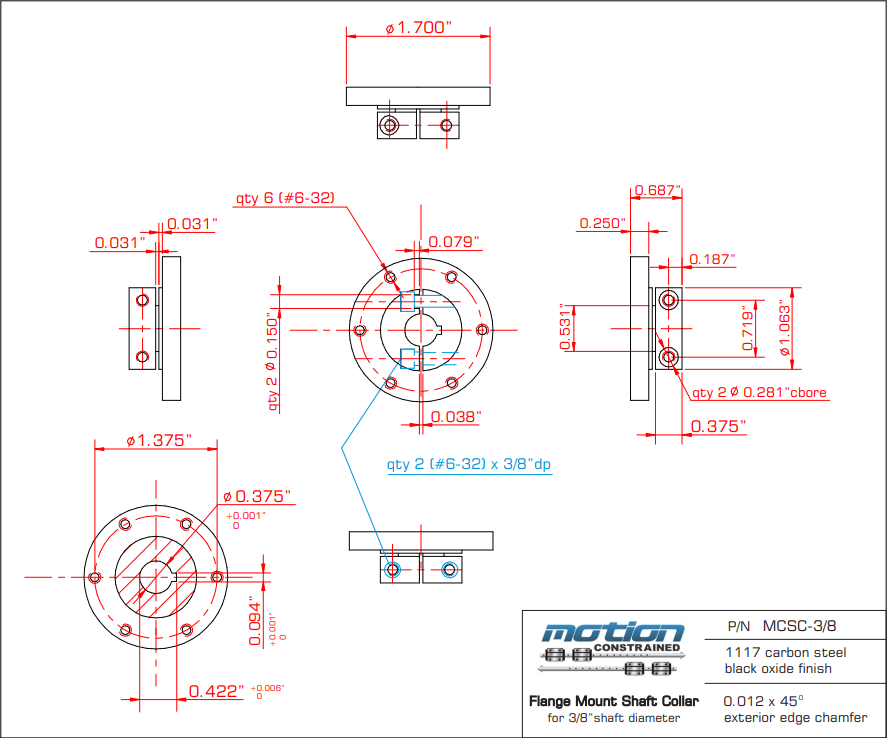

MCSC-3/8 3/8" 6-32 Tapped Threads Black Oxide C1117 Steel 1-3/8" 9684T28

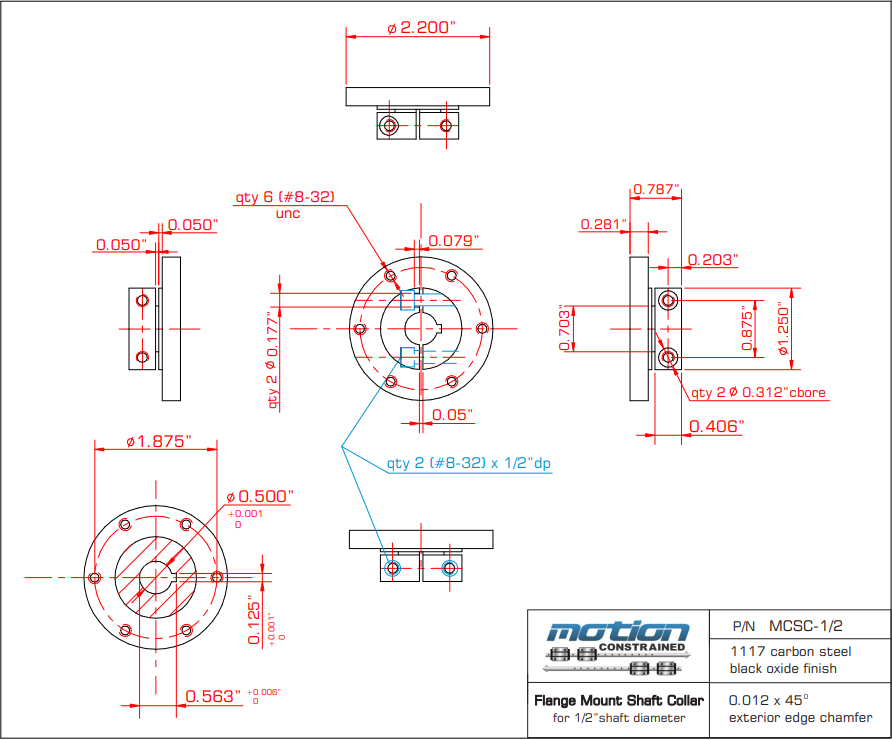

MCSC-1/2 1/2" 8-32 Tapped ThreadS Black Oxide C1117 Steel 1.875" 9684T1

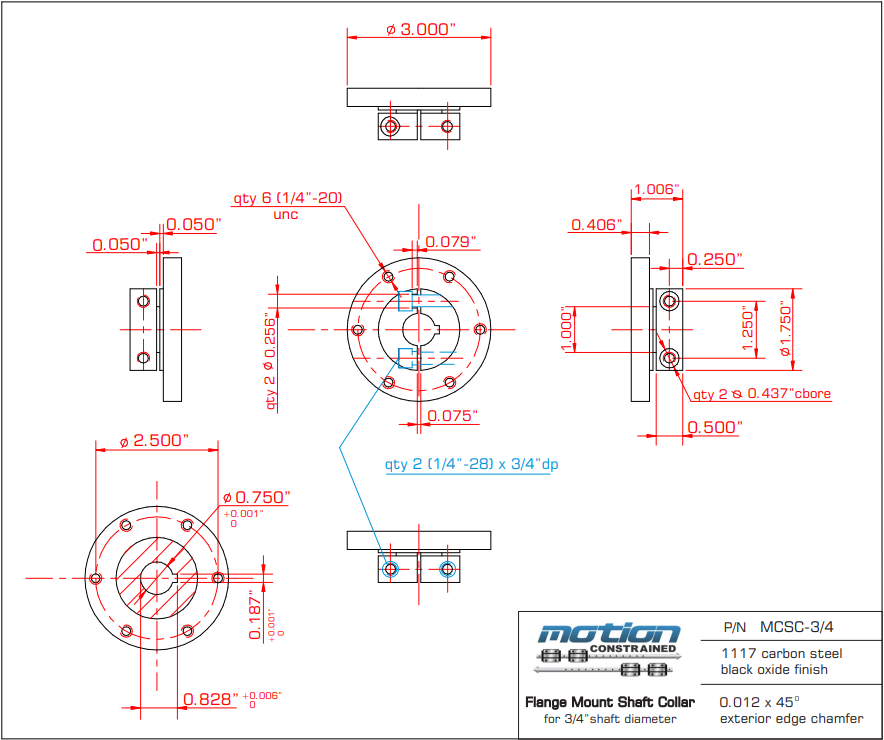

MCSC-3/4 3/4" 1/4"-20 Tapped Threads Black Oxide C1117 Steel 2-1/2" 9684T3
MCSC-1 1" 1/4"-28 Tapped Threads Black Oxide C1117 Steel 2-3/4" 9684T4

Here is a selection of Motion Constrained flange mount shaft collars/shaft couplers for bores ranging from 1/4" to 3/4" bore. These are custom machined for our internal applications but are equivalent to McMaster products (see table above) with the exception of having all tapped threads and at a much lower price.
