2PCS Optical fiber cleaver
FC-20
Product introduction：

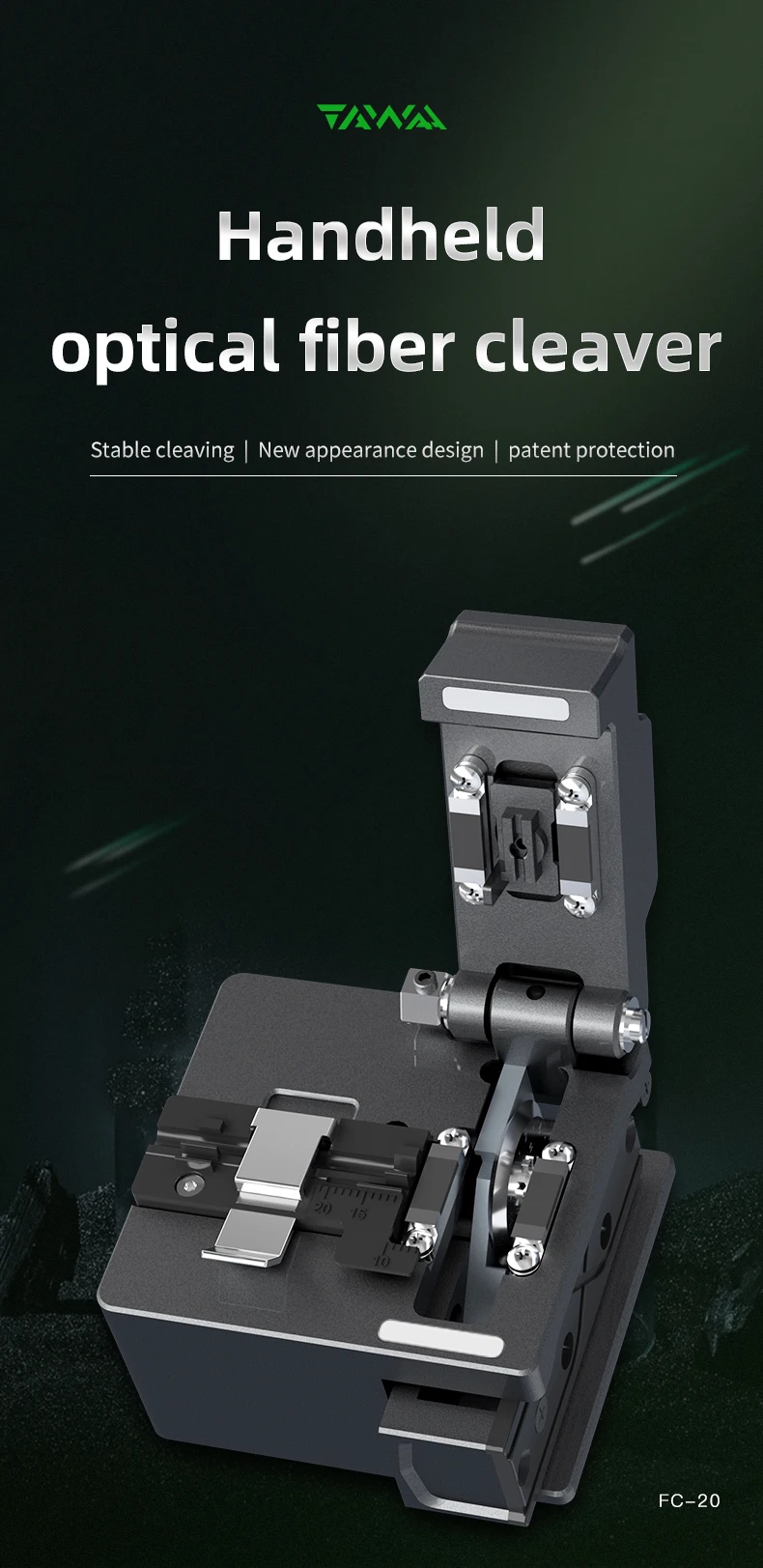

FC-20 High Precision Cleaver is an instrument for high precision fiber cutting.with a lightweight and hand held design. it is applicable to 250um.900um.3.0mm fiber cable and flat cable. Work efficiency can be maximized witheasy and simple 2 step operations. The blade provides over 48,000 fibercleaves by easy and simple blade position selection. Helped by unmatchedfunctionalities. users can achieve the most accurate cleaving and ideallyprepare their fusion splicing.

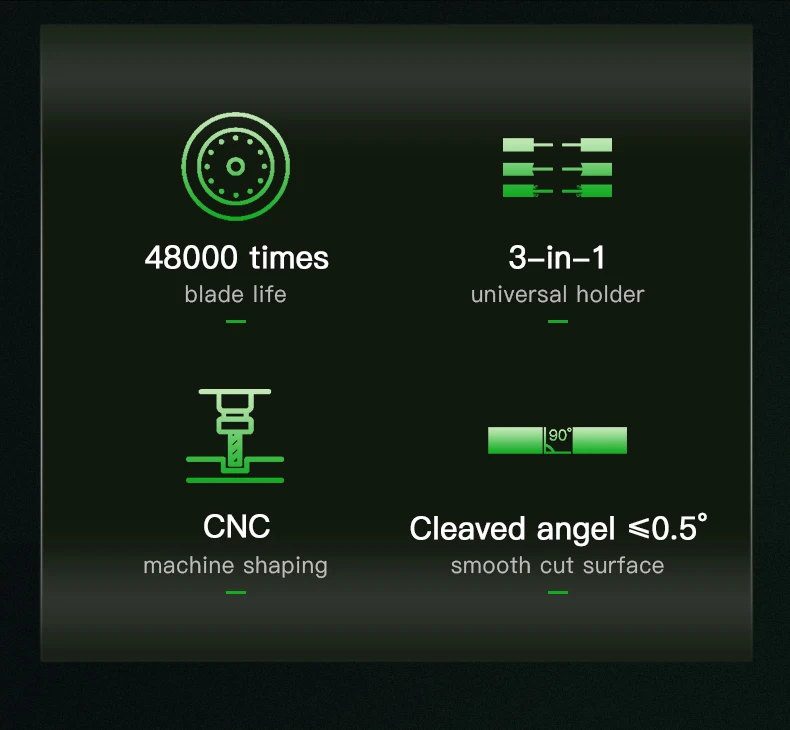

Product feature：
---Blade life up to 48,000 times.

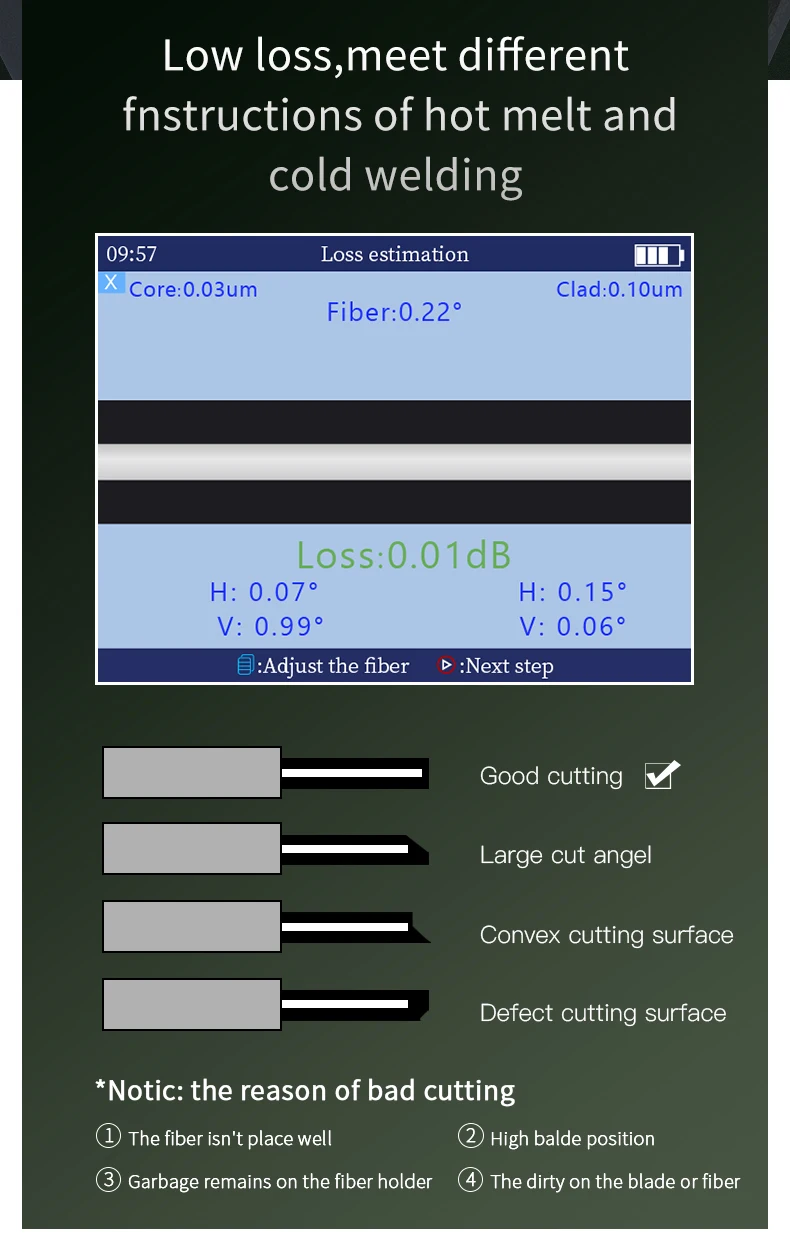

---Typical cleaving angle ≤0.5 degree.

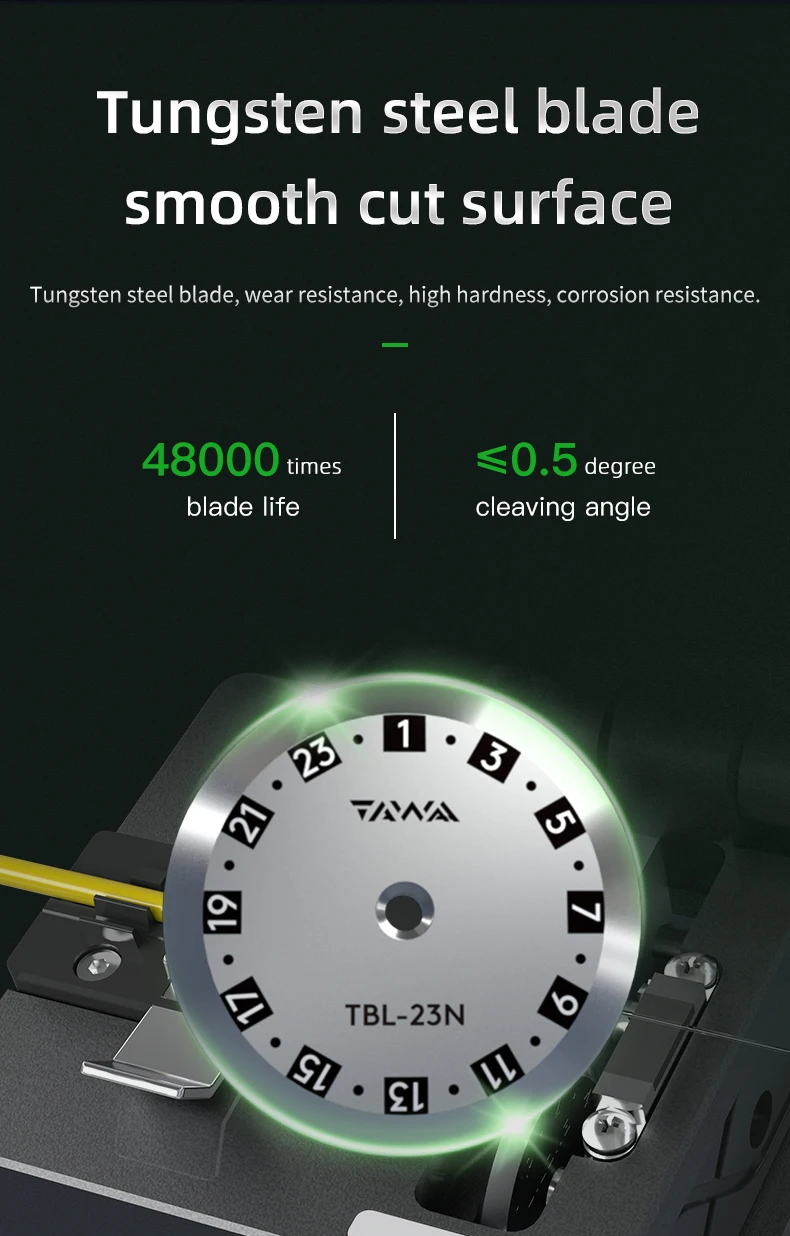

---Tungsten steel blade, wear resistance,high hardness, corrosion resistance.

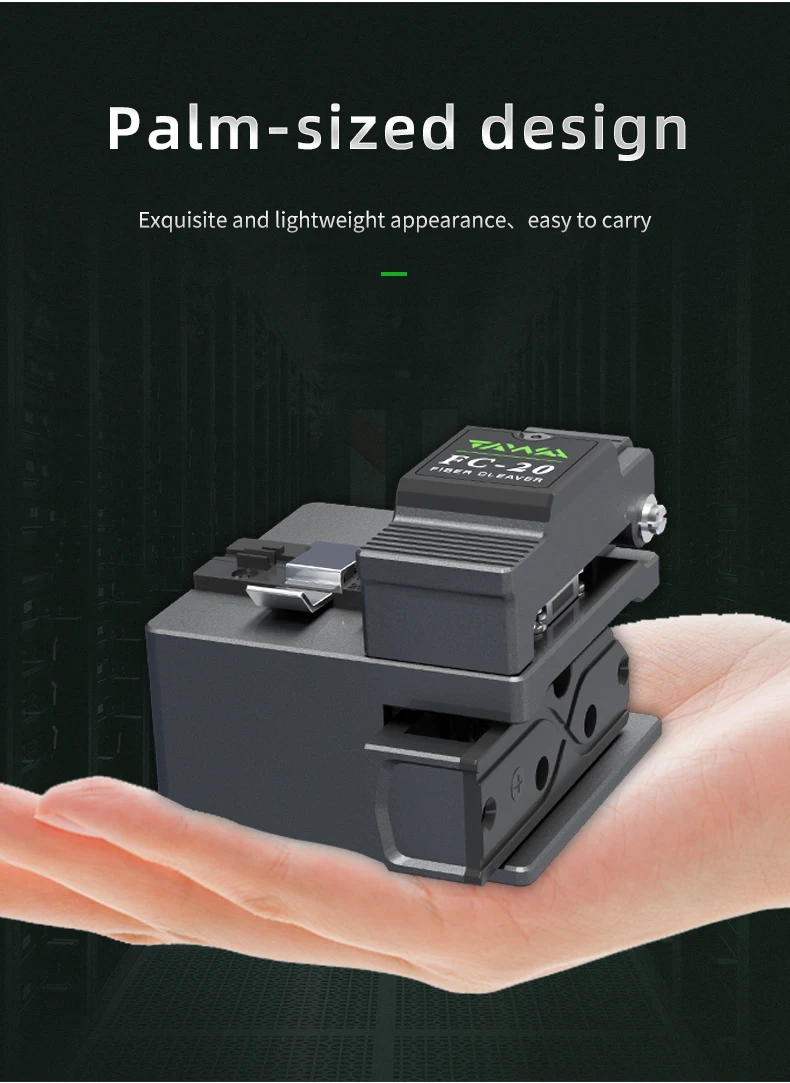

---Palm-sized design, lightweight and portable.

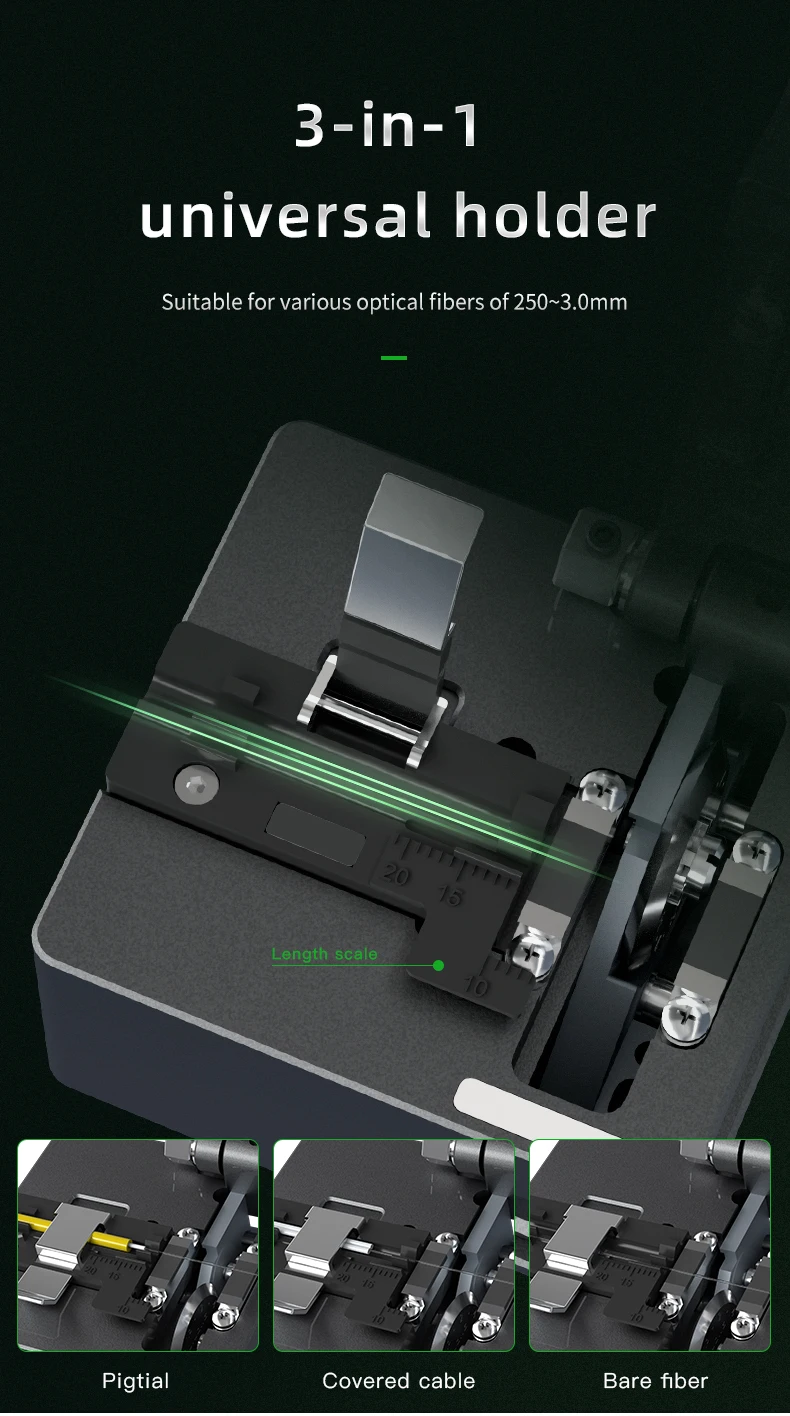

---All-in-one holder is suitable for various optical fibers of 250~3.0mm.
---High-precision CNC machining andforming, excellent texture.

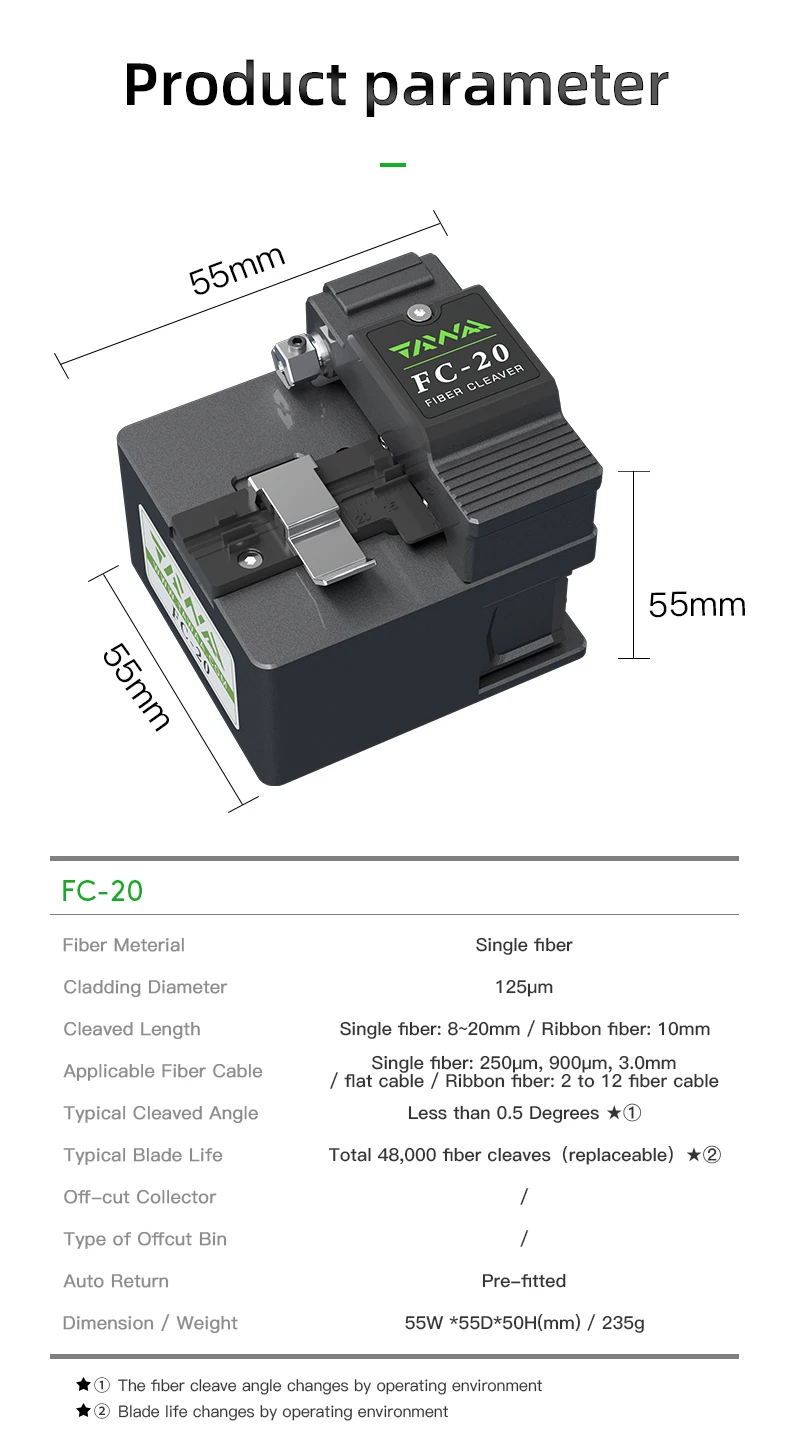

Specification：
Fiber Meterial | Single fiber |
Cladding Diameter | 125μm |
Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
Applicable Fiber Cable | Single fiber: 250μm, 900μm, 3.0mm / flat cable / Ribbon fiber: 2 to 12 fiber cable |
Typical Cleaved Angle | Less than 0.5 Degrees★① |
Typical Blade Life | Total 48,000 fiber cleaves （replaceable）★② |
Off-cut Collector | / |
Type of Offcut Bin | / |

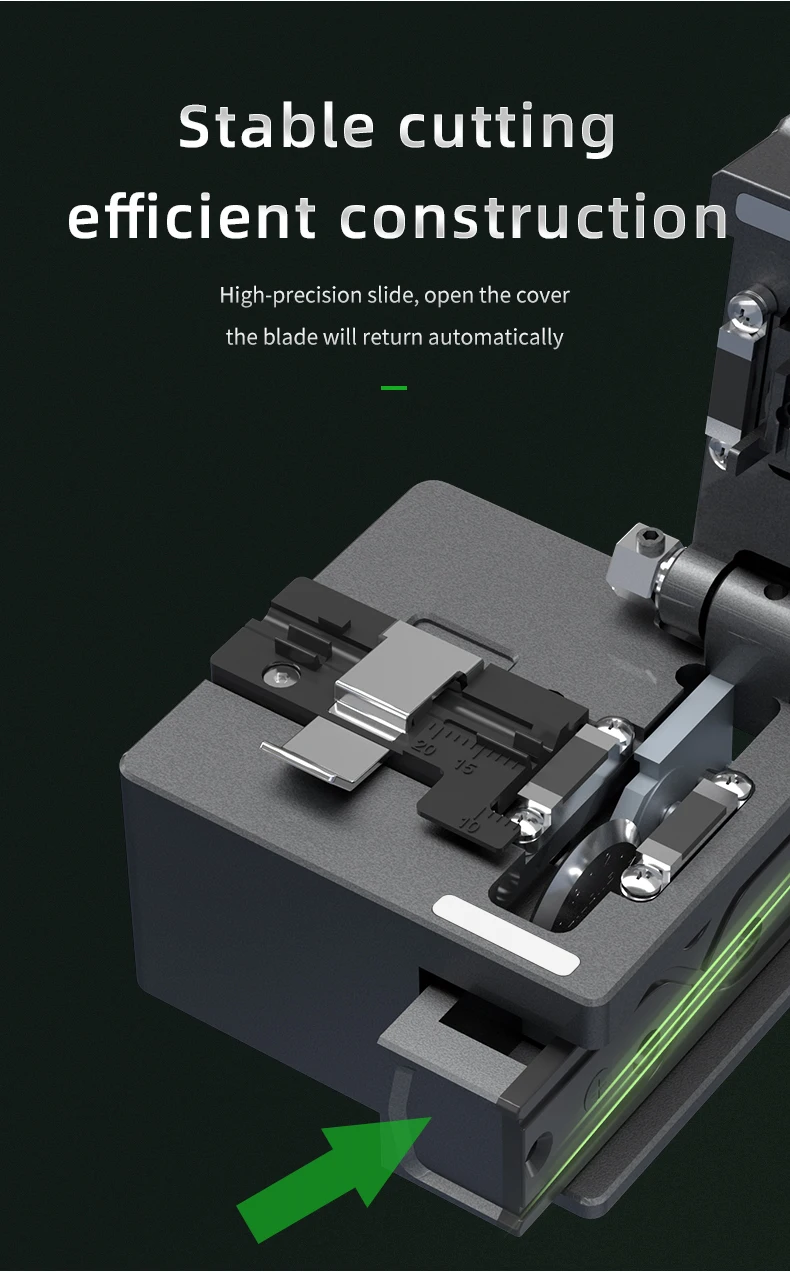

Auto Return | Pre-fitted |
Dimension / Weight | 55W *55D*50H(mm) / 235g |
★① The fiber cleave angle changes by operating environment
★② Blade life changes by operating environment
Standard Package：
Fiber cleaver FC20 | 1 |
Carrying case | 1 |
Quick guide | 1 |
