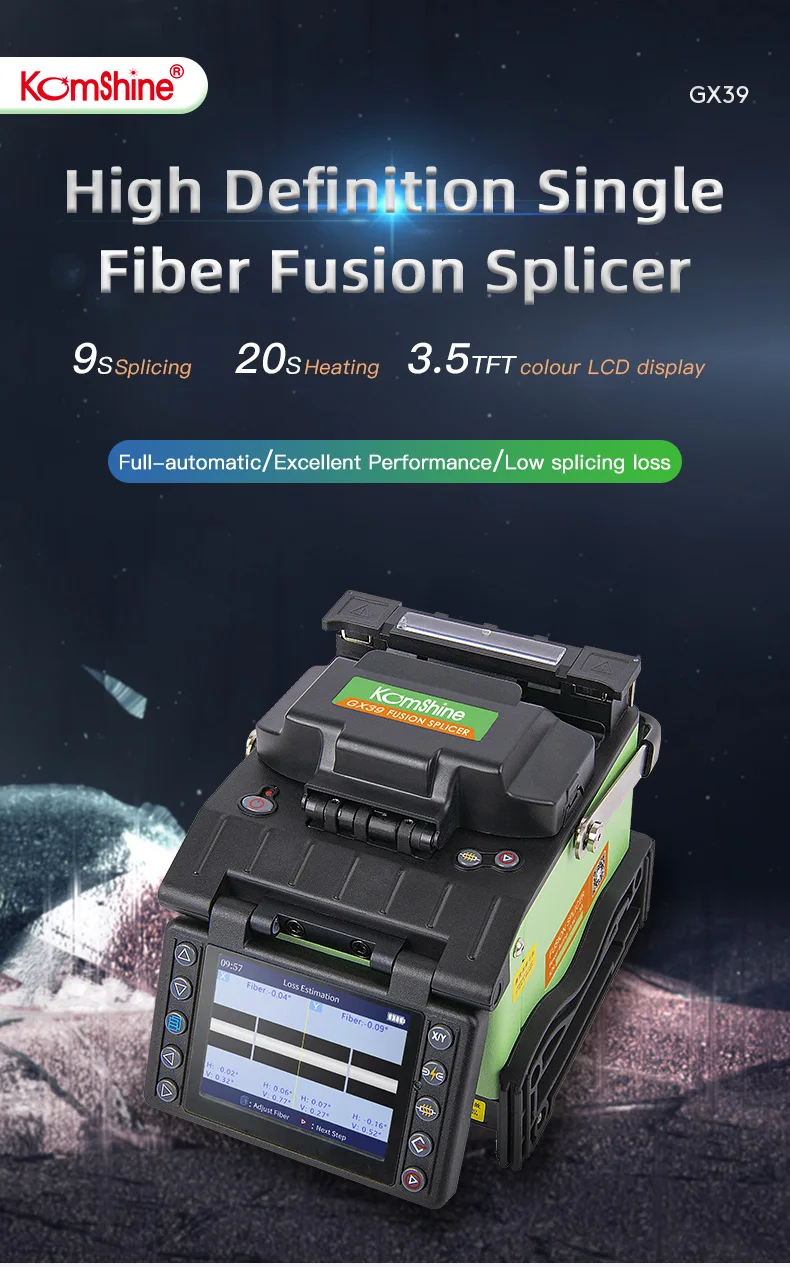

Komshine newest GX39 fusion splicer replce GX37 splicing joint machine with lower loss maquina de fusao
Main Charateristics
GX39 FTTH optical fiber fusion splicer is widely used in industries such as fiber-to-the-home, fiber-optic cable rapid termination, machine room jump fibers remediation and so on. Its newest all-in-one fixture design can splicing various optical fibers. Unique real-time discharge correction function eliminates manual discharge correction operation, and the welding is stable and reliable. Core alignment, cladding alignment, and manual alignment provide multiple core-core alignment methods. The machine has automatic, manual, and semi-automatic functions to choose. At the same time, the machine small in size;light weight;anti-shock and drop resistance; the volume is 40% smaller than the traditional welding machine and the weight is only 1.77KG. 5200mAh large-capacity lithium battery, which can be connected and heated more than 350 times after being fully charged.

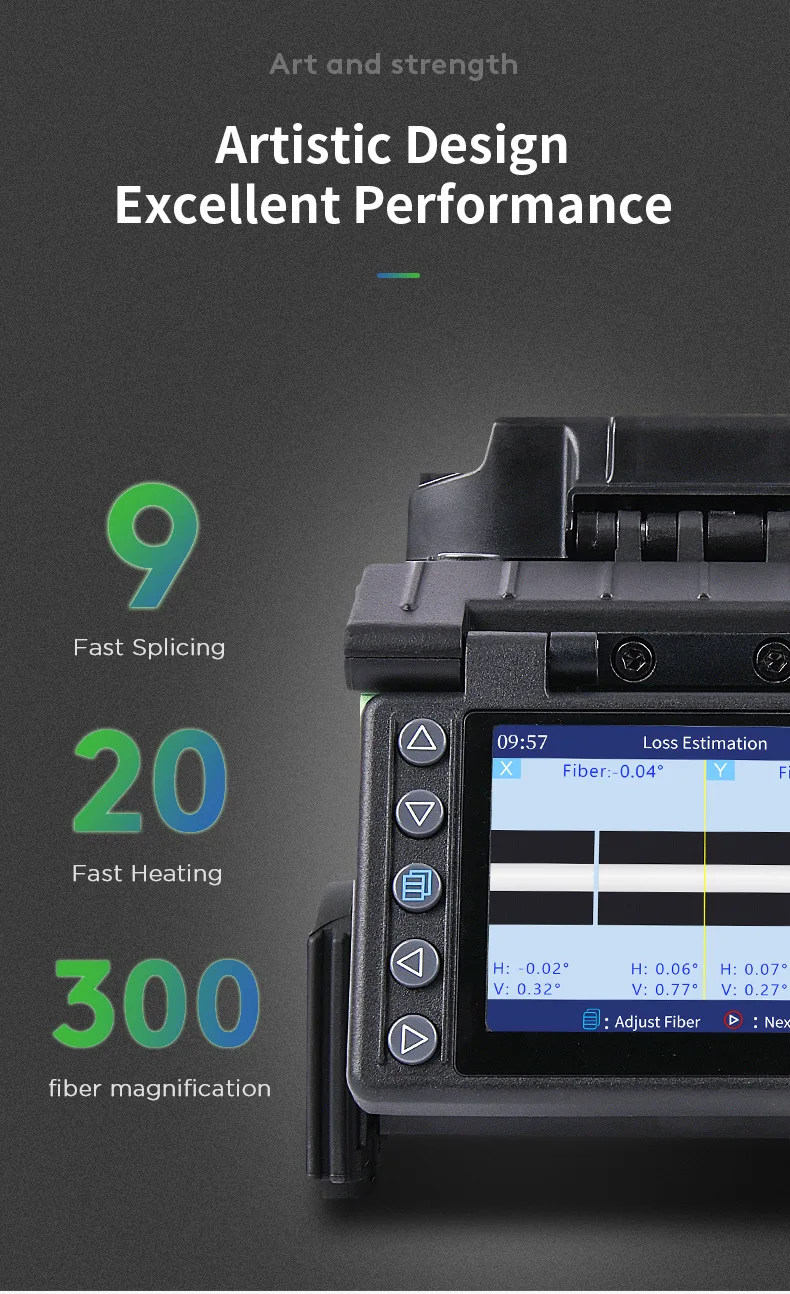

l 9S Splicing 20S Rapid Heating
l 4000 Times Electrode Service life

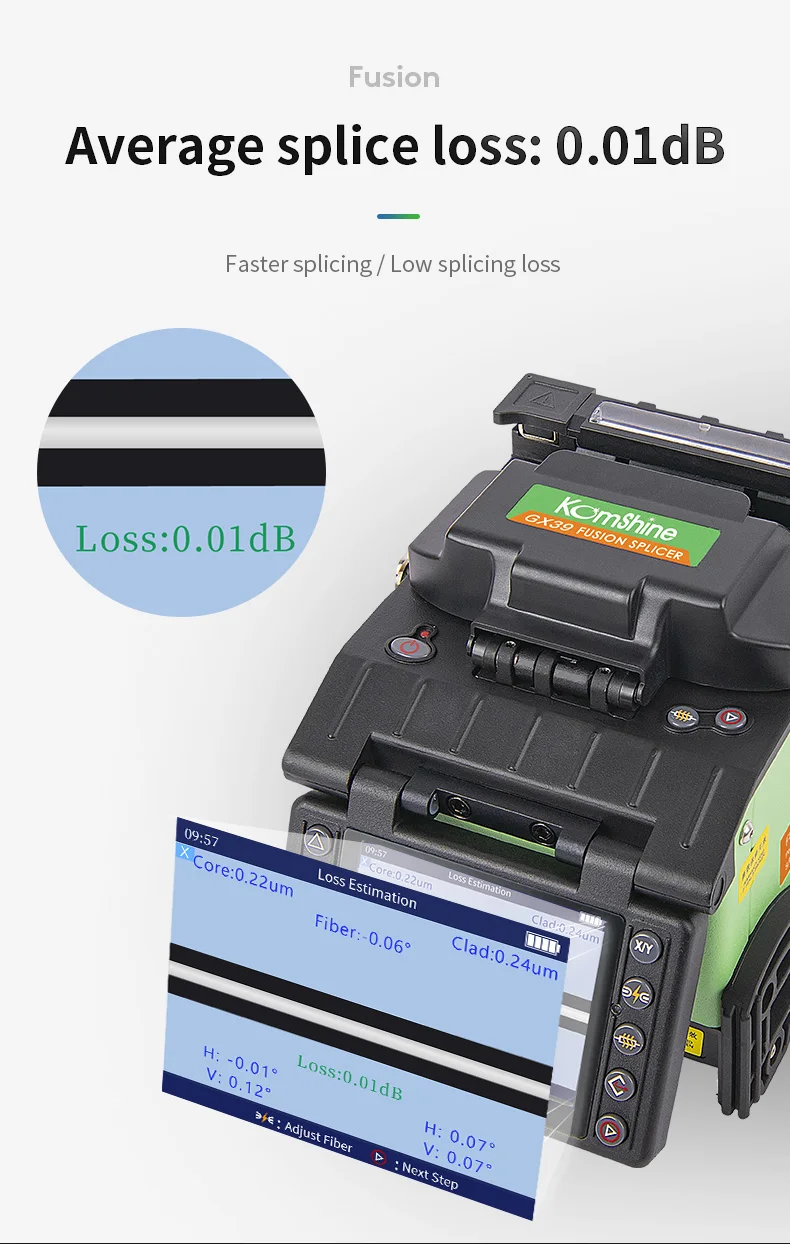

l Average Loss under 0.01dB
l 5200mAh Battery Capacity. Circular Welding 350 times
l 3.5Inch 800 x 480 HD LCD Screen
l Real Time Discharge Correction. Stable Fiber Splicing
THE BASIC PARAMETERS
Type | GX39 |
Fiber Type | SM(G652 &G657) 、 MM(G651)、DS (G653)、NZDS(G655) |
Actual Splicing Loss | 0.02dB（SM） 0.01dB（MM） 0.04dB(DS/NZDS) |
Control Technique | Real-time control and correction of welding arc; Self-adaptation within working environment; Self-adaptive electrode oxidation |
Return Loss | Better than 60dB |
Tube Typical Splicing Time | 9S(Standard SM) |
Tube Typical Heating Time | 20S(Heating time can be set. Heating temperature can be adjusted) |
Fiber Aligning Method | Meticulous ; Core ; Clad ; Manual |
Fiber Diameter | Clad Diameter is 80 ~ 150μm; Coating100 ~ 1000μm |
Cutting Length | Coating layer＜250μm: 8 ~ 16 mm; Coating 250 ~ 1000μm: 16mm |
Heat-shrinkable Sleeve | 60 mm、40 mm and a series of thermal sleeves |
Tension Test | Standard 2N(can choose) |
Fiber Clamp | Suitable for Bare fiber, Tail fiber, Jumper wire, Leather wire |
Fiber Image Magnification | 300X(X-axis or Y-axis); 150X(X-axis and Y-axis) |
Graphical Display | 3.5Inch TFT Color LCD,can be flipped, convenient bidirectional operation |
External Port | USB 2.0 interface, convenient for data download, using U disk upgrade software |
Splicing Program | 100(User Mode) ; 53(Factory Mode) |
Heating Program | 40 (User Mode) ; 11 (Factory Mode) |
Fusion Splicing Record | Saved 10000 groups splicing results.100 sets of latest Images |
Internal battery | Lithium battery 12.5V power supply (10.8V storage), independent charger, charging time ≤3.5,heating time no less than 350 times(Typical) |
Power Supply | Power supply connector, external adapter (Import AC:AC100~240V,50/60Hz, 0~1.5A, Export DC:DC13.5v/4.8A) |
Working environment | Temp:-10~50℃；Hum:0~95%RHElevation:0~5000M; Resist the maximum wind speed : ≤ 15m/s |

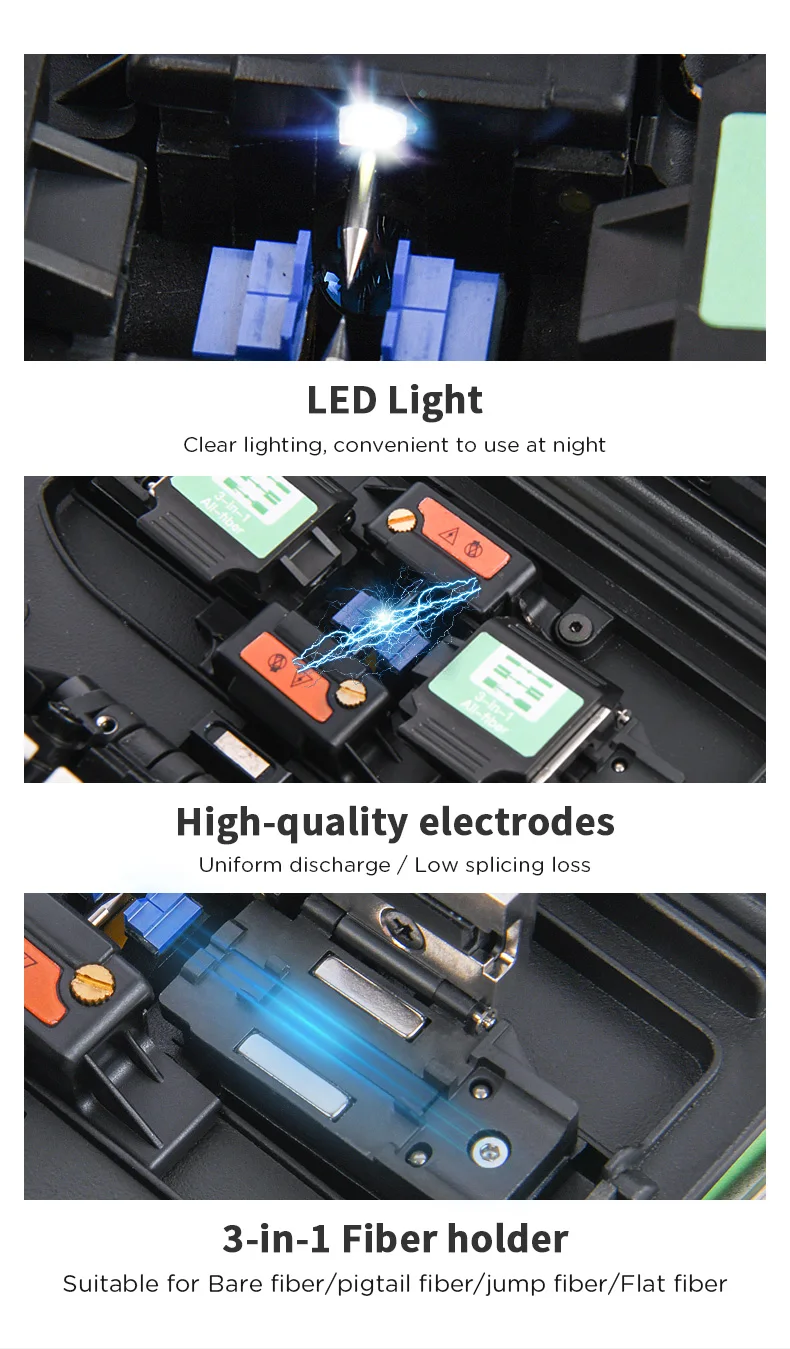

High-brightness lights | Convenient for placing the fiber at night |

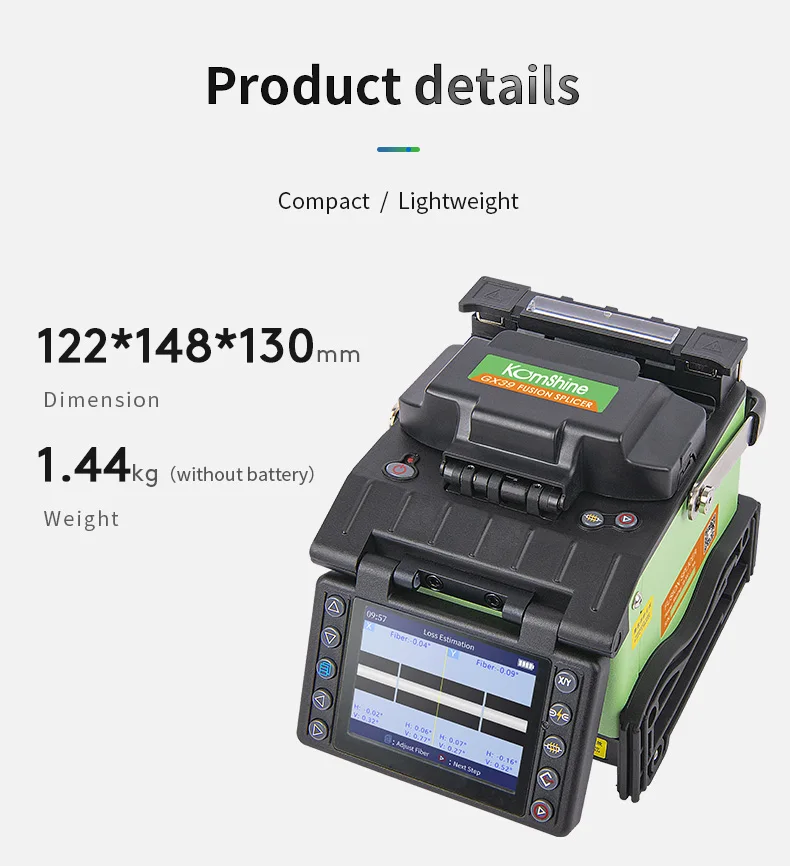

Size | 122mm(Length)x148mm(Width)x130mm(Height) |
Weight | 1.44kg (Without Battery).1.77kg (With Battery) |
|
|
-- Come With Calibration Certificate and Test Report (Contact us if you can't find in the package)
-- Come With 1-Year-Warranty
-- Come With the FC-20 NEW Fiber Cleaver
--Come With the Carrying Case
-- Come With CFS-3 Fiber Stripper
