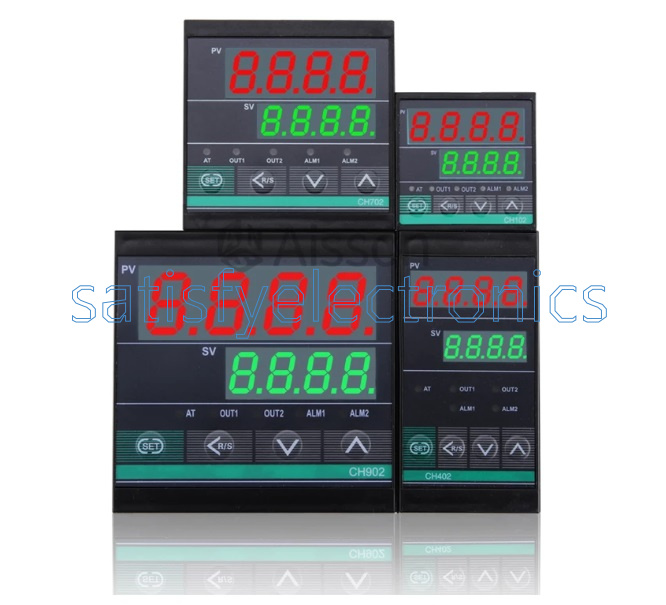

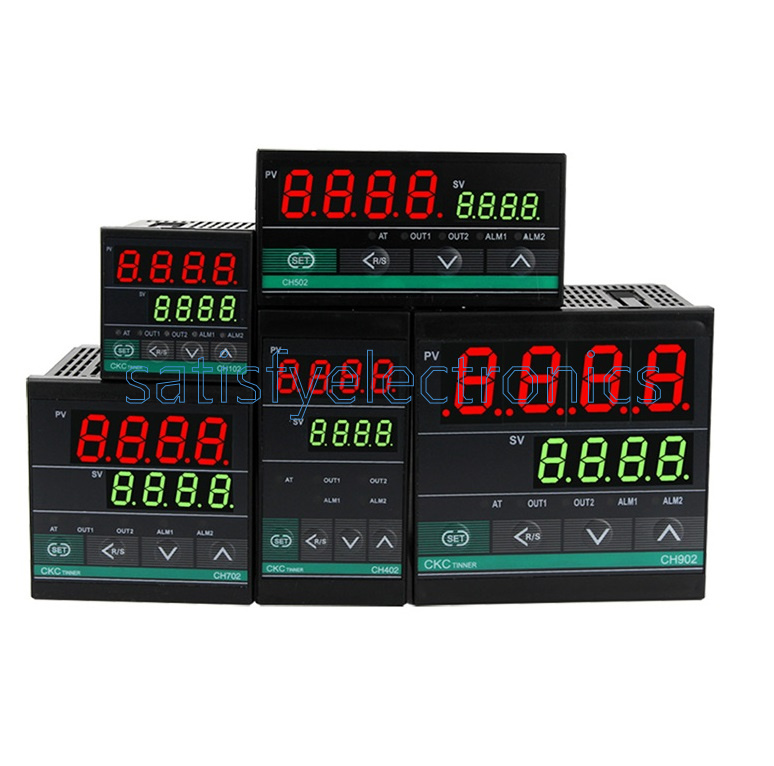

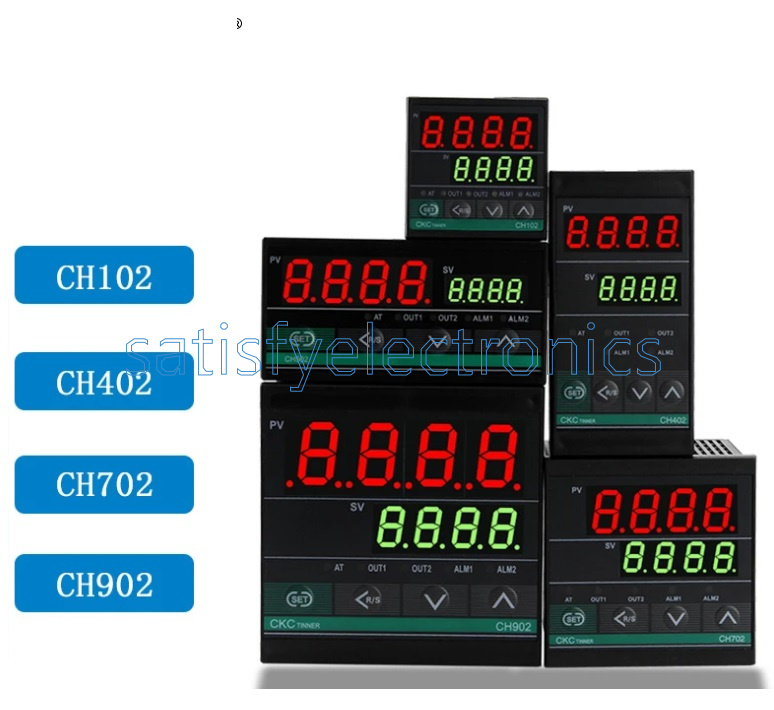

AC48-240V Dual SSR and Relay Digital PID Intelligent Temperature Controller
Model number and parameters

Model number

External dimensions

Perforation dimensions

REX-CH102

48x48x75 mm

45 0.50x45 0.50 mm

REX-CH402

48x96x75 mm

45 0.50x92 0.50 mm

REX-CH502

96x48x75 mm

92 0.50x45 0.50 mm

REX-CH702

72x72x75 mm

68 0.50x68 0.50 mm

REX-CH902

96x96x75 mm

92 0.50x92 0.50 mm
General
Model number REX-CH series
Accuracy ±0.5%FS±1°C
Supply voltage 48-240V
Input types Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
RTD: Pt100, JPt100
Voltage: 0-5V, 1-5V
Current: 0-20mA, 4-20mA
Output types Electromagnetic relay + SSR
Power consumption AC100-240V: under 10VA; AC24V: under 5VA; DC24V: under 160mA
Control method PID, or ON/OFF
Setting method Touch switch
Indication method 8-segment 4-digital display and LED indication
Alarms 1. Alarm quantity: Default is 1pcs, if 2pcs, need to be customized
2. Alarm form: N: No alarm
A: Deviation low
B: Deviation high
C: Deviation high/low
D: Band
E: Deviation high with hold action
F: Deviation low with hold action
G: Deviation high/low with hold action
H: Process high
J: Process low
K: Process high with hold action
L: Process low with hold action
Operating temperature 0 to 50 °C (32 to 122 °F)
Operating humidity 30-85% RH max, non-condensing
Alias name REX-CH series pid temperature controller, intelligent temperature controller
