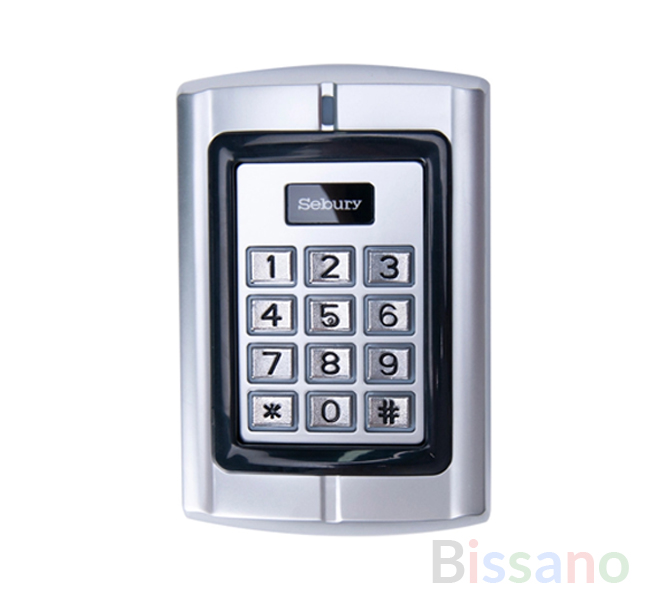

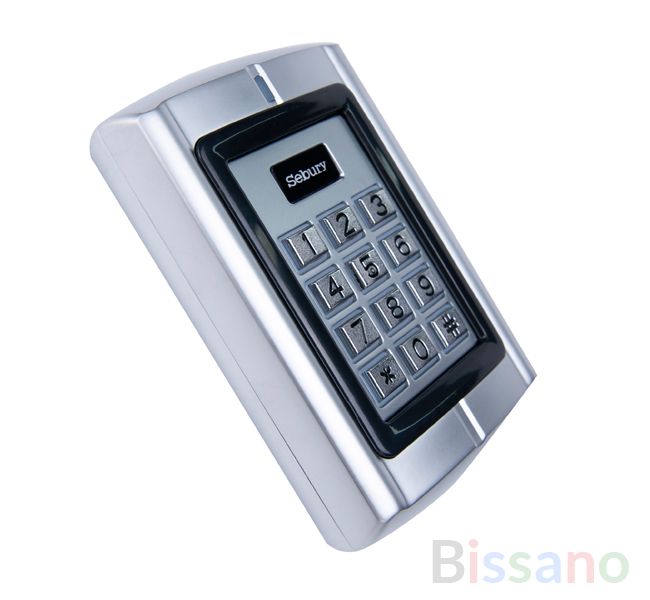

Single-door Standalone Access Controller B6K-IC Plus
This product is compatible with NFC Mifare 1k 13.56MHz IC&CPU card or key fob. The keypad is metal and backlit. It supports PINS or cards/tags. It has a huge memory that can be programmed to recognize 20,000 cards/tags. For detailed specifications and installation guide please refer to the following PDF: https://bissano.com.au/Ebay/Products/0013-Sebury-B6K-IC/B6PlusUserManual.pdf
Specifications
Working Voltage:
AC/DC10-28V
Standby current:
≤35mA(Input DC12V)
Operating current:
≤100mA(Input DC12V)
Operating temp.:
-40～60℃
Operating humidity:
0～95%
Relay Current:
≤1A
Reading Distance:
≤5cm
Frequency:
13.56MHz
Card/Tag Capacity:
20,000
Package content
B6K-IC Plus
x1
Wall mount + screw
x4
Screw Tool
x1
