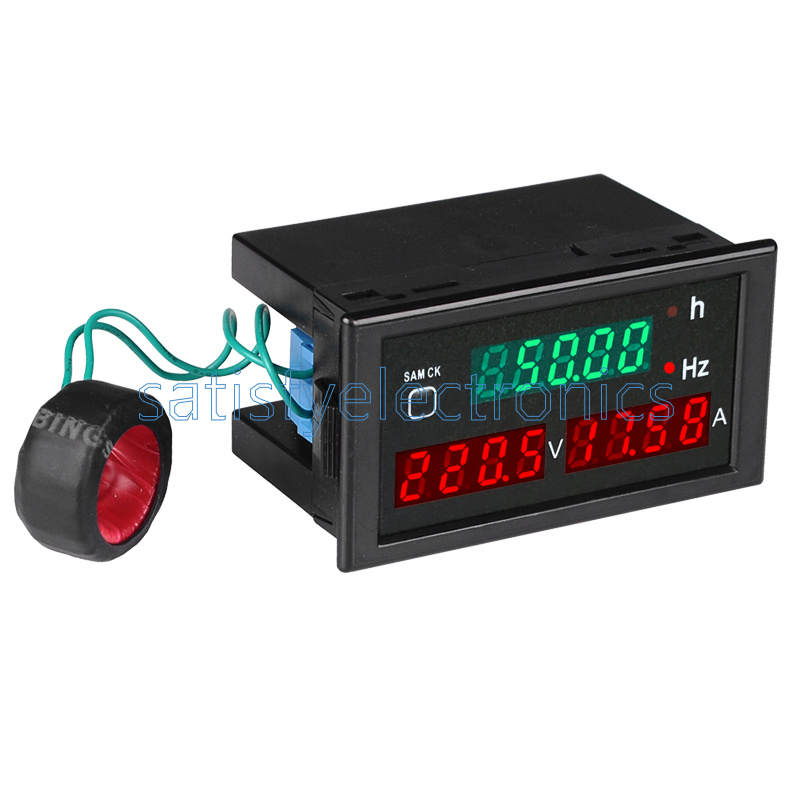

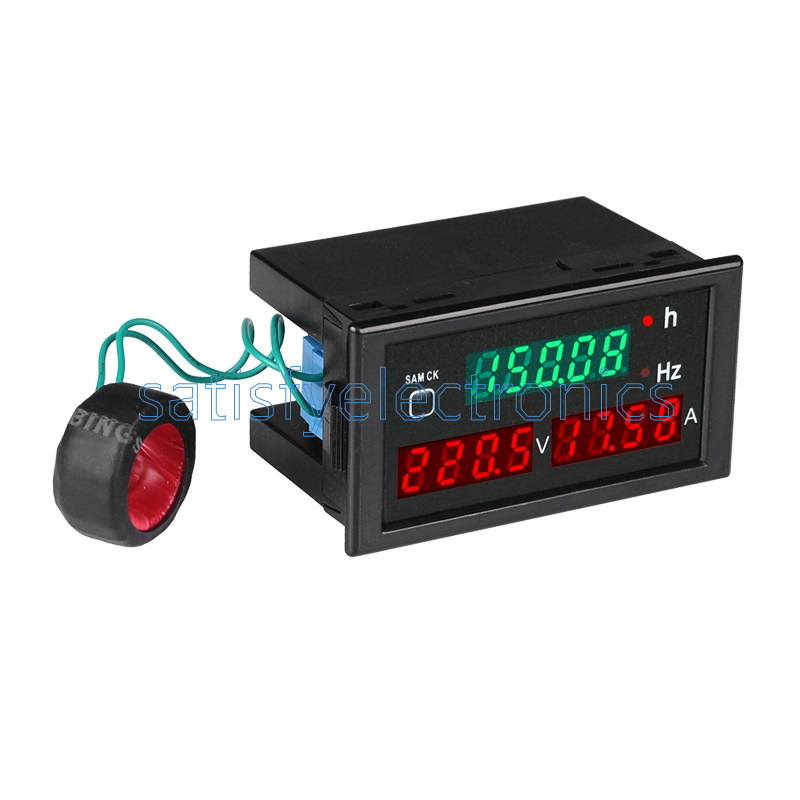

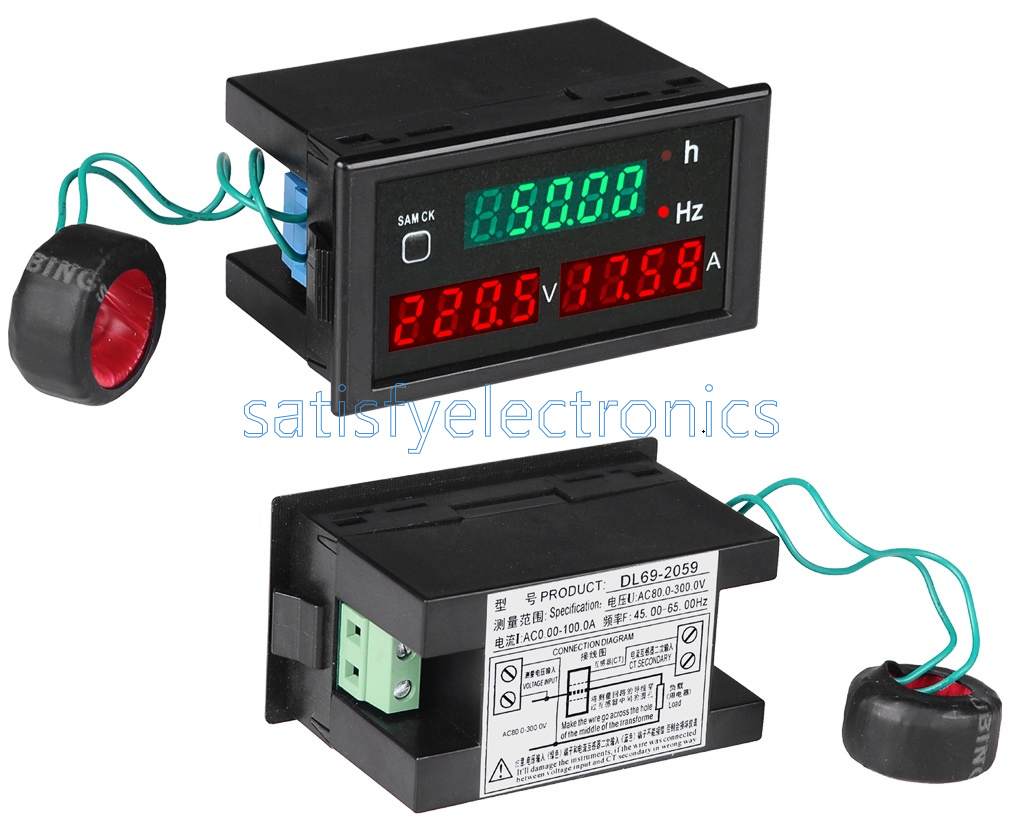

AC 80-300V 45-65Hz 100A Digital Panel Meter Voltmeter Frequency Volt Amp Meter
   This AC digital-display meter can measure and display the AC voltage and current, voltage frequency at the same tiem. there will be a smart current-transformer(100A) with the meter, so you don't need any extra working power and current-transformer

Parameters
  • Size: 79mm * 43mm * 39mm / 3.1" * 1.7" * 1.5"
  • Displayer: AC voltage and current show with four red LED of 3.2 inch, voltage frequency show with four green of LED of 0.32 inch
  • Voltage Measuring range: AC 80.0~300.0V
  • Current Measuring range: AC 0.00~100.0A
  • Frequency Measuring range: 45.00~65.00Hz
  • Measuring speed: 2 times/second
  • Accuracy: 1%± 2 words
  • Installation size: 76mm * 39mm /2.99" * 1.53"

Application method

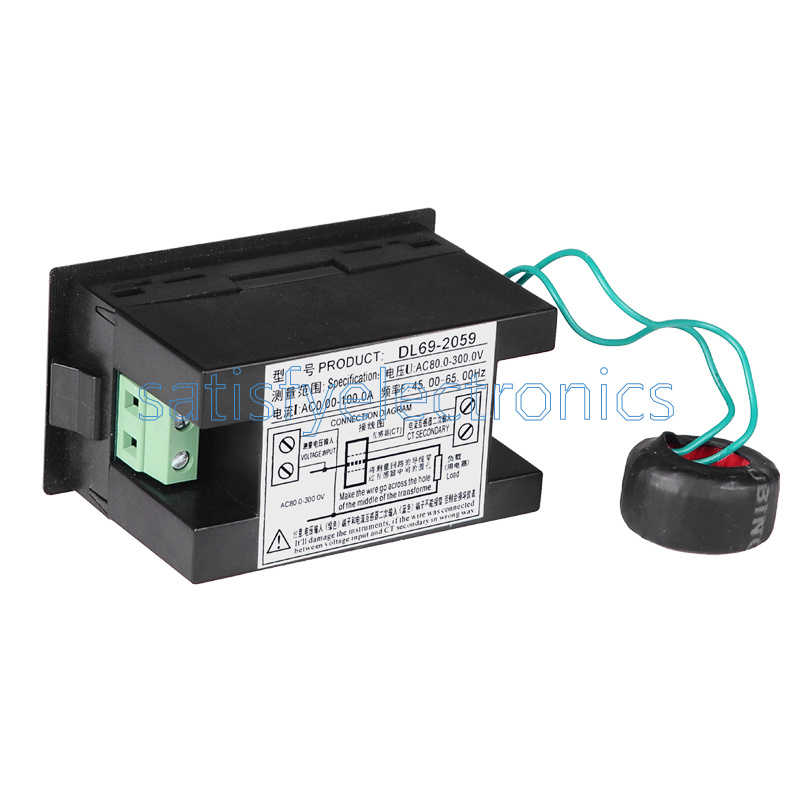

  1.  Connect the wires(blue wire) of secondary transformer to the blue terminal on the meter, the measure line must across the hole in the current transformer
  2.  Connect the measure voltage wire to the greeen terminal

Attention:
  1. Voltage connect to the blue terminal and secondary transformer connect to the blue terminal, wrong connection will destroy the meter
  2. The meter can only use to measure 45-60Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave

Package Includes:
1 * AC digital voltage & current & frequency meter
