RS422 Two-way Communication Transfer Between TTL Bidirectional Signals Full Duplex MAX490 Module
Specifications:
- - RS422 interface, two-way communication. A B Y Z ultra-long transmission 1000 meters. The module has 15KV ESD protection.
- - Add 10 ohm current limiting/overcurrent protection resistor to the board.
- - The module comes with TVS diodes. Anti-lightning, anti-spike voltage.
- - The module has 120 ohm terminal resistance, it can reduce long-distance communication echo interference effectively.
- - With power indicator and data transceiver indicator. Easy to watch the Data status.
- - The module TTL side uses 5V DC power supply RXD TXD compatible 5V logic signal.
- - The module uses high-quality MAX490 chip, stability and communication is extremely high, up to 2.5MBPS.
- - Size: approx. 50 x 27mm
- 1pc x RS422 Two-way TTL Bidirectional Signals Full Duplex MAX490 Module

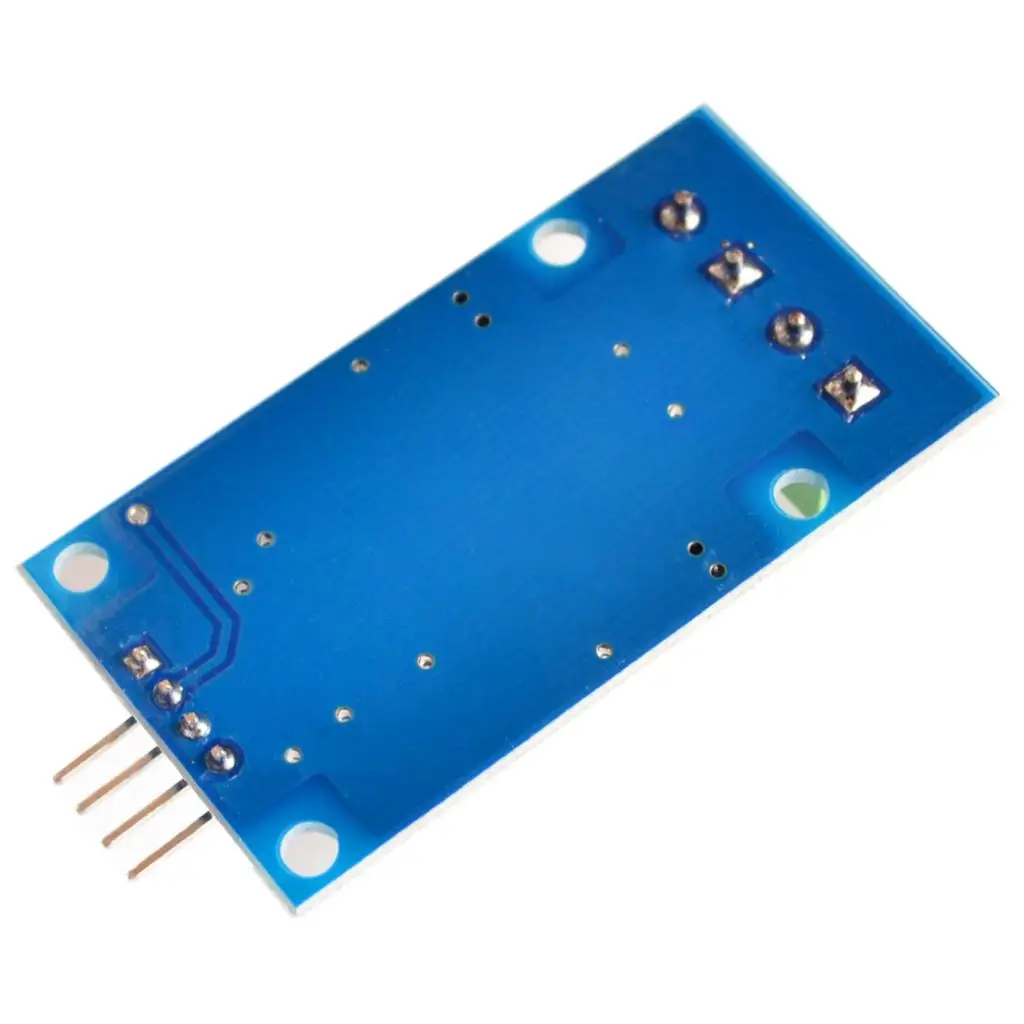

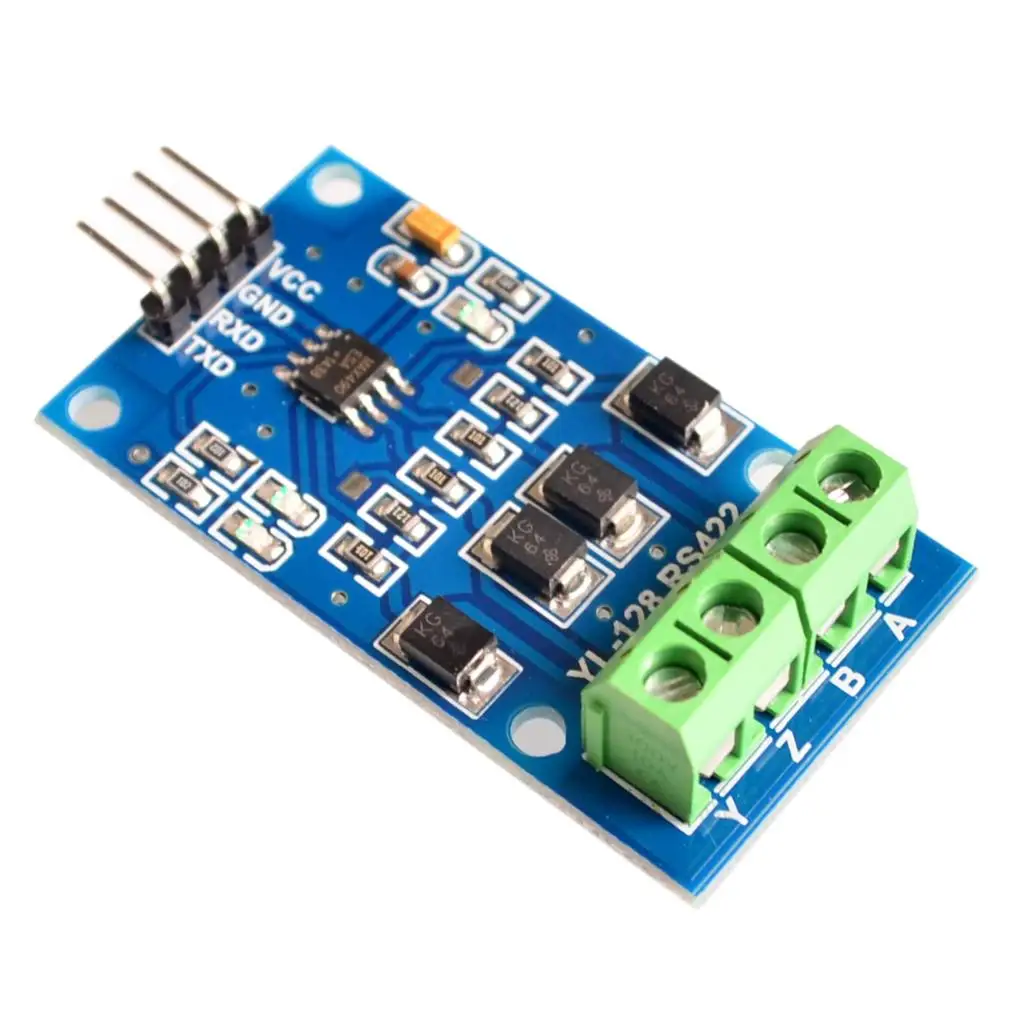

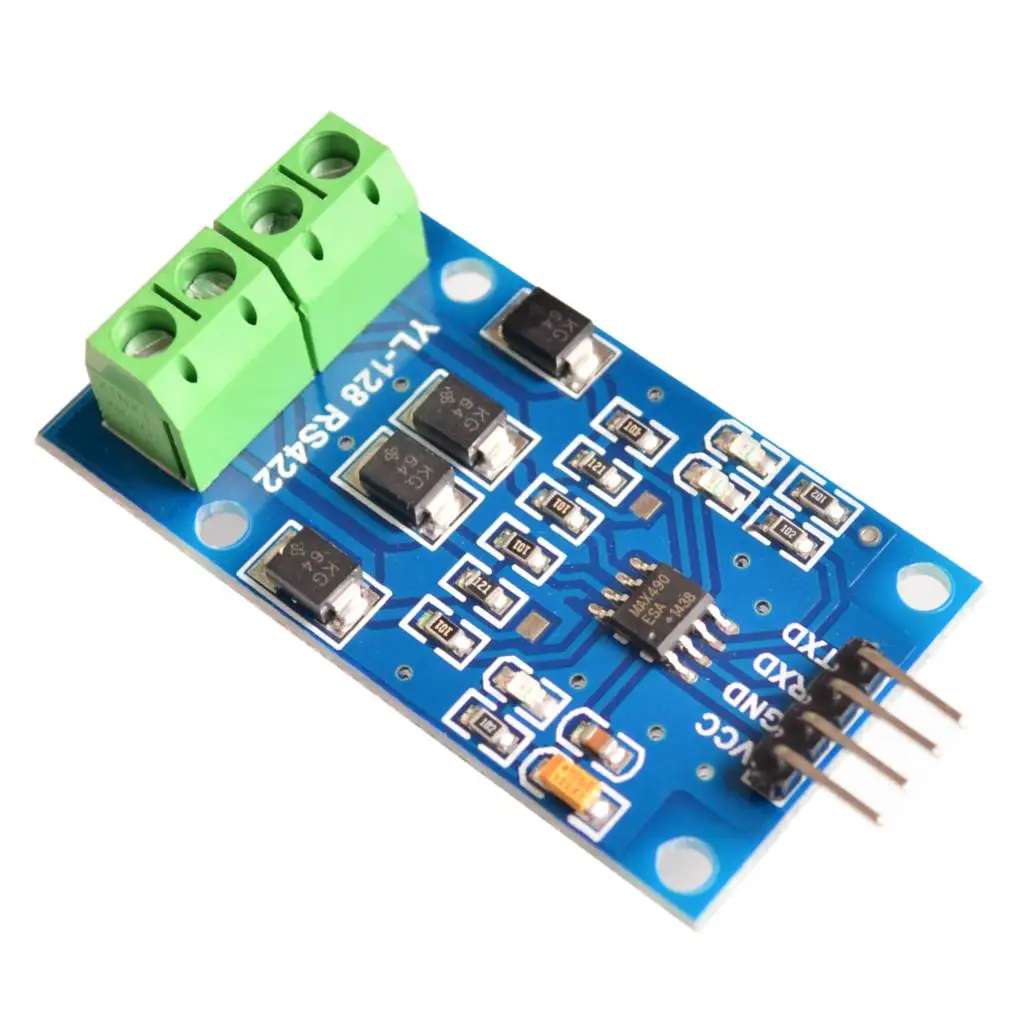

- Pictures:
