Features:

•  Double high voltage cable can ignite cigarette and paper, a single high voltage cables can provide power to a metal body, and no sound support.
• The module can be used as high-school scientific experiments, electronic devices, negative-ion generator, high-voltage source, to use when small science.
• Over power: Single 18650 or idle mobile phone batteries (the protective plate to remove the planned capacity of 2000mAh or more).

Specifications:

• Material: metal, plastic
• Color: black and black
• Size: 19 x 20 x 18 mm (L x W x H)
• Input voltage: DC3.6V-6V
• Input Current: 1.5A
• Output voltage: DC20KV (Please be sure to use safety when used)
• Output current: 0.05A
• InputLine Length: approx. 110 mm (red is positive)
• Output cable length: approx. 110mm
• High voltage bipolar discharge distance: 5mm
• High type: pulse current
• Structure: High and low voltage integrated
• Wiring:
• Red and green power connection red line:"+" green line "-"
• output : the other side ,same color cable

NOTE: The high-voltage module should avoid the use of electricity in high voltage no-load .

(Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

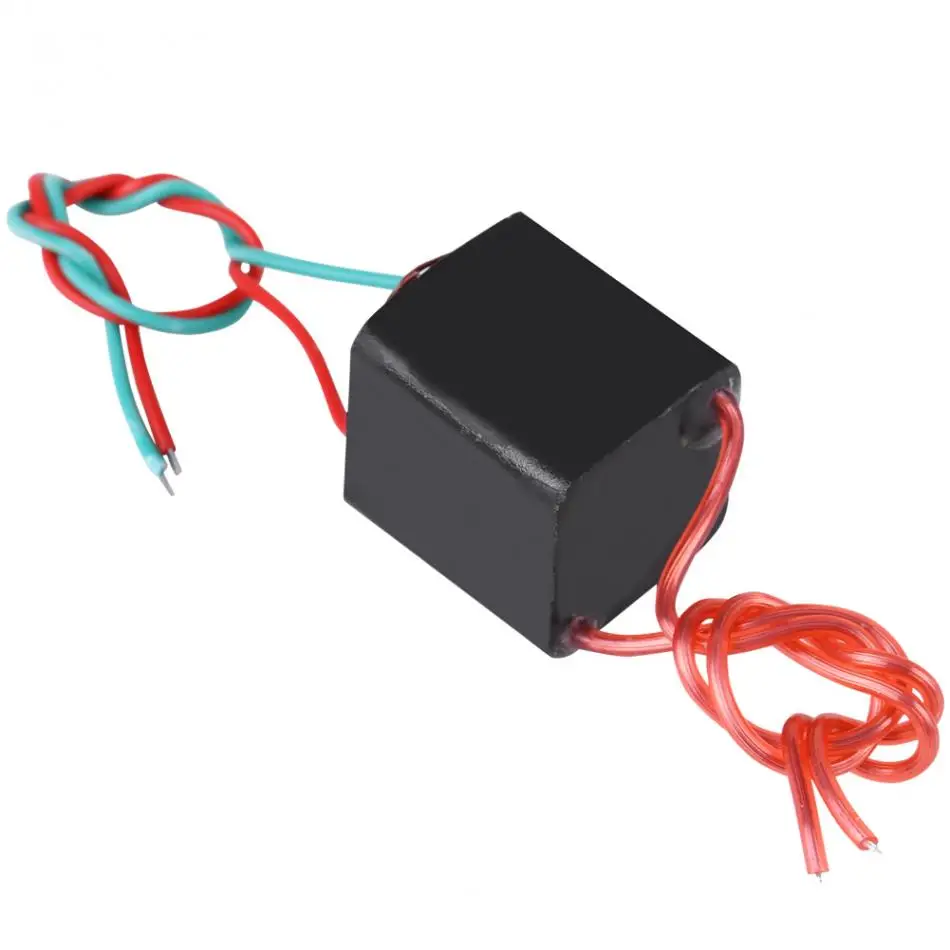

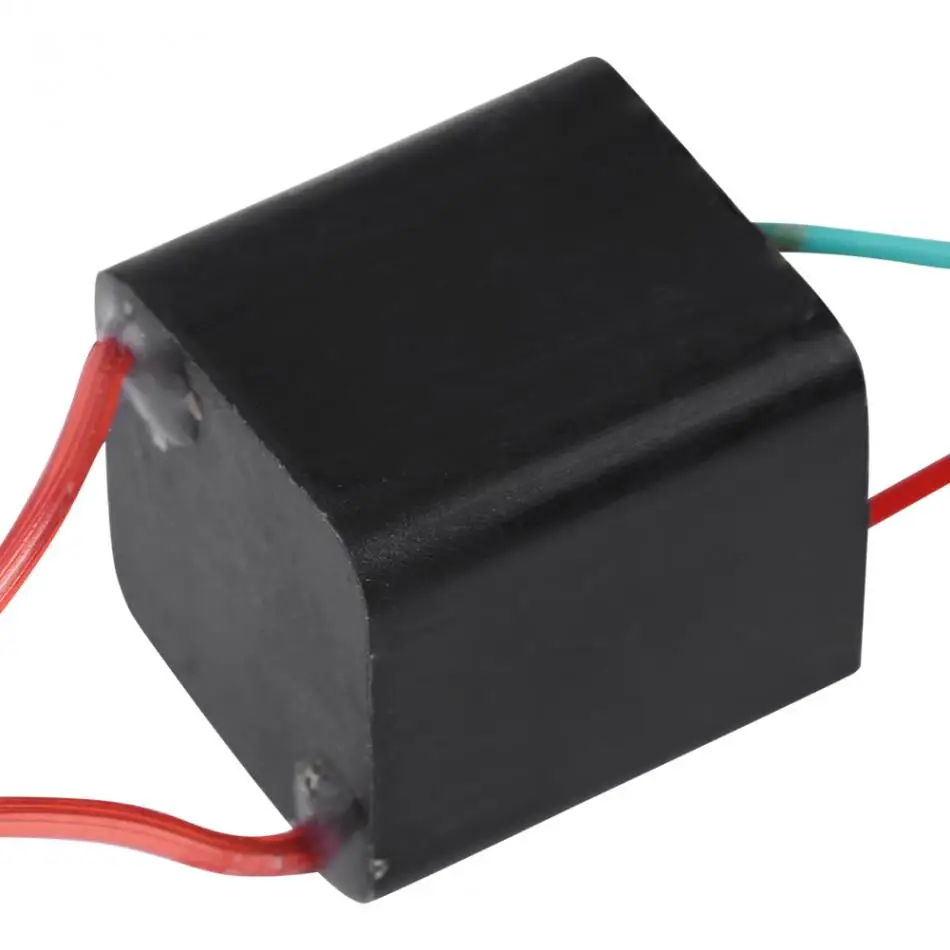

• 1pc x 20kV high pressure igniter


- Pictures:
