Fully tested and working. 12 month RTB warranty. Includes new cells. Input power cable and 2x output cables supplied.

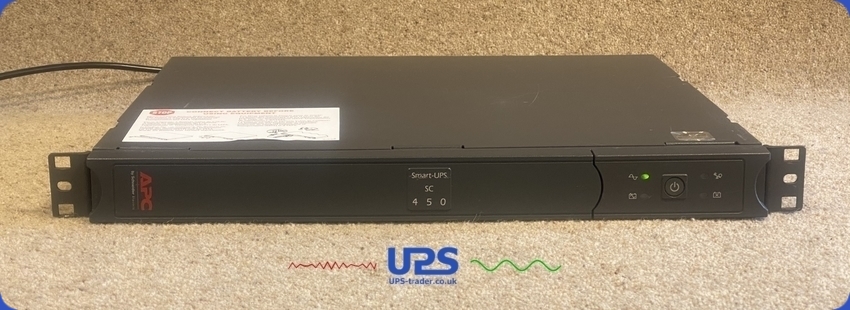

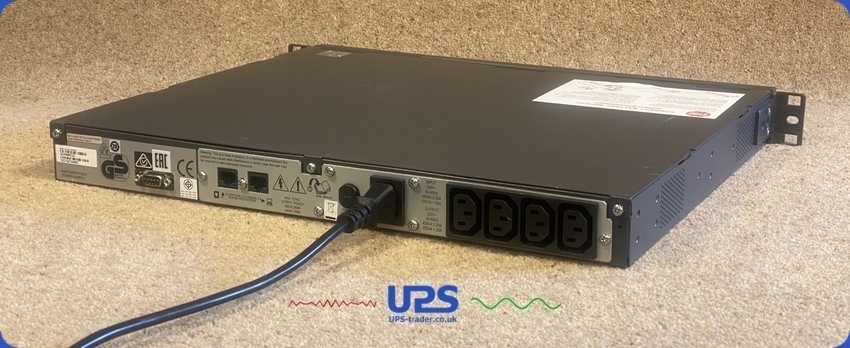

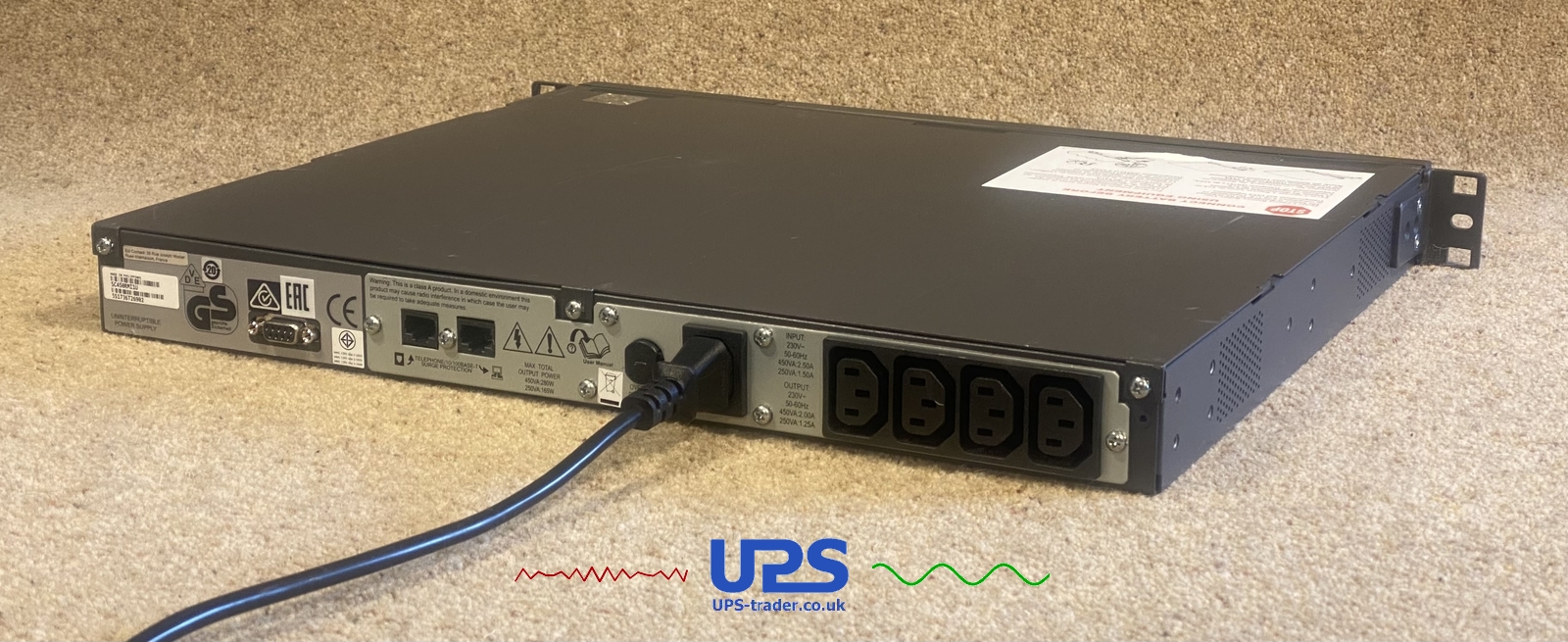

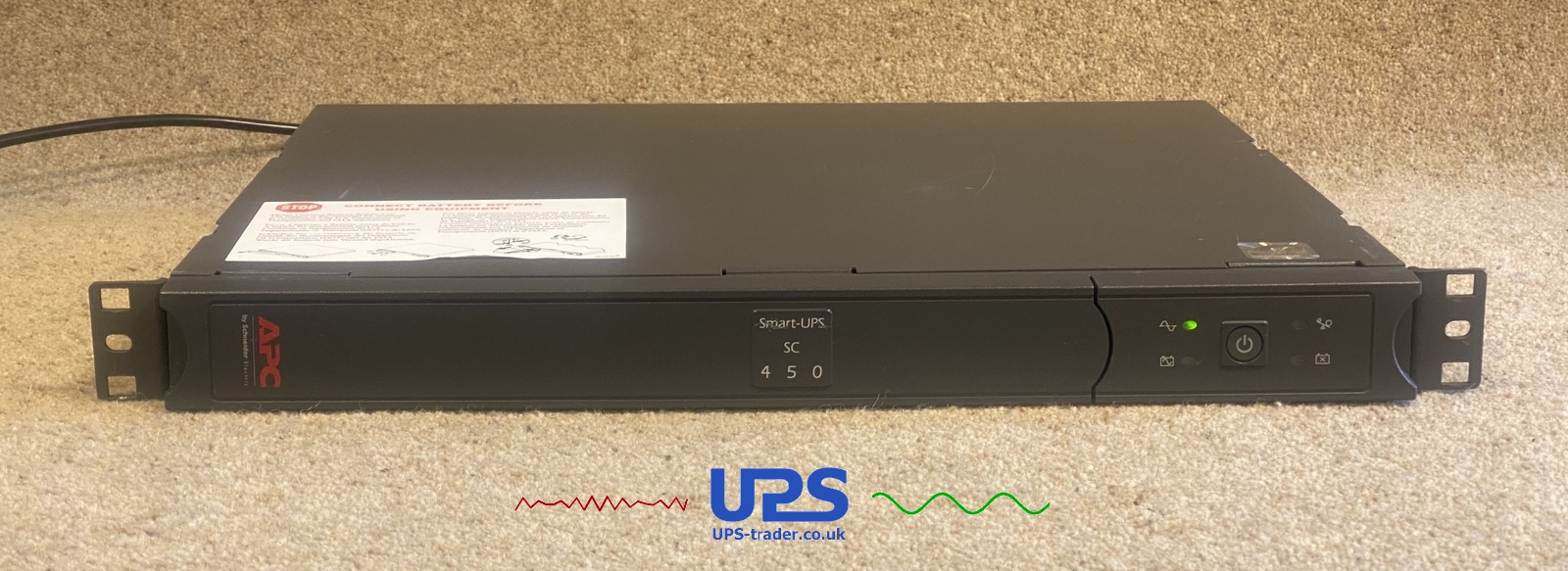

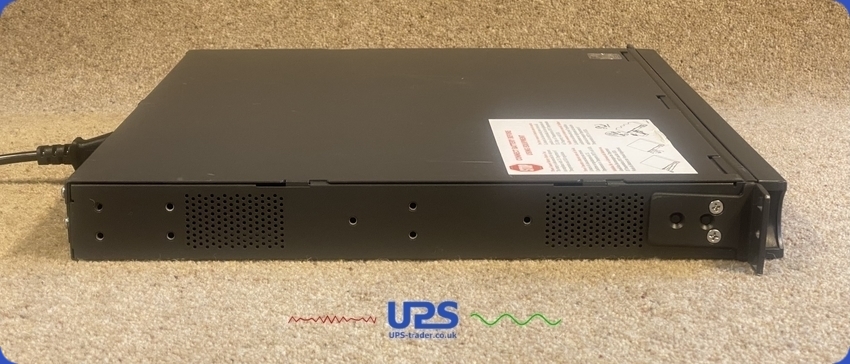

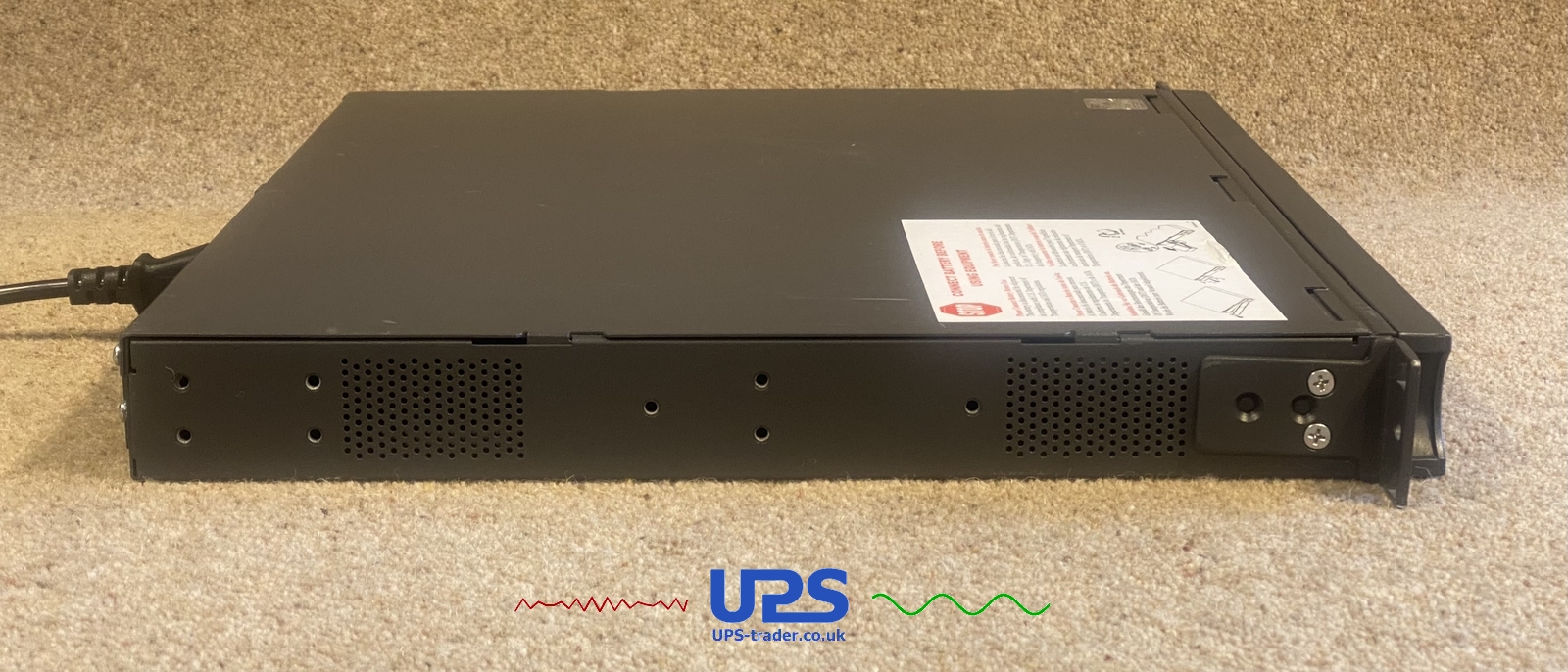

This is a compact 1U Rack UPS with one input socket and four output sockets. We include the rack mount ear parts, and sometimes have the rare rails in stock. Please contact us if you need the rails. If we run out of original rackmount ears we make them in house from aluminium L-extrusions.
It occurs to me that people might like to use this UPS to back up modems and phone systems in rack cabinets - often these have standard UK 3 pin plugs. We can supply extension leads that allow this at £10.
We test the units, including both heavy load and runtime tests. We cosmetically clean the units. They are second user but have been classed as A-Grade which means there will be slight cosmetic issues, but nothing major. These units are a current model with an of around £179.
We can ship these on the same day of purchase, provided they are ordered before 2PM.

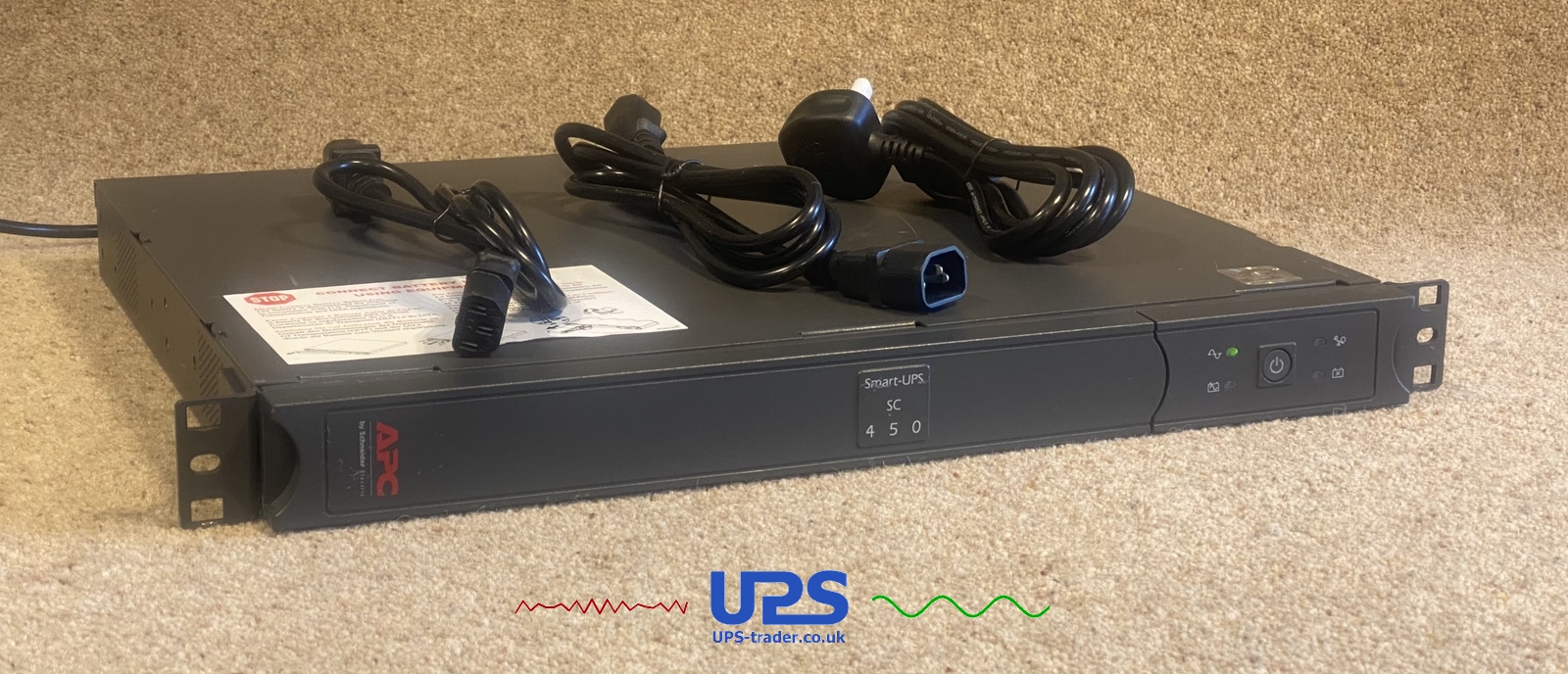

12 Month warranty as standard on this item. Warranty void if case opened. Includes power cable and 2x hot to cold cables to plug your devices in. Shipped specially wrapped to ensure it reaches you in pristine condition. Item is heavy so you will need to help the delivery driver unload the item. Courier insured 24HR service. People tell us that our packaging is excellent, and I have very few problems. VAT is included in the buy it now price.
|
https://www.apc.com/products/resource/include/techspec_index.cfm?base_sku=sc450rmi1u
To calculate how long the UPS would run for after power failure, with a given load, you can use the below graph:
https://www.apc.com/products/runtimegraph/runtime_graph.cfm?base_sku=sc450rmi1u&chartSize=large
Output Power Capacity 280 Watts / 450 VA
Max Configurable Power 280 Watts / 450 VA
Nominal Output Voltage 230V

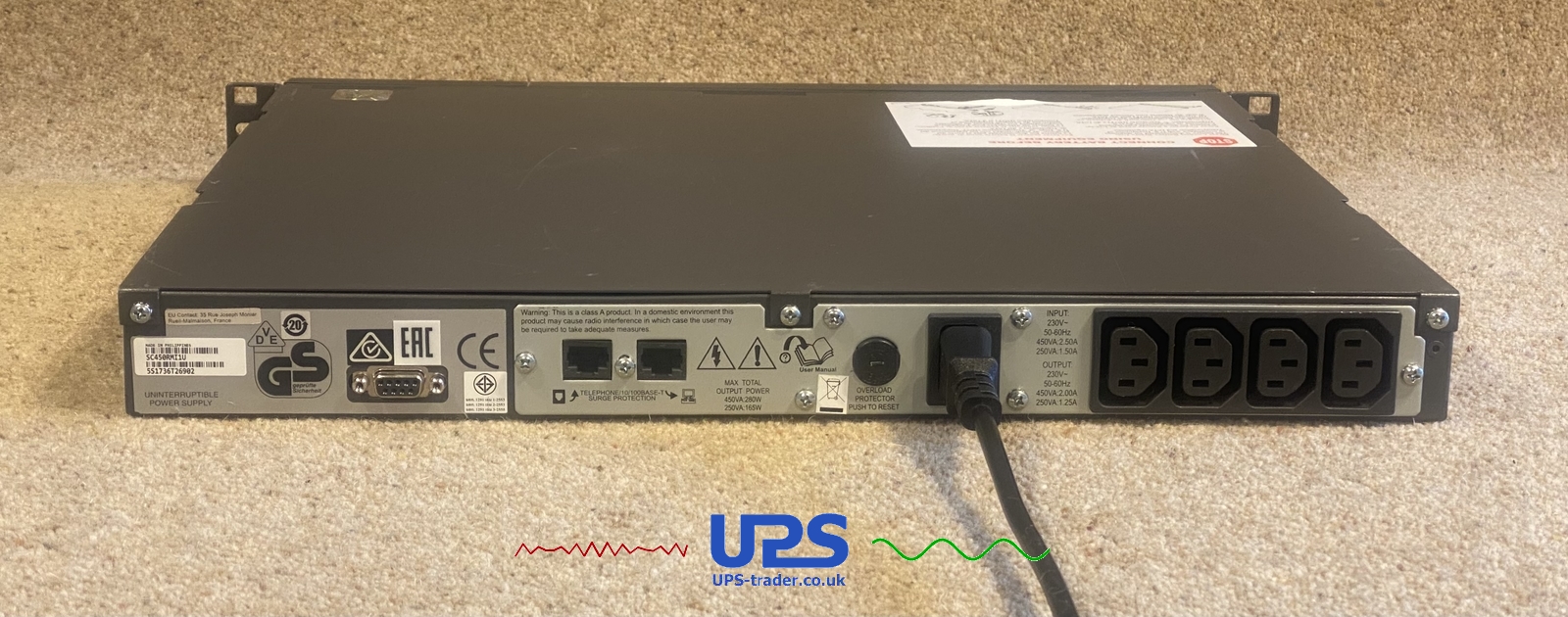

Output Connections
(4) IEC 320 C13 (Battery Backup)
Nominal Input Voltage 230V
Input Frequency 47 - 63 Hz
Input Connections IEC-320 C14
Input voltage range for main operations 160 - 286V
Input voltage adjustable range for mains operation 151 - 302V
Typical recharge time 5 hour(s)
Replacement Battery RB18
RBC™ Quantity 1
Communications & Management
Serial communications port.
Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators
Maximum Height 44.00 mm
Maximum Width 432.00 mm
Maximum Depth 383.00 mm
1u Heigh
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays |
