Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 17" x 28.25" - Overall (H x W): 19.25" x 33.875" - Hose Locations (In x Out): Pass x Pass - Hose Fittings (In x Out): 16ORB(Female)" x 16ORB(Female)"Please click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

Part Information
Genuine Champion Cooling Systems Part #CC369DP
This radiator is designed for a LS engine swap. Multiple radiators fit this application, please verify core sizes(28" Core) and hose configurations.

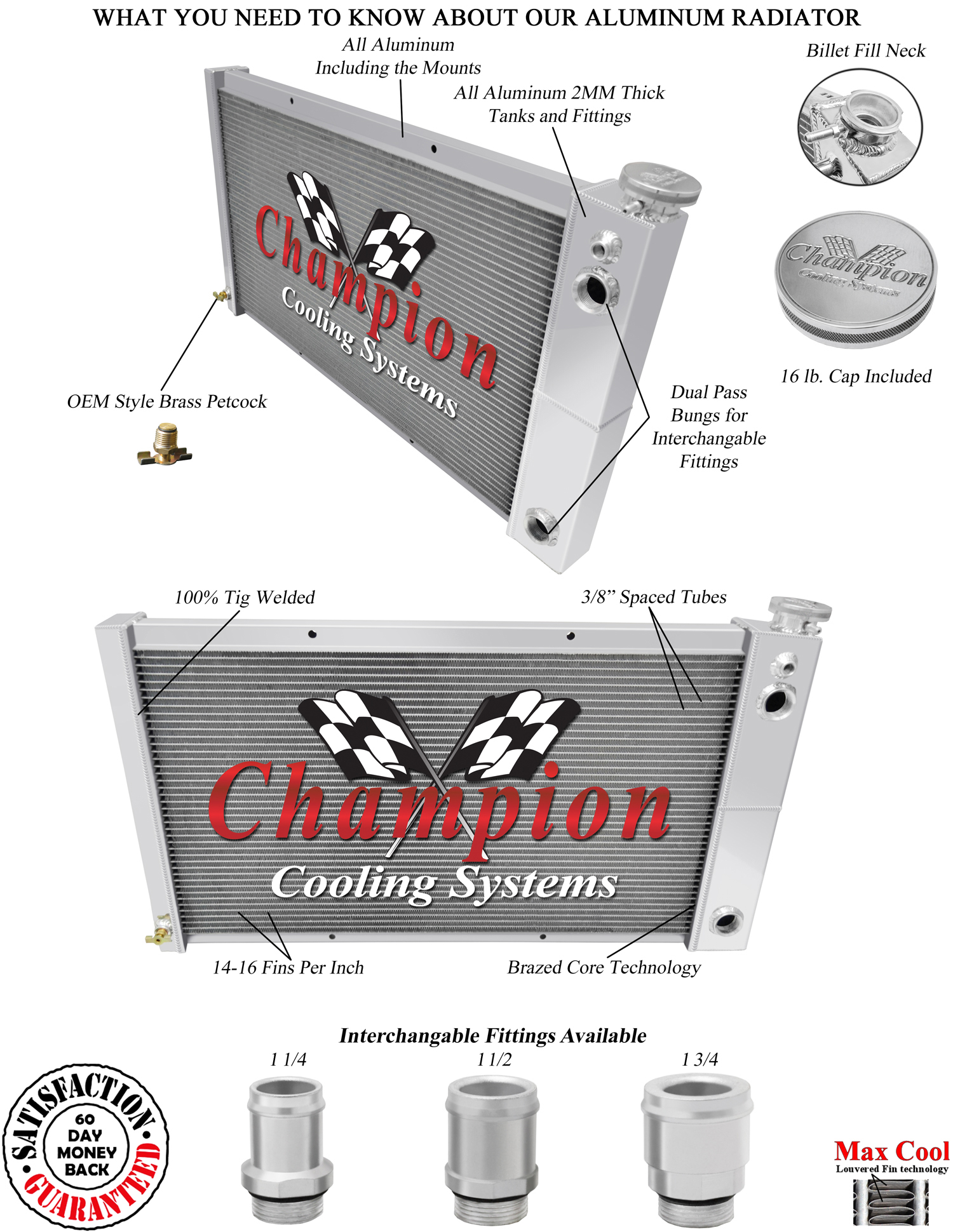

67-72 Chevy C10 Pickup Truck DP LS Conversion 3 Row Aluminum Radiator 1.50/1.50
  • Higher density core: cooling rows are spaced 3/8" apart: giving you 25% more rows within the core than other aluminum radiators sold on eBay and 35% more rows than OEM copper.
  • Aluminum dissipates heat more efficiently than copper or brass.
  • 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
  • Lighter weight.
  • Outperforms other 2, 3 and 4 row copper radiators.
  • High performance appearance.
  • You get "BIG BLOCK COOLING" and "PEACE OF MIND" when you drive your car with a Champion Cooling Systems radiator.
  • You could easily spend $400 - $1,000 more for a radiator of similar quality.
  • Down Flow Or Cross Flow Type: Cross Flow
  • Mounting Type: Saddle
  • Tank Material: Aluminum
  • Core Material: Aluminum
  • Overall Height: 19 1/4
  • Overall Width: 33 7/8
  • Core Height: 17
  • Core Width: 28 1/4
  • Inlet Location: Passenger
  • Inlet Diameter: 16ORB Port to 1.50" Hose Connector Fitting Included
  • Outlet Location: Passenger
  • Outlet Diameter: 16ORB Port to 1.50" Hose Connector Fitting Included
  • Core Row Quantity: 3 Row
  • Internal Transmission Oil Cooler: No
  • Filler Neck Attached: Yes
  • Core Thickness: 2 1/4
  • Core Tube Width: 0.63
  • Tank Width: 2.75
This package includes a 3 Row Dual Pass All Aluminum Radiator and two Dual Pass 1 1/2" Fittings.
