Design for the following area:

• Design for all kinds of water circulation like Solar Hot Water circulation, Solar Water Geaters and Hot water return Circulation.

• Hydronic heating
• In-line booster pump for pressure boosting
• Radiant In-Floor/Panel Heating
• Indirect Domestic Water Heating
• Water Source Heat Pumping
• Domestic Water Recirculation
• Industrial circulation systems, cold water cooling systems and air-conditioning systems

• Ideal replacement for GRUNDFOS UPS 25-60B and Bianco Hot Water Circulator Pump BIA-LRS32-6C

Feature:

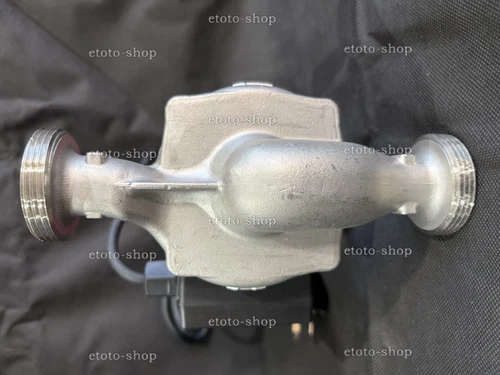

• Pump body: Stainless Steel (corrision free) and BRASS UNION SET included

• High graded Ceramic Motor Shaft; (duration and corrosion resistance, even better than stainless Steel shaft)
• Inline Circulation Pump have variable three speed controller to match the required output for different situations

• Compact size - easy to install, operation and maintenance;
• Safety and reliability (Continues rated);

• Technologically advanced - Quite in operation < 45dB(A) and Low energy consumption;

Motor Feature:

• Single phase
• Closed, externally ventilated
• Heavy Duty Motor housing  (Won't get overheat even continuous running)
• Insulation class: F
• Protection class: IP44
• Duty: Continuously rated
• Current protector & terminal protection

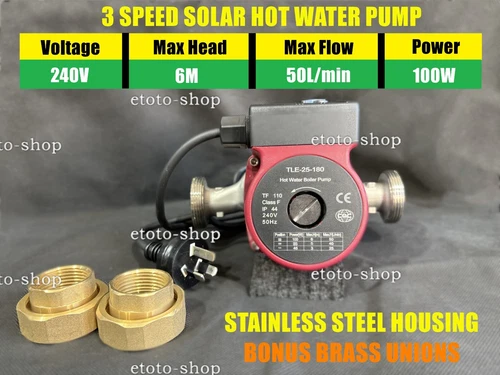

Technical Specifications:

• Motor power: 100/85/46W

• Maximum capacity: 50/40/25 L/min
• Maximum head lift: 6 / 5 / 3 m
• Voltage: 240V
• Frequency: 50Hz
• Port to Port Dimensions 180m
• Inlet & outlet of pump: 1.5 inch
• Inlet / Outlet Union Pipe Size 25mm (1")
• Fluid temperature range: -0°C to +110°C
• Rating: Continuous
