Product Description
Product Overview

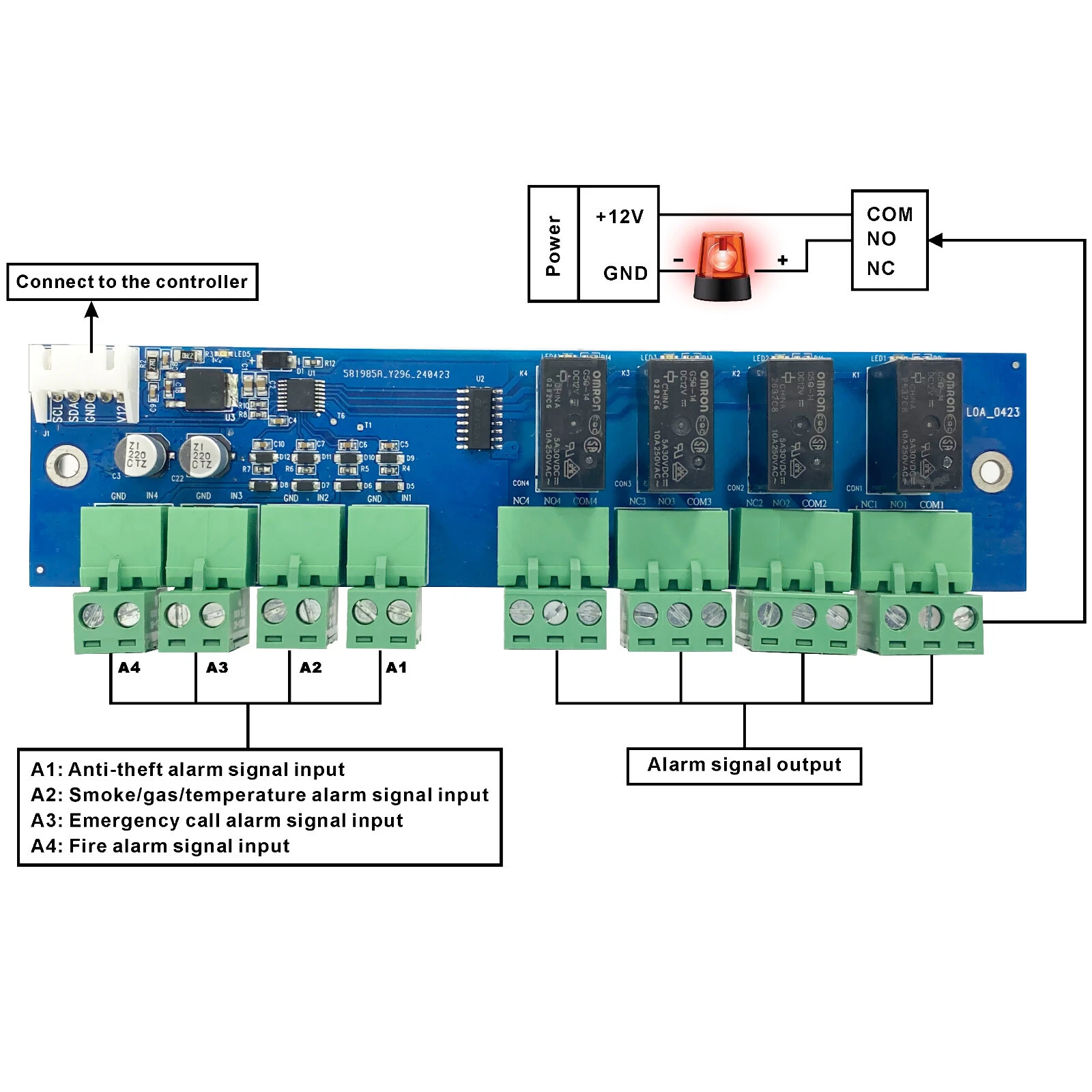

  • The alarm output and fire linkage expansion board, which is an add-on module of the access controller, in conjunction with software settings, is mainly used to provide linkage output of the signals of anti-theft alarm, smoke/gas/temperature alarm, emergency call alarm, fire and alarm. This module has the characteristics of strong practicality, simple interface, and stable design performance and is equipped with power and relay status indicator lights which can indicate communication failures. It is a cost-effective linkage expansion module.
Characteristics
  • Expansion board is for access control board ,please click here to get access control board.
  • Four-way alarm output, free to define the functions for a certain door and several doors of the controller.
  • Can connect the output signal of anti-theft alarm, smoke/gas/temperature alarm and emergency call alarm, and the output status of each alarm signal can be freely defined through the software, that is, set to normally open or normally closed.
  • Can connect the output signal of fire alarm. It will automatically open all doors of the controller when receiving the fire signal and generate a fire alarm record for future reference.
  • For access control function expansion with alarm
  • Can control illegal intrusion alarm, long time unlocking alarm, threatened entry alarm, door open linkage output, invalid card alarm, fire alarm linkage, and so on.
  • Can set the delay time of each output from 0 to 600 seconds./li>
Demo Video
Package

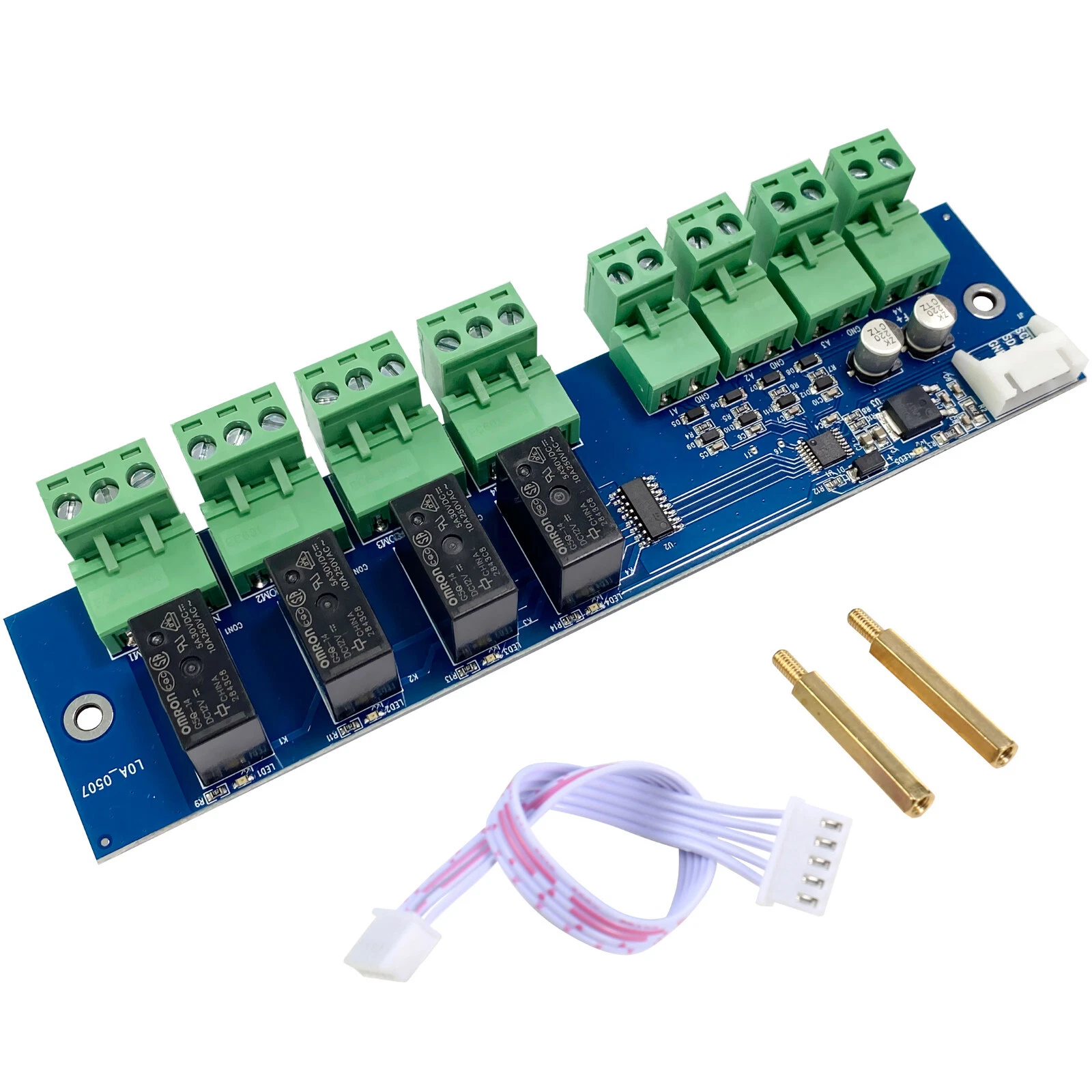

  • 1 x Alarm Output and Integrated Fire Control Expansion Board
  • 1 x Cable
  • 1 x Installation Kit
