You are bidding on a brand new professional reprint of the Case 4490, 4690 Tractor Service Manual. This is the same exact literature that your local Case dealer uses to repair equipment. This manual was originally printed in 1985. It is complete with 1,832 pages. The book also comes with color and large fold out diagrams. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE!

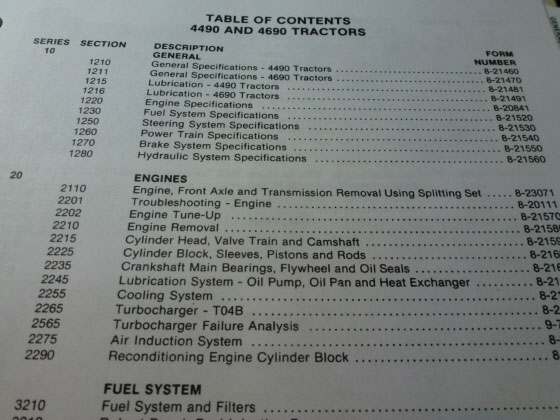

Service Manual Table of Contents: GENERAL
General Specifications - 4490 Tractors
General Specifications - 4690 Tractors
Lubrication - 4490 Tractors
Lubrication - 4690 Tractors
Engine Specifications
Fuel System Specifications
Steering System Specifications
Power Train Specifications
Brake System Specifications
Hydraulic System Specifications
ENGINES
Engine, Front Axle and Transmission Removal Using Splitting Set
Troubleshooting - Engine
Engine Tune-Up
Engine Removal
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft Main Bearings, Flywheel and Oil Seals
Lubrication System - Oil Pump, Oil Pan and Heat Exchanger
Cooling System
Turbocharger - T04B
Turbocharger Failure Analysis
Air Induction System
Reconditioning Engine Cylinder Block
FUEL SYSTEM
Fuel System and Filters
Robert Bosch Fuel Injection Pumps
American Bosch Fuel Injectors
ELECTRICAL
Electrical System Troubleshooting
Tractor Electrical Wiring Diagram (Prior to P.I.N. 8860450)
Tractor Electrical Wiring Diagram (P.I.N. 8860450 and After)
Cab Electrical Wiring Diagram (Prior to Cab SN 12013067)
Cab Electrical Wiring Diagram (Cab SN 12013067 and After)
Steering Electrical Wiring Diagram
Hitch Electrical Wiring Diagram (P.I.N. 8860450 and After)
Starting Motors
Battery Servicing and Testing
Delco-Remy Alternator System
Neutral Start Switch Adjustment
STEERING
Troubleshooting Solid State Selective Steering
Electronic Steering System
Testing Tractor Steering System
Steering Column, Pump and Valve
Steering Cylinder
Steering Lines and Controls
Rear Steering Valve
Front Steering Priority Valve

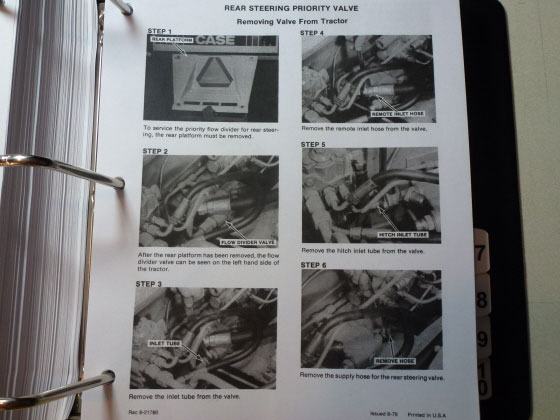

Rear Steering Priority Valve
Rear Steering Check Valve (Prior to P.I.N. 8858086)
Rear Steering Check Valve (P.I.N. 8858086 and After)
Front and Rear Steering Adjustments
POWER TRAIN
Troubleshooting - RPS-34 Power Shift Transmission and PTO
Testing RPS-34 Power Shift Transmission and PTO
Torque Limiter Clutch
RPS-34 Power Shift
RPS-34 Control Valve and Linkage
Four Speed Transmission.
Hydraulic PTO
Axles and Planetaries
Differentials and Drive Shafts
BRAKES
Brake Pedal, Master Cylinder, Service and Parking Brake
HYDRAULICS
Troubleshooting - Hitch System
Electronic Hitch Alignment
Testing Tractor Hydraulic System
Hydraulic Oil Filters
Hydraulic Pump
Remote Hydraulic Valves
Flow Divider and PTO Control Valve
Hitch System
Electronic Hitch System
Break-Away Couplings and Portable Cylinder
ACCESSORIES
Troubleshooting - Air Conditioning System
Gauging and Testing Air Conditioning System
Compressor Isolation, Removal, Installation and Evacuation
Discharging, Evacuation and Charging the A. C. System
Servicing Air Conditioner Components
Servicing the Cab Blower
Operators Seat Adjustments
Removal of Tilting Hood, Grille and Side Panels
Safety Decal Location
HOW IT WORKS
Tractor Steering System
Case Solid State Selective Steering
Tractor Hydraulic System
Case CON TROL Hydraulics Terms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: checks, money orders, Paypal and credit cards via Paypal. Need a different manual? Click below for our current auctions. CURRENT AUCTIONS  |
