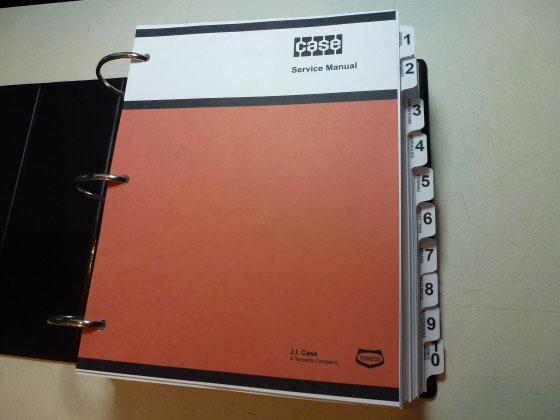

You are bidding on a brand new professional reprint of the Case 1090, 1170, 1175 Tractor Service Manual This is the same exact literature that your local Case dealer uses to repair equipment. It is complete with 1,034 pages. The book also comes with color and large fold out diagrams. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE!

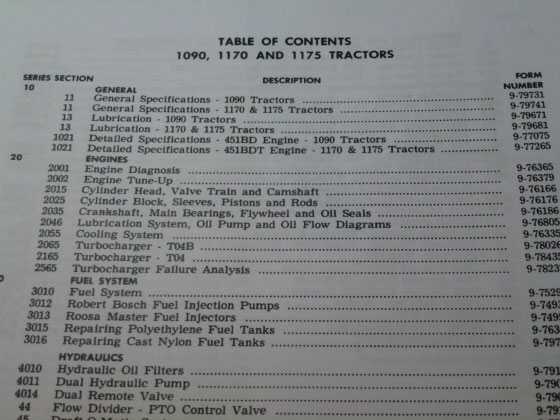

Service Manual Table of Contents: GENERAL
General Specifications - 1090 Tractors
General Specifications - 1170 & 1175 Tractors
Lubrication - 1090 Tractors
Lubrication - 1170 & 1175 Tractors
Detailed Specifications - 451BD Engine - 1090 Tractors
Detailed Specifications - 451BDT Engine - 1170 & 1175 Tractors
ENGINES
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Crankshaft, Main Bearings, Flywheel and Oil Seals
Lubrication System, Oil Pump and Oil Flow Diagrams
Cooling System

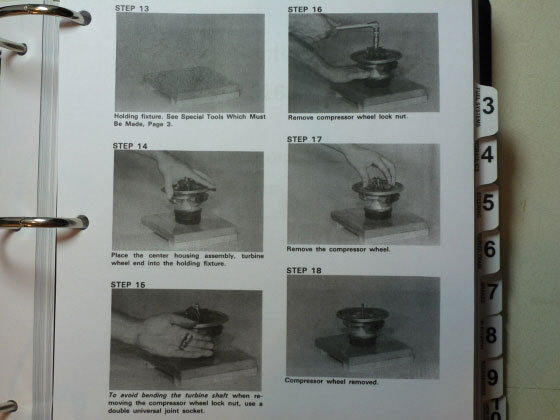

Turbocharger - T04B
Turbocharger - T04
Turbocharger Failure Analysis
FUEL SYSTEM
Fuel System
Robert Bosch Fuel Injection Pumps
Roosa Master Fuel Injectors
Repairing Polyethylene Fuel Tanks
Repairing Cast Nylon Fuel Tanks
HYDRAULICS
Hydraulic Oil Filters
Dual Hydraulic Pump
Dual Remote Valve
Flow Divider - PTO Control Valve

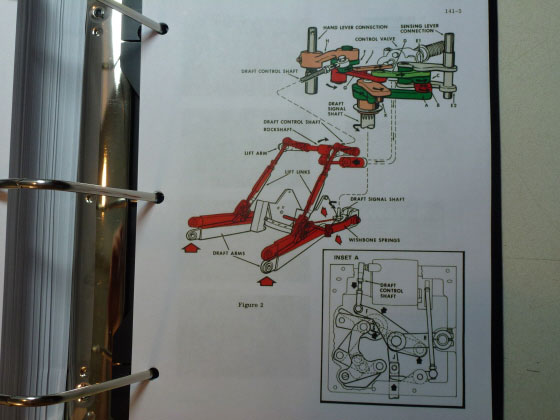

Draft-O-Matic System
Break-Away Couplings and Portable Cylinders
STEERING
Steering Column and Hand Pump
Steering Column and Pump-Valve
Steering Control Valve
Steering Axle
POWER TRAIN
Trouble Shooting RPS-34 Power Shift
Power Shift Transmission - 1090 Tractors
Planetary Final Drive - Transmission - 1170 & 1175 Tractors
Planetaries
Final Drive and Transmission - 1090 Tractors
Hydraulic PTO
14" & 15" Traction Clutches and Linkage
BRAKES
Power Assist Unit and Pedals
Caliper Disc Brakes and Parking Brake
ELECTRICAL
Wiring Diagram - 1090 & 1170 Tractors
Wiring Diagram - 1175 Tractors (Prior to SN 8753831)
Wiring Diagram - 1175 Tractors (Starting W/SN 8753831)
Wiring Diagram.- Tractor Cabs Prior to SN 7814176
Wiring Diagram - Tractor Cabs Starting W/SN 7814176
Cranking Motors
Battery Servicing and Testing
Prestolite Alternator System
Delco-Remy Alternator System
ACCESSORIES
Cab Sealing and Recirculation
Trouble Shooting - Air Conditioning System
Gauging and Testing - Air Conditioning System
Compressor Isolation, Removal, Installation and Evacuation
System Discharging, Evacuation and Charging
Servicing Air Conditioning Components
Seat Adjustments (Swivel and Non Swivel)
HOW IT WORKS
Hydraulic Testing - Steering & Brakes
Hydraulic Testing - Power Shift, Remotes & PTO
Hydraulic System
Dual Pump - Flow Divider Valve
Dual Remote Hydraulic System
Dual Remote Hydraulic System
Power Steering - Brakes
Hydraulic PTO
Power Shift Transmission
Air Conditioning Terms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: checks, money orders, Paypal and credit cards via Paypal. Need a different manual? Click below for our current auctions. CURRENT AUCTIONS  |
