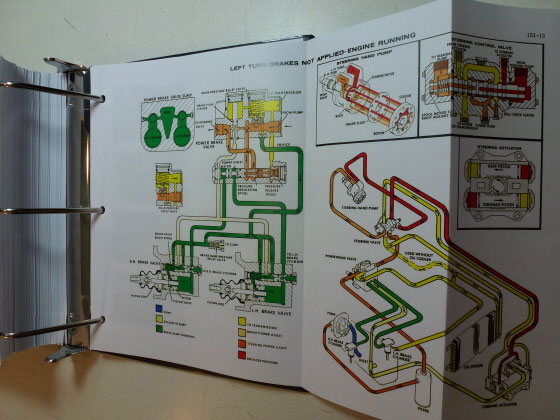

You are bidding on a brand new professional reprint of the Case 970, 1070 Tractor Service Manual This is the same exact literature that your local Case dealer uses to repair equipment. It is complete with 1,208 pages. The book also comes with color and large fold out diagrams. This reprint is actual better easier to use than the original due to the new D-Slant binder which makes the pages lay flat as opposed to the binder that the original comes in. You will not find a better reprint of this manual ANYWHERE!

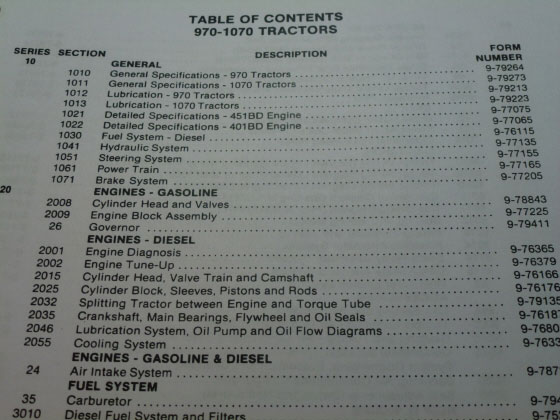

Service Manual Table of Contents: GENERAL
General Specifications - 970 Tractors
General Specifications -1070 Tractors
Lubrication - 970 Tractors
Lubrication - 1070 Tractors
Detailed Specifications - 451BD Engine
Detailed Specifications - 401 BD Engine
Fuel System - Diesel
Hydraulic System
Steering System
Power Train
Brake System
ENGINES
ENGINES - GASOLINE
Cylinder Head and Valves
Engine Block Assembly
Governor
ENGINES - DIESEL
Engine Diagnosis
Engine Tune-Up
Cylinder Head, Valve Train and Camshaft
Cylinder Block, Sleeves, Pistons and Rods
Splitting Tractor between Engine and Torque Tube
Crankshaft, Main Bearings, Flywheel and Oil Seals
Lubrication System, Oil Pump and Oil Flow Diagrams
Cooling System
ENGINES - GASOLINE & DIESEL
Air Intake System
FUEL SYSTEM
Carburetor
Diesel Fuel System and Filters
Robert Bosch Fuel Injection Pumps

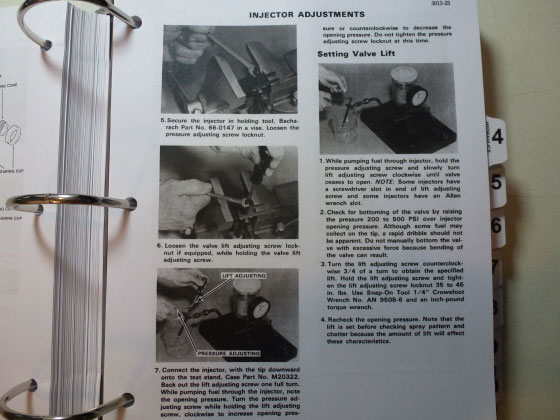

Roosa Master Fuel Injectors
Repairing Polyethylene Fuel Tanks
Repairing Cast Nylon Fuel Tanks
HYDRAULICS
Hydraulic Oil Filters
Dual Hydraulic Pump
Dual Remote Valve
Flow Divider - PTO Control Valve
Draft-O-System
Break-Away Couplings and Portable Cylinders
STEERING
Steering Column and Pump-Valve (Starting w/SN 8693001)
Steering Column and Hand Pump (Prior to SN 8693001)
Steering Control Valve
Hydrostatic Steering Actuator
Steering Axles
POWER TRAIN
Trouble Shooting RPS-34 Power Shift
RPS-34 Power Shift(Prior to SN 8772549)
RPS-34 Power Shift (Starting w/SN 8772549)
Single Reduction Final Drive and Transmission
14" & 15" Traction Clutches and Pedals - Mechanical Shift
Torque Limiter Clutch(Starting w/SN 8725656)
Hydraulic PTO
BRAKES
Brake Master Cylinders and Pedals
Power Assist Brake Unit and Pedals
Differential and Parking Brake
ELECTRICAL
Tractor Wiring Diagram - Spark Ignition (Prior to SN 8753831)
Tractor Wiring Diagram - Diesel (Prior to SN 8753831)
Tractor Wiring Diagram - (Starting W/SN 8753831)
Cab Wiring Diagram (Starting W/SN 7814176)
Cab Wiring Diagram (Prior to SN 7814176)
Starting or Cranking Motors
Battery Servicing and Testing
Prestolite Alternator Systems
Delco-Remy Alternator Systems
Delco-Remy Alternator System
Distributor Ignition Systems
ACCESSORIES
Cab Sealing and Recirculation
Trouble Shooting - Air Conditioning System
Gauging and Testing - Air Conditioning System
Compressor Isolation, Removal, Installation and Evacuation
System Discharging, Evacuation and Charging
Servicing Air Conditioning Components
Seat Adjustments (Swivel and Non Swivel)
HOW IT WORKS
Hydraulic Testing, Steering - Power Brakes
Hydraulic Testing, Power Shift, Remotes and PTO
Hydraulic System
Dual Pump - Flow Divider Valve
Dual Remote System
Draft-O-Matic System
Power Steering - Power Brakes
Power Shift Transmission
Hydraulic PTO
Air Conditioning SystemTerms of bidding: High bidder must reply within 3 days of auctions end. Payment must be received within 10 days of the end of the auction. I ship worldwide, so if you live outside of the USA please request a shipping quote before bidding. I am also happy to combine shipping on multiple items. Acceptable payment forms are: checks, money orders, Paypal and credit cards via Paypal. Need a different manual? Click below for our current auctions. CURRENT AUCTIONS  |
