Features

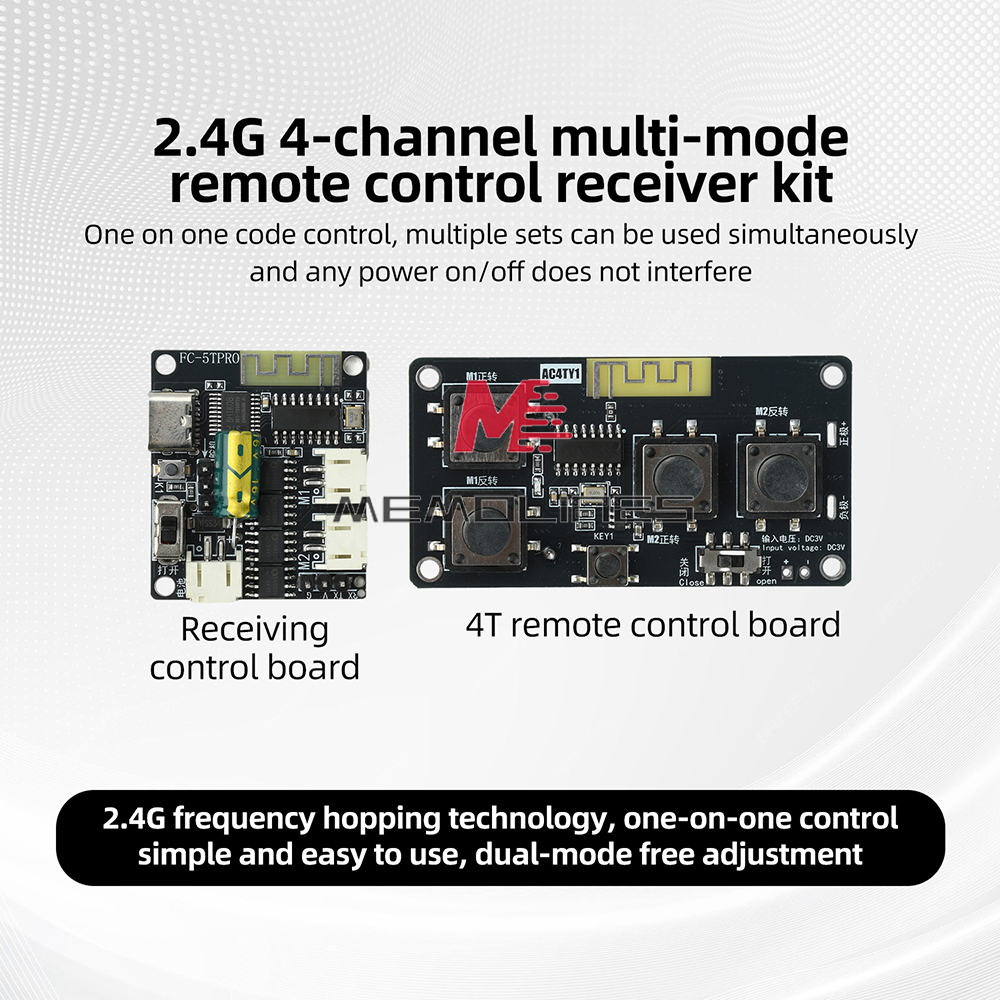

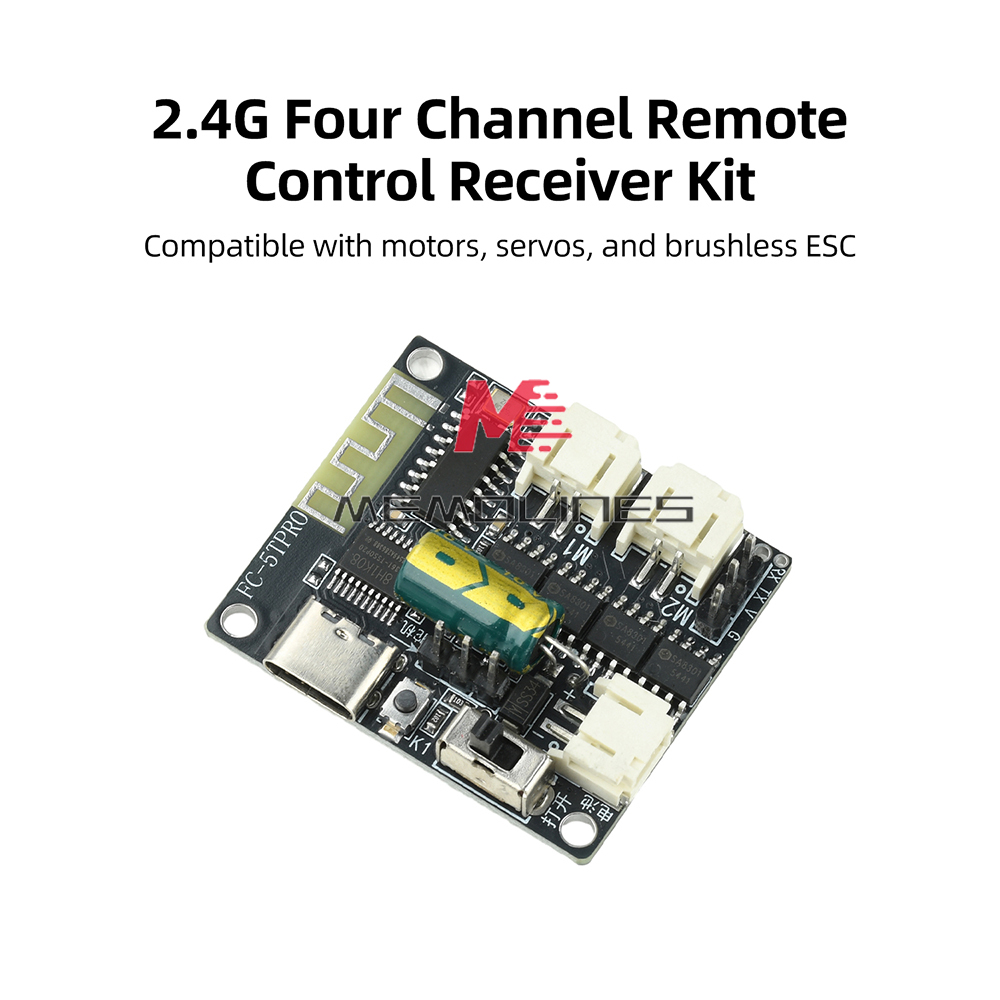

1. 2.4 GHz 4-channel remote control receiver kit, compatible with motors, servos, and brushless ESCs

2. One-to-one code locking prevents interference; dozens of kits can be powered on simultaneously without signal interference

3. One-button dual-mode switching—no complex setup required, quickly adapts to different operating conditions

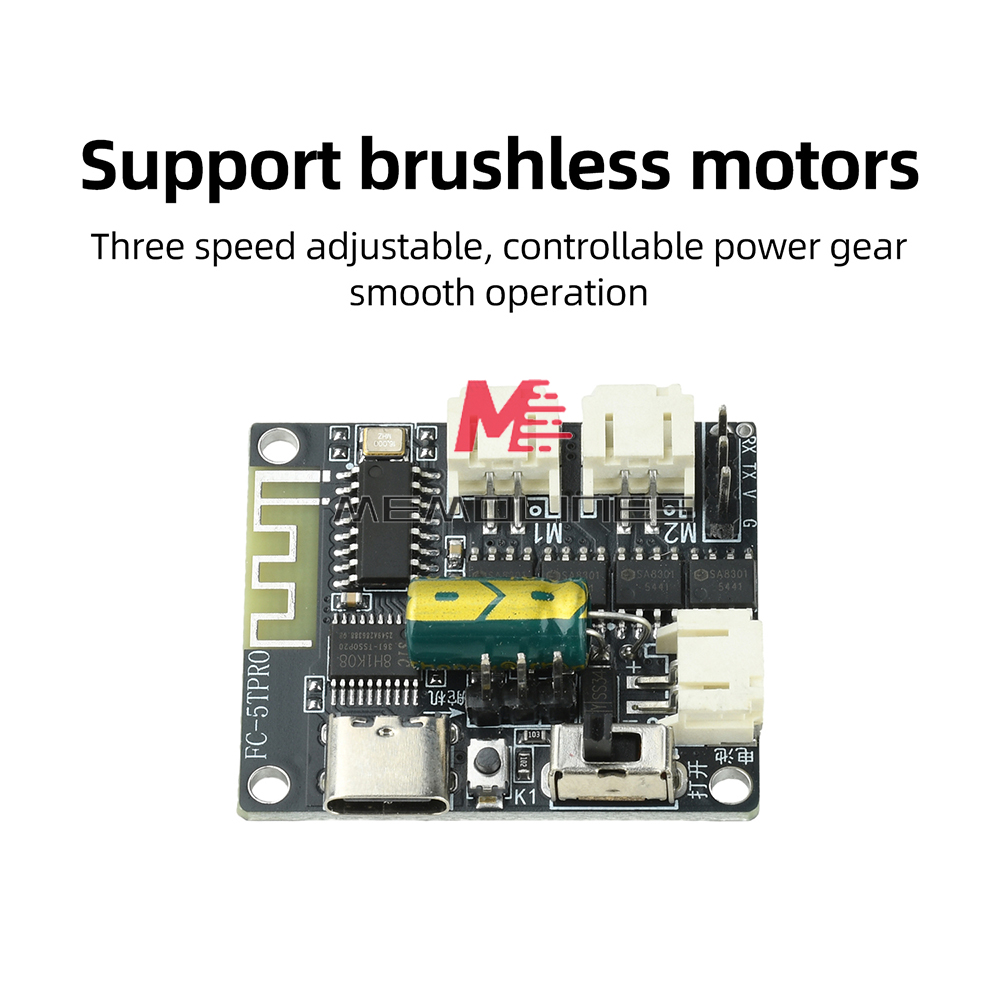

4. Supports brushless motors with three-speed adjustment; controllable power levels and smooth operation

5. DIY model accessories with strong expandability; easy to assemble for cars and RC aircraft

Product Introduction

The remote control kit supports one-to-one coding, ensuring no signal interference or cross-talk when multiple sets are used simultaneously. A single control board offers five usage modes, allowing free switching between independent control and differential mixing modes. It can also be used to drive a single unidirectional or bidirectional ESC to control brushless motors and 180° servos, supporting three-speed adjustment and mode switching

Parameter

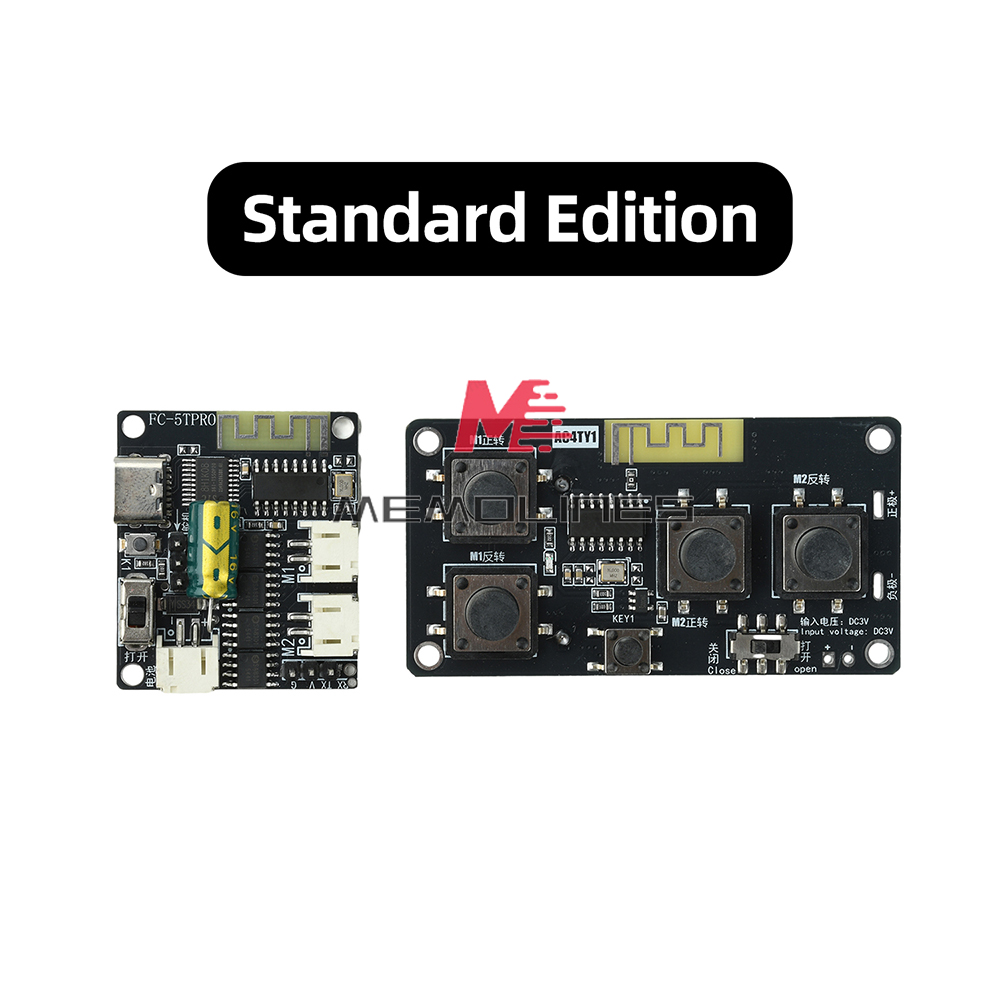

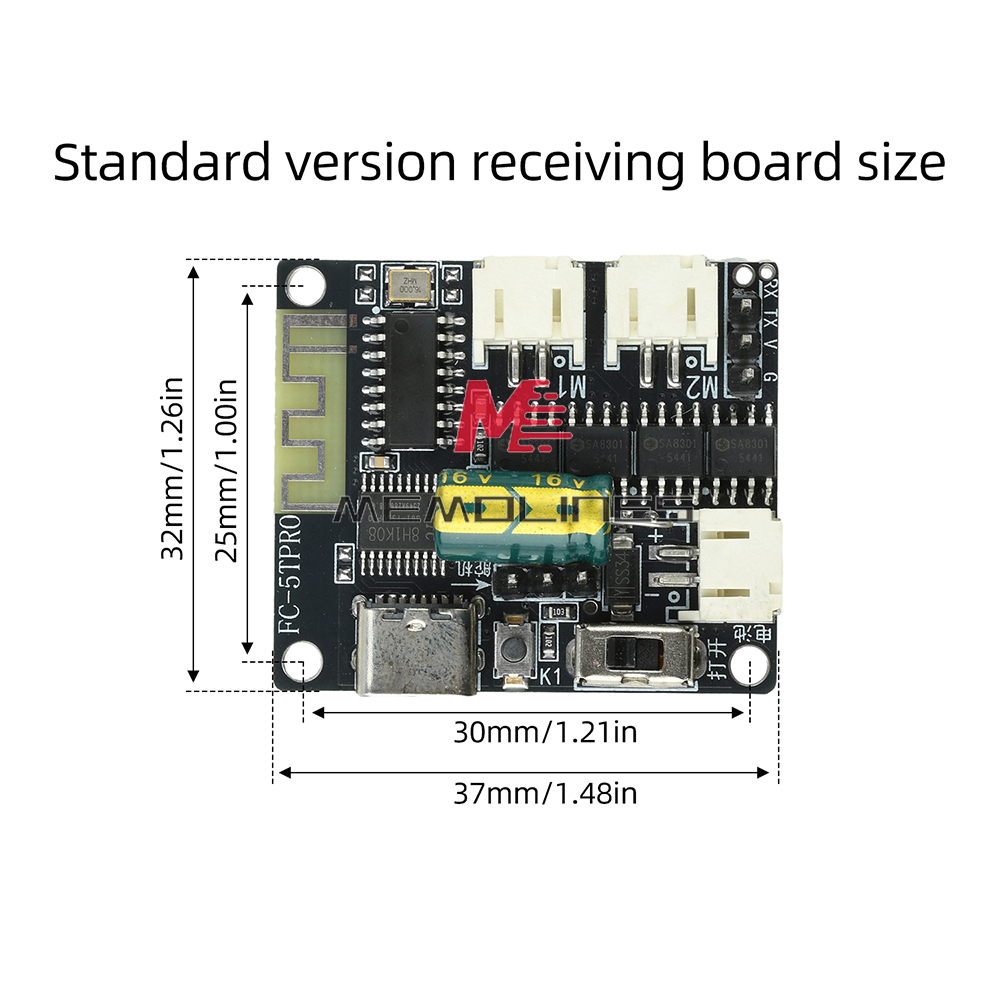

Standard Version:

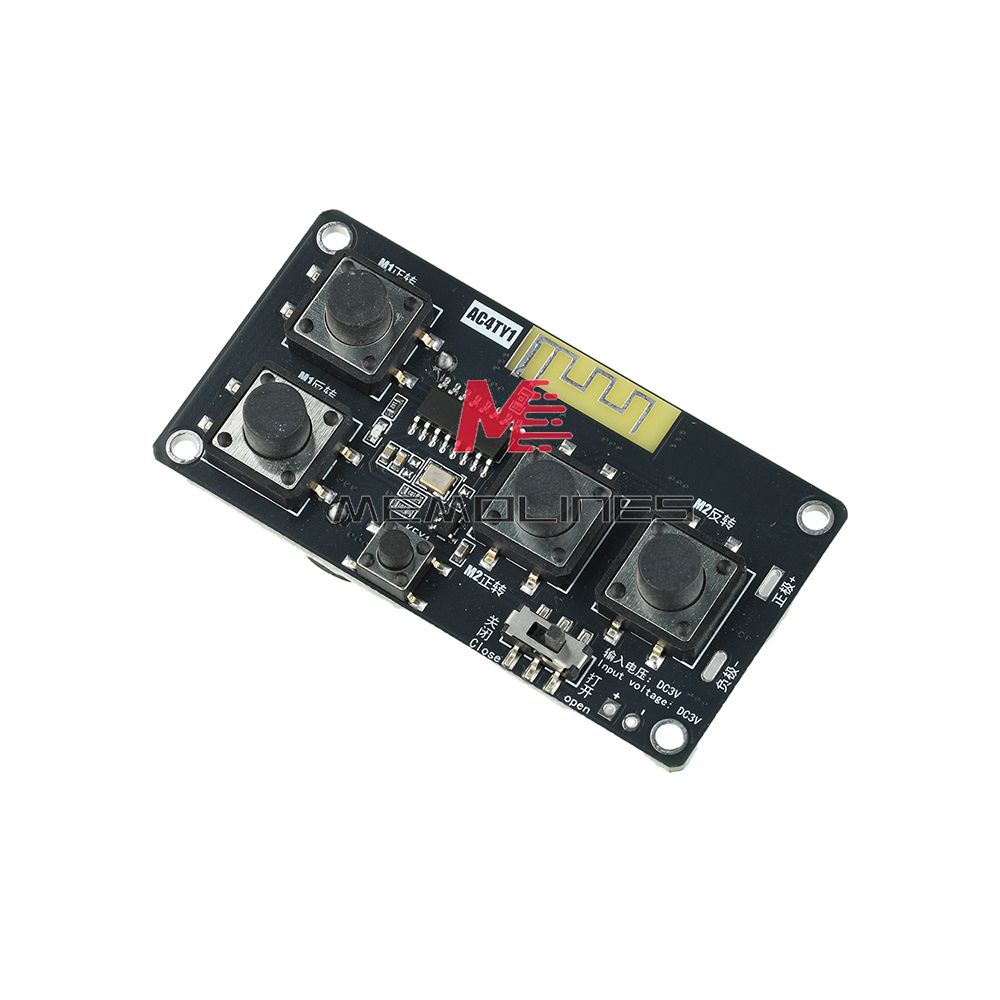

Remote control board operating voltage: DC 3V to 3.7V

Receiver board operating voltage: DC 3V to 6V (does not support 7.4V power supply)

Terminal type: PH2.0

Maximum motor support: Motors with speeds up to 13,000 RPM, N20, TT motors, and standard-speed motors within the 130, 180, 280, and 370 series (hollow-cup motors and high-torque motors of any model are not supported)

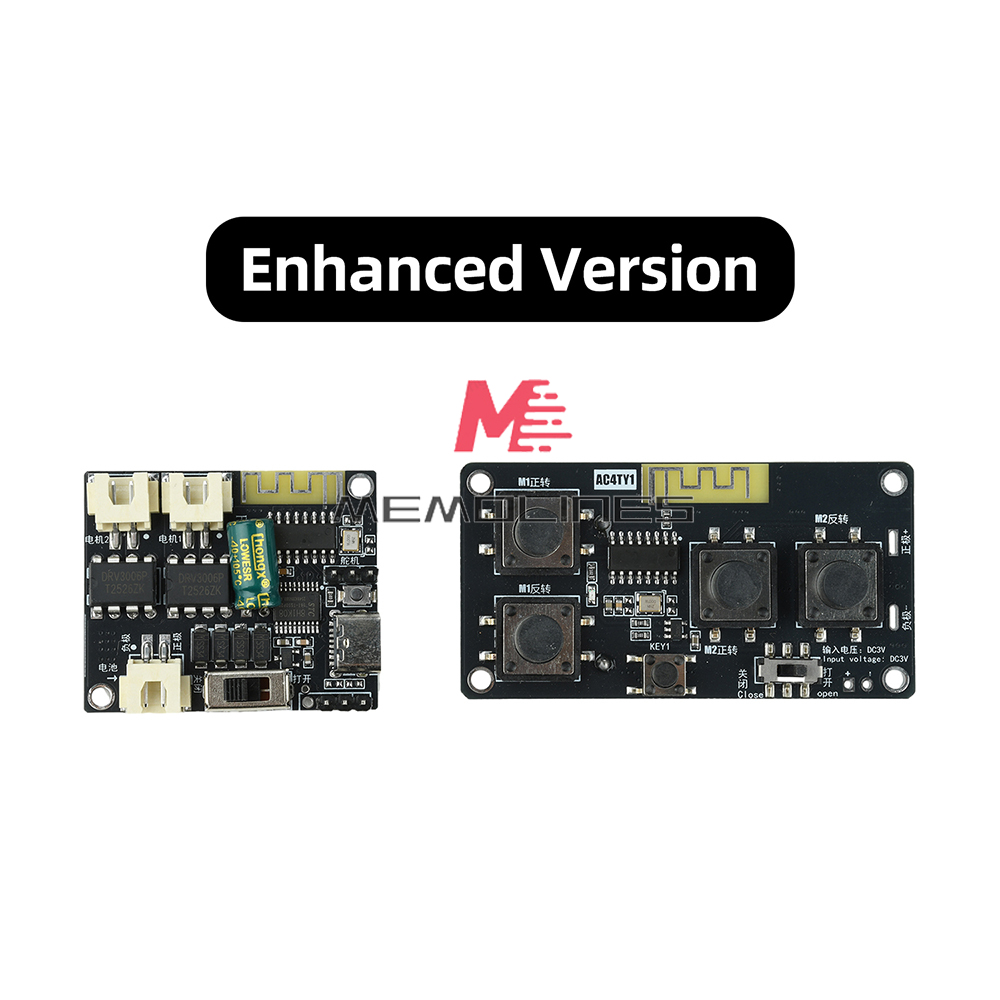

Enhanced Version:

Remote Control Board Operating Voltage: DC 3V to 3.7V

Receiver Board Operating Voltage: DC 3.7V to 12V

Connector: XH2.54

Maximum Motor Support: At voltages up to 7.4V, supports 130, 280, 370, and 540 motors with speeds up to 13,000 RPM; at voltages above 7.4V, supports only 370 motors with speeds up to 13,000 RPM (do not overload, as this will damage the control board) (High-speed and high-torque motors of any model are not supported)

Note: The servo and ESC drive ports on the receiver board do not have a step-down function; the output voltage matches the input voltage exactly. Please verify that the voltage you are currently using is compatible with your servos or ESC. If it is not, an external step-down module is required to prevent damage to the servos or ESC.

Friendly Reminder

This module is suitable for various DIY or retrofit projects involving cars, boats, and other machinery or structures requiring remote control. However, it is not suitable for aviation projects. Please use it in accordance with the specified parameters; otherwise, the receiver board and remote control module may be damaged.

Package include

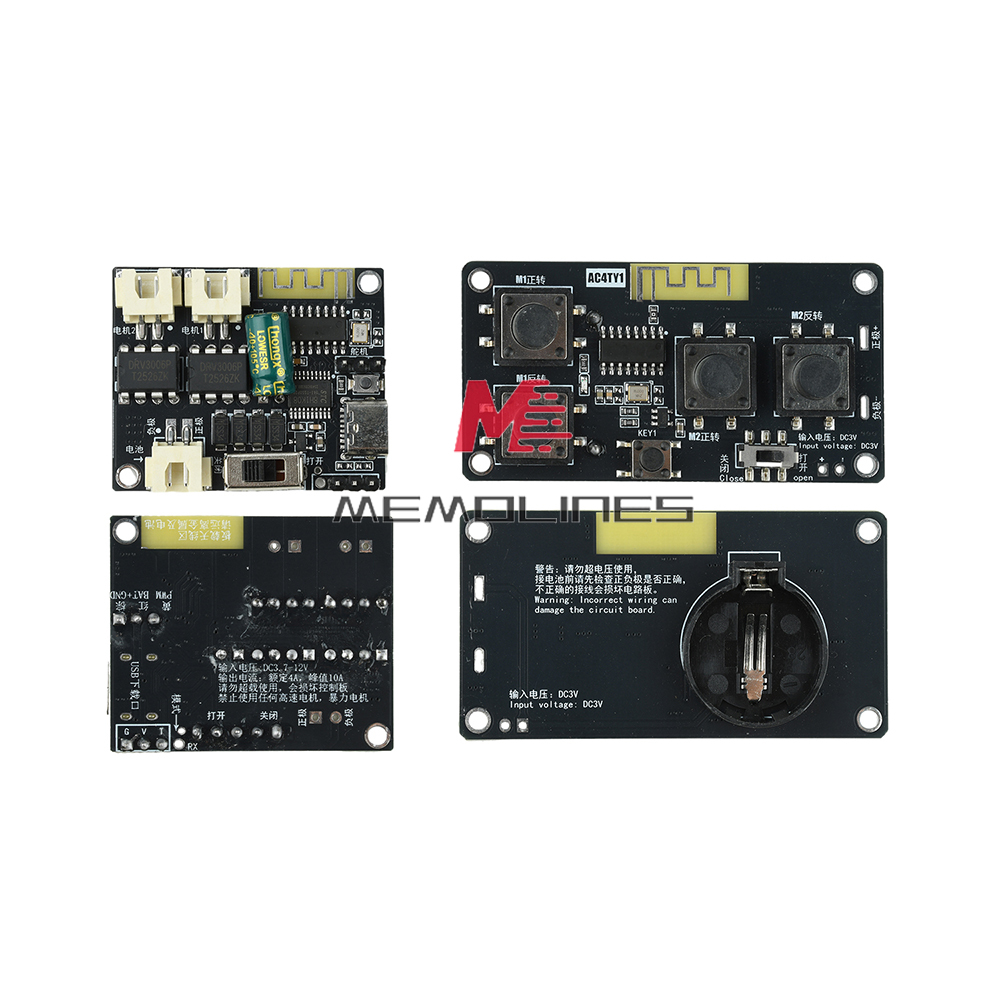

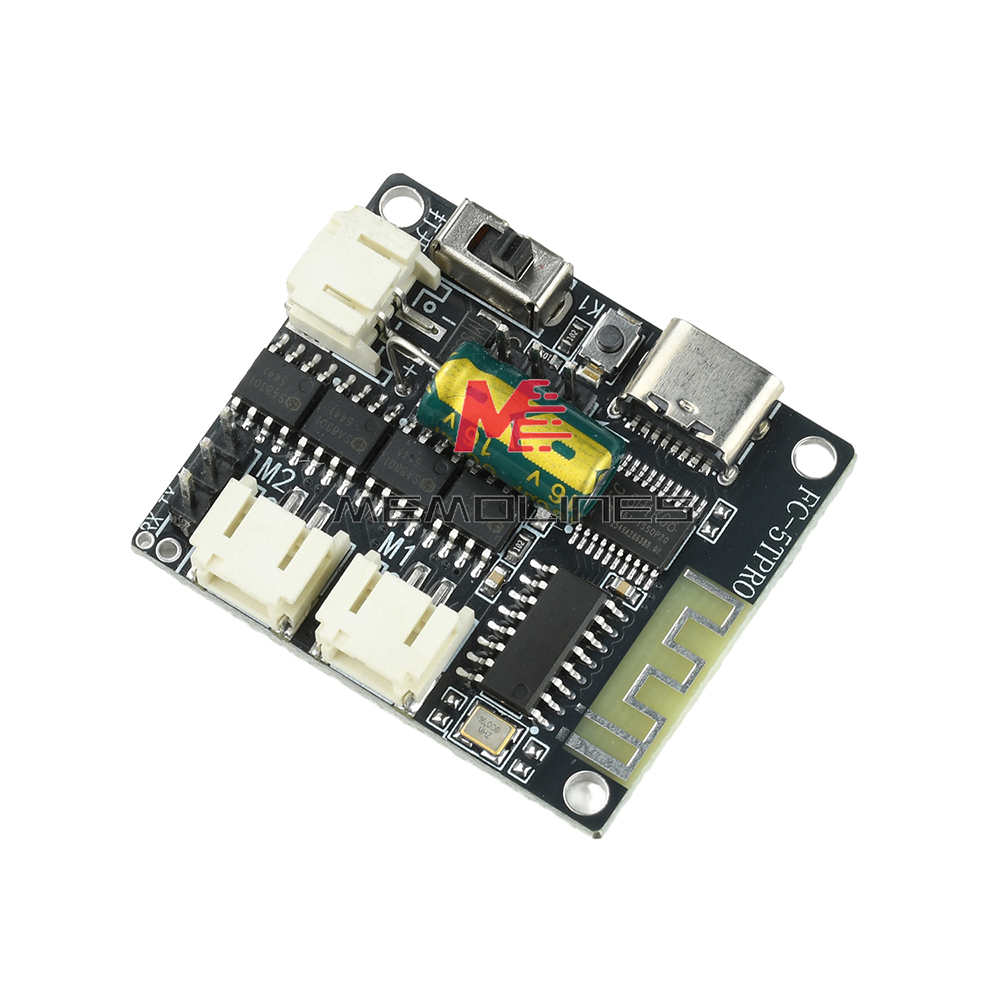

Receiver Board × 1

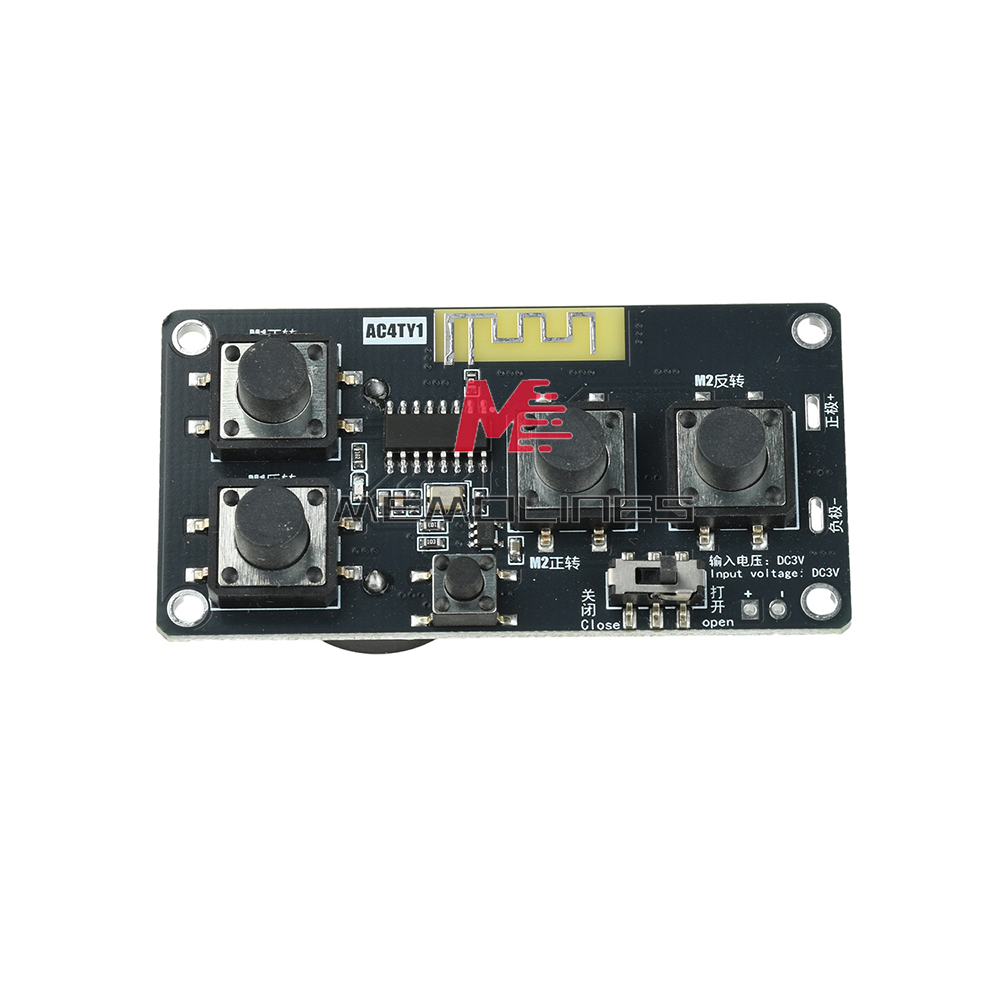

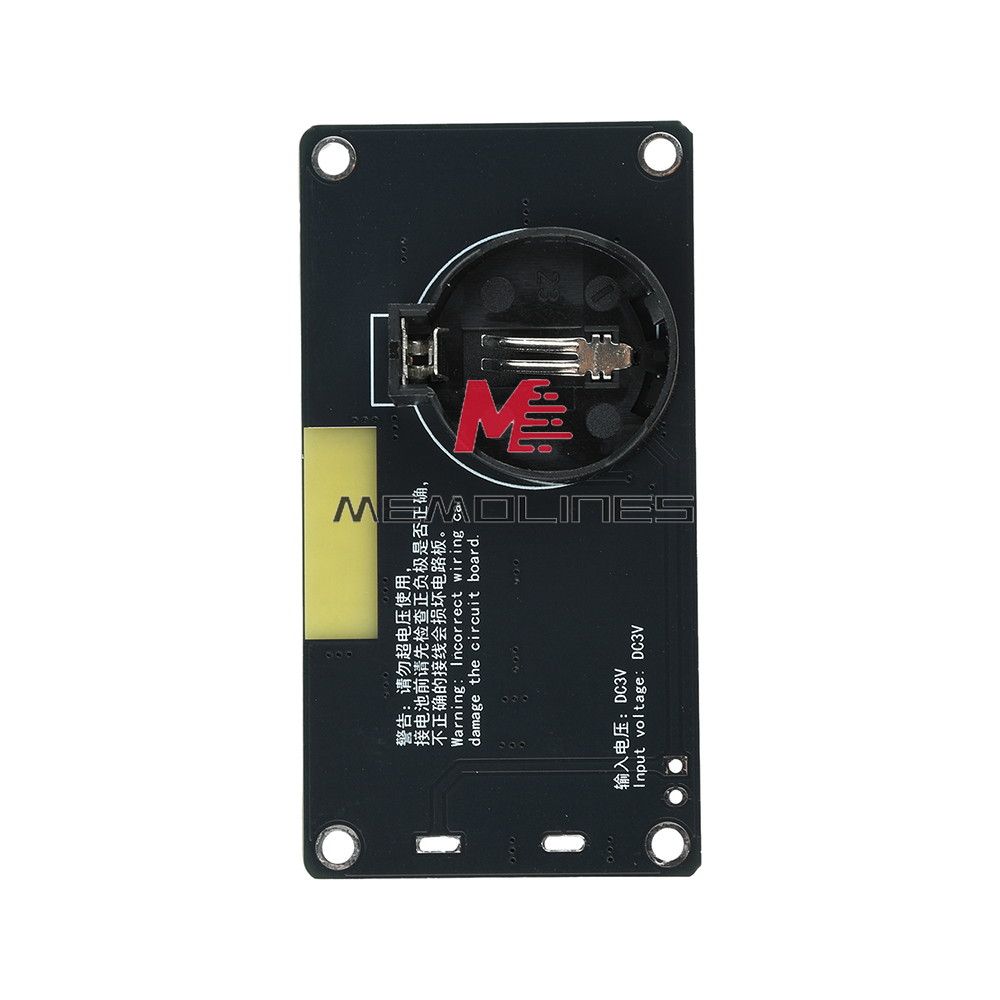

Remote Control Board × 1
