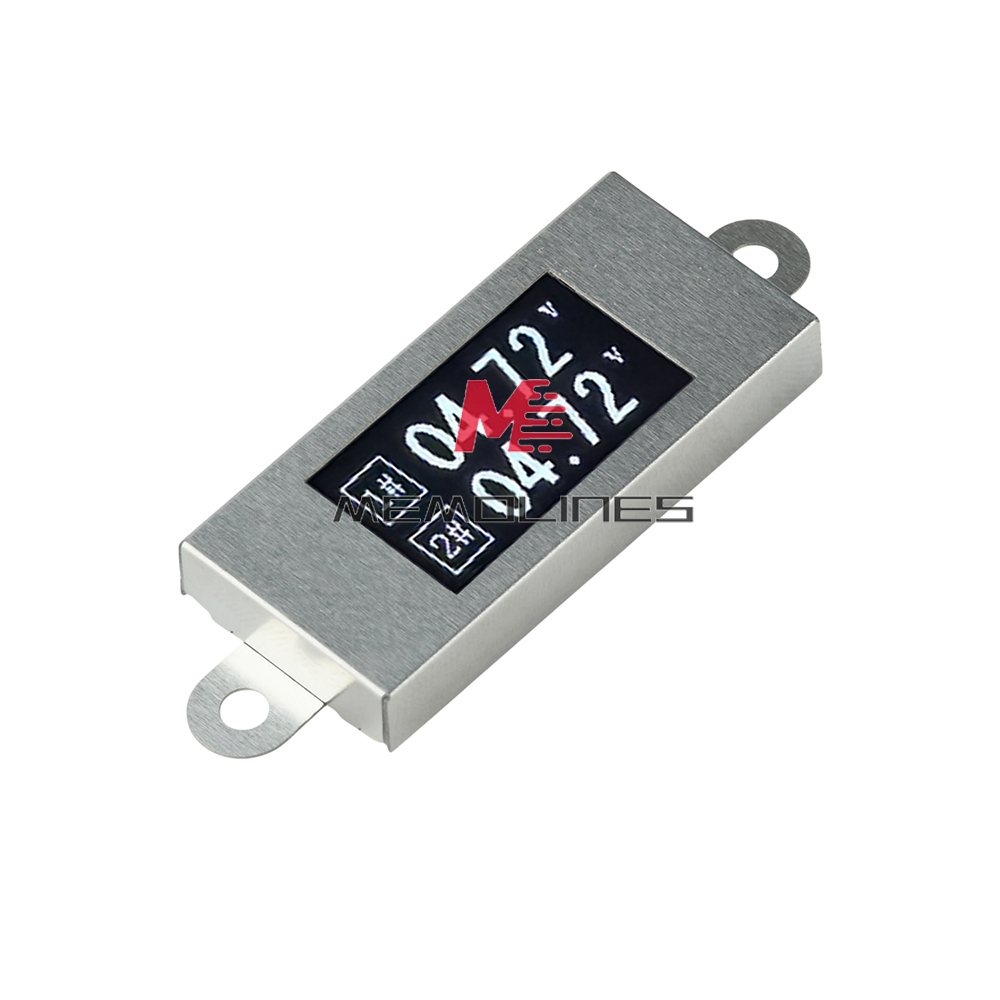

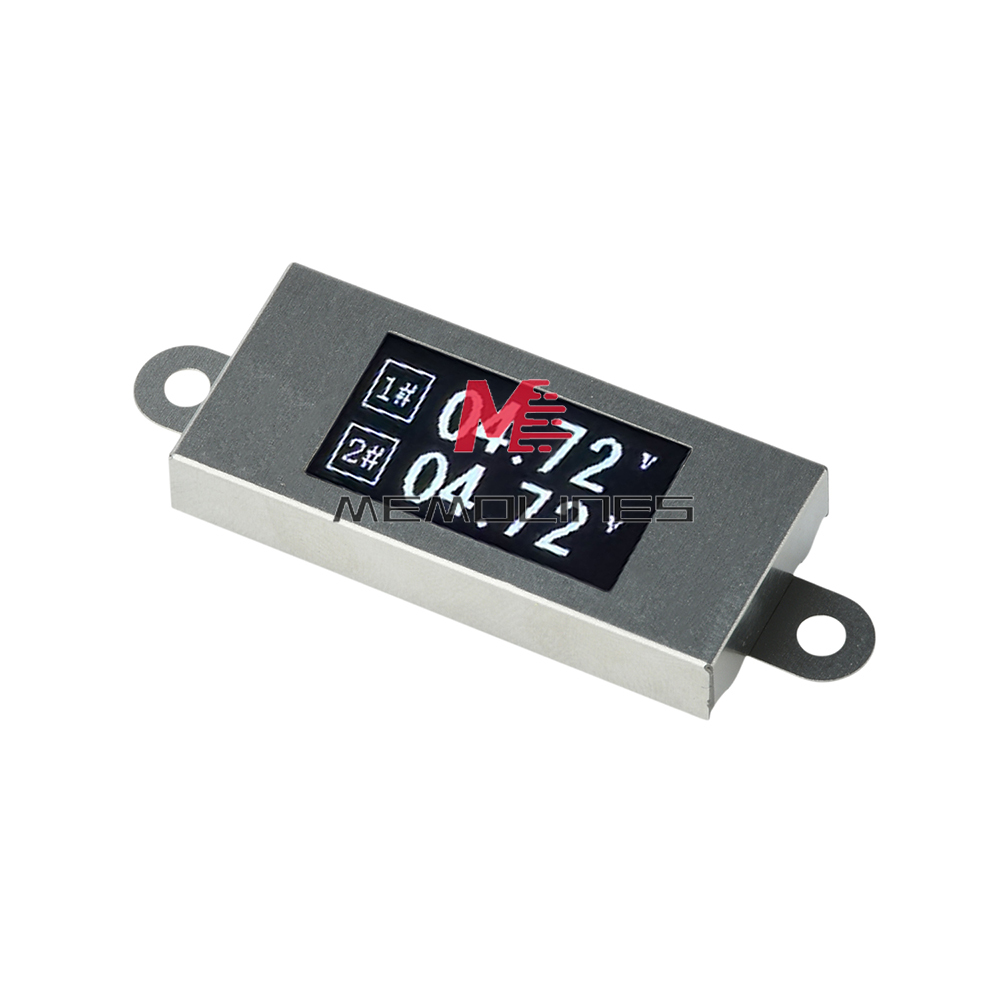

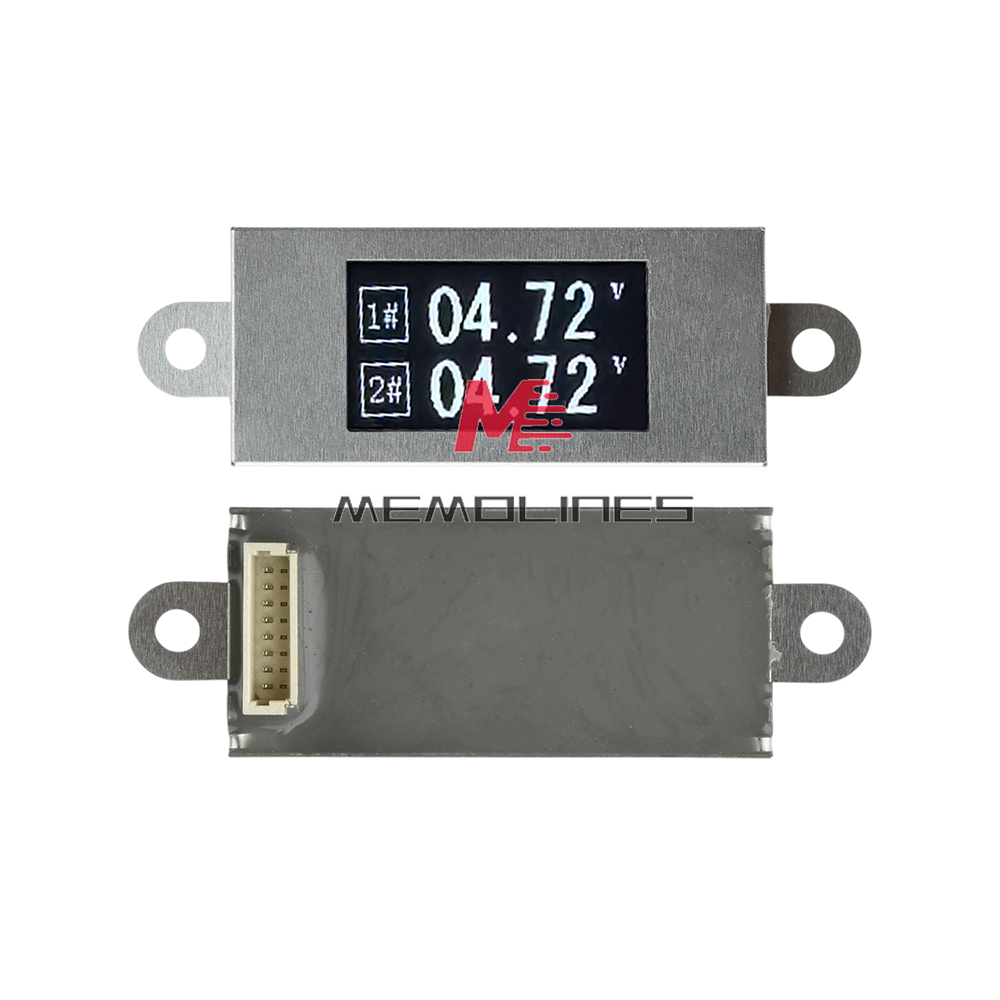

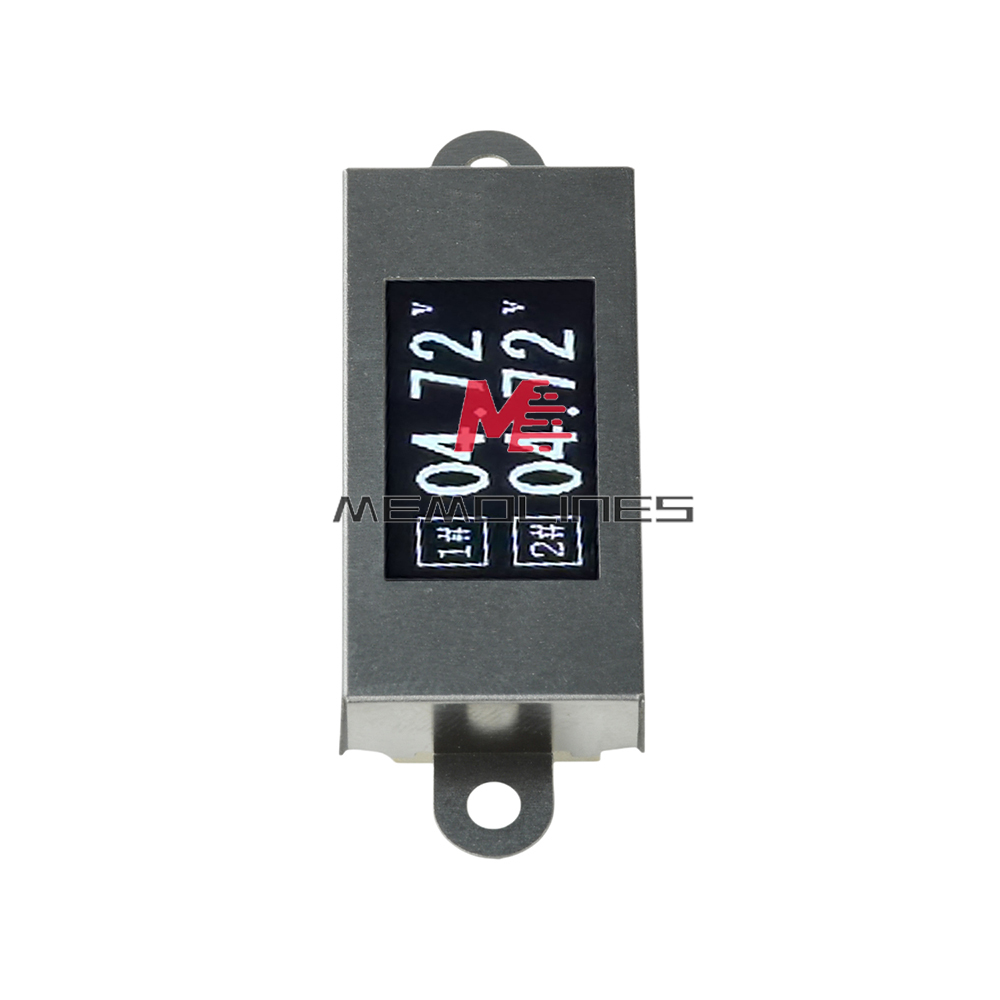

Product Features:

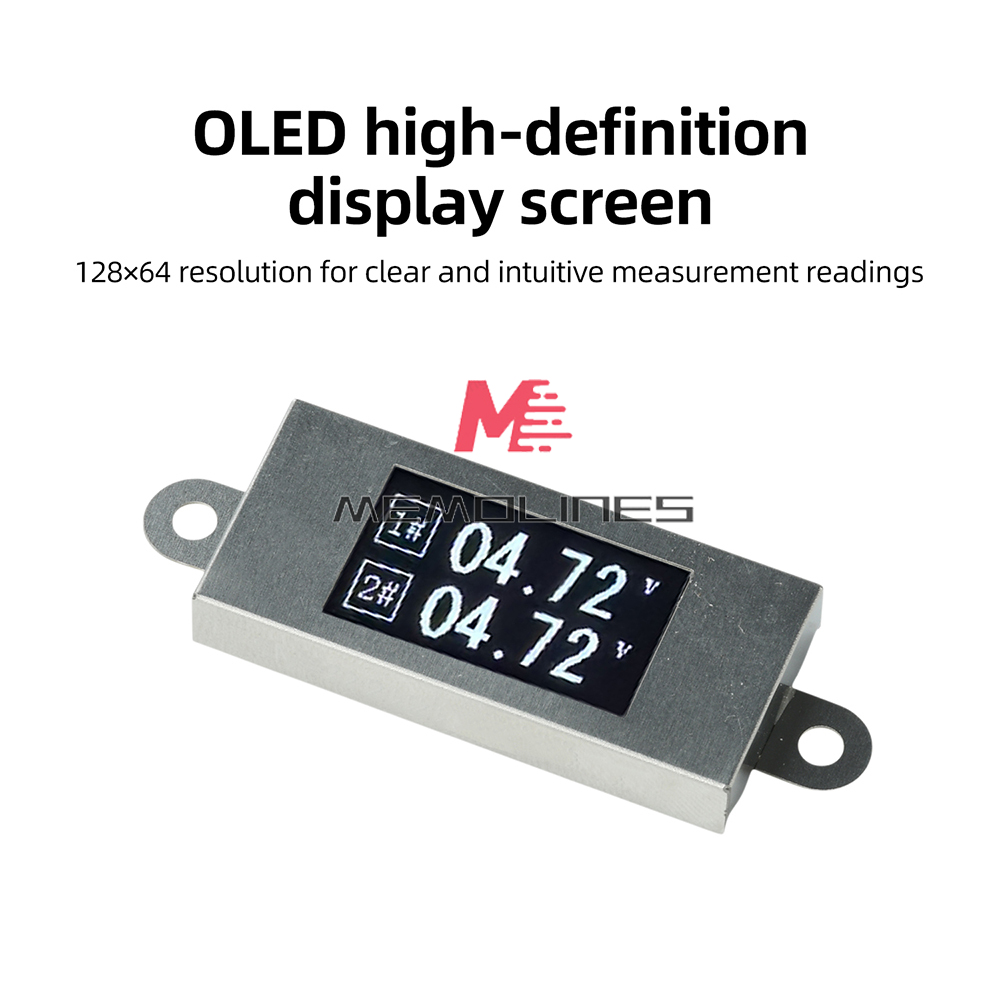

1. High-definition OLED display: 128×64 resolution for clear and intuitive measurement readings.
2. Simultaneous dual-channel voltage measurement allows for comparison of two voltage channels, making it suitable for integration into various compact devices.

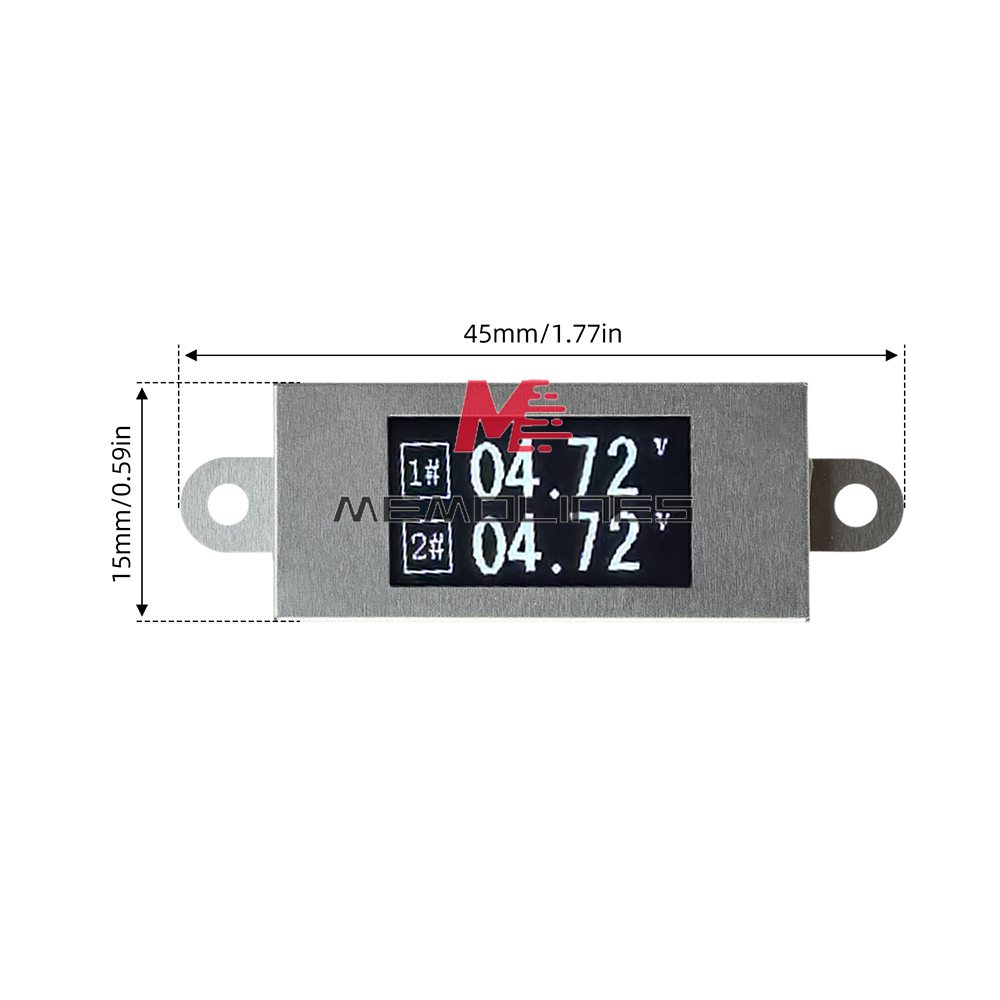

3. Metal housing: Stainless steel casing with built-in mounting holes for easy screw fastening and interference resistance.

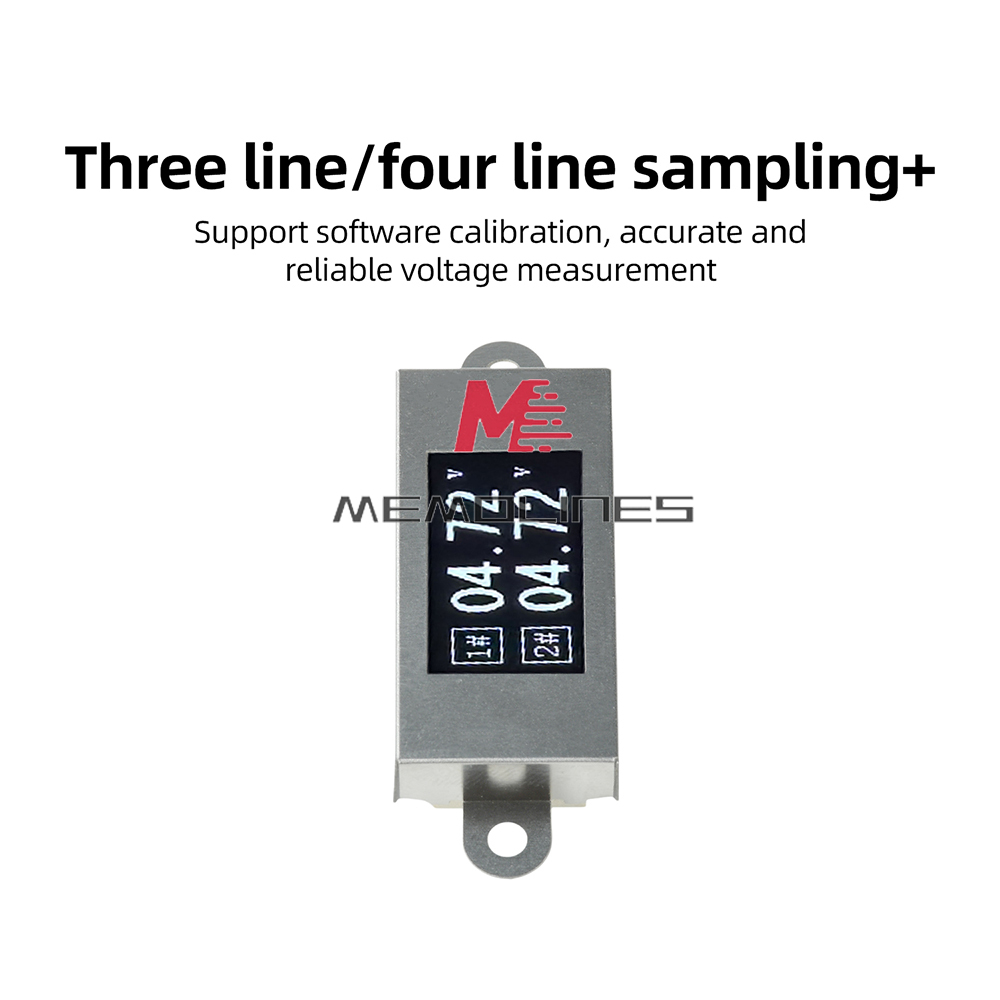

4. Three-wire/four-wire sampling with software calibration support ensures accurate and reliable voltage measurements.

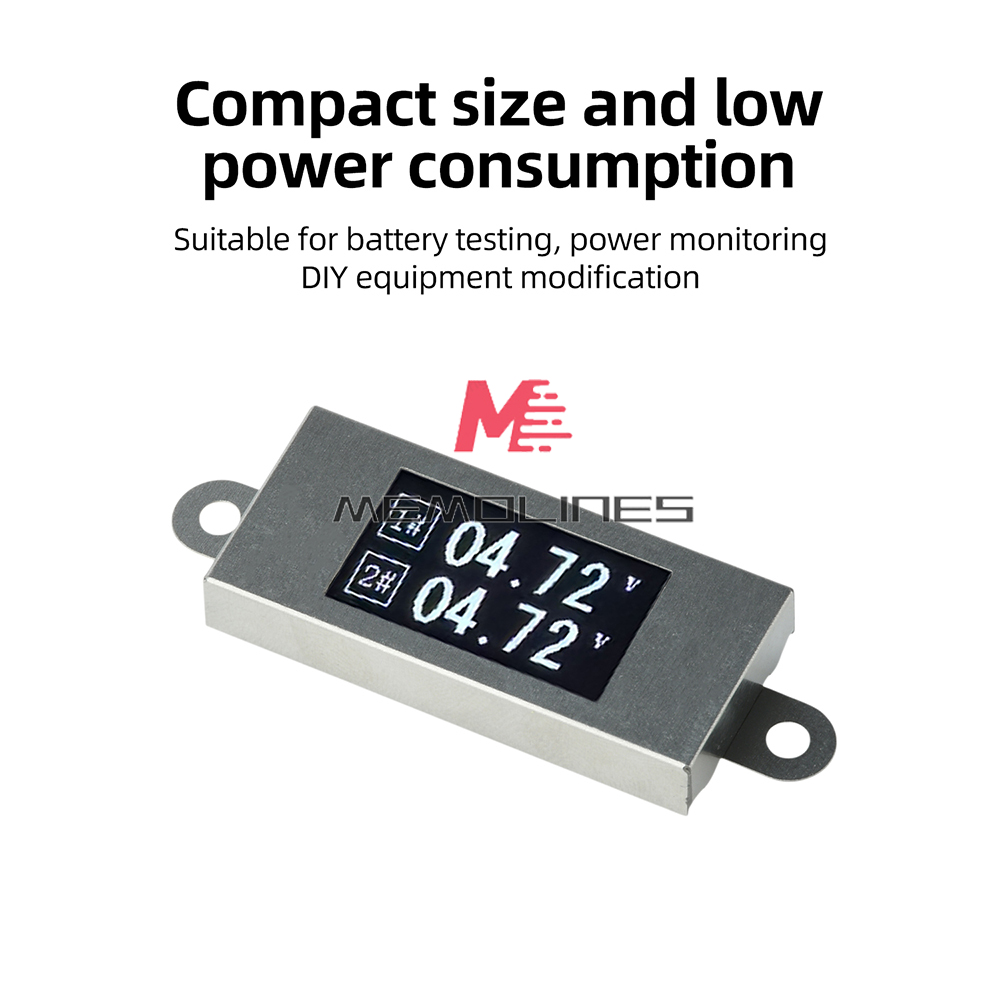

5. Compact size and low power consumption, making it suitable for battery testing, power supply monitoring, and DIY device modifications.

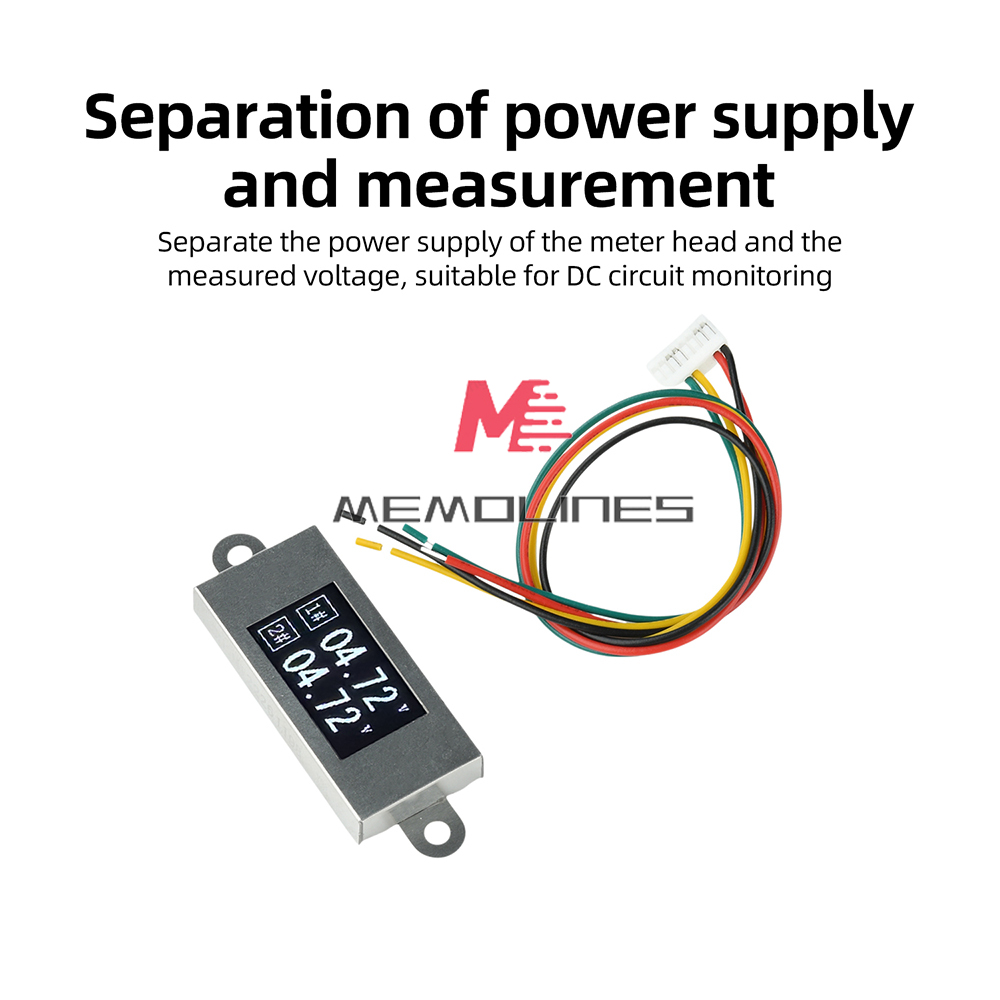

6. Separate power supply and measurement circuits—the meter’s power supply is isolated from the voltage under test, making it suitable for DC circuit monitoring.

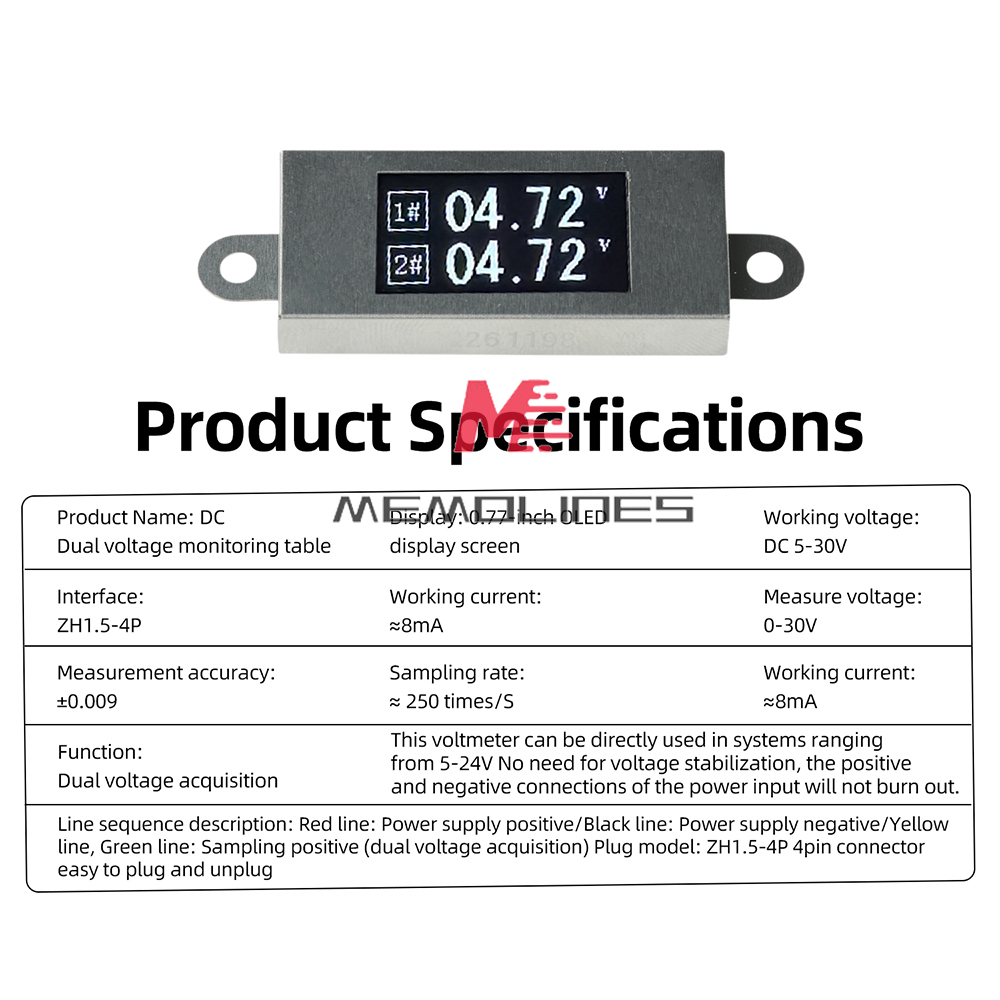

Product Specifications:
Product Name: Dual-Channel DC Voltage Monitor
Display: 0.77-inch OLED display
Operating Voltage: DC 5–30 V
Connector: ZH1.5-4P
Operating Current: ≈8 mA
Measurement Voltage: 0–30 V
Measurement Accuracy: ±0.009
Sampling Rate: ≈250 times/s
Operating Current: ≈8 mA
Measurement Accuracy: ±0.009
Sampling Rate: ≈250 times/s
Function: Dual-Channel Voltage Acquisition
This voltmeter can be used directly in 5–24V systems without the need for a voltage regulator; it will not burn out if the positive and negative power supply terminals are reversed.

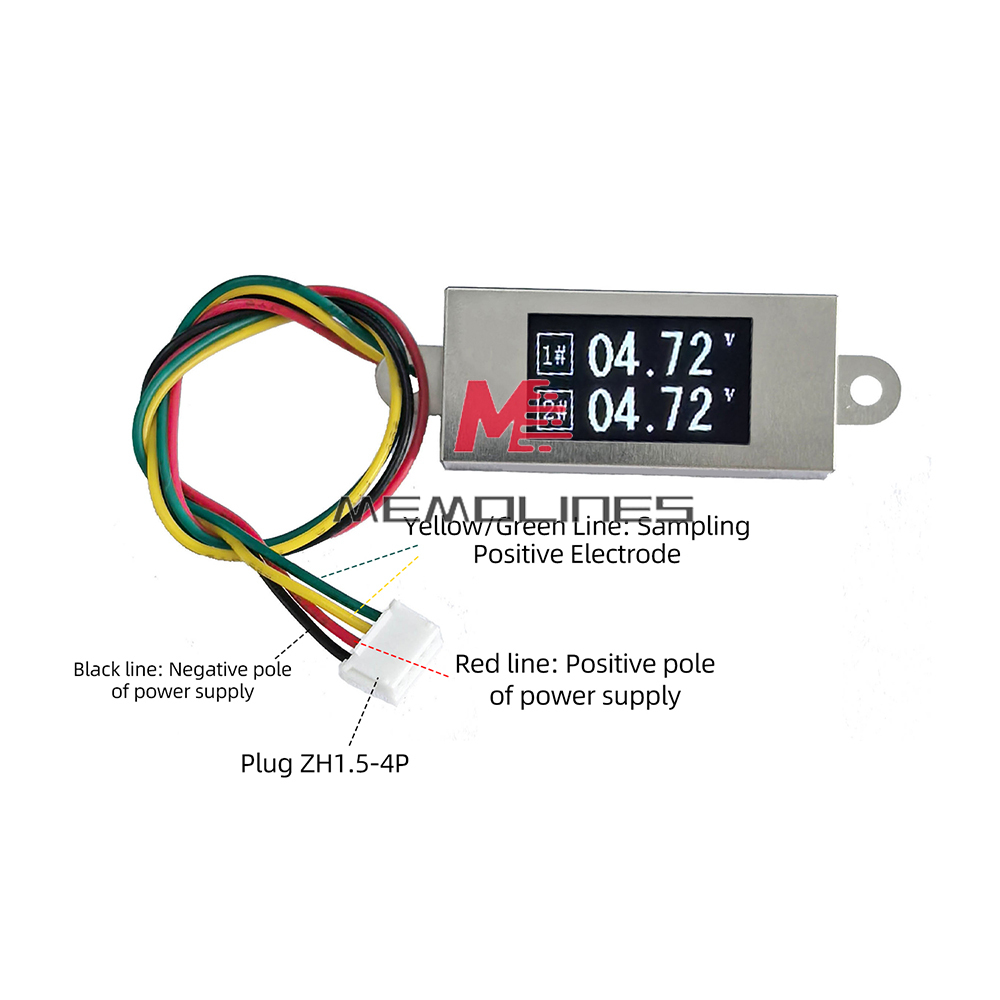

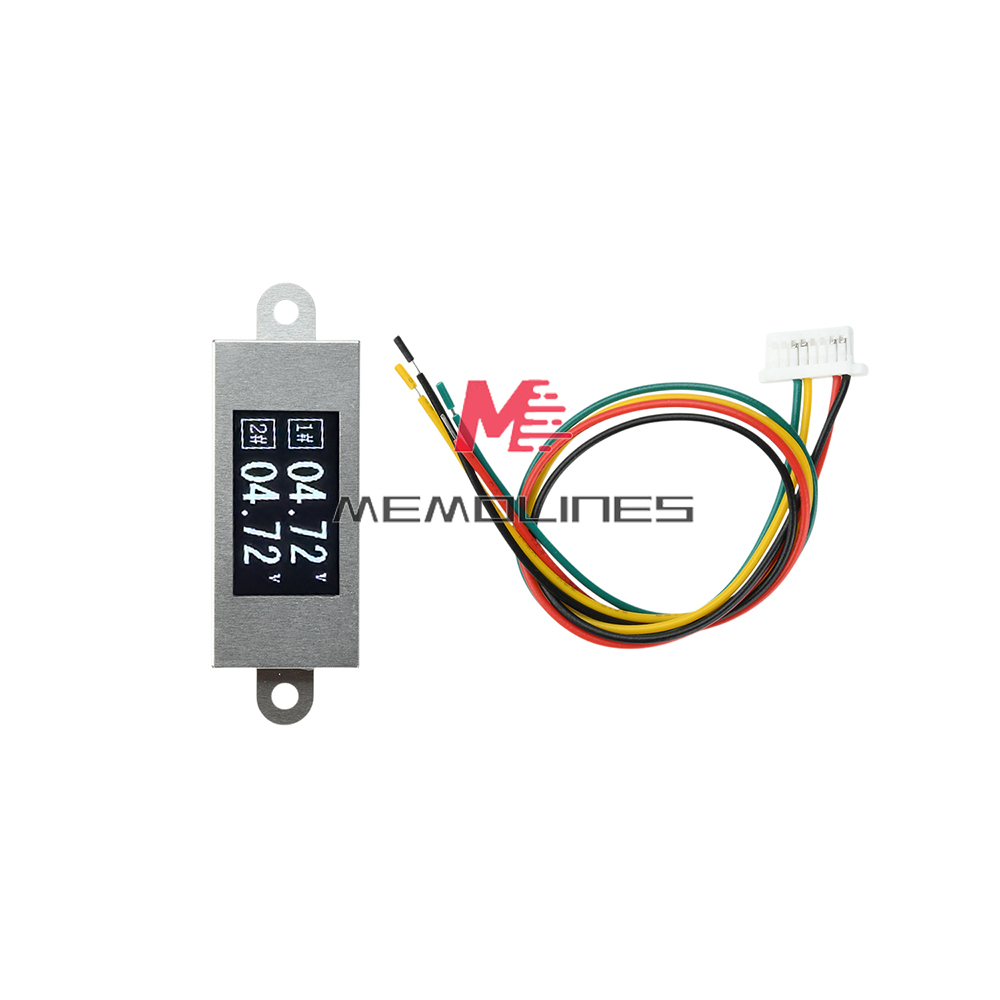

Wiring Diagram
Red wire: Power supply positive terminal
Black wire: Power supply negative terminal
Yellow and green wires: Sampling positive terminals (dual-channel voltage acquisition)
Connector Type: ZH1.5-4P 4-pin connector, easy to plug and unplug
Package Contents:
Voltmeter *1
