0-90 Degree Hand Electric Drill Bracket J1Z-KA3-10 Precision Drill Bit Fixing Bracket Household Electric Drill Bracket 38-43mm

90° rotatable
The advantage of the chuck can be rotated is that the electric drill can be used as a grinding machine.
Stroke scale
The humanized stroke scale design provides you with a reference to operate more conveniently, the single stroke can reach up to 60mm
Humanized handle design
Humanized handle design is comfortable and durable

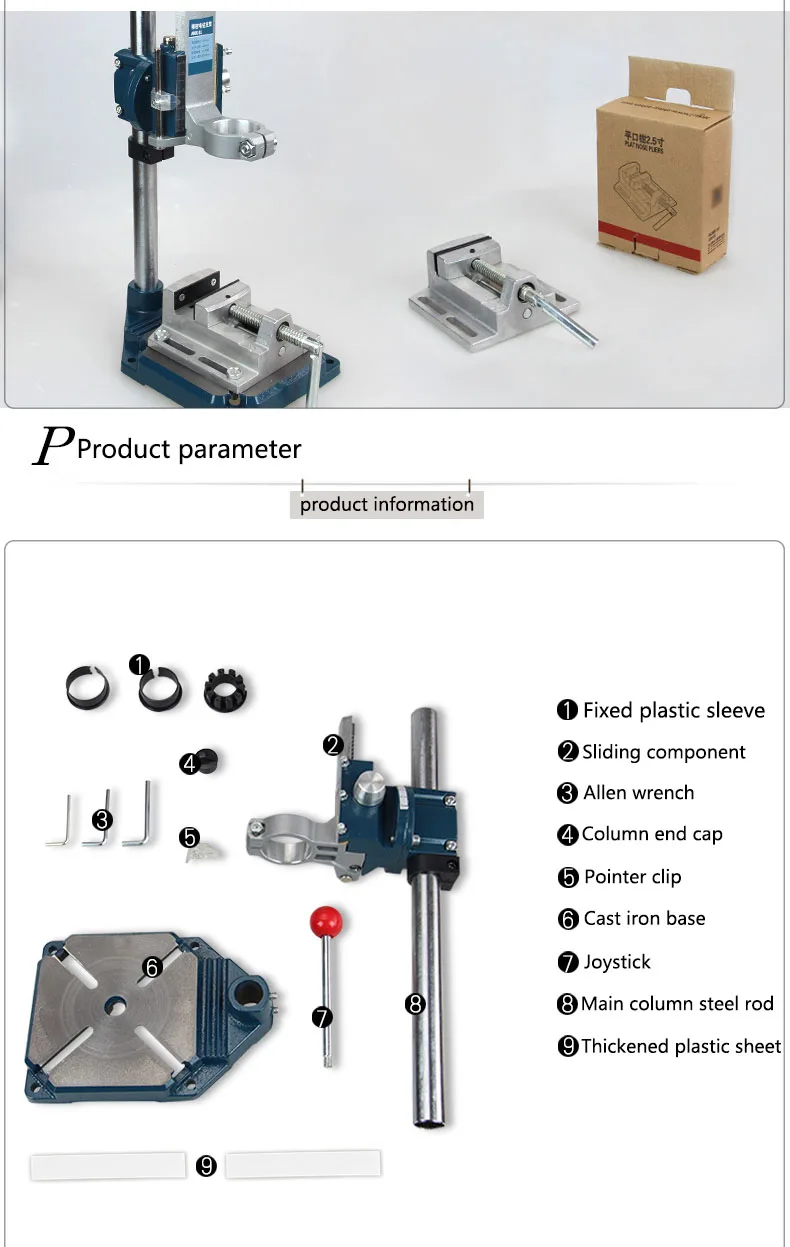

Fixed plastic sleeve
The adjustable range of the bracket chuck is 38mm-43mm. If the electric drill is loose, it can be fixed with a plastic sleeve. If the electric drill is not suitable for the above plastic sleeves, please use the two thickened plastic sheets provided with the machine to fix the electric drill.
Oversized column
The extra-large stainless steel column with a length of 400mm, a diameter of 25mm and a wall thickness of 1.5mm can withstand greater force.
Heavy cast iron base
And there is a desktop fixing screw hole, which makes your operation more convenient and safe. There is an expansion slot on the bottom surface, which can be installed with a vise or a mold.

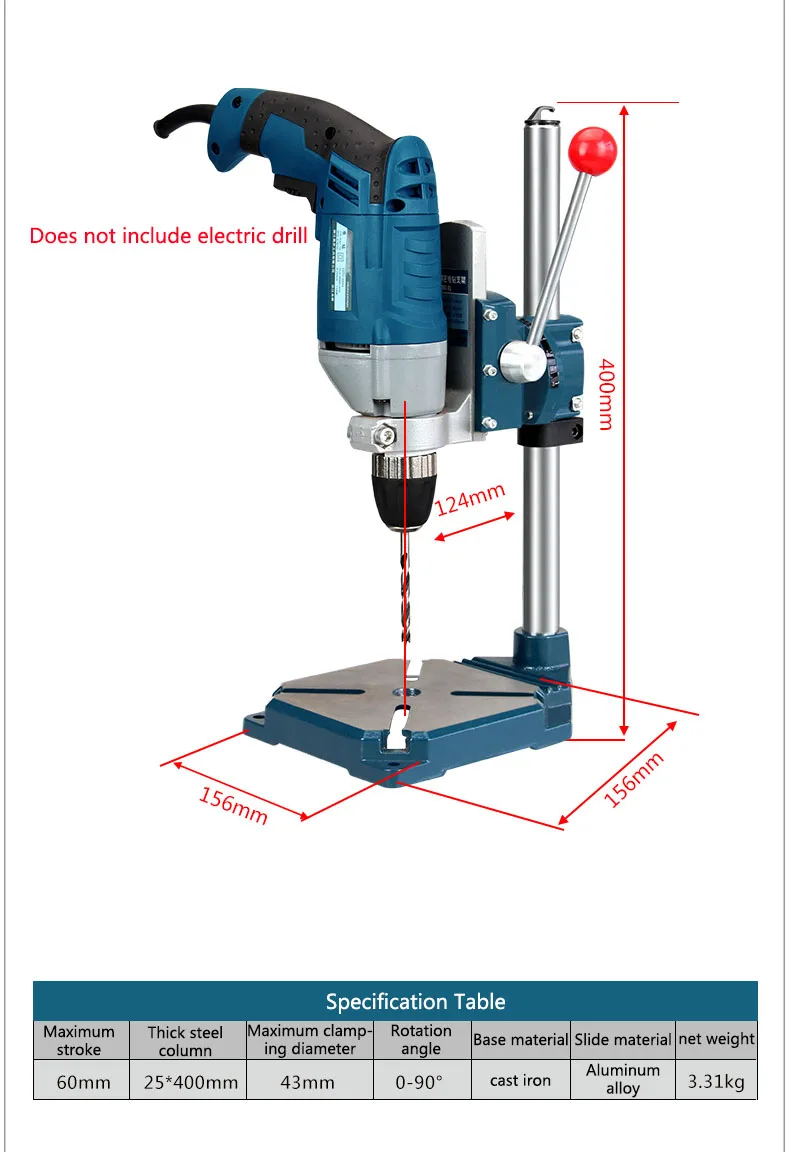

Product parameter
Name: Electric drill bracket
Model: J1Z-KA3-10
Electric drill structure: pistol type
Maximum stroke: 60mm
Thick steel column: 25*400mm
Maximum clamping diameter: 43mm
Stainless steel column: 25*400mm, wall thickness 1.3mm

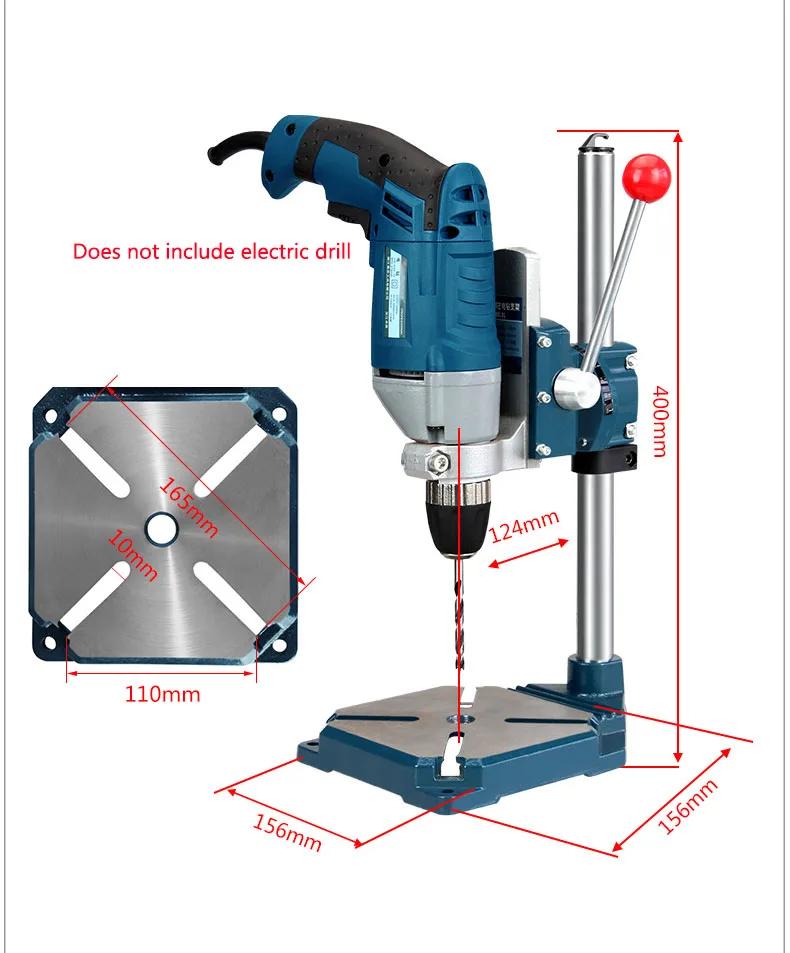

Base size: 156*156mm
Clamping diameter: 38-43mm (not suitable for lithium electric drill)
Rotation angle: 0-90°
Base material: cast iron
Slide material: aluminum alloy
Net weight: 3.31kg

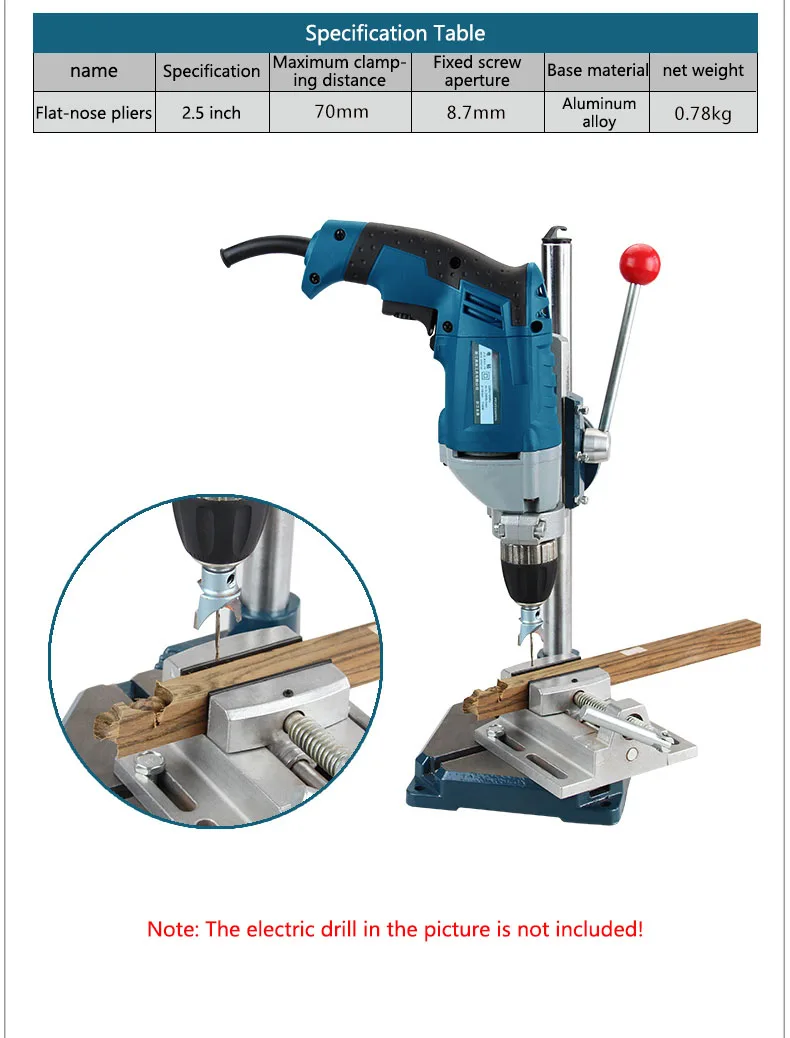

Name: Flat-nose pliers
Specification: 2.5 inches
Maximum clamping distance: 70mm
Fixed screw aperture: 8.7mm
Base material: aluminum alloy
Net weight: 0.78kg
Scope of application: clamp the object with a small vise to facilitate drilling and drilling
Note: The electric drill in the picture is not included!
