Cisco WS-C3850-48P-E 48-Port PoE+ IP Services Barebone Switch
Click Thumbnails to Enlarge
Specifications
| Server Type | |
| Lot Quantity | |
| Warranty | 30 Days |
| Brand | Cisco |
| Manufacturer Part Number | WS-C3850-48P-E |
| Identifier | WS-C3850-48F-E |
| Series | Catalyst 3850 Series |
| Model Number | WS-C3850-48P-E |
| Form Factor | 1U Rackmount |
| Form | |
| Bracket Size | |
| Network Interface | 48x 10/100/1000 PoE RJ-45 ports + Optional 4x 1/10 GbE SFP/SFP+ Module Bay, 1x RJ-45 Management |
| Interface | |
| Watts | |
| Chassis | |
| Battery | |
| AC Adapter | |
| Motherboard Support | |
| Expansion Slots | |
| Dimms per Channel | |
| Socket | |
| Processor | 800MHz Quad-Core |
| Processors Installed | Quad-Core 800MHz |
| Processor Speed | 800 MHz |
| Speed | 10/100/1000 Mbps Ethernet |
| Processor Max Speed (Turbo Boost) | |
| CPU Brand | |
| Processor Cores | |
| Number of Threads | |
| Hyper Threading | |
| Cache Per Processor | |
| Processor Main Features | |
| CPU Installed | |
| Compatible RAM | |
| FSB | |
| CPU Cache | |
| CPU Cooling System | |
| CPU Cooling System Brand | |
| CPU Cooling System Details | |
| Number of Fans | 3x Hot Swappable |
| Fan Model | |
| Fan Support | |
| Fan Speed | |
| Fan Airflow | |
| Fan Noise | |
| Memory (RAM) | |
| Memory Size | |
| RAM Details | |
| RAM Type | |
| RAM Type | |
| RAM Speed | |
| Ram Speed | |
| Maximum RAM | |
| RAM Brand | |
| RAM/Rank | |
| Rank | |
| Module Type | |
| Module QTY | |
| ECC/FF | |
| Speed & ECC | |
| RAM Installed | |
| 1.8" Drive Bays | |
| 2.5" Drive Bays | |
| 3.5" Drive Bays | |
| M.2 Slots | |
| Storage | |
| HDD | |
| HDD Installed | |
| SSD | |
| SSD Installed | |
| Storage Type | |
| Storage Capacity | |
| Hard Disk Rotational Speed | |
| Read Speed | |
| Storage Cache | |
| Sector Size | |
| Hard Drive Trays | |
| Drive Blanks | |
| In tray | |
| Graphics Card | |
| Graphics Coprocessor | |
| Graphics Card Brand | |
| Graphics Card Series | |
| Graphics Card Memory | |
| Graphics Card Memory Type | |
| Graphics Card Clock Speed | |
| Graphics Card Boost Clock Speed | |
| Graphics Card CUDA Cores | |
| Graphics Card Memory Bus Width | |
| Graphics Card Interface | |
| Graphics Card Video Outputs | |
| Power Connectors | |
| GPU Installed | |
| Cache | |
| Transfer Rate | |
| Power Supply | |
| PSU Type | Modular Hot-Swap Redundant |
| PSU Brand | Cisco |
| PSU QTY | |
| PSU Form Factor | Modular Hot-Swap |
| PSU Features | |
| PSU Installed | |
| Operating System | Cisco IOS XE |
| Software | |
| Software Features | |
| COA | |
| Battery Installed | |
| Bluetooth Installed | |
| Cabling Installed | |
| Camera Installed | |
| Media Drive Installed | |
| Heatsinks Installed | |
| RAID Controller | |
| Raid Installed | |
| Network Controller | UADP ASIC |
| Rail Kit | |
| Bezel | |
| Optical Drive | |
| Special Features | |
| Package Contents | |
| Onboard GPU | |
| Bluetooth | |
| Wifi Installed | |
| WLAN | |
| LAN Speed | |
| Case Material | |
| Colors | |
| Drive Bays | |
| Maximum CPUs | |
| Max CPU's | |
| Number of Memory Slots | |
| DIMM Slots | |
| Memory Channels | |
| I/O Slots | |
| Ports | 48x 10/100/1000 PoE RJ-45, RJ45 Console & MGMT |
| Front USB | |
| Front Audio Ports | |
| Rear USB | |
| Rear Audio Ports | |
| Video Ports | |
| RJ45 | |
| Power Consumption | |
| Keyboard | |
| Mouse | |
| Monitor | |
| Refresh Rate | |
| Screen Size | |
| Ears Included | |
| Feature Sets | IP Services |
| Fixed Uplinks | Optional Removable SFP Bay |
| Total 10/100/1000 Ethernet Ports | 48x RJ-45 |
| Available PoE Power | 435W |
| Switching Capacity | 176 Gbps |
| Stacking Bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 24,000 |
| FNF entries | 48,000 flows |
| DRAM | 4 GB |
| Flash | 2 GB |
| VLAN IDs | 4,000 |
| Total switched virtual interfaces (SVIs) | 1,000 |
| Jumbo frame | 9198 bytes |
| Total routed ports per stack | 208 |
| Number of access points per switch/stack | 100 |
| Number of wireless clients per switch | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | Up to 40 Gbps |
| Supported Aironet access point series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Forwarding Rate | 130.95 Mpps |
| ECC/FF | |
| Scalability | |
| Country of Origin | |
| PCSP SKU | NSB 483851 |
| Extended Warranty for this listing: | Click Here |
| Our other eBay listings: | Click Here |
Product Description

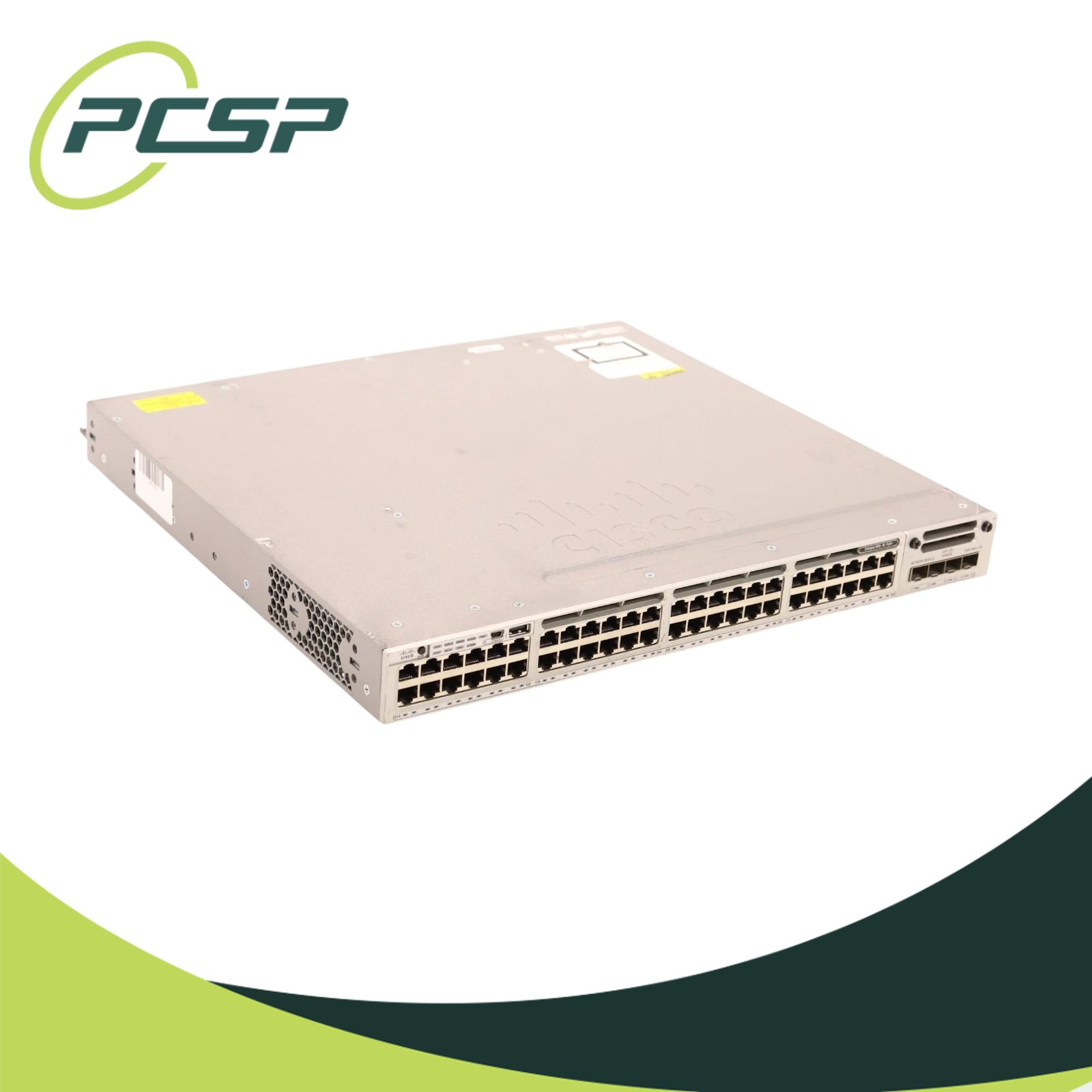

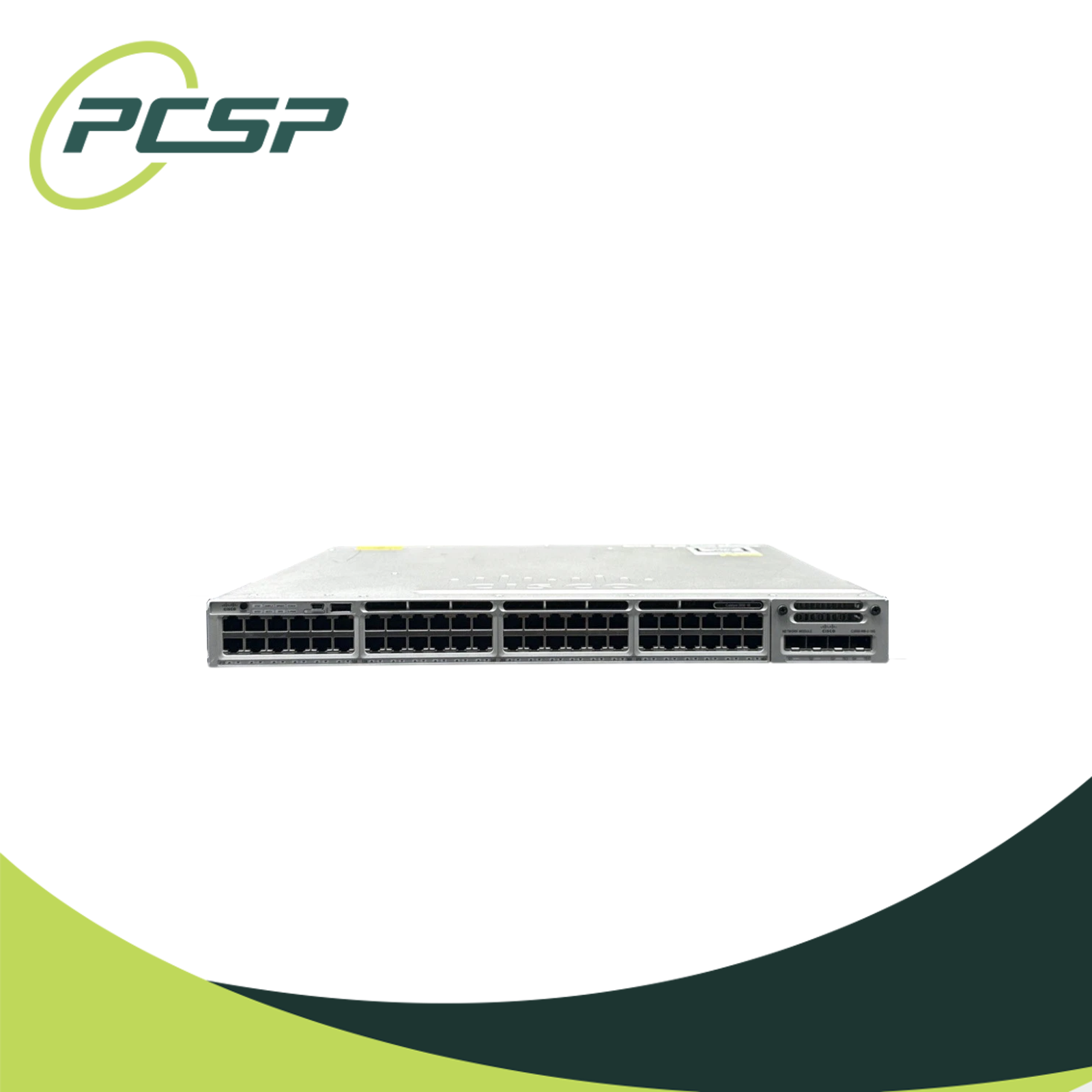

Cisco Catalyst WS-C3850-48P-E 48-Port PoE+ IP Services Barebone Switch
The Cisco Catalyst WS-C3850-48P-E is a stackable enterprise Layer 3 network switch featuring 48 Gigabit Ethernet PoE+ access ports, Cisco IP Services, modular uplink expansion, and Cisco StackWise-480 stacking technology.
This listing is for a BAREBONE switch chassis. Power supplies, fan modules, and the optional uplink network module are NOT included. Compatible power supplies and cooling components must be installed before the switch is placed into normal operation.
Manufacturer: Cisco
Series: Catalyst 3850
Model: WS-C3850-48P-E
Product Type: Managed Layer 3 PoE+ Switch - Barebone
Access Ports: 48x 10/100/1000BASE-T RJ45
PoE: PoE / PoE+ Capable
Software Feature Set: IP Services
Uplink: 1x Modular Network Module Slot
Power Supplies: Not Included
Fan Modules: Not Included
Uplink Module: Not Included
Stacking: Cisco StackWise-480
Stacking Bandwidth: 480Gbps
Operating System Platform: Cisco IOS XE
Form Factor: 1U Rackmount
Key Features
- 48x 10/100/1000BASE-T Gigabit Ethernet RJ45 access ports
- IEEE 802.3af PoE capable
- IEEE 802.3at PoE+ capable
- Cisco IP Services Layer 3 feature set
- 176Gbps switching capacity
- 480Gbps StackWise-480 stacking bandwidth
- Cisco StackPower support
- 1x modular uplink network-module slot
- Dual modular power supply bays
- Three field-replaceable fan positions
- Cisco IOS XE platform
- 1U rackmount chassis
- Barebone configuration for custom builds or replacement applications
Network Interfaces
- 48x 10/100/1000BASE-T RJ45 access ports
- PoE / PoE+ capable hardware on all 48 access ports
- 1x modular uplink network-module slot
- Dedicated 10/100/1000 Ethernet management interface
- RJ45 console interface
- USB console interface
- USB Type-A interface
PoE Capability
- IEEE 802.3af PoE support
- IEEE 802.3at PoE+ support
- Up to 30W per supported PoE+ port when sufficient power is available
- Factory WS-C3850-48P configuration uses a 715W AC power supply
- Standard 715W configuration provides up to 435W of available PoE power
- Power supplies are NOT included with this barebone switch
- PoE operation requires compatible power supplies to be installed
Uplink Expansion
- 1x modular network-module slot
- Supports compatible Cisco Catalyst 3850 network modules
- C3850-NM-4-1G supports 4x 1GbE SFP uplinks
- C3850-NM-2-10G supports 1GbE SFP and up to 2x 10GbE SFP+ uplinks
- C3850-NM-4-10G supports up to 4x 10GbE SFP+ uplinks
- Uplink network module is NOT included
- A compatible blank network module should be installed when no uplink module is used
- SFP/SFP+ transceivers are not included

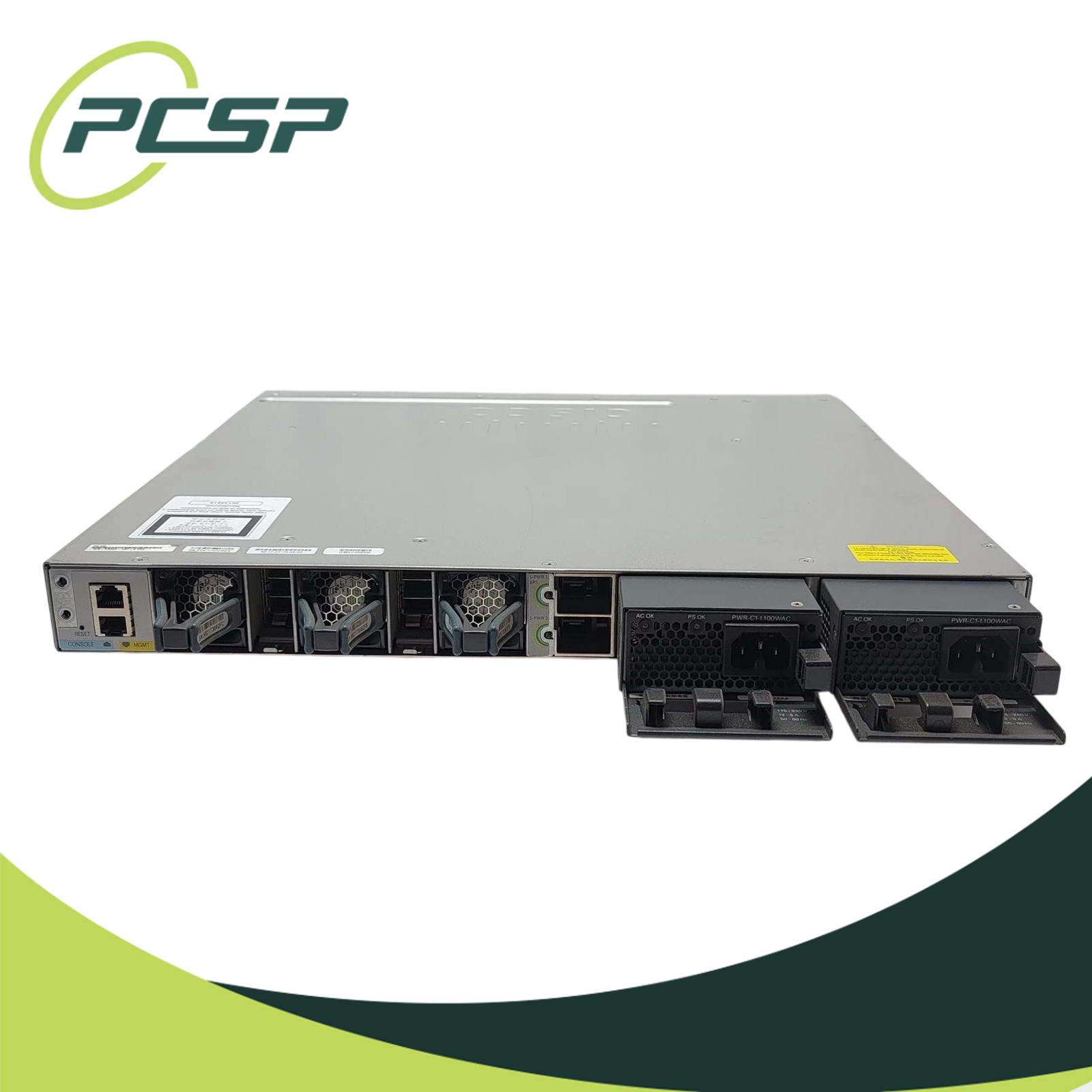

Power Supply Configuration
- 2x modular power supply bays
- Supports compatible redundant power configurations
- Factory WS-C3850-48P configuration uses PWR-C1-715WAC
- PWR-C1-1100WAC is also supported for higher PoE requirements
- Power supplies are NOT included
- Power cords are NOT included
Cooling Configuration
- 3x field-replaceable fan module positions
- Three compatible fans are used for the normal full cooling configuration
- Fan modules are NOT included
- Compatible fans must be installed before normal operation
Performance
- 176Gbps switching capacity
- Up to 130.95Mpps forwarding rate with supported high-speed uplink configuration
- 480Gbps StackWise stacking bandwidth
- 32,000 MAC addresses
- 24,000 IPv4 routes including ARP and learned routes
- 48,000 Flexible NetFlow entries
- 4,000 VLAN IDs
- Up to 1,000 switched virtual interfaces
- Jumbo frames up to 9198 bytes
- 4GB DRAM
- 2GB Flash Memory
Layer 3 & IP Services
- Cisco IP Services feature set
- IPv4 and IPv6 capabilities
- Static routing
- OSPF
- EIGRP
- BGP capabilities
- Multicast routing
- Policy-based routing
- VRF capabilities
- Access Control Lists
- Quality of Service
- Flexible NetFlow
- Exact feature availability depends on installed IOS XE software and licensing
Stacking
- Cisco StackWise-480 support
- 480Gbps stacking bandwidth
- Cisco StackPower support
- StackWise and StackPower cables are not included
Ideal Applications
- Custom Catalyst 3850 Builds
- Replacement Switch Chassis
- Enterprise Access Networks
- Campus Networks
- PoE+ Network Deployments
- IP Phone Networks
- Wireless Access Point Deployments
- Surveillance Networks
- Network Labs
- Spare / Repair Infrastructure
Included
- 1x Cisco Catalyst WS-C3850-48P-E Barebone Switch Chassis
Important Notes
- Photos are for reference only.
- Only listed items are included.
- This is a BAREBONE switch chassis.
- Power supplies, fan modules, and uplink network module are NOT included.
- The WS-C3850-48P-E hardware supports PoE and PoE+, but PoE output requires compatible power supplies.
- A compatible network module or blank module should be installed in the uplink slot for proper operation and airflow.
- Compatible fan modules must be installed before normal operation.
- Verify compatibility before purchase.
PC Server & Parts (PCSP) is a refurbisher and seller of OEM and surplus technology hardware.
We have been doing business from our location in Michigan for over 25 years, and have served over 100,000 customers worldwide.
We are proud to offer our customers high-end IT hardware priced 50% to 90% less than new retail cost. All equipment that leaves our facility
has been refurbished and undergone a 24-point inspection by our expert staff. With our super-fast delivery and exceptional customer service, we look forward to serving you.
If you have a question or concern please contact us here.
PCSP specializes in obtaining large volumes of refurbished IT hardware. If your business requires a large order of servers, workstations, or other gear – let PCSP find the IT hardware your business needs, so you can focus on doing what you do best.
 |
 |
 |
Forecast Needs |
Pricing Thresholds |
Dedicated Inventory |
| PCSP will develop a forecast of your needs to get your business ahead of the market. | Our pricing thresholds are designed to secure product within your timeframe. | All specified inventory goes towards fulfillment until your order is completed. |
- Payments must be from a verified PayPal account.
- We do not accept any other form of payment on eBay. No exceptions.
- If your payment is not from a verified PayPal account we reserve the right to void and cancel your order.
- No address changes after checkout: Due to Paypal policies we can not change shipping address after the purchase.
- In the case of an incorrect address or adress change, please contact us prior to purchase.
- For "Buy It Now Listings" payments are due immediately. Item must be paid within 3 business days or item will be relisted for sale.Ebay will be notified of any non-paying bidders.
- We provide free local pick up on all orders by appointment only. Orders must be prepaid before or at time of pickup. Contact us for pick up address.
- All Michigan and Ohio customers will be charged 6% sales tax (exceptions with proper tax documents only).
- We ship all orders using either USPS, FEDEX or UPS services. We will post tracking numbers directly on the Order Detail Page as well as email them to your eBay e-mail address.
- Customer is responsible for being home or arranging delivery. If package is returned, shipping charges will be deducted from any refund. If returned due to no one being home for delivery, shipping will have to be paid again prior to re-shipping the item.
- Please be aware as we use new shipping materials for every package you may notice a small handling fee added into each listing to cover costs of new boxes as well as any anti-static bags, bubble wrap, or foam packaging.
- Freight shipping available! Please contact us for freight quotes!
- We will only ship to the PayPal confirmed or verified address.
- International Buyers, please note: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
We understand that from time to time the need to return an item may occur. Please read below for a detailed overview of our return policy:
- We will exchange defective or damaged products within the warranty period. This is 30 days from the purchase date unless stated otherwise.
- For a small cost, you can extend your warranty period for up to five (5) years. You can purchase our extended warranties for products we sell by clicking here.
- Any problem with an item must be reported within warranty period.
- If items are damaged in transit, please notify us within 7 days of receiving the package in order to file a claim with shipper (please retain all shipping materials for claim pick-up).
- If returning a non-defective item by choice within the 30 day period, customer is responsible for shipping cost.
- Shipping costs are non-refundable.
- Customer is responsible for all shipping costs and any RMA shipping costs. Any replacement shipping costs will be covered by PC Server & Parts. Do not send any items back without a return merchandise authorization (RMA) number or the package will not be accepted - no exceptions.
- Please make sure this is the item you need. Product will be in good working condition but we cannot guarantee compatibility with your equipment or software.
If you have any questions, feel free to reach us: here
Our office hours are Monday through Friday - 9:00am to 5:00pm EST.
Copyright © 2022 PC Server & Parts. All rights reserved.
