Feature:

1. 4 or 8 enough channels meet the need that you are lacking of the ports.
2. POE power supply module is compatible with all IEEE802.3af network devices, but it does not have auto-detection function.
3. LED power light allows you to clearly know the working status.
4. Same voltage to all ports, share available power equally.
5. High stability and outstanding performance.

Specification:

Description:

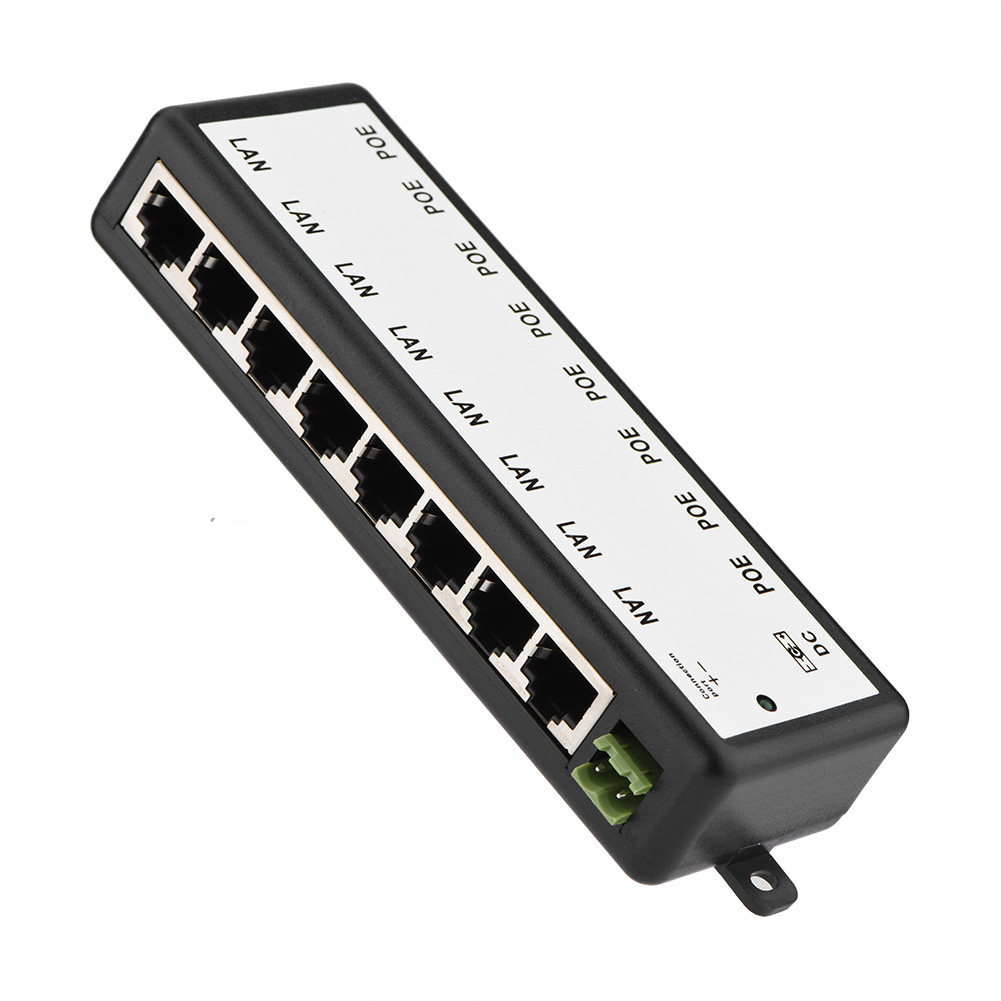

This POE injector ethernet adapter is a good solution for you to save you trouble in power cabling and costs by simply connecting your POE or non-POE device with an Ethernet cable. This POE power supply module is compatible with all IEEE802.3af network devices, but it does not have auto-detection function. As long as they are connected, they can directly supply power to network devices.

Features:
4 or 8 enough channels  meet the need that you are lacking of the ports.
POE power supply module is compatible with all IEEE802.3af network devices, but it does not have auto-detection function.
LED power light allows you to clearly know the working status.
Same voltage to all ports, share available power equally.
High stability and outstanding performance.

Specifications:
POE Port: Connect Bridge AP CPE device WAN interface (use with POE separation line)
LAN port: Connect to a router Switch or directly connect to the host computer network interface
DC socket: outside -5.5mm, inside +2.1mm
POE port: 4/5 pin (+), 7/8(-)

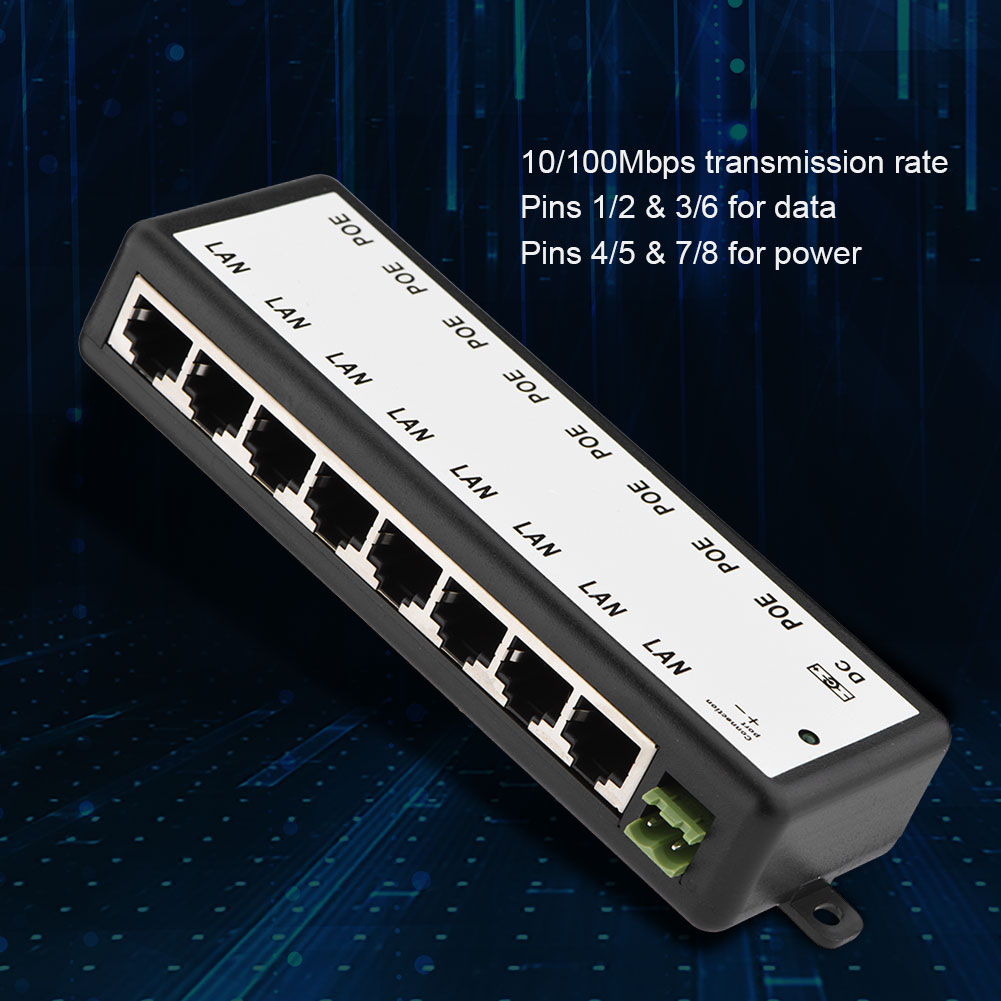

LAN port = 1 2 3 6 pin for data

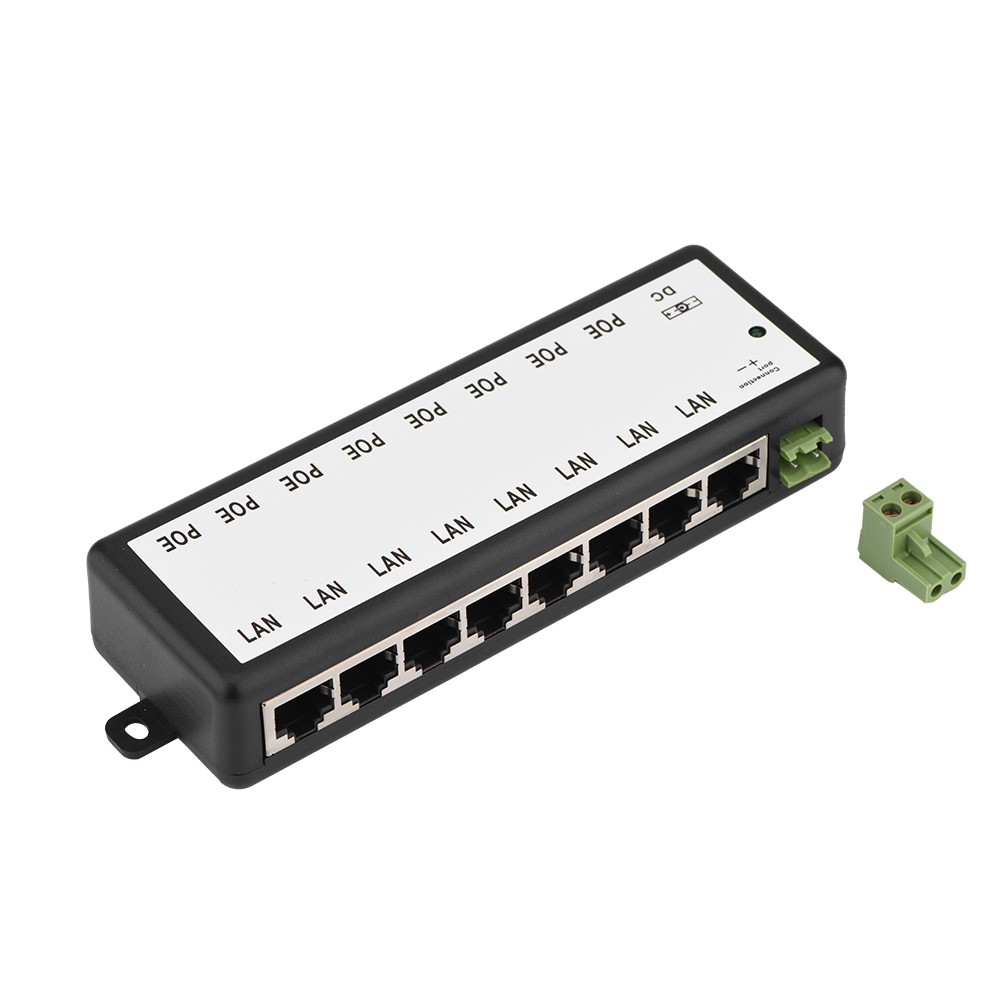

Note: The green terminal and the DC power supply voltage are connected
Line connection equipment to do line standards:
Through 568B; (positive line, direct line, standard 568B: both ends of the line sequence, from left to right line
sequence is: white and orange, Orange, White and green, Blue, White and blue, Green, White and brown, Brown)
Rated voltage (Nominal Voltage): 12-48V DC
Input Current: 0-10A
Input data transmission: 1/2/3/6 pin
Transmission rate: 10/100Mbps
Output Voltage: 12-48V DC
Output data transmission: 1 /2/3/6 pin
Output transmission rate: 10/100Mbps
Output transmission power: 4/5 positive electrode 7/8 negative electrode
Port quantity: 4, 8 (optional)

Package List:
1 * 4/8 Channel POE Power Supply Module POE Injector Ethernet Adapter (Based on your choice)
