Feature:
1. This product is small in size, light in weight, compact in structure and easy to install.
2. Flexible coupling connection, flexible connector to avoid direct damage to the encoder.

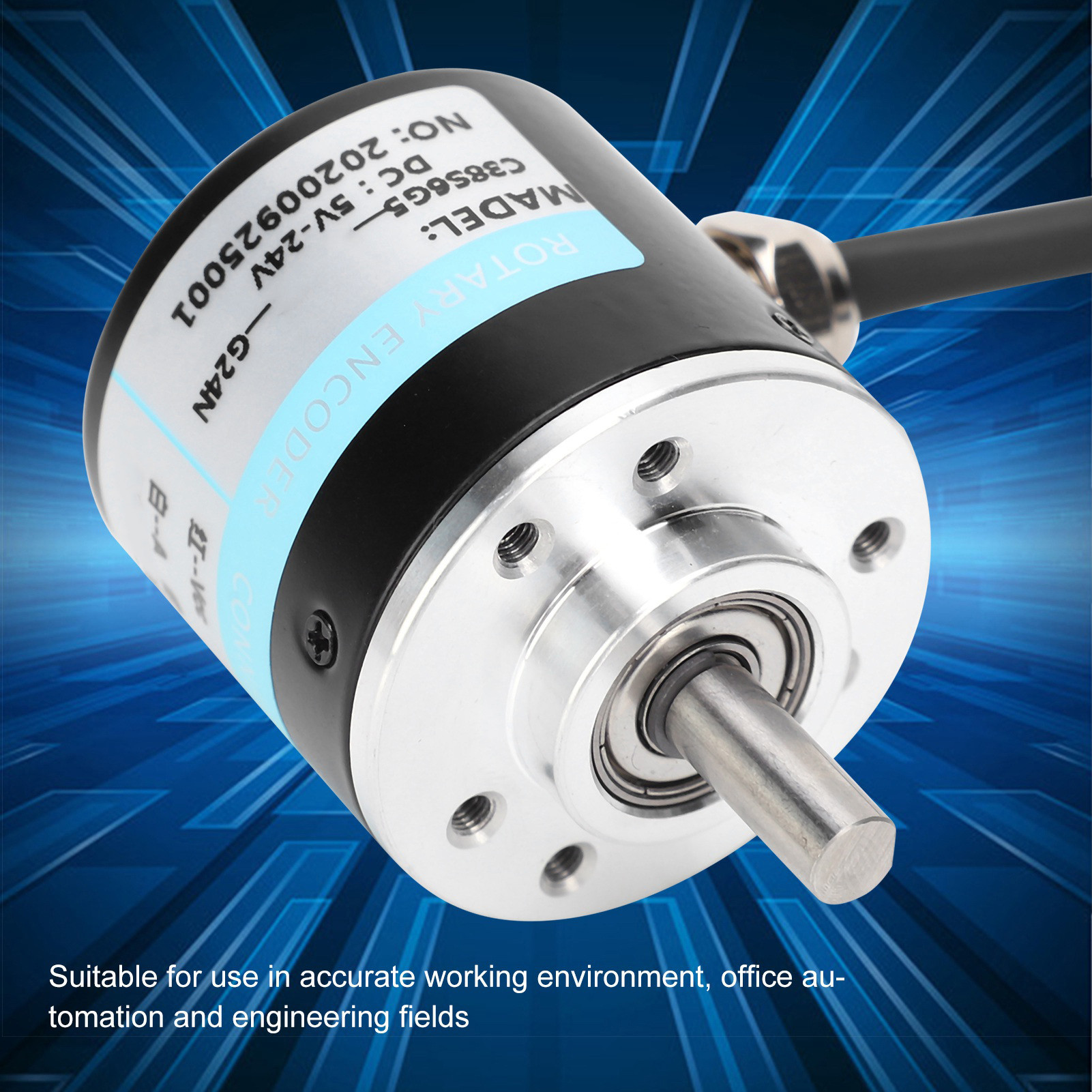

3. Suitable for use in accurate working environment, office automation and engineering fields.
4. Shaft diameter is 6mm, working voltage is 5-24V DC, comprehensive speed is 3000-6000 rpm.
5. Small size, easy to carry and store, convenient to use and with good performance.
Specification:

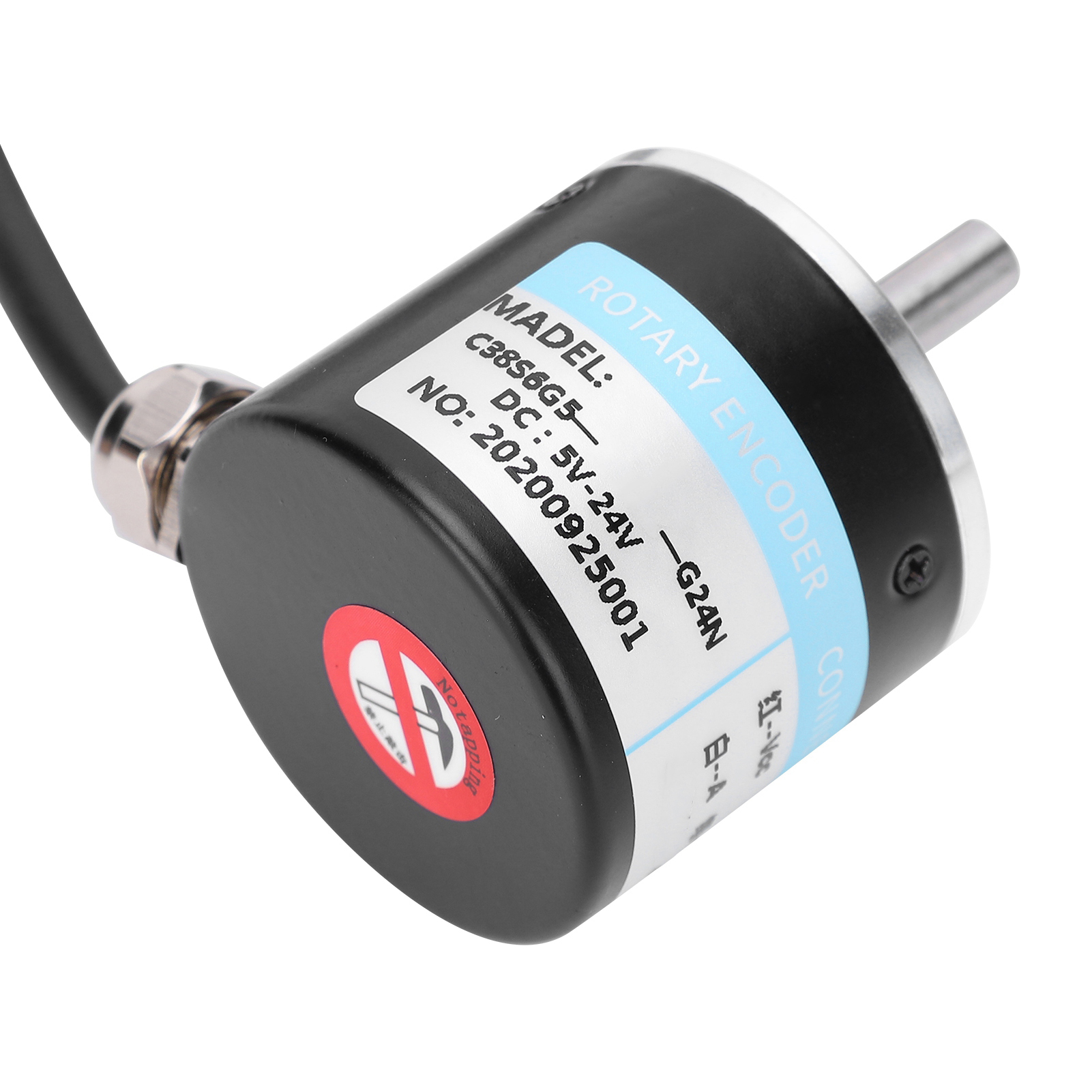

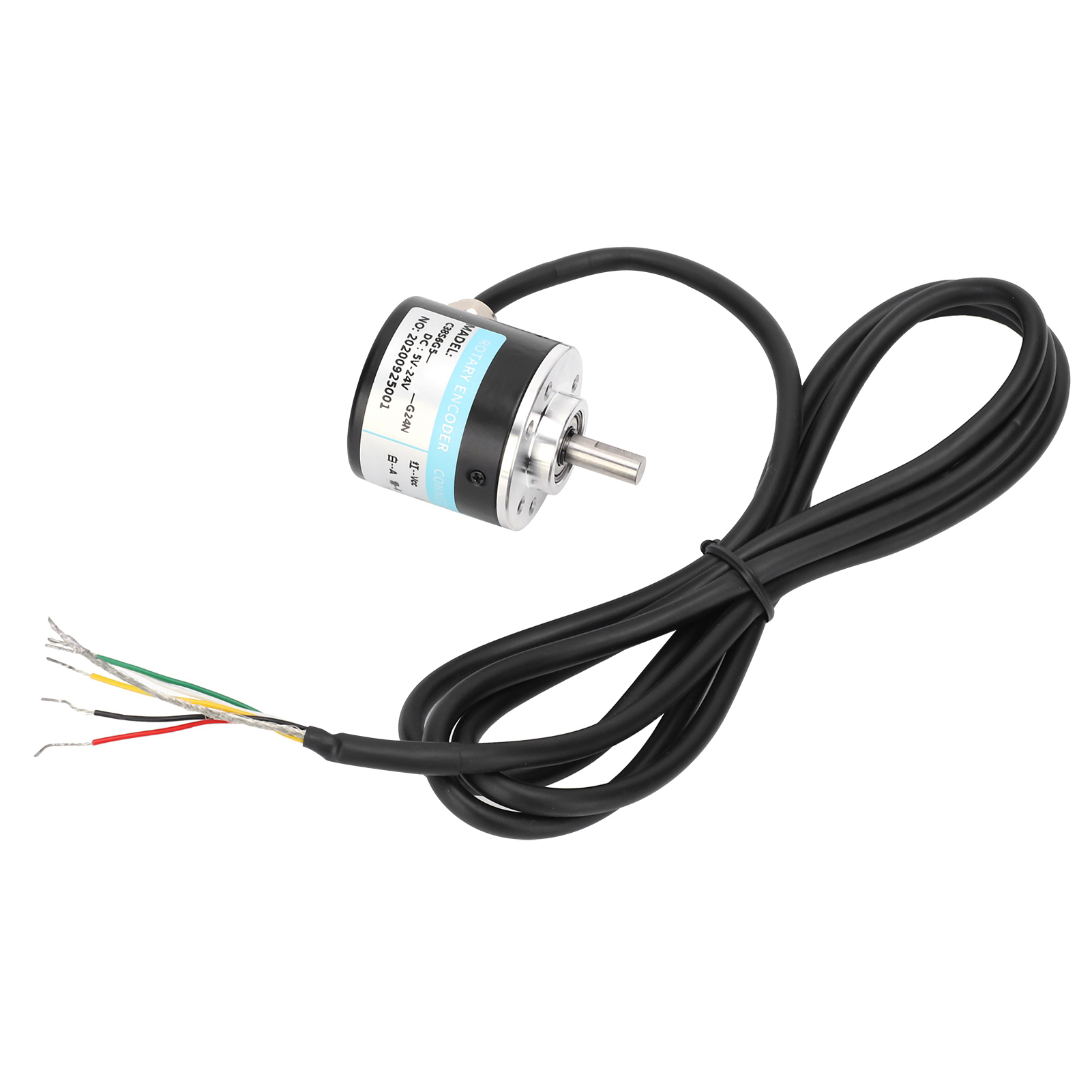

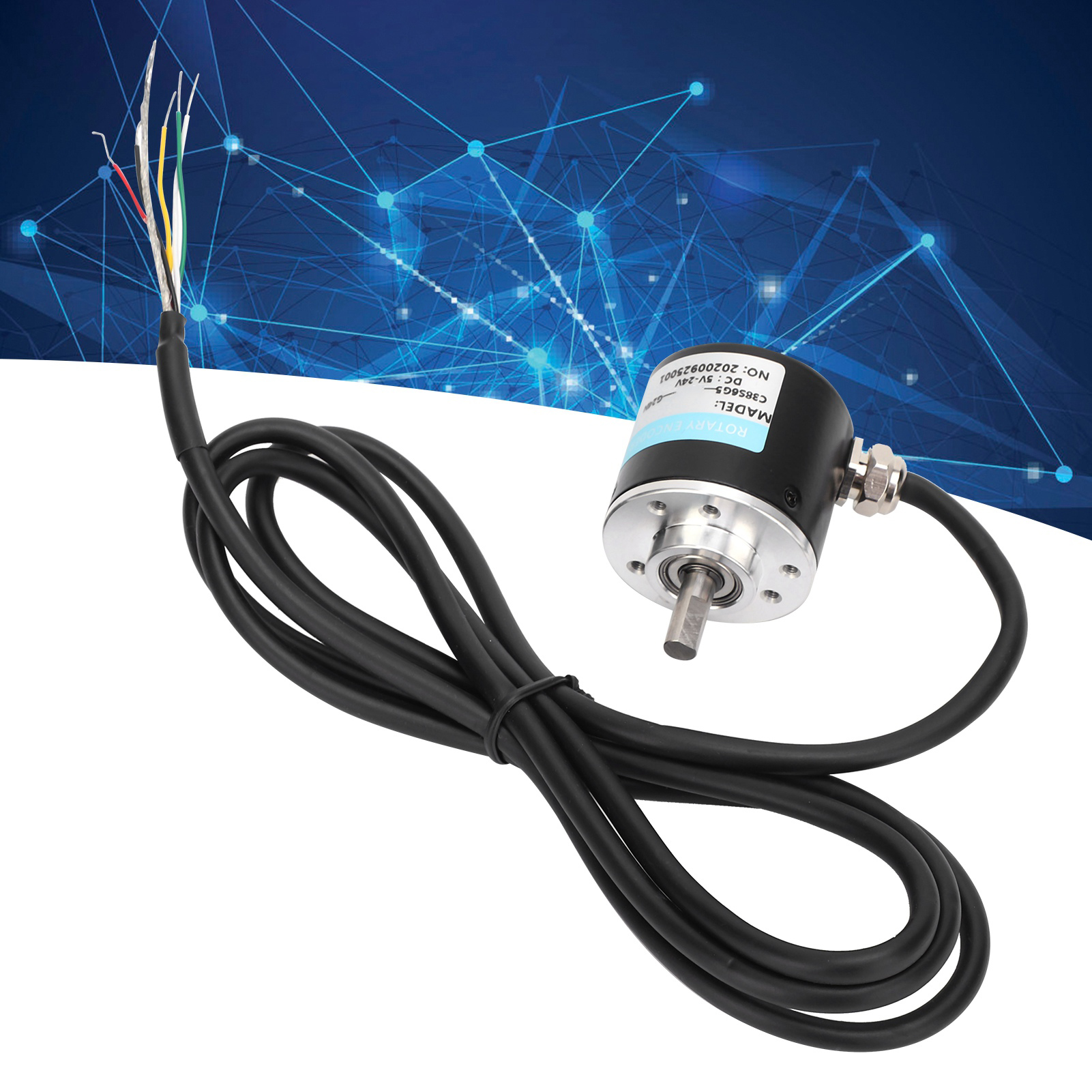

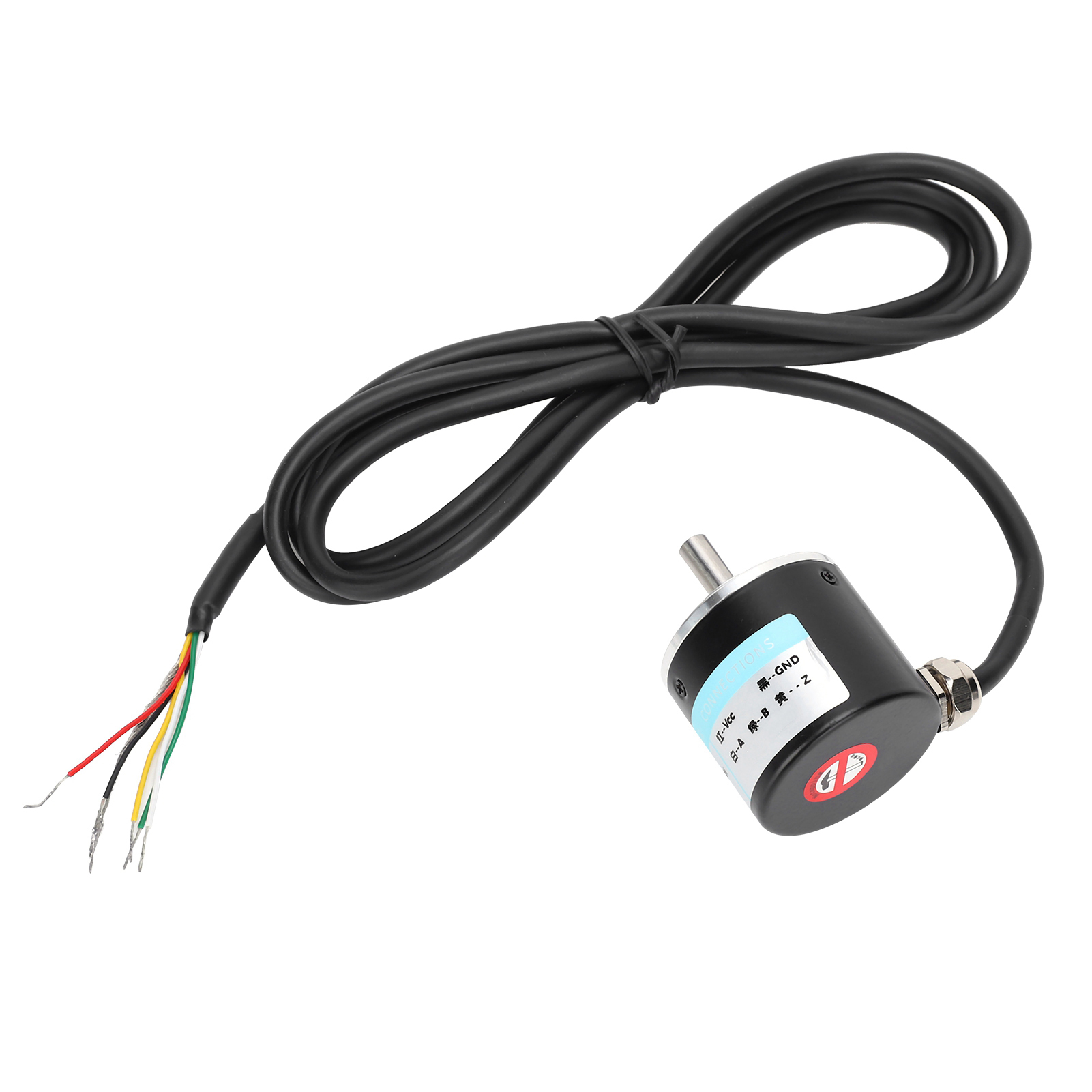

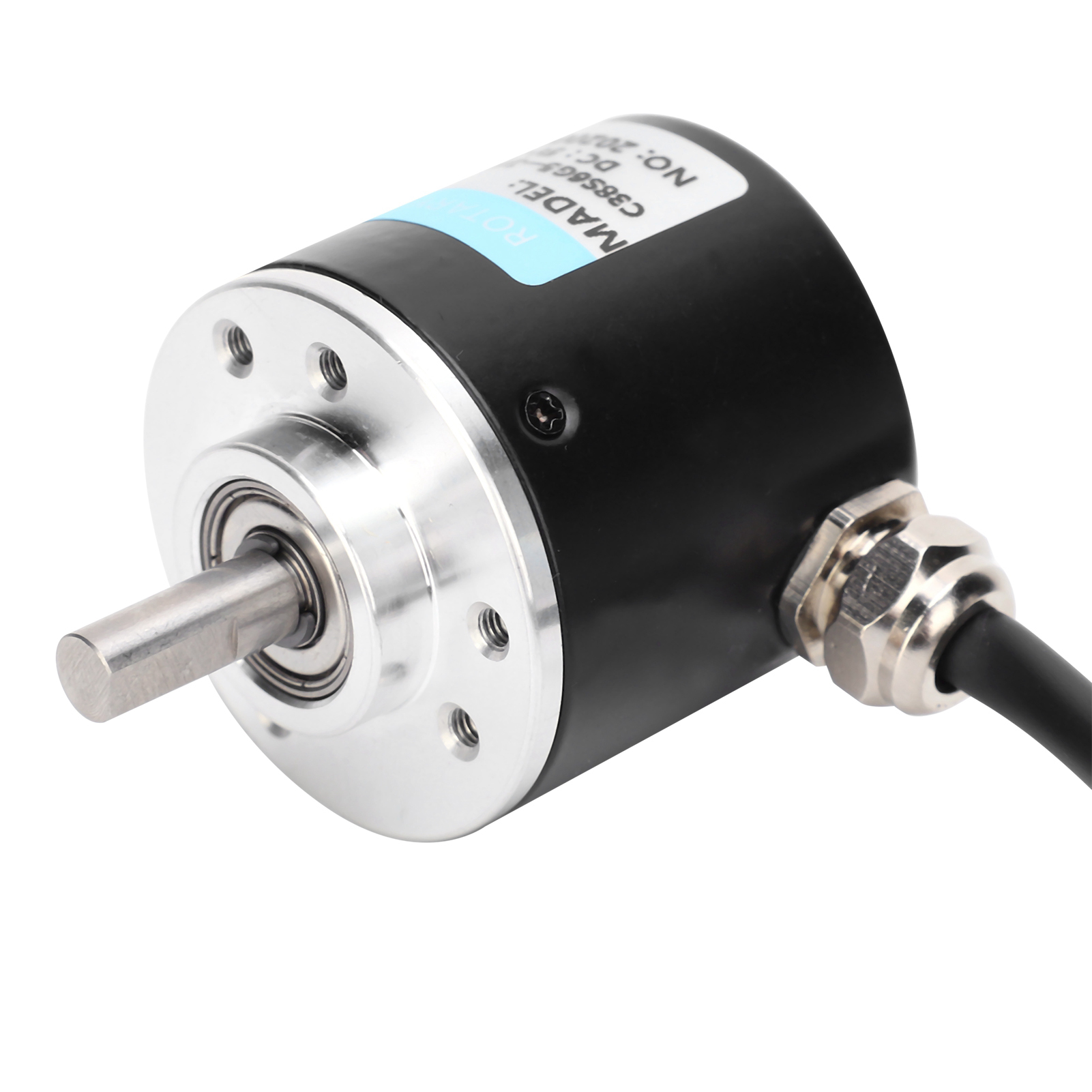

Item Type: Encoder
Material: Aluminum + Plastic

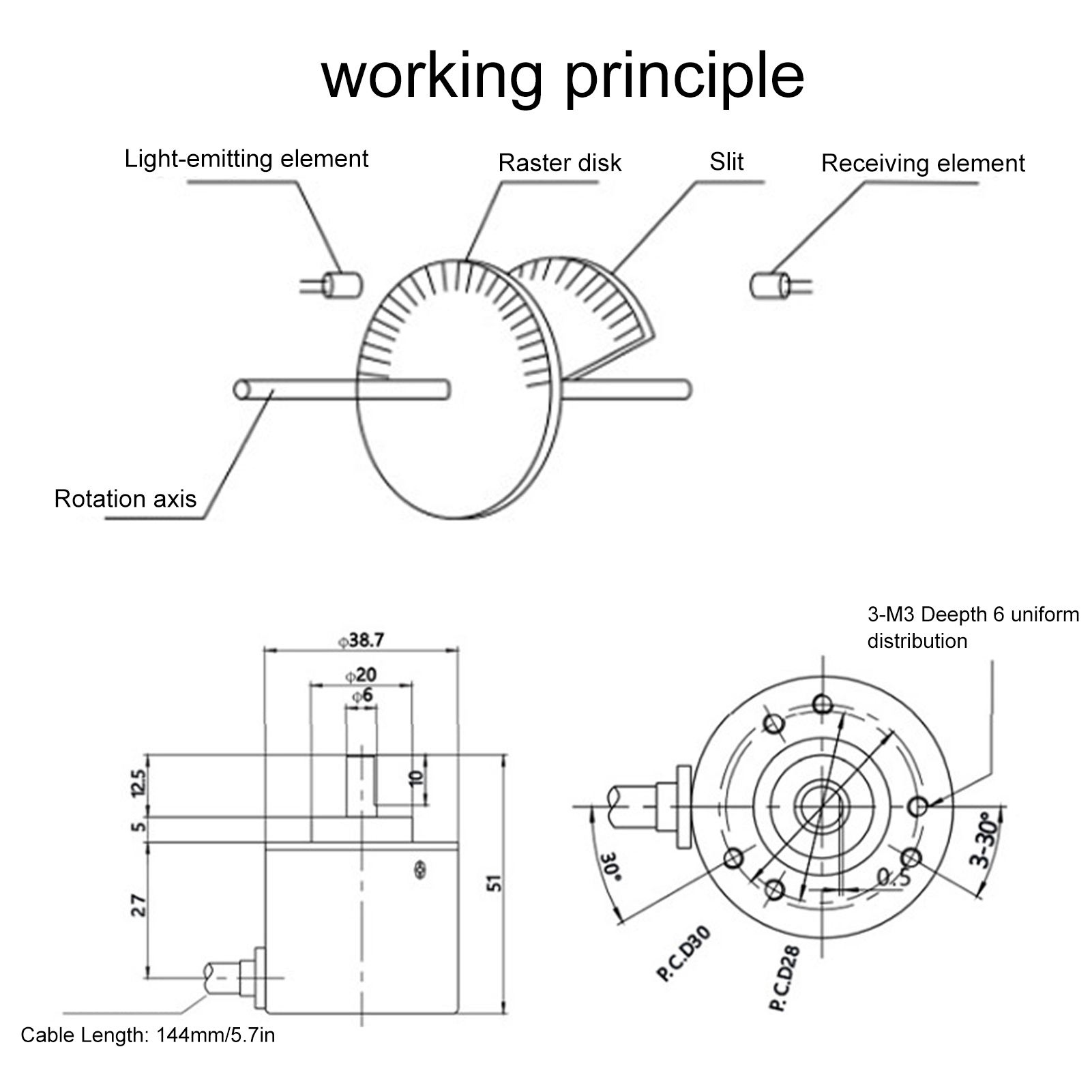

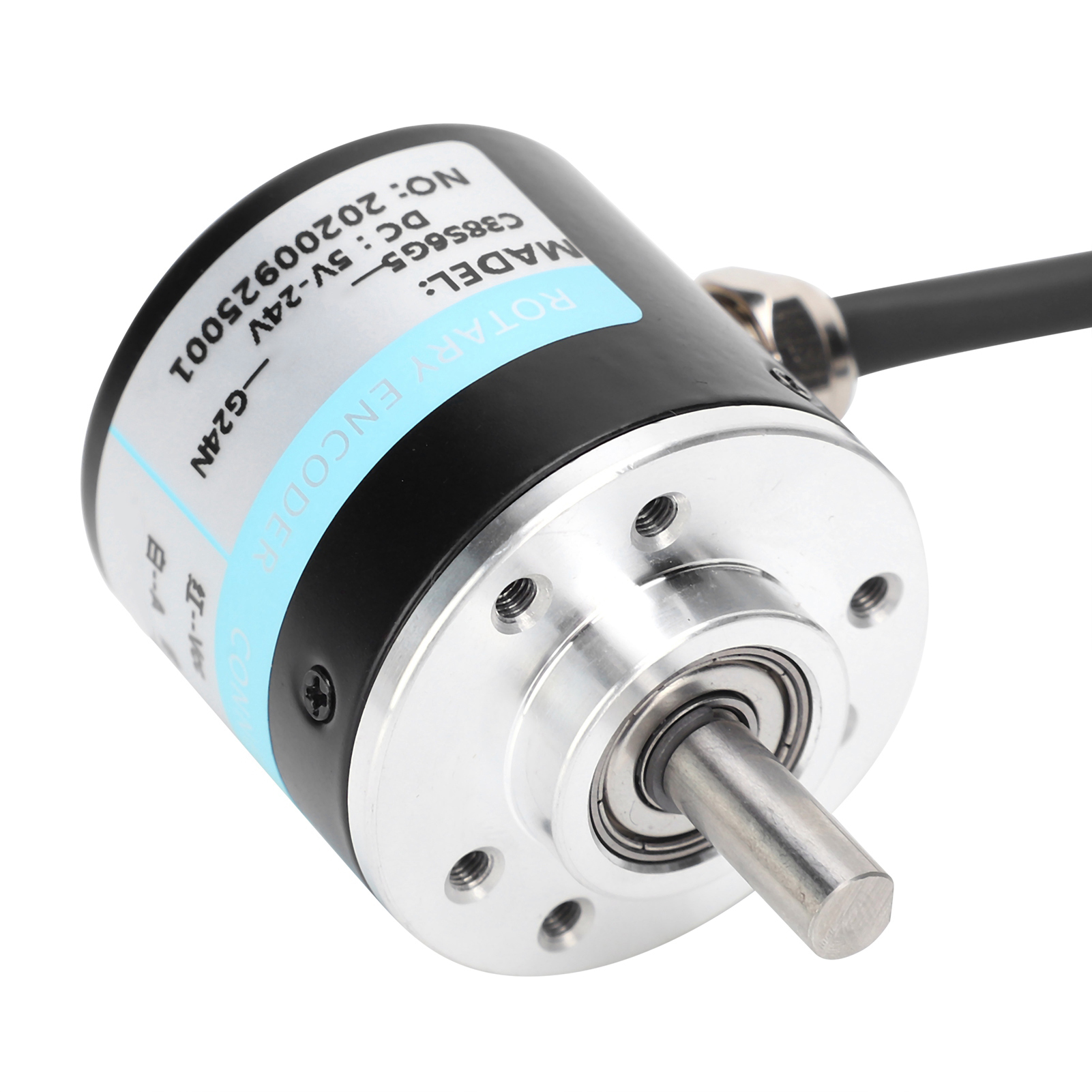

Shaft: Diameter: Approx. 6mm / 0.2in
Working Voltage: 5-24V DC
Comprehensive Speed: 3000-6000 rpm
Maximum Corresponding Frequency: 30KHZ
Number of Pulses: 1000B/1024B

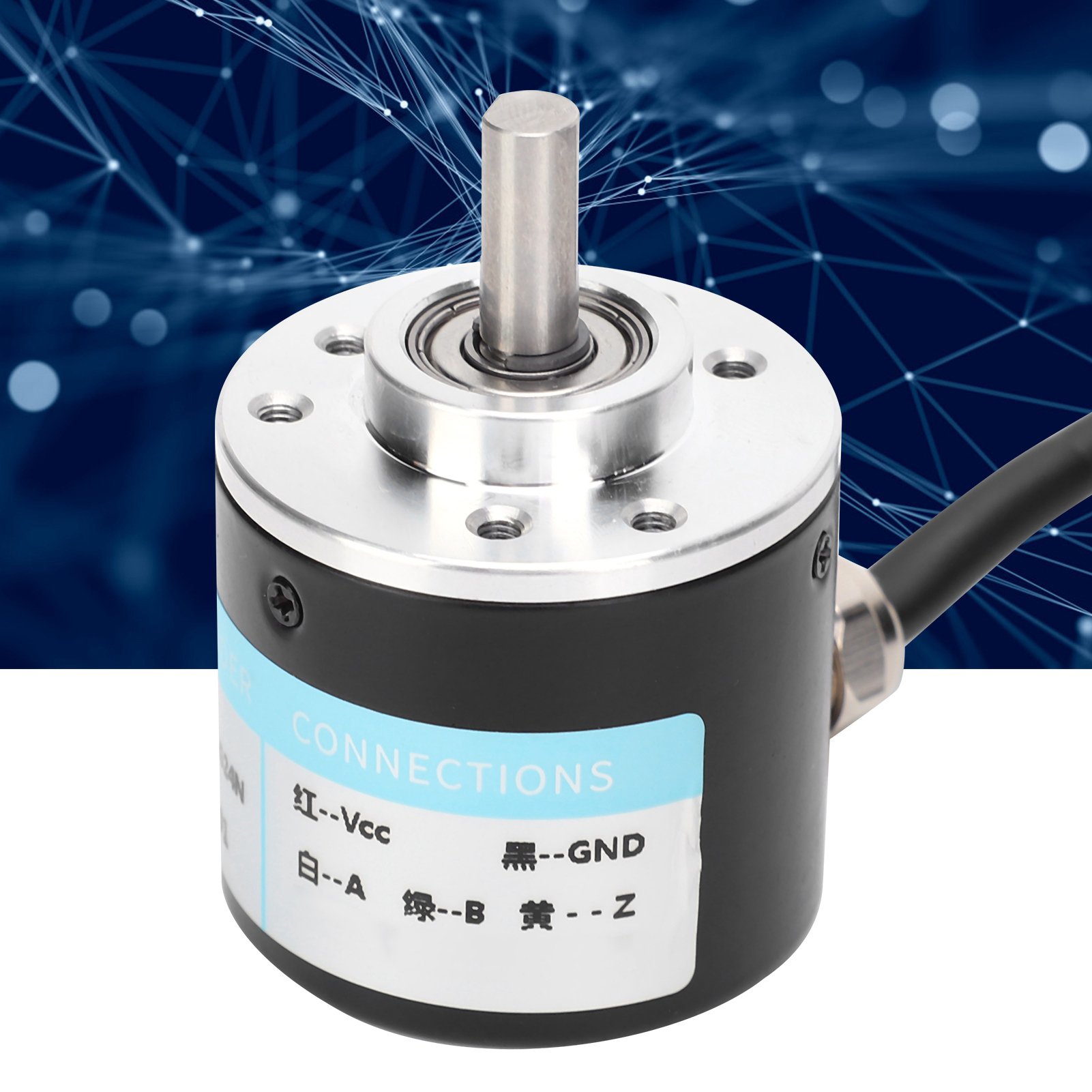

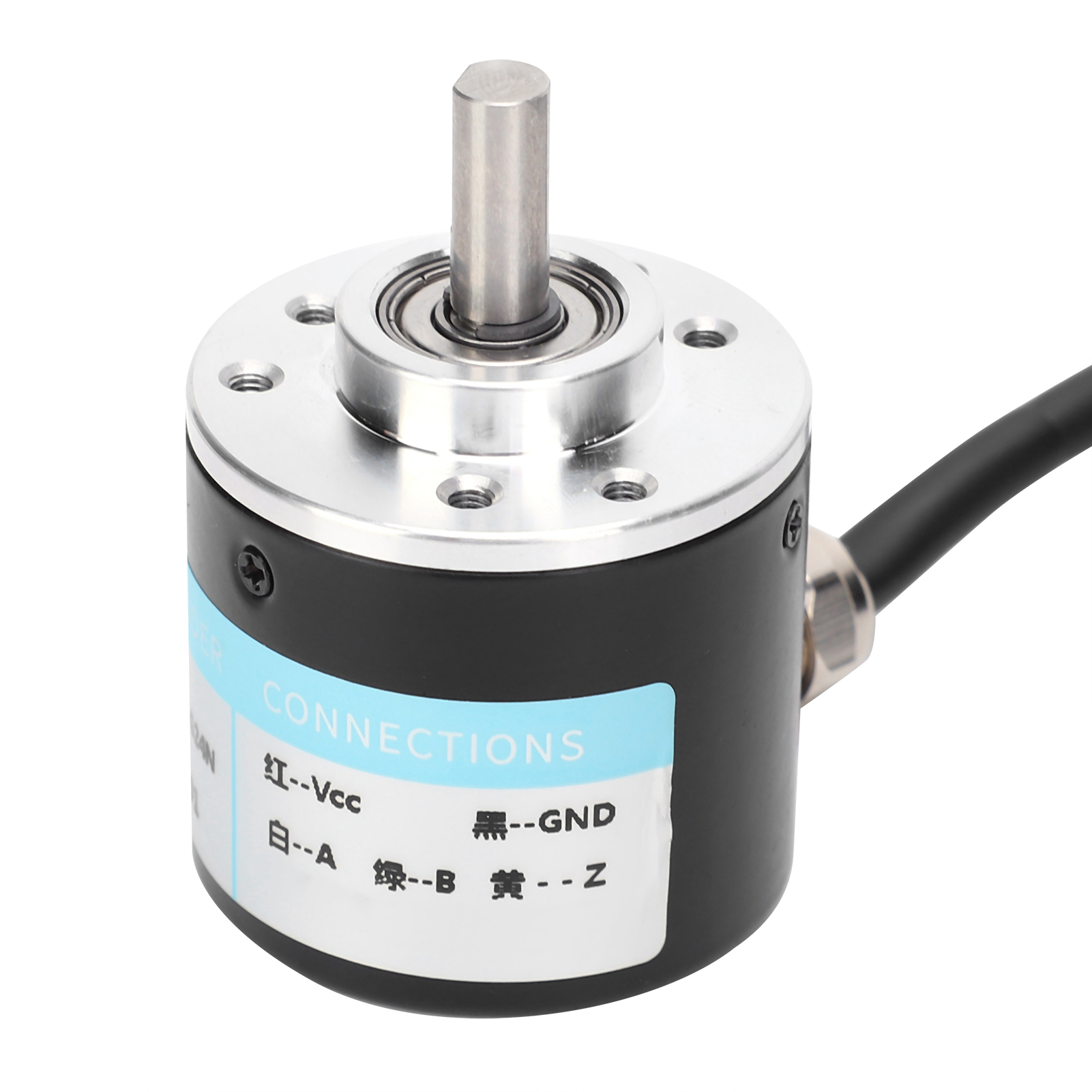

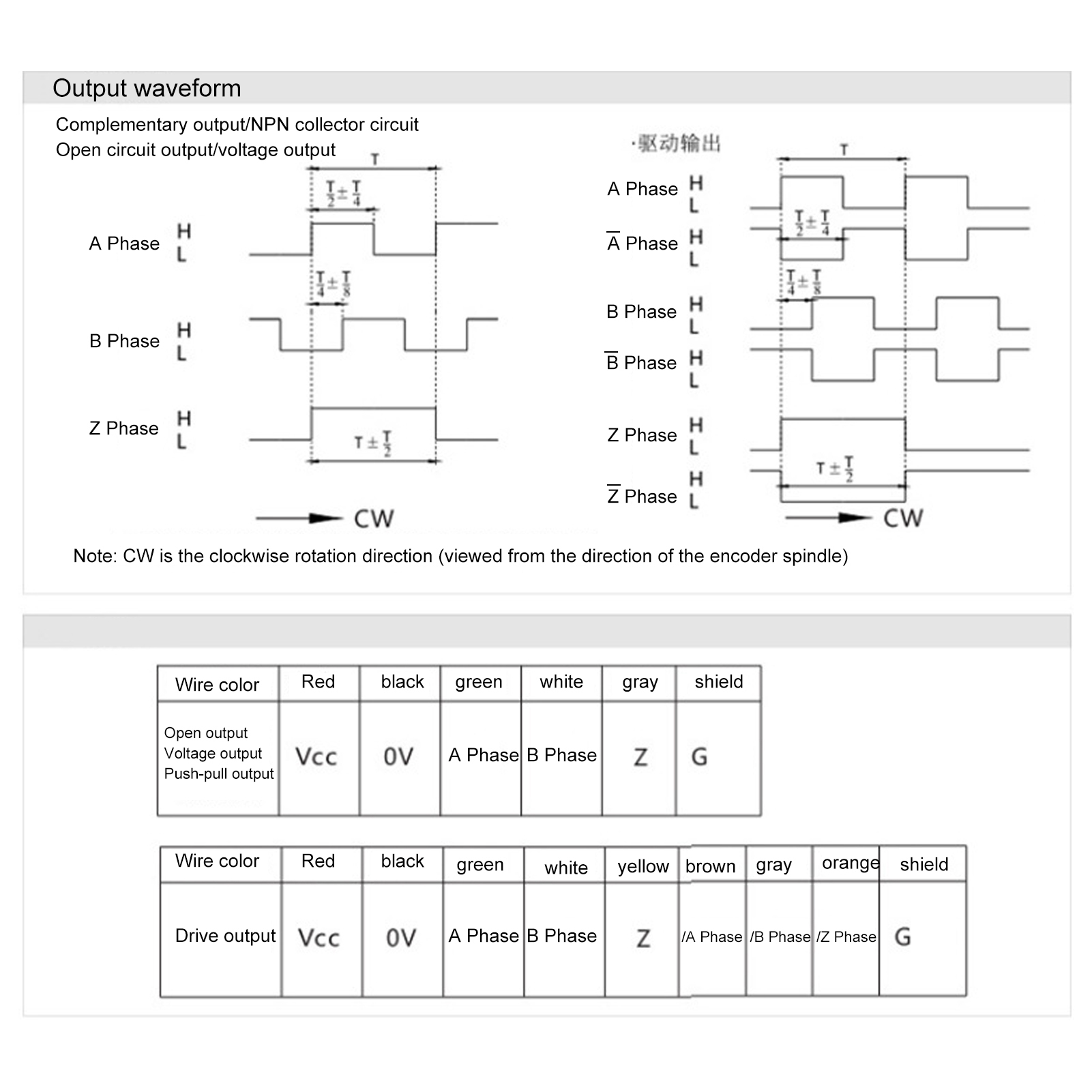

Number of Phases: ABZ three-phase

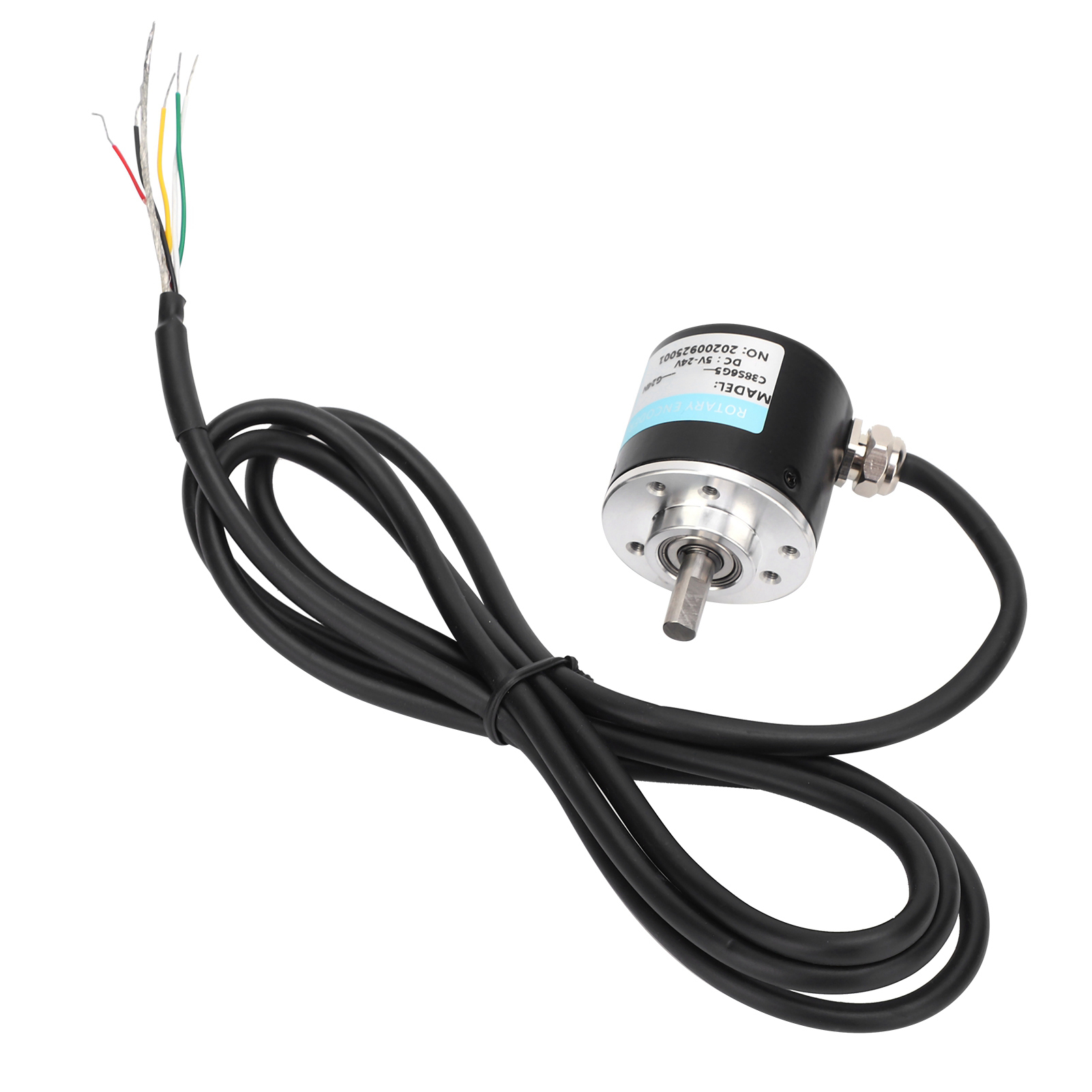

Cable Length: Approx. 144mm / 5.7in

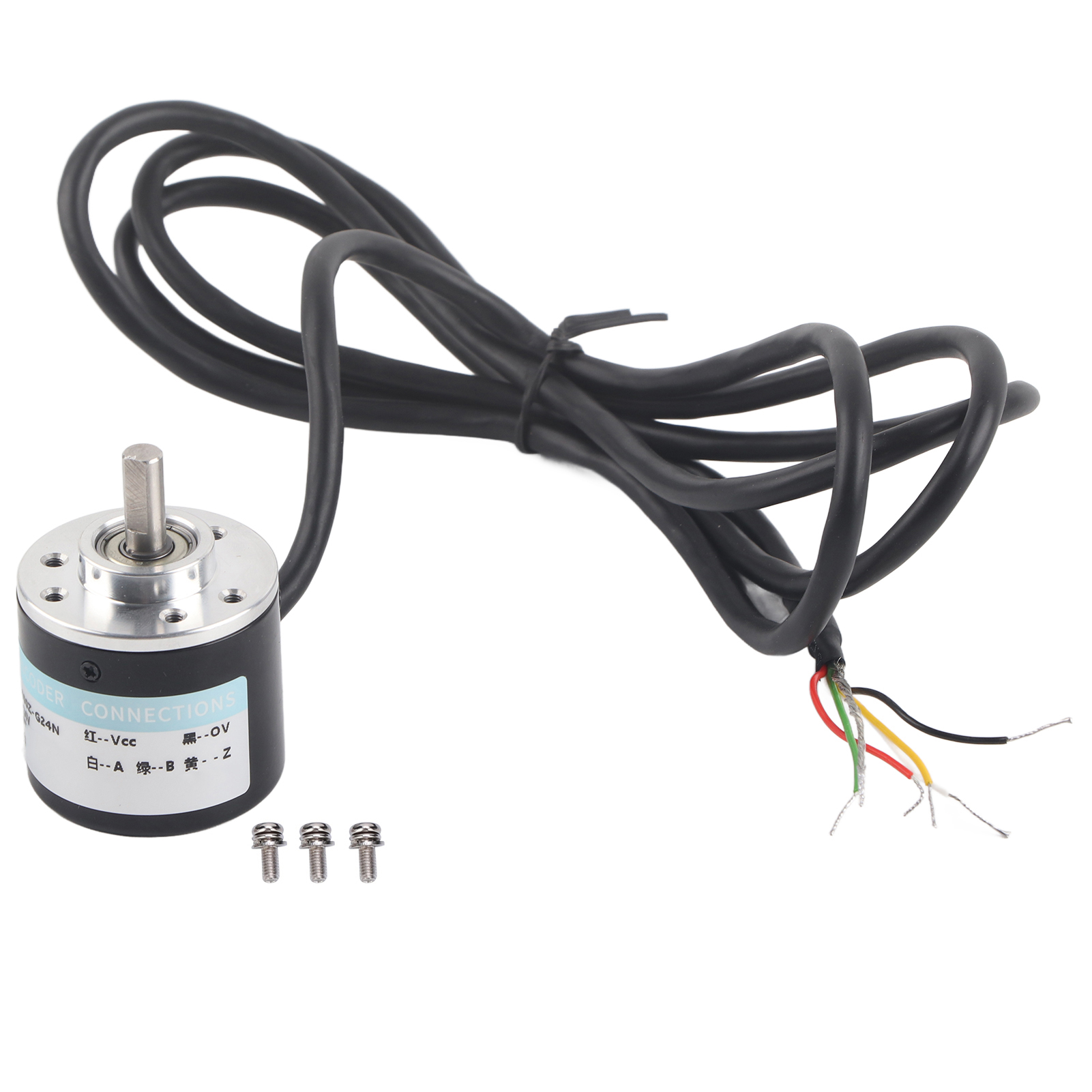

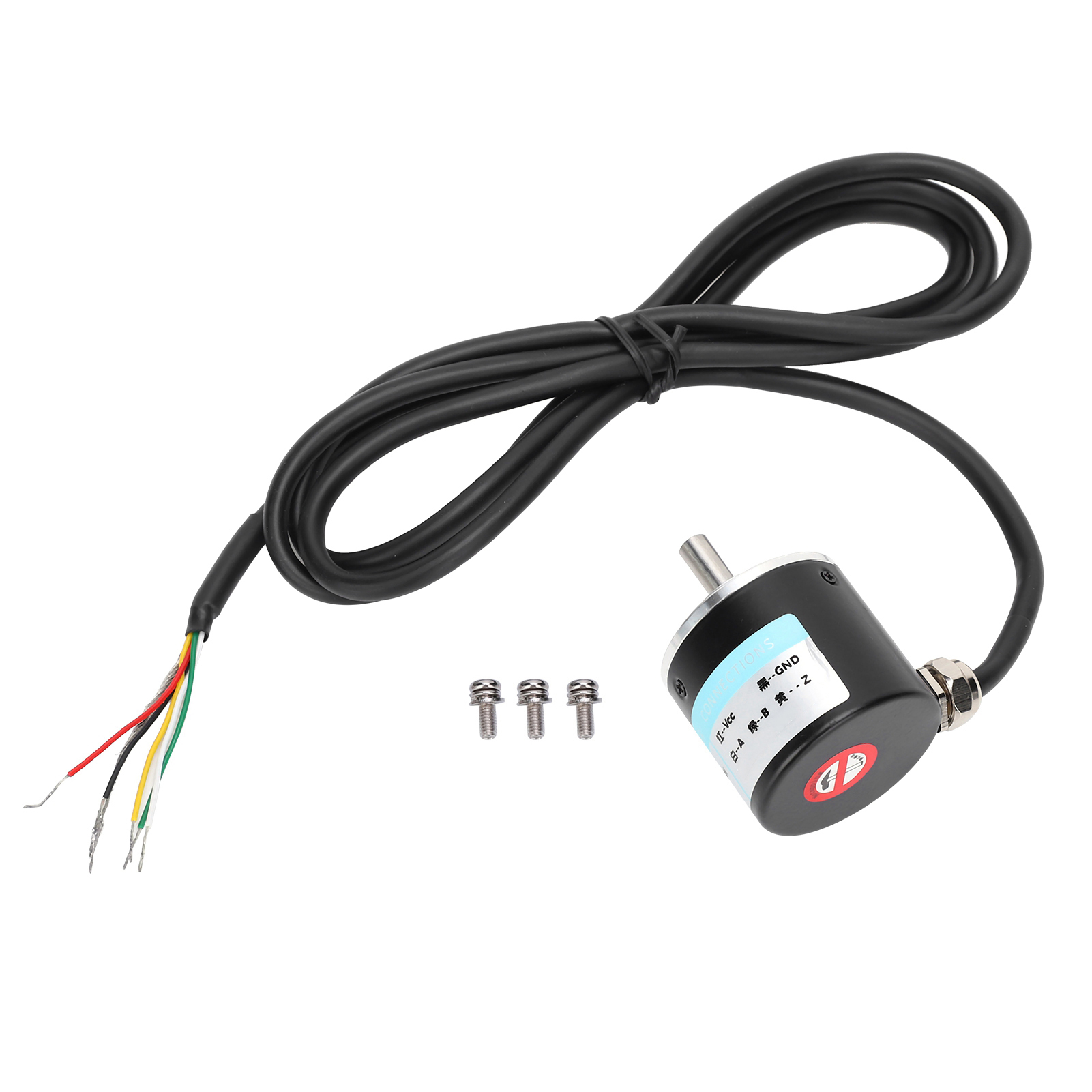

Package List:
1 x Encoder
3 x Screw
6 x Washer
Note:
1. This product is composed of accuracy components, so please be careful not to drop it
2. When installing, if the eccentricity or deviation angle is too large, it will shorten its service life
3. Do not use in strong impact, vibration, corrosive, large magnetic field, high temperature, high humidity and acid‑base environment
4. An error in the number of pulses may be caused when the power is turned on or off. After the power is turned on, there is a 0.5S delay time for use.
5. After the product is fixed, do not pull the cable with a force exceeding 29.4N
6. When there is a high‑voltage line or power line nearby, please use a conduit to cover the cable

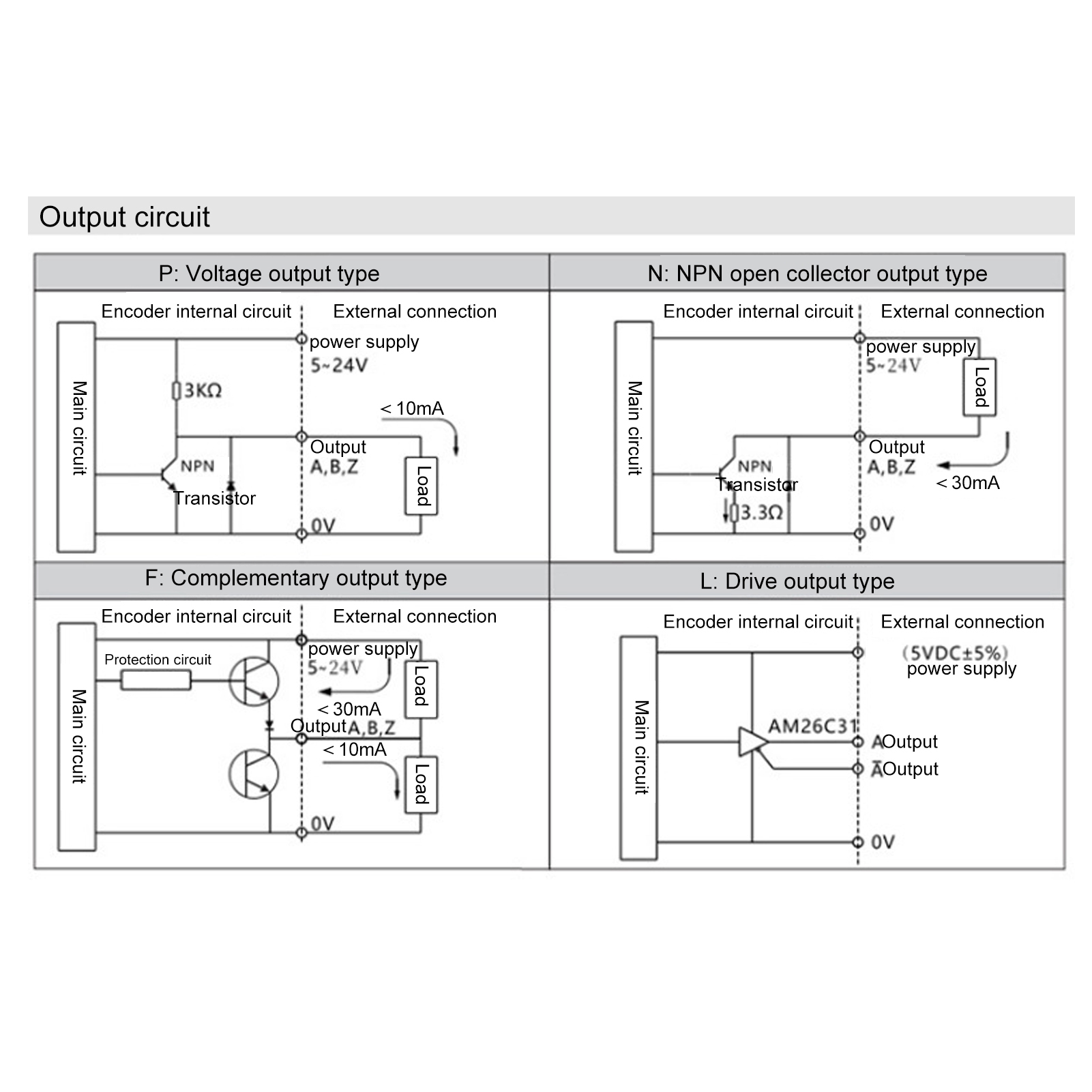

7. When wiring, pay attention not to short‑circuit the terminals, and make sure that the wiring is correct. Wrong wiring will damage the internal circuit. It is recommended to insulate the unconnected terminals.
8. Shielded wire should be grounded
9. Do not disassemble the product by yourself

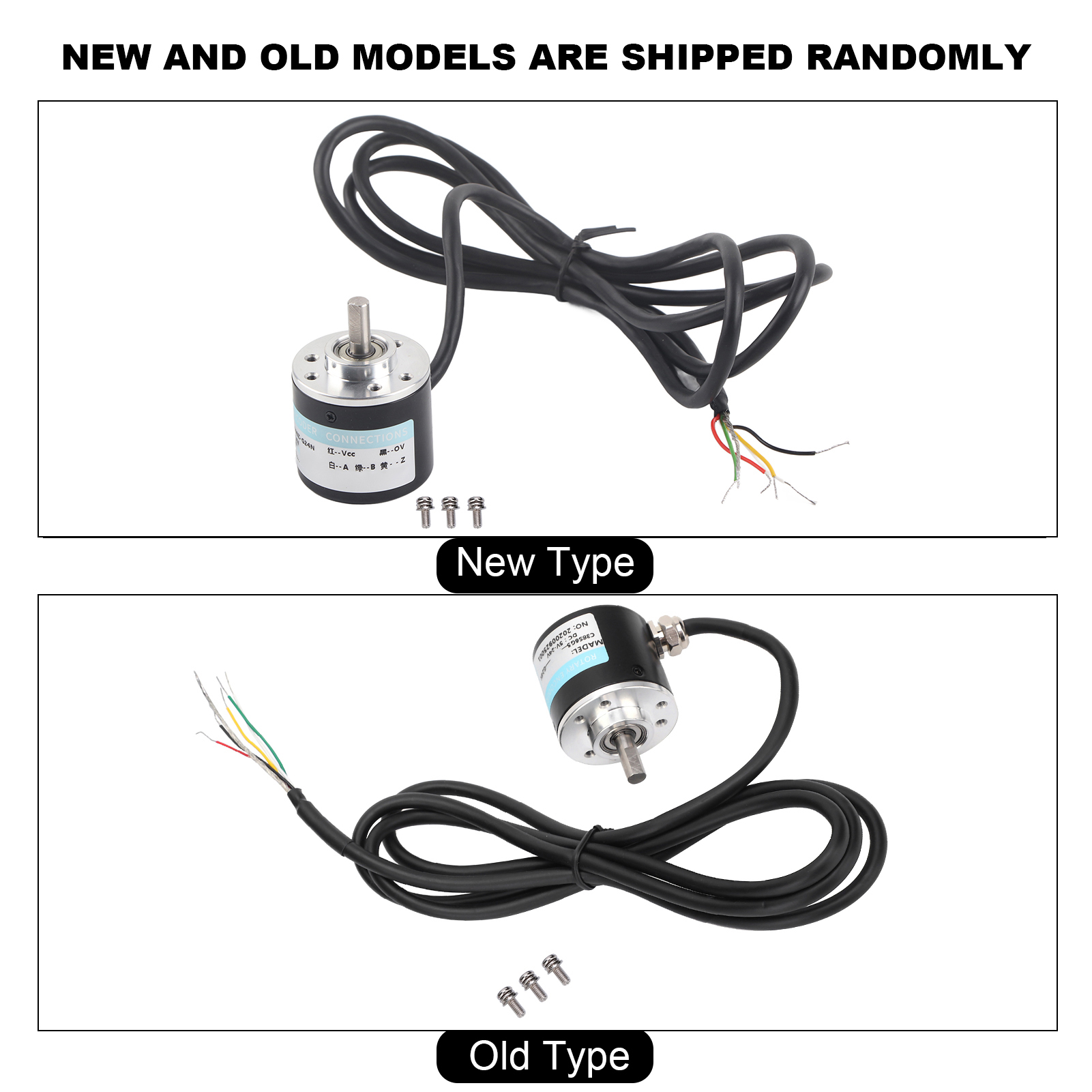

10. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
